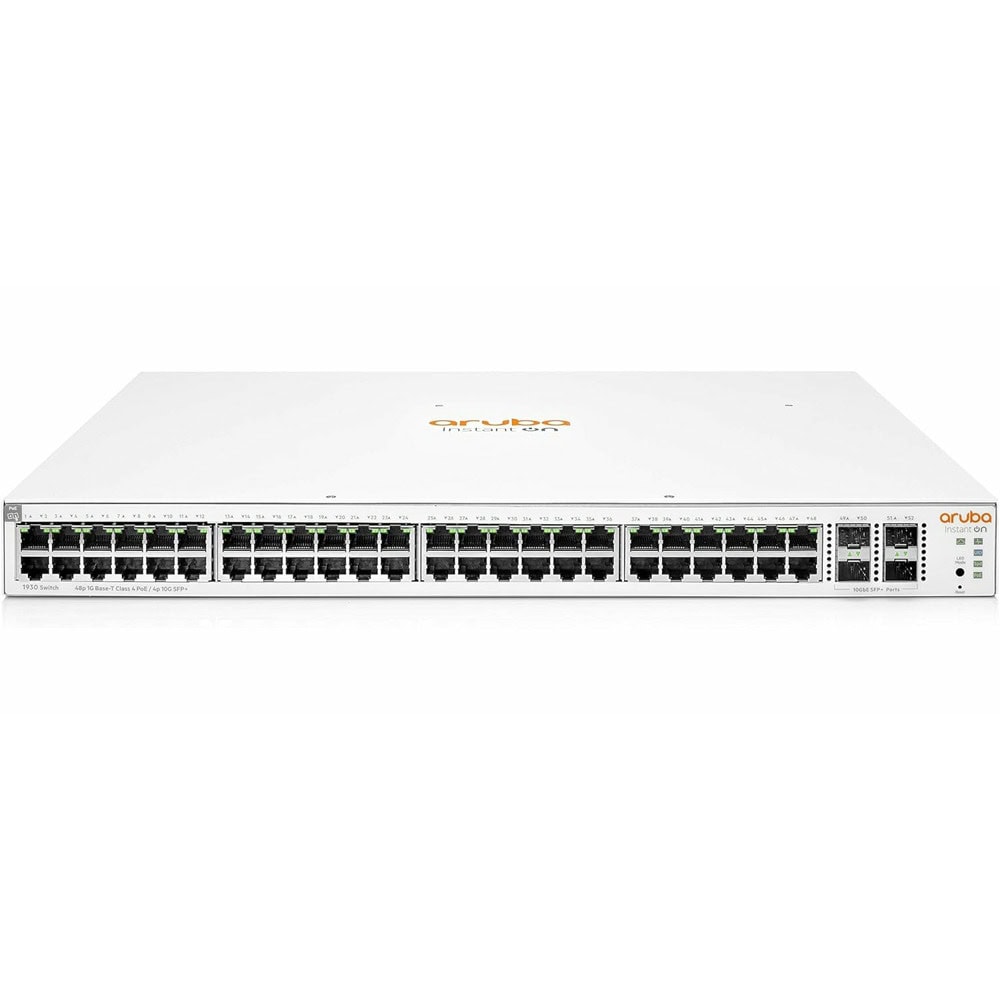

Name: Суич HPE Aruba IOn 1930 48G, 1000Mbps, 52 порта, 48x 10/100/1000 PoE, 4x 10GbE SFP+
Brand: HPE
SKU: NTLHHPEJL686B
Price: 1511.41 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

Specifications	Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686B)
I/O ports and slots
	48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports
Physical Characteristics
Dimensions	17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height)
Weight	9.97 lb (4.52 kg)
Processor and memory
	ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Performance
100 Mb Latency	< 4.5 uSec
packet size	64B
1000 Mb Latency	< 2.2 uSec
packet size	64B
10000 Mb Latency	< 1.2 uSec
packet size	64B
Throughput (Mpps)	130.95 Mpps
packet size	64B
switching capacity	176 Gbps
Routing Table size (# of static entries)	32 entries
MAC Address table size (# of entries)	16,000 entries
Reliability MTBF (years)	57
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C)
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	15% to 95% @ 140°F (60°C)
Altitude	up to 10,000 ft (3 km)
Acoustic	Pressure: 40.6 Power: 63.2 dB

Specifications	Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686B)
Electrical Characteristics
Frequency	50/60 Hz
AC voltage	100 - 127 / 200 - 240 VAC
Current	5/2.5 A
Maximum power rating	460.0 W
Idle power	34.5 W
PoE power	370 W Class 4 PoE
Power supply	Internal power supply
