GIGABYTE X670E AORUS Master
НазадGIGABYTE X670E AORUS MasterGIGABYTE X670E AORUS MasterGIGABYTE X670E AORUS MasterGIGABYTE X670E AORUS MasterНапред

Дънна платка Gigabyte X670E Aorus Master, X670E, AM5, DDR5, PCI-E 5.0 (DP&HDMI)(CF), 4x M.2, 6x SATA 6Gb/s, 1x USB 3.2 Gen2 Type C, E-ATX

id 242974 Код: MBAGIGABYTEX670EAORUSMASTER
1013.82 лв

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

Gigabyte X670E Aorus Master

A NEW ERA IS COMING
DAYBREAK HOUR
X670E AORUS MASTER

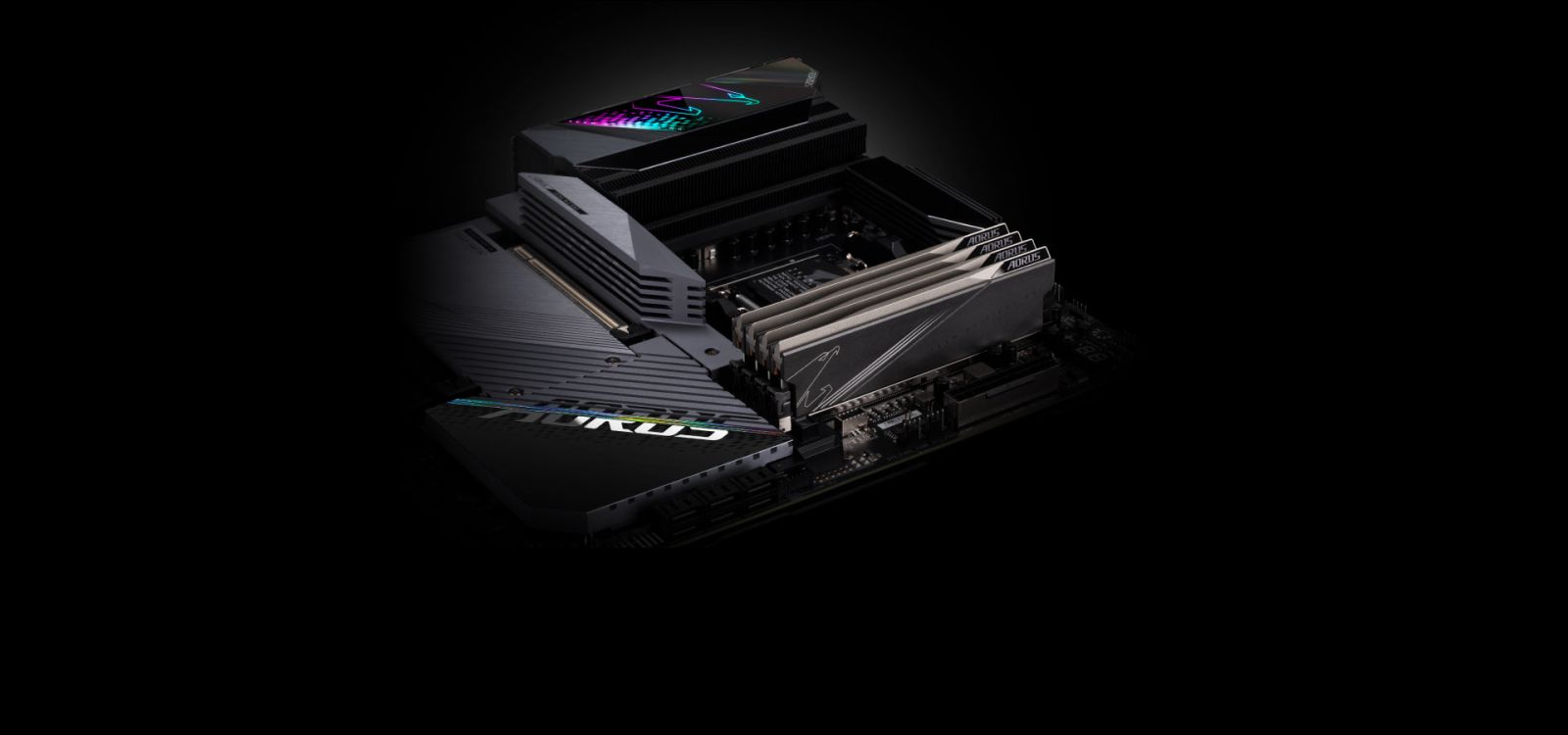

Unparalleled Performance

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

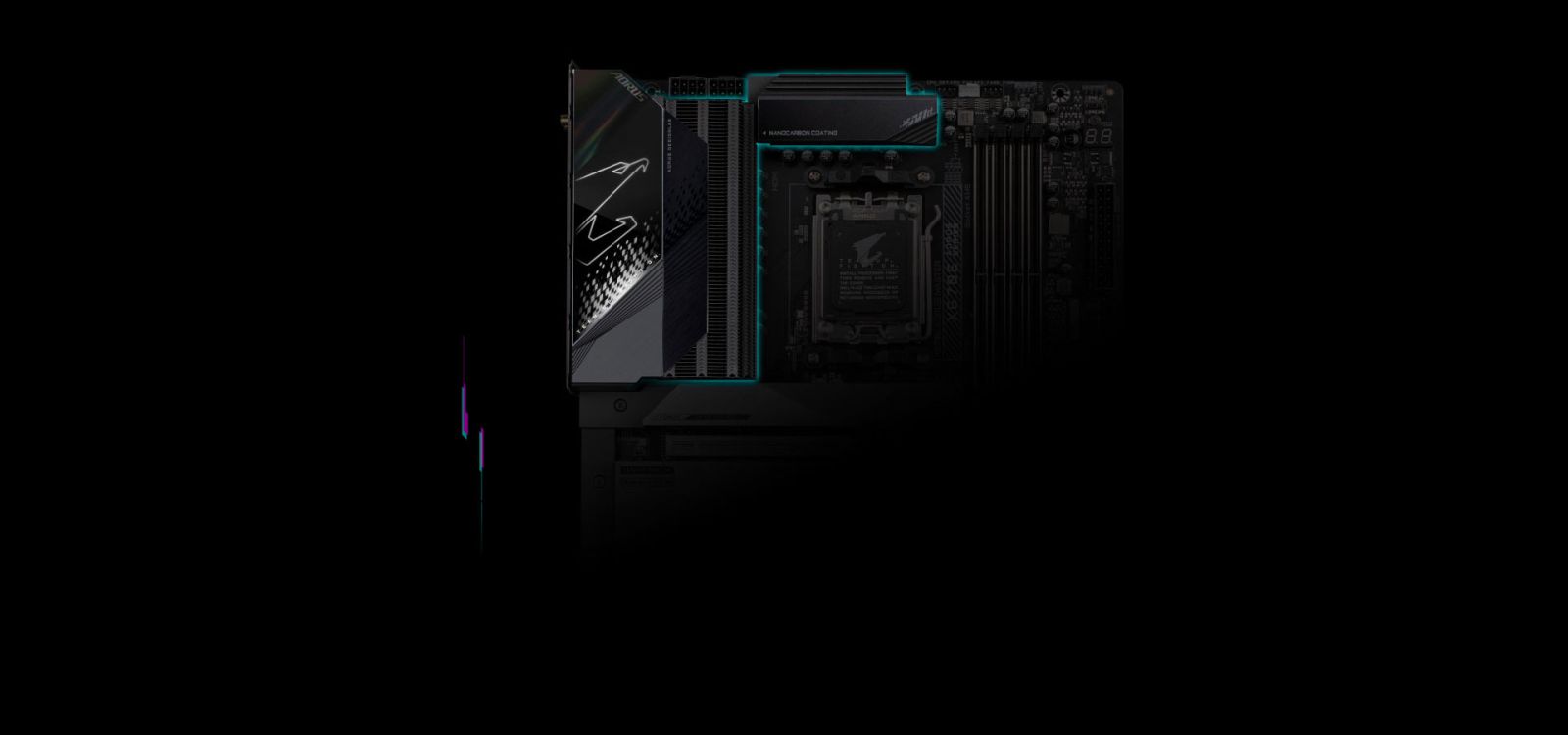

Outstanding Thermal Design

 GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.



Specifications:

  • CPU
    1. AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors
  • Chipset
    1. AMD X670
  • Memory
    1. Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version and HDR.
    2. 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version and HDR.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® ALC1220-VB CODEC
      * The back panel line out jack supports DSD audio.
    2. Support for DTS:X® Ultra
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel output
      * You can change the functionality of an audio jack using the audio software. To configure
      7.1-channel audio, access the audio software for audio settings.
    5. Support for S/PDIF Out
  • LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    Intel® Wi-Fi 6E AX210
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
      * Actual support may vary by CPU.
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
      * The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.
    Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
      * Actual support may vary by CPU.
    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
      * Actual support may vary by CPU.
    Chipset:
    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
    2. 6 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    CPU:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    CPU + USB 2.0 Hub:
    1. 2 x USB 2.0/1.1 ports on the back panel
    Chipset:
    1. 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
    2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    4. 4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+USB 3.2 Gen 1 Hub:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 4 x system fan headers
    6. 4 x system fan/water cooling pump headers
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 1 x CPU cooler LED strip/RGB LED strip header
    10. 4 x M.2 Socket 3 connectors
    11. 6 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    15. 2 x USB 3.2 Gen 1 headers
    16. 2 x USB 2.0/1.1 headers
    17. 1 x noise detection header
    18. 1 x THB_U4 add-in card connector
    19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    20. 1 x power button
    21. 1 x reset button
    22. 1 x reset jumper
    23. 1 x Clear CMOS jumper
    24. 2 x temperature sensor headers
    25. Voltage Measurement Points
  • Back Panel Connectors
    1. 1 x Q-Flash Plus button
    2. 2 x SMA antenna connectors (2T2R)
    3. 1 x DisplayPort
    4. 1 x HDMI 2.0 port
    5. 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
    6. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    7. 4 x USB 3.2 Gen 2 Type-A ports (red)
    8. 4 x USB 3.2 Gen 1 ports
    9. 2 x USB 2.0/1.1 ports
    10. 1 x RJ-45 port
    11. 1 x optical S/PDIF Out connector
    12. 2 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
    7. Noise detection
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
    4. Support for Smart Backup
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. E-ATX Form Factor; 30.5cm x 26.9cm









Виж още Дънни платки за AMD процесори Gigabyte
Виж всички Дънни платки за AMD процесори в категорията

Технически характеристики

Процесор сокет:  AM5
Чипсет:  X670E
Поддържана памет:  DDR5
Брой слотове за RAM памет:  4
Storage интерфейси:  SATA 6Gbit/s, M.2
RAID:  Да
Безжични мрежи:  802.11ax
Bluetooth:  Да
Видео слот:  PCI-E
Multi-Graphics технология:  CrossFire
Видео изход:  DP HDMI
Форм фактор:  E-ATX
Видеокарта:  Вградена
