Gigabyte UD1000GM PG5
НазадGigabyte UD1000GM PG5Gigabyte UD1000GM PG5Gigabyte UD1000GM PG5Gigabyte UD1000GM PG5Напред

Захранване Gigabyte UD1000GM PG5, 1000W, Active PFC, 80PLUS Gold, 120mm вентилатор

id 253258 Код: PWRPCGIGABYTEGPUD1000GMPG5

158.85 €

/

310.68 лв

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / Въпроси
Gigabyte UD1000GM PG5

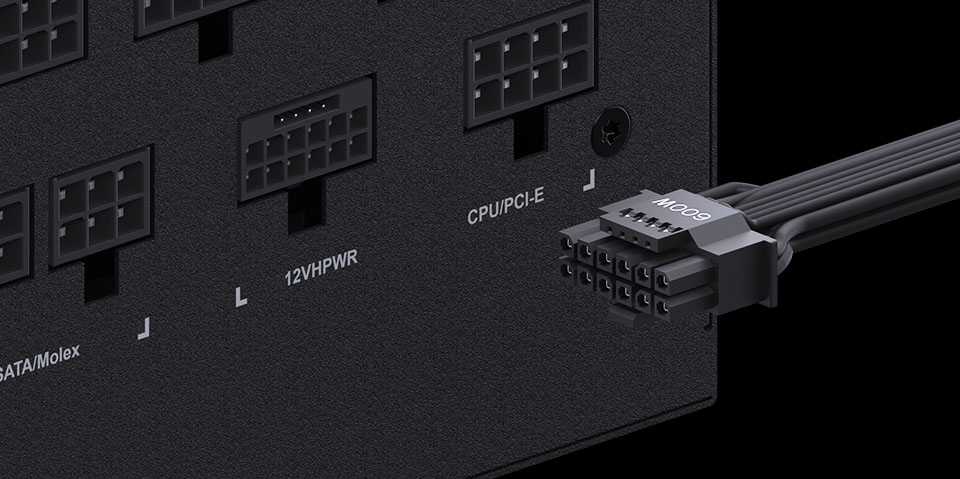

Support PCIe Gen 5.0 graphics card

The UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.


FULLY MODULAR DESIGN

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED

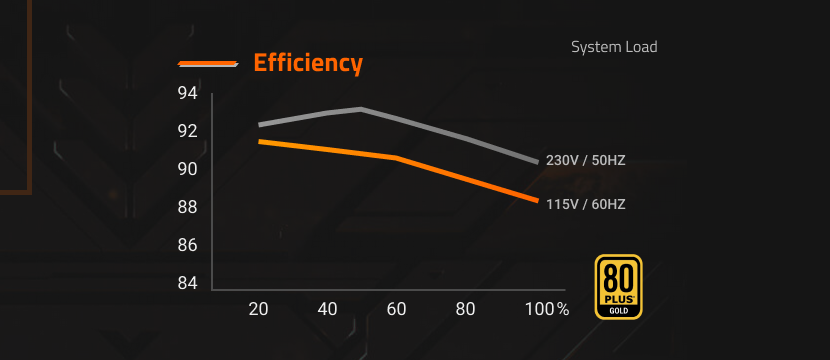

80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

PLENTIFUL POWER SUPPLY

The +12VHPWR and the +12V can provide a total of 1000W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.

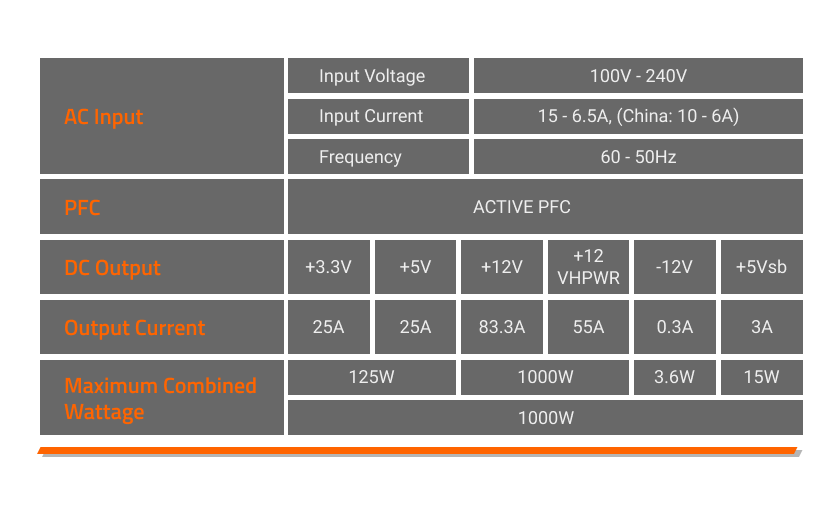

Технически спецификации
Model
GP-UD1000GM PG5

Type
Intel Form Factor ATX 12V

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
15-6.5A

Input Frequency
60-50 Hz

Output Capacity
1000W

Dimension
150 x 140 x 86 mm

Fan Type

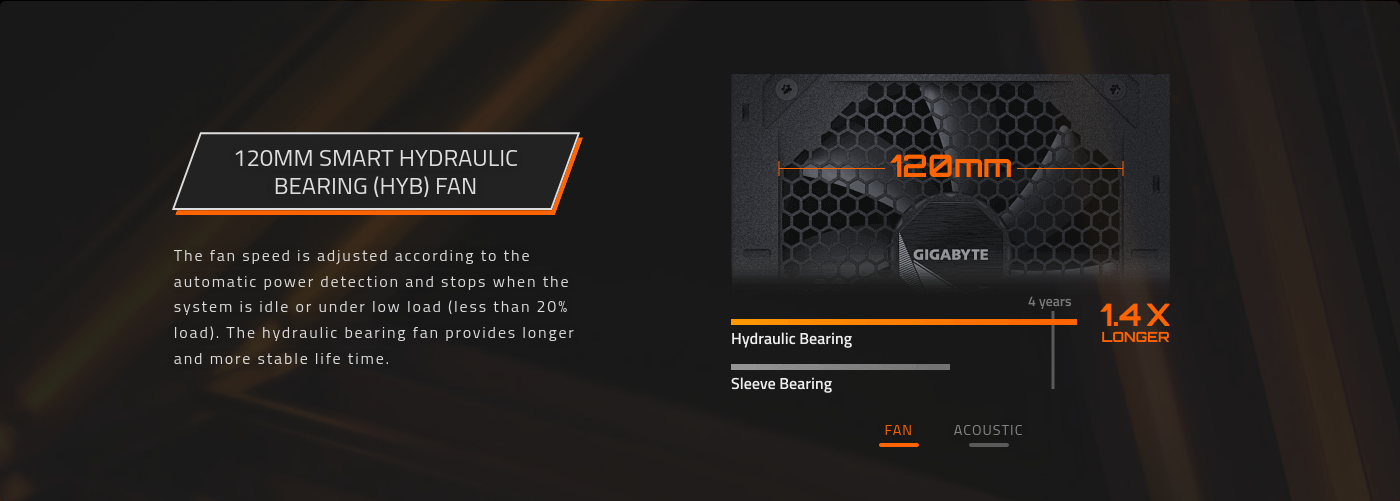

120mm Hydraulic Bearing(HYB)fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Flat, All black

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1


JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри Gigabyte
    Виж всички Захранвания Настолни компютри в категорията
    Технически характеристики
    Изходна мощност:  1000 W
    Модулен блок:  Да
    Форм фактор:  ATX
