Захранване Cooler Master Elite Gold 1200, 1200W, Active PFC, 80 Plus Gold, 135mm вентилатор

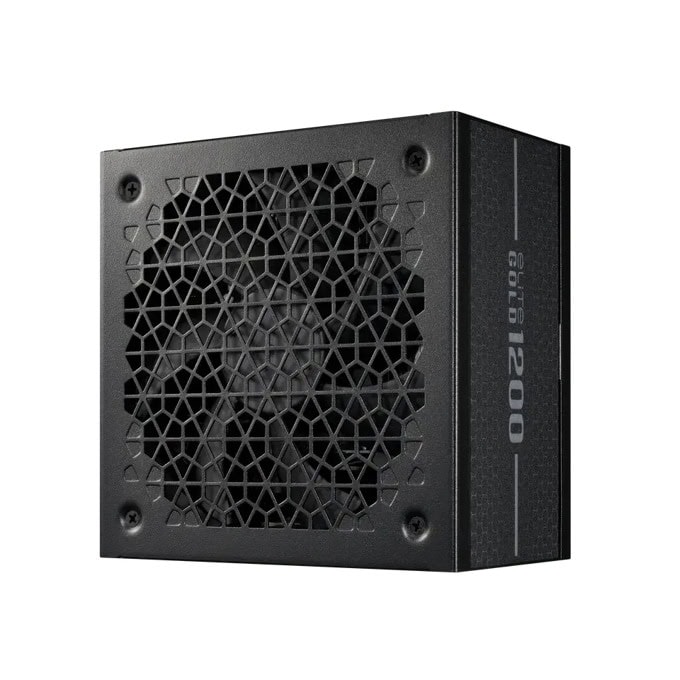

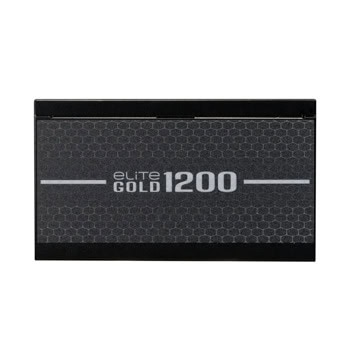

Cooler Master Elite Gold 1200

High-power gold performance for gaming and workstations

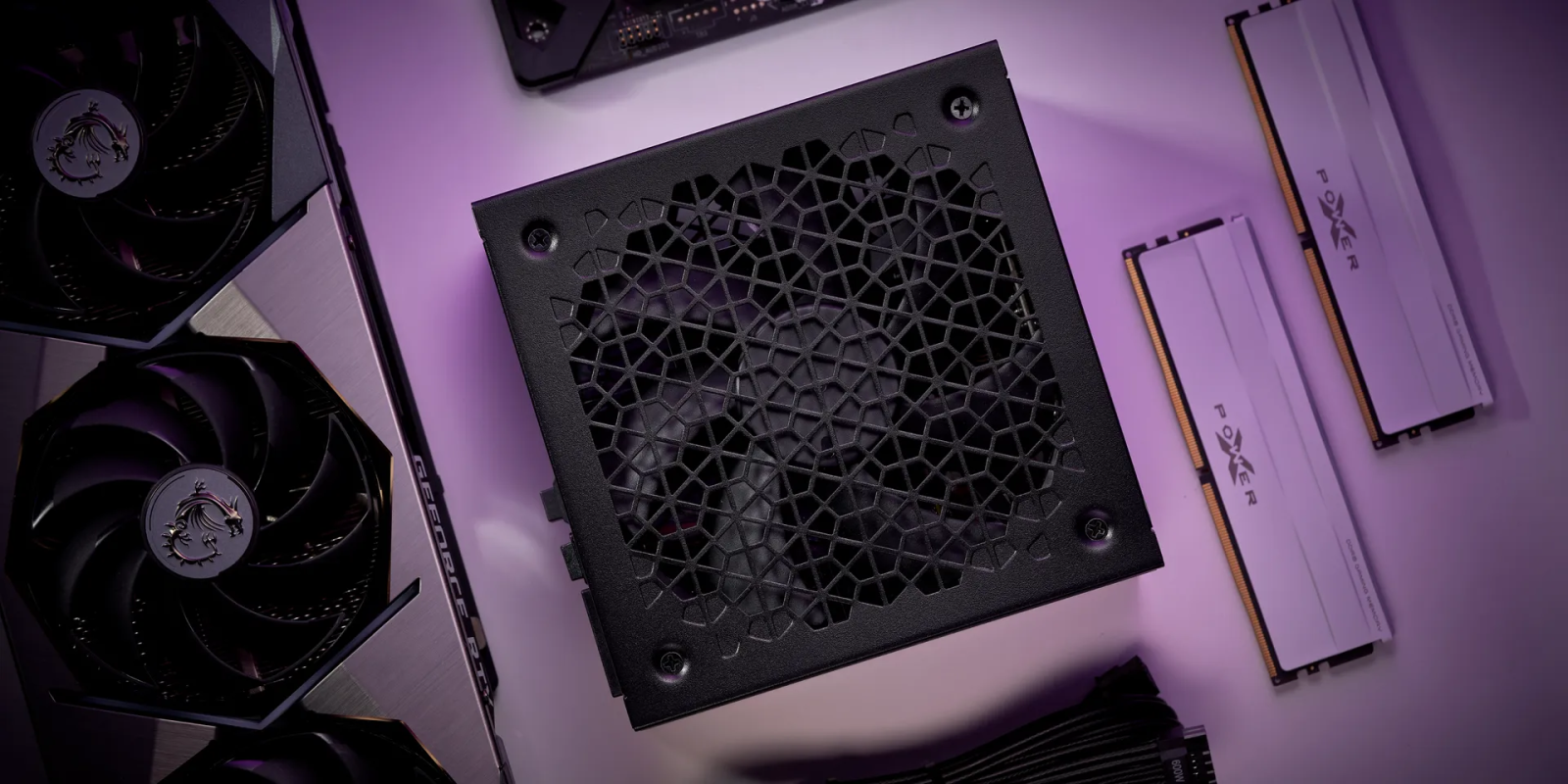

Cooler Master Elite Gold 1200 powers high-end gaming rigs and professional systems with ATX 3.1 support - ideal for RTX 50 GPUs. It offers 80 Plus Gold efficiency, reliable operation up to 40°C, quiet FDB cooling, embossed modular cables, dual EPS connectors, high-load performance.

High Temperature Resilience

Operates reliably at up to 40°C, making it ideal for extended gaming sessions, professional rendering, and sustained high-load workloads—all without sacrificing stability or efficiency.

Compatible with ATX 3.1 and PCIe Gen 5.1 standards ATX 3.1 provides tighter voltage and current regulation, supporting up to 200% peak power. The Elite Gold 1200 meets full ATX 3.1 specs and supports PCIe Gen 5.1 for stable next-gen performance with RTX 50 GPUs and future high-power cards. *All performance stats confirmed in 25°C ambient temperature testing.

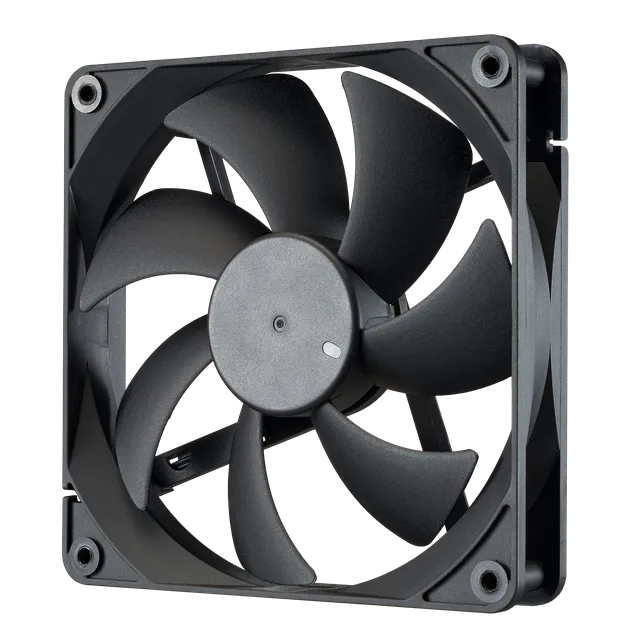

Quiet FDB Fan Fluid Dynamic Bearing fan ensures long-lasting, stable, and quiet cooling. Fan speed adjusts automatically based on power and stops when the system is idle or under low load (below 30%). *All performance stats confirmed in 25°C ambient temperature testing.

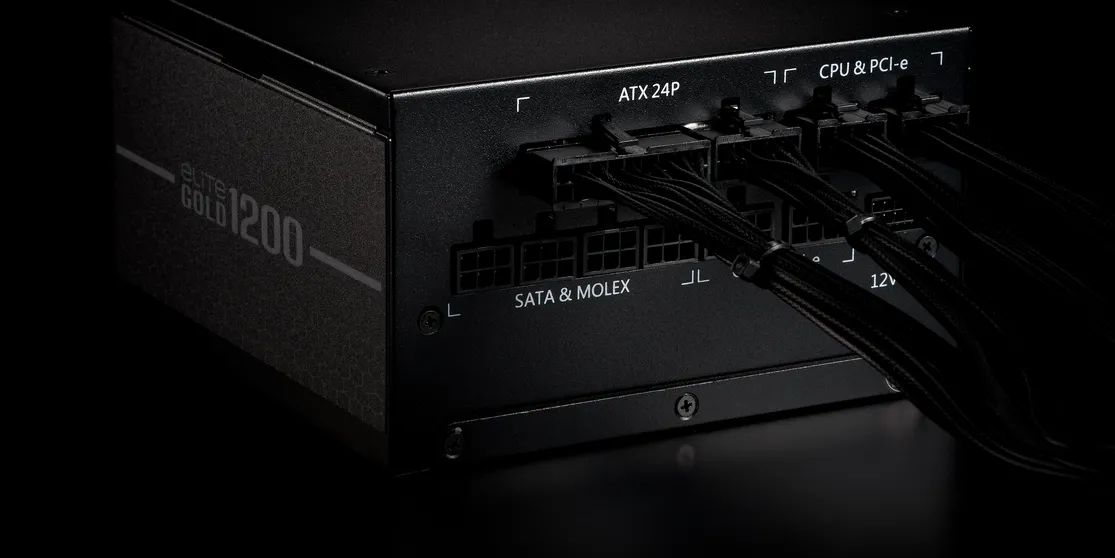

Fully Modular Embossed Cable Design The fully modular design comes with flat black cables that can be tailored to each build, offering improved grip and a premium look for easier management and a cleaner overall setup. *All performance stats confirmed in 25°C ambient temperature testing.

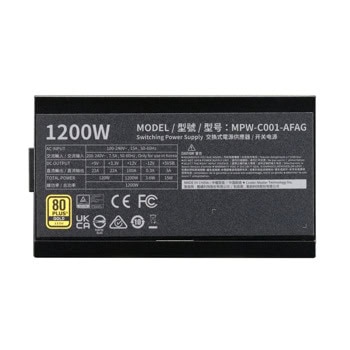

Specifications

ATX Version: ATX 12V Ver. 3.1

PFC: Active PFC

Input Voltage: 100-240V

Input Current: 7.5 ~ 15A

Input Frequency: 50-60Hz

Dimensions (L x W x H): 150 x 150 x 86 mm

Fan Size: 135mm

Fan Bearing: FDB

Efficiency: ≥90% @ Typical Load

80 PLUS Rating: 80 PLUS Gold

ErP 2014 Lot 3: Yes

Operating Temperature: 0-40°C

Power Good Signal: 100 - 150 ms

Hold Up Time≥: 16ms at 80% Load

MTBF>: 100,000 hours​ @ 25℃ ambient

Protections: UVP / OVP / OPP / OTP / SCP

Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH

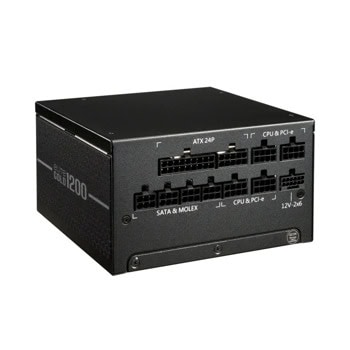

ATX 24 Pin Connectors: x1 = 1 (600mm)

EPS 4+4 Pin Connectors: x2 = 2 (700mm)

SATA Connectors: x9 = 3 (500+100+100mm)

Peripheral 4 Pin Connectors: x3 = 1 (500+100+100mm)

PCI-e 6+2 Pin Connectors: x6 = 3 (550+120mm)

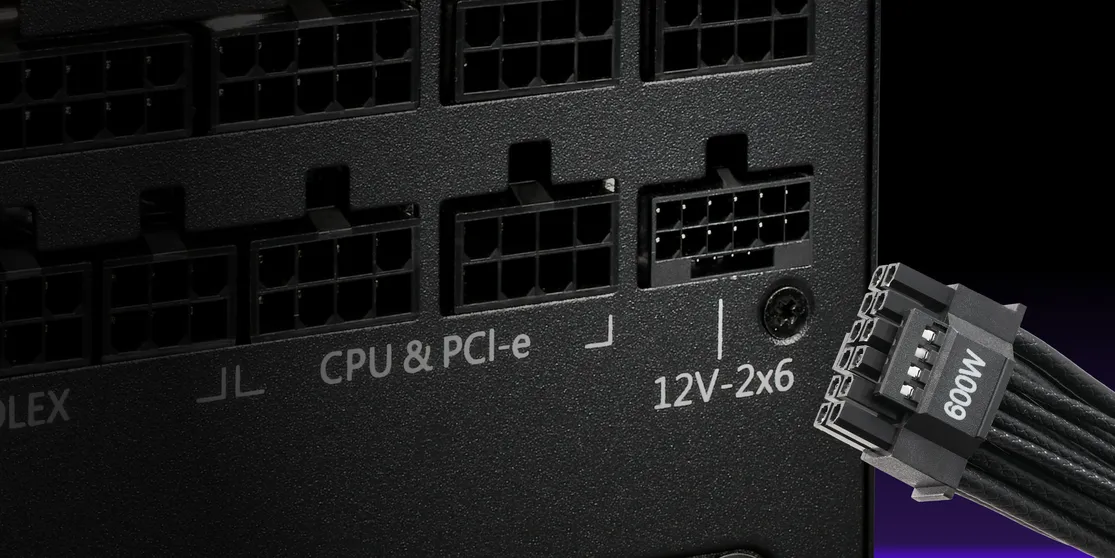

12+4 Pin Connectors: x1 = 1 (600mm)

Form Factor: ATX

Watts: 1200W

Modular: Fully Modular

80 Plus Efficiency: Gold
