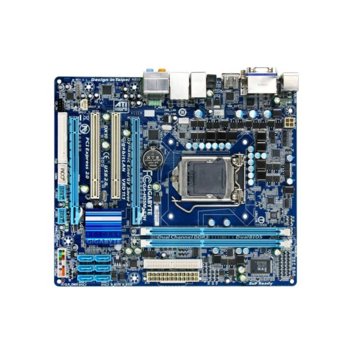

Дънна платка Gigabyte H55M-S2, H55, LGA1156, DDR3, PCI-E, SB7.1, Lan1000, SATA, mATX

Gigabyte GA-H55M-S2
Intel® H55 Chipset

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
2. L3 cache varies with CPU

Chipset

1. Intel® H55 Express Chipset

Memory

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 1666 (O.C.)/1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard Graphics Integrated in the Chipset:

1. 1 x D-Sub port (Note 2)

Audio

1. Realtek ALC888B codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel (Note 3)

LAN

1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
2. 1 x PCI Express x1 slot
3. 2 x PCI slots

Storage Interface Chipset:

1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices

USB Integrated in the Chipset

1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 6 x SATA 3Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 2 x USB 2.0/1.1 headers
9. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port (Note 2)
4. 8 x USB 2.0/1.1 ports
5. 1 x RJ-45 port
6. 3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

1. iTE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU fan speed control (Note 4)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 5)
8. Support for Auto Green
9. Support for ON/OFF Charge
10. Support for Q-Share

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft® Windows 7/Vista/XP

Form Factor

1. MicroATX Form Factor; 24.4cm x 21.0cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors no longer offer support for Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Note
(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To use the onboard D-Sub port, you must install an Intel CPU with integrated graphics.
(Note 3) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
(Note 4) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
