Дънна платка Gigabyte H610M S2H V2 (rev. 1.0), H610, LGA1700, DDR5, PCI-E 4.0 (HDMI&VGA&DP), 1x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen 1 Type-A, Micro-ATX

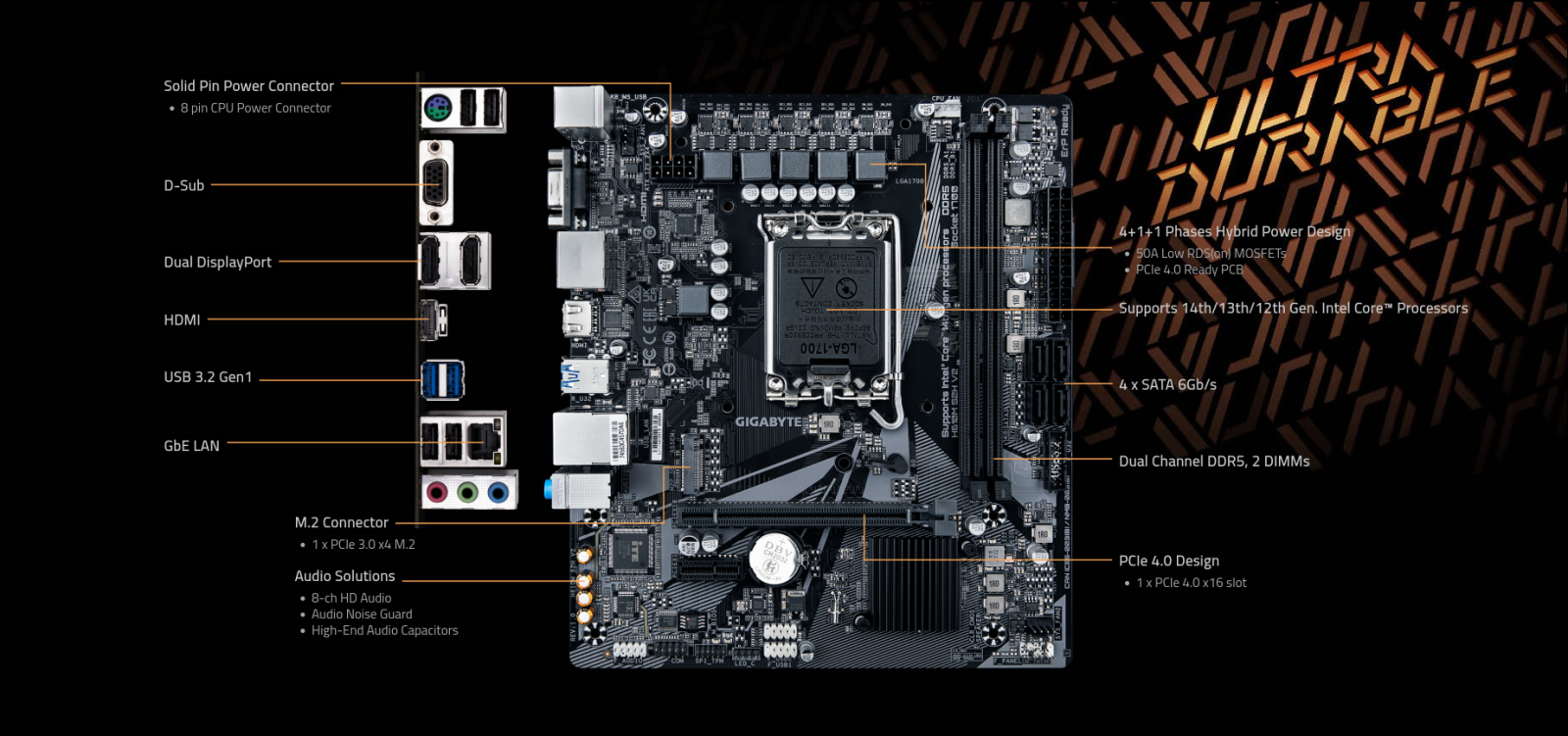

Gigabyte H610M S2H V2 (rev. 1.0)









• Supports Intel Core 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
• 4+1+1 Hybrid Digital VRM Design
• GbE LAN with Bandwidth Management
• NVMe PCIe 3.0 x4 M.2
• 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
• High Quality Audio Capacitors and Audio Noise Guard​
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design









Tech specs:

• CPU
  • LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors*
  • L3 cache varies with CPU

• Chipset
  • Intel H610 Express Chipset


• Memory

  • 14th and 13th Generation Intel Core i9/i7 Pocessors:
    Support for DDR5 5600/5200/4800/4400 MT/s memory modules

  • 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    Support for DDR5 4800/4400 MT/s memory modules

  • 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules


  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules.)



• Onboard Graphics

  Integrated Graphics Processor - Intel HD Graphics support

  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.



  • 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3.

  (Graphics specifications may vary depending on CPU support.)

  Support for up to triple-display at the same time

• Audio
  • Realtek audio codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN
  • Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)


• Expansion Slots

  CPU

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16


  Chipset

  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1


• Storage Interface

  Chipset

  • 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors


• USB

  Chipset

  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports on the back panel


  Chipset+USB 2.0 Hub

  • 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x RGB LED strip header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
  • 1 x chassis intrusion header

• Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 2 x DisplayPorts
  • 1 x HDMI port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks

• I/O Controller
  • iTE I/O Controller Chip

• BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit

• Form Factor
  • Micro ATX Form Factor; 22.3cm x 19.6cm
