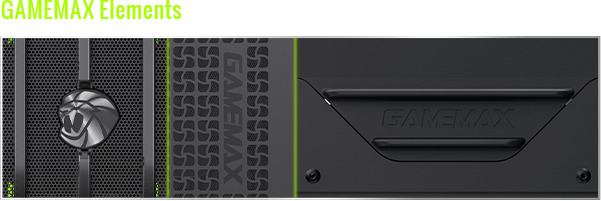

 .jpg) | Bold new Gamemax identity An aggressive claw-inspired front panel paired with exclusive GAMEMAX sculpted ventilation mesh delivers standout aesthetics with airflow-optimized function. |
Superior thermal performance High-airflow mesh front and vertical airflow layout ensure efficient heat dissipation during demanding workloads or gaming sessions. |  |
 | Integrated GPU support bracket Includes a height-adjustable GPU holder to minimize sagging and protect your graphics card long term. |
Anti-insect design Extended desiqn at the bottom of the panel to seal the hardware rack holes. |  |
 | Next-gen GPU ready Stay up to date. Ready for the latest games and highest performing Next-Gen GPUs. |
Reinforced and convenient
Tool-free Glass Side Panel | Top Magnetic Dust Filter | PSU Dust Filter |
 |  |  |
Compatibility and size
I/O Panel
Compatibility
M/B: ATX
CPU Cooler Height: 175mm
VGA Length: 420mm
Storage
3.5"HDD x2 + 2.5"SSD x1 or 3.5"HDD x1 + 2.5"SSD x2
Cooling fans
Front: 3x140mm (Tornado-T14)
Rear: 1x120mm (Tornado-T12)
Liquid Cooler
Top:120mm, 140mm,240mm,280mm,360mm
Rear:120mm
Specifications
| Form Factor: | Mid-Tower | |
| Chassis: | SPCC :0.5mm | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor: | ATX、M-ATX、ITX | |
| Front Panel: | Plastic + Mesh | |
| Top Panel: | Metal | |
| Side Panel: | Left: | Tempered Glass (Tool-free) |
| Right: | Metal cover | |
| Internal Drive Bay(s): | 3.5" (HDD): | *Up to 2 |
| 2.5" (SSD): | *Up to 2 | |
| 2*3.5HDD+1*2.5SSD or 1*3.5HDD+2*2.5SSD | ||
| I/O: | Buttons: | *2 (POEWR, RESET or LED MODL) |
| USB 2.0 Port(s): | *0 | |
| USB 3.0 Port(s): | *2 | |
| Type C Port(s): | *1(TYPE-C GEN2) | |
| Audio Support: | *1(Combo AUDIO) | |
| Cooling Fan Support: | Front: | 3x140mm (Tornado-T14) |
| Top: | 3x120mm ,2x140mm (Fan optional) | |
| Rear: | 1x120mm (Tornado-T12) | |
| Bottom: | *0 | |
| M/B Cover： | *2x120mm (Fan optional) | |
| PSU Cover： | *3x120mm (Fan optional) | |
Water Cooling Support (Radiator Size): | Front: | *0 |
| Top: | 120mm, 140mm,240mm,280mm,360mm | |
| Rear: | 120mm | |
| M/B Cover： | *0 | |
| Dust Cover: | Dust mesh on the bottom and top | |
| Slots: | *7 | |
| Carton & Logo: | GAMEMAX | |
| Dimensions: | Chassis: | (L)458*(W)220*(H)446mm |
| Full Case (Inc Fascia): | (L)483*(W)220*(H)458mm | |
| Carton: | (L)500*(W)277*(H)551mm | |
| Net Weight(kg): | TBU | |
| Gross Weight(kg): | TBU | |
| VGA Support: | up to 420mm (inside the front cover w/o fan) | |
| Vertical Graphics Support | No | |
| CPU Cooler Height: | up to 175mm | |
| SPS Length: | up to 240mm | |
| Cable Management Depth: | 21mm |
