Кутия Gamdias ATHENA M4M, microATX/Mini-ITX, 1x USB Type-C, 2x USB 3.0, 3x 120mm вентилатора, с прозорец, черна, без захранване

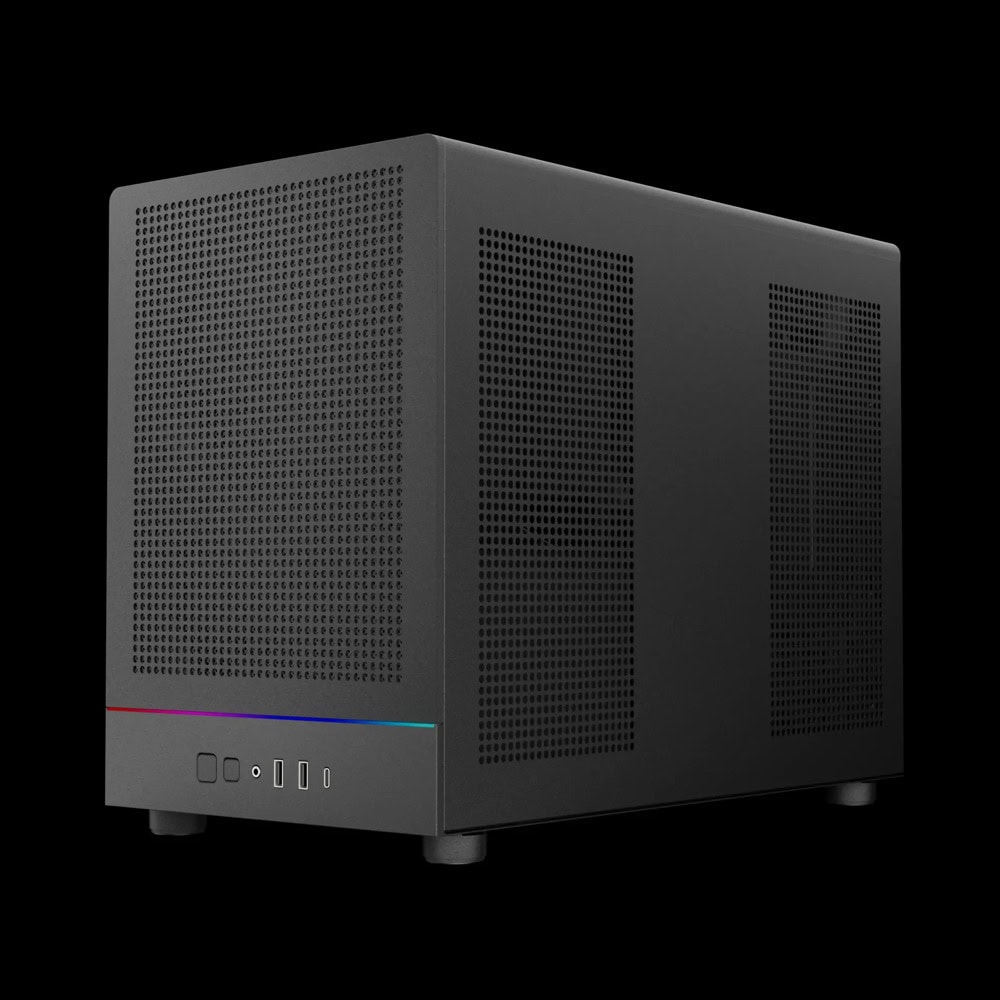

Gamdias ATHENA M4M

MINIMAL FORM. MASSIVE POTENTIAL.

The ATHENA M4M is a compact micro-tower case engineered for performance and style, featuring a fully perforated mesh front panel, a dynamic RGB lighting strip, and three built-in 120mm NOTUS M1 fans for optimized airflow. It supports dual 360mm radiators, BTF motherboards, and GPUs up to 395mm, offering advanced compatibility and standout thermal performance in a space-efficient design, making it an ideal choice for high-performance compact builds.

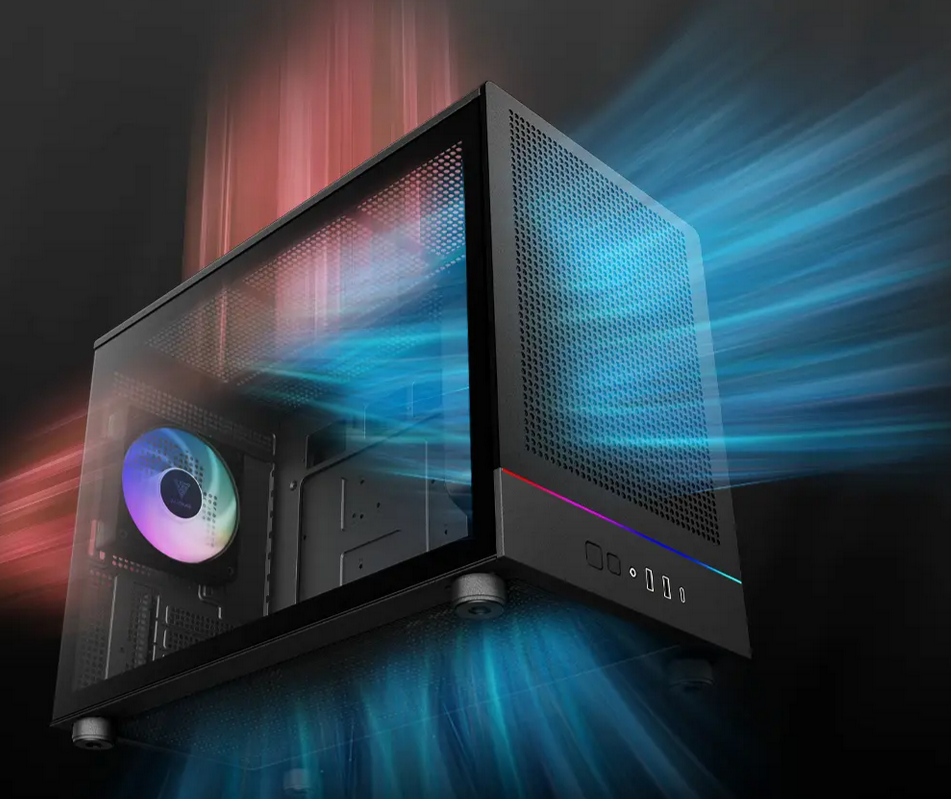

EXTENSIVE AIRFLOW CONFIGURATION The ATHENA M4M allows robust airflow intake and exhaust configurations with a mesh front panel and perforated vents built throughout the case.

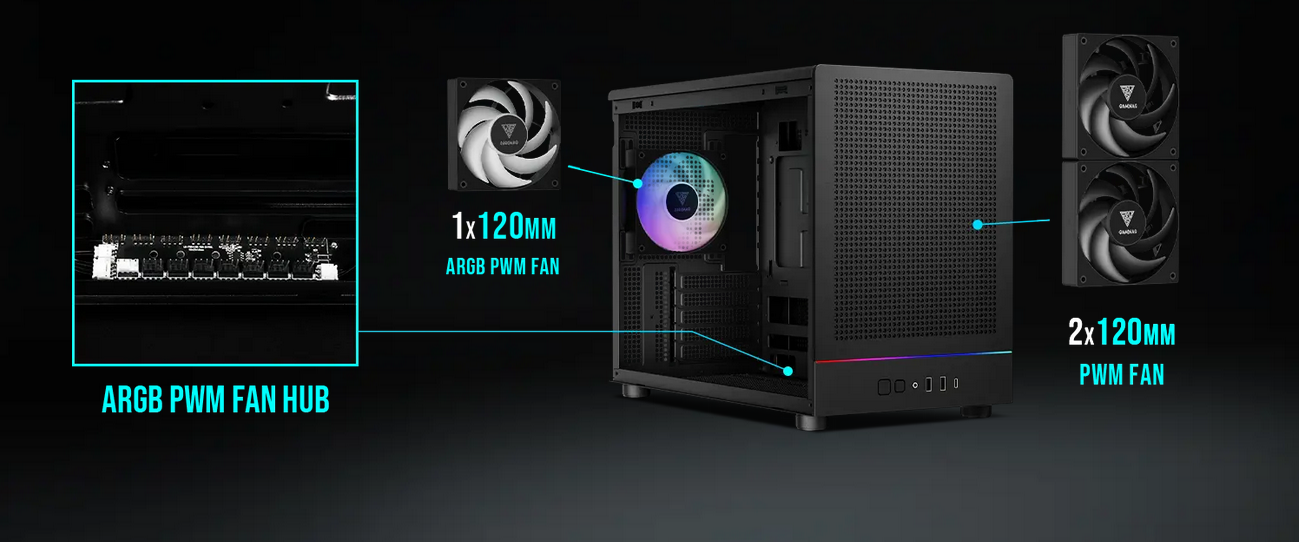

3 NOTUS M1 FANS WITH BUILT-IN HUB

Featuring three built-in silent NOTUS M1 fans, the case provides exceptional lighting and finely tuned airflow with minimal noise. The included 8-port PWM ARGB fan hub allows for easy management and synchronization, ensuring a cohesive lighting setup that perfectly complements the high-performance, quiet operation of the fans.

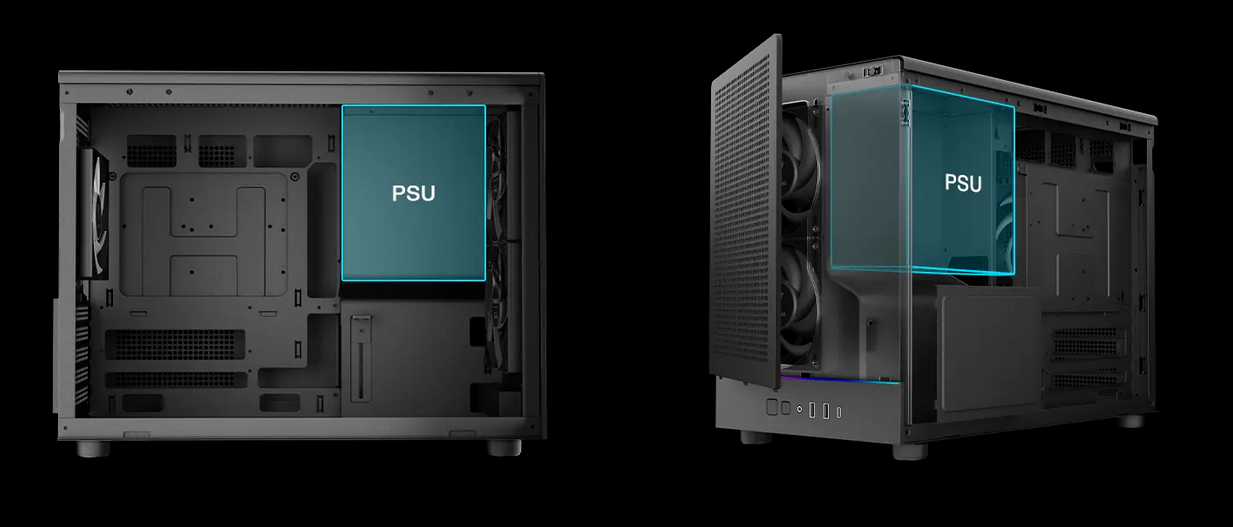

EASY ACCESS FRONT-MOUNTED PSU DESIGN

The PSU is strategically positioned at the front side of the case, with connector ports oriented downward for easier cable management. A PSU shroud enhances the clean aesthetic, and an extension cable is included to facilitate rear power connection.

FLAWLESS VIEW

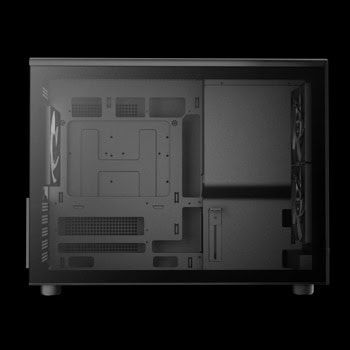

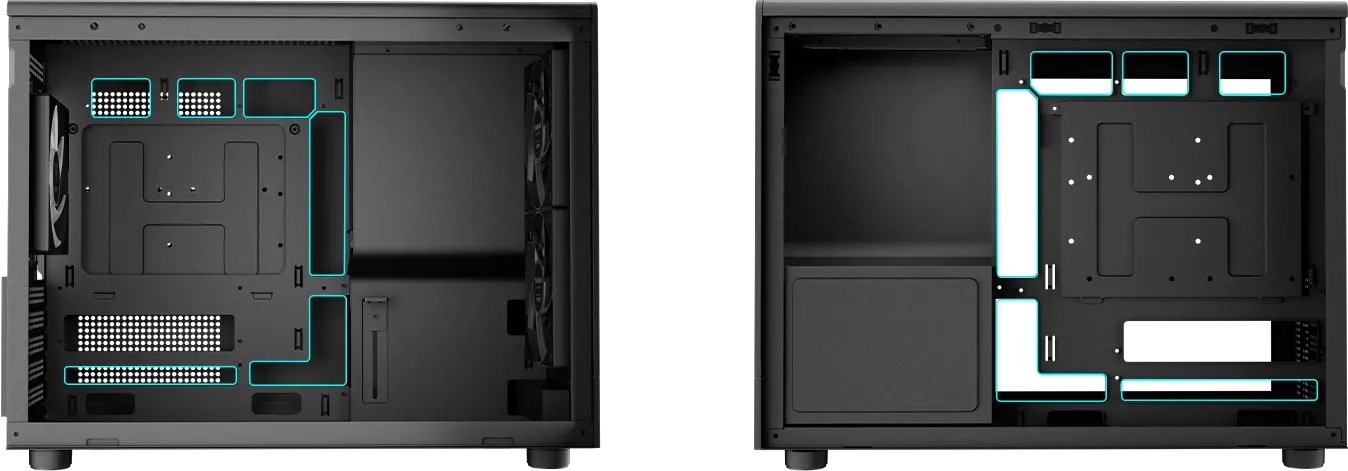

This case supports connector-hidden motherboard (BTF motherboard), enabling cables to plug in from the back for a cleaner front appearance and enhanced PC setups.

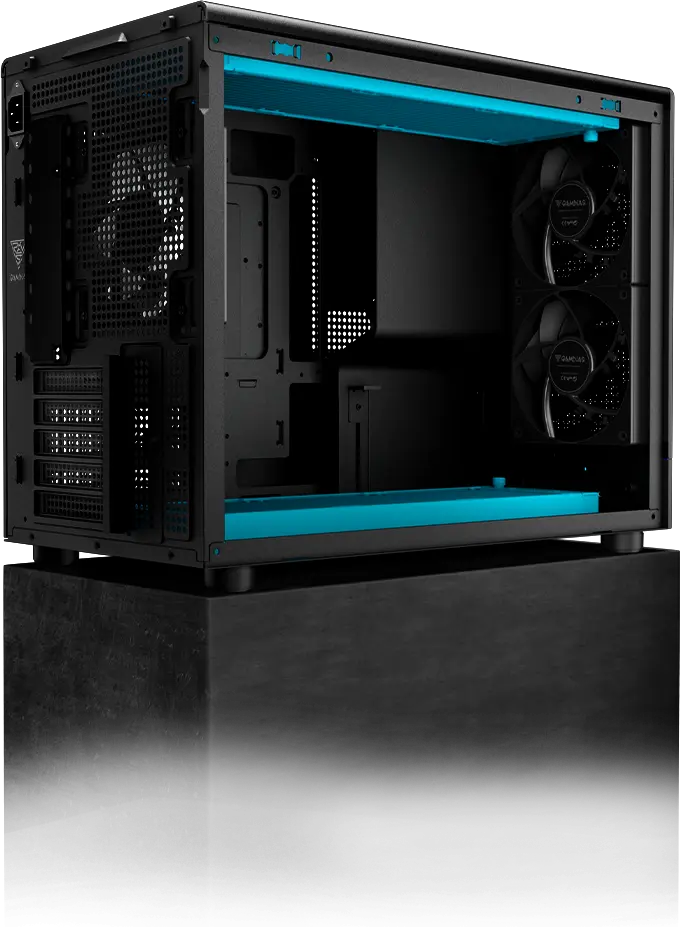

DUAL 360MM RADIATOR SUPPORT The ATHENA M4M provides superior cooling performance as it can support 360mm radiators on the top and the bottom simultaneously.

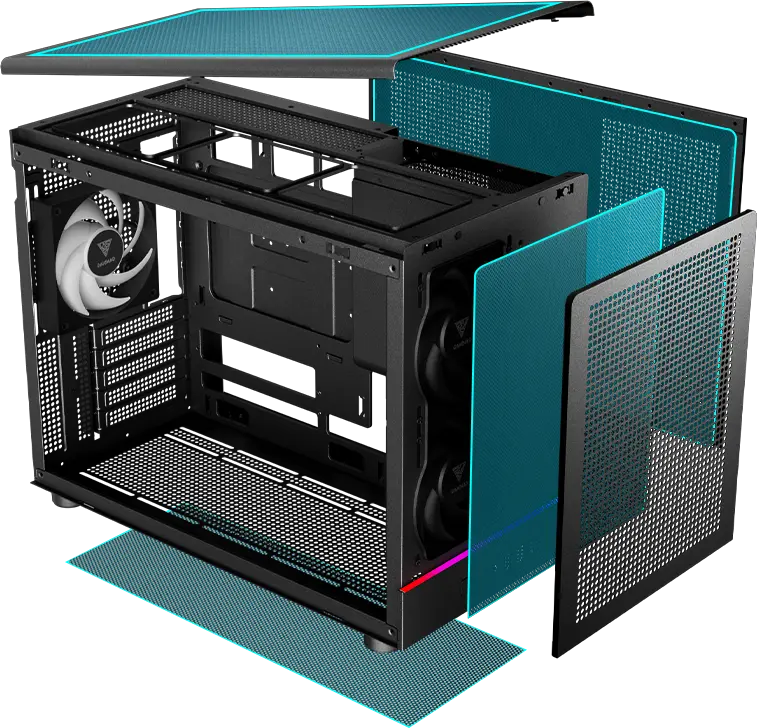

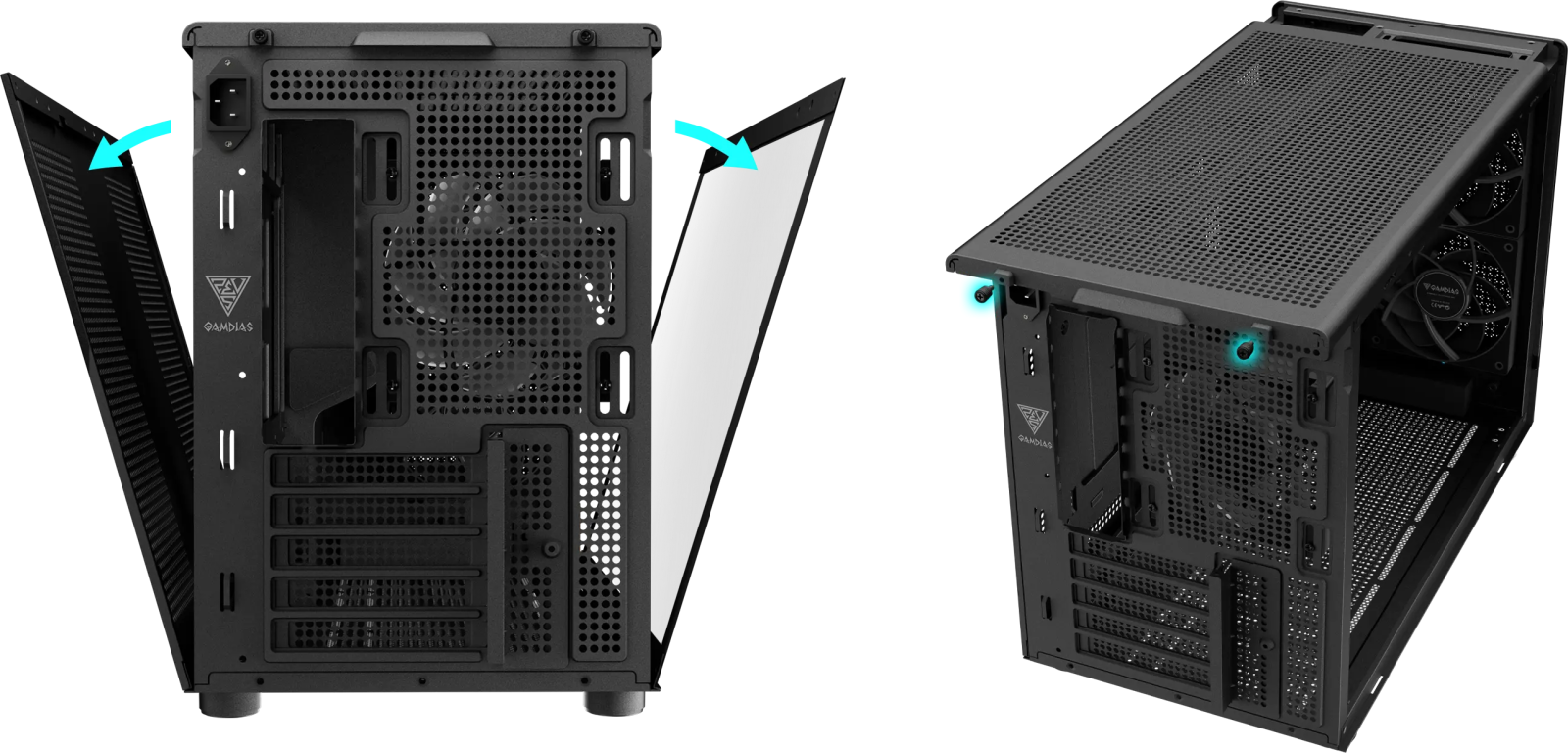

SIMPLE CLASP MECHANISM

The case features a modular design that allows nearly every panel to be easily detached for better accessibility. The side panels are secured with a simple clasp mechanism, while the top panel is secured with thumb screws.

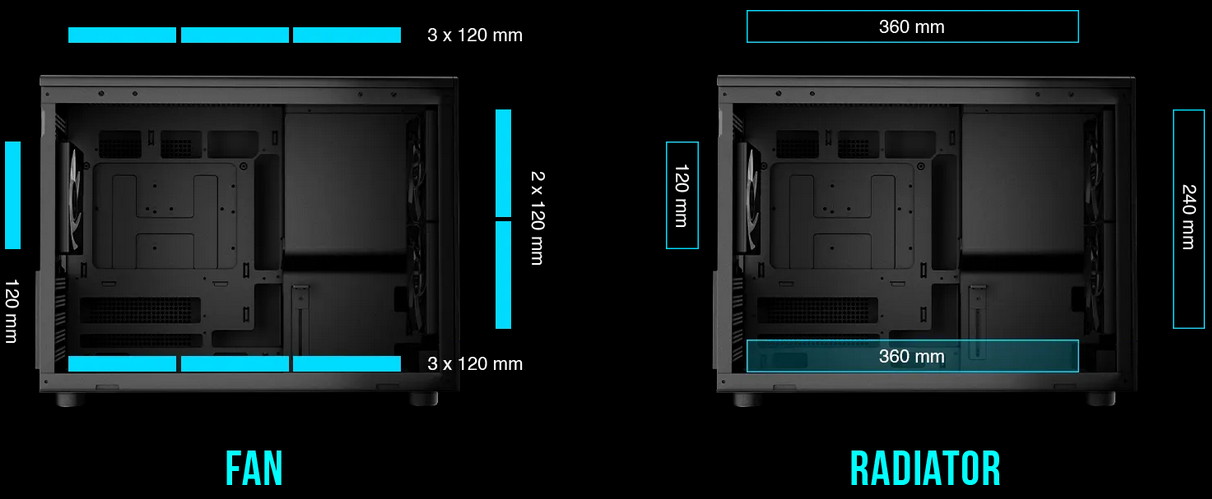

COOLING COMPATIBILITY

The ATHENA M4M can accommodate up to 9 fans and offers flexible options for the installation of radiators at the front, top, bottom and rear.

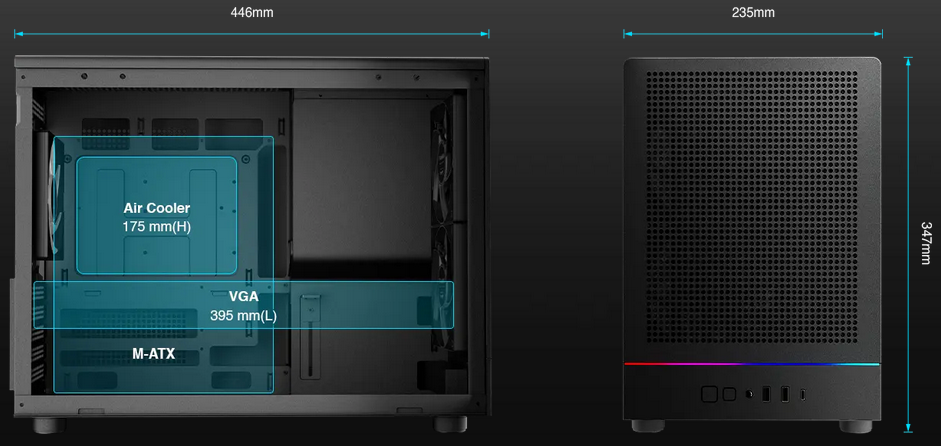

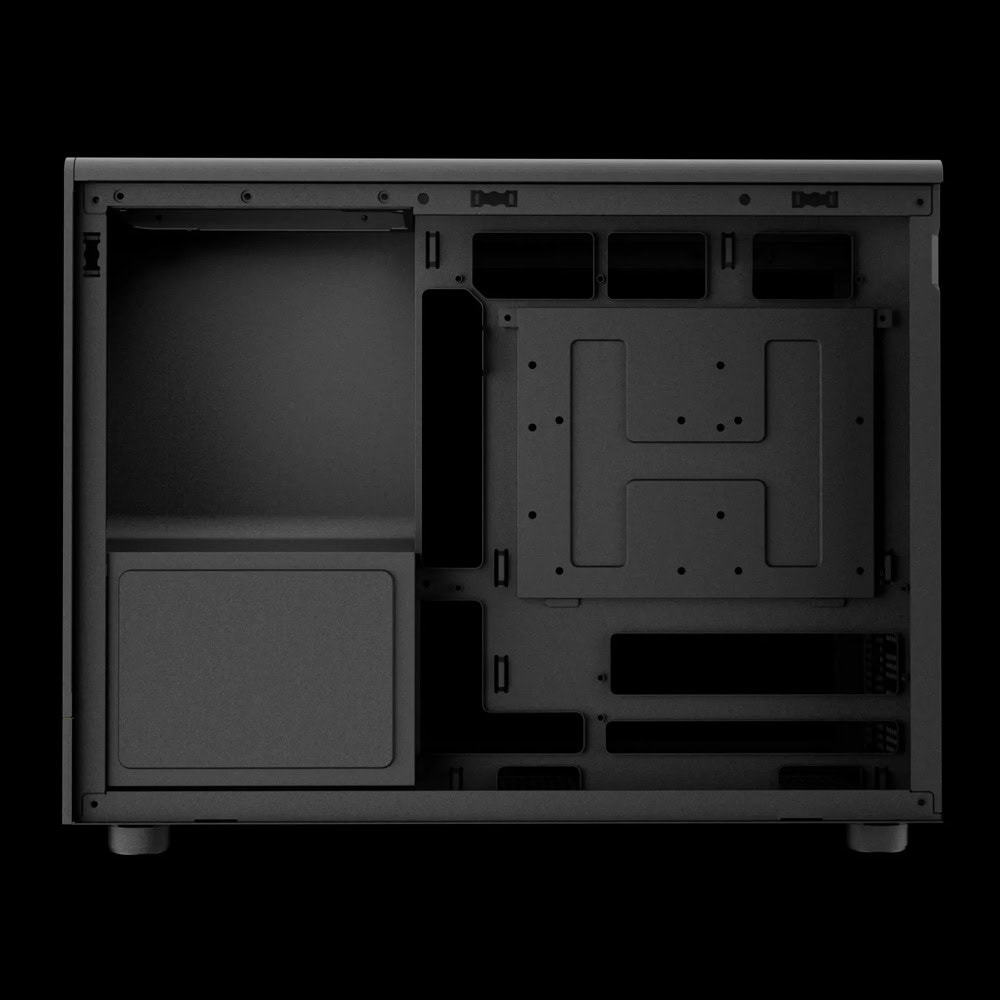

INTERIOR ACCOMMODATION

Designed with a compact form factor, the case offers the option to house up to m-ATX motherboards and VGA cards up to 395mm.

DUST RESISTANT Equipped with dust filters on the top and side, the case effectively protects against dust while maintaining ventilation.

Specifications

Case Type

Micro Tower

MB Support

Mini-ITX、Micro-ATX

Synchronization

5V 3-Pin Addressable Header

Expansion Slots

5

Material

SPCC & ABS & Tempered glass

Window

Left

Radiator Support

Top: 360 mm
Front: 240mm
Bottom: 360mm

Fan Support

Top: 3 x 120mm
Bottom: 3 x 120 mm
Front : 2 x 120 mm
Rear: 1 x 120mm

Pre-installed Fans

Front: 2 x 120mm BK PWM Fans
Rear: 1 x 120mm ARGB PWM Fan

Drive Bays

1 x 3.5" + 1 x 2.5" or 2 x 2.5"

I/O Port

USB 3.0 x2, Type Cx1, HD Audio x1, LED Control x1

Clearance

CPU cooler height limitation: 175mm
VGA length limitation: 395mm
PSU length limitation: 150mm

Dimension (L x W x H)

446 x 235 x 347mm

Pre-installed Control BOX

8 Ports Hub (4 port are used)
