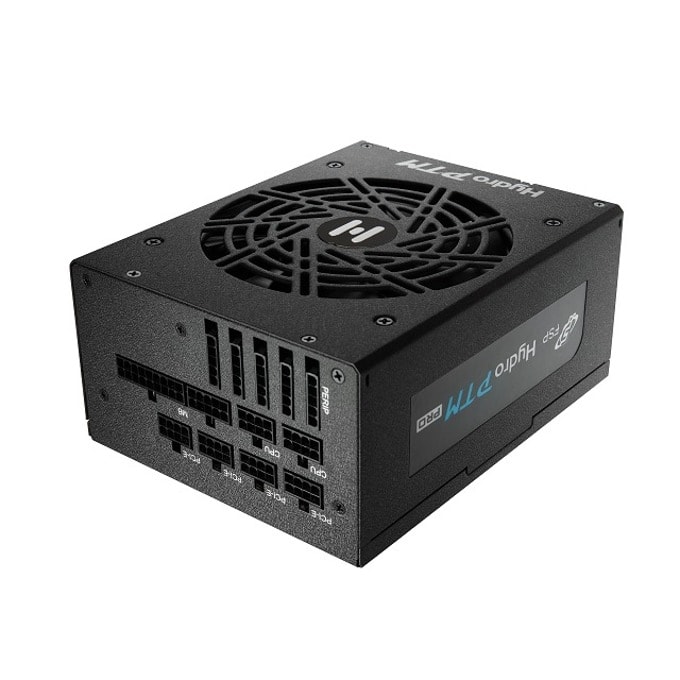

Захранване FSP Hydro PTM PRO, 850W, Active PFC, 80+ Platinum, 135mm вентилатор

FSP Hydro PTM PRO





Conformal Coating Application
Off-Wet, Off-Dust and Off-Stain

The conformal coating which protects the power supply and its internal components from dust, humidity, stains. The Hydro PTM PRO series are covered with conformal coating to guarantee reliable performance in a harsh environment and tested to work perfectly even in 95% relative humidity.





ECO Switch, Quieter and Longer Lasting Fan

When Eco Button is switched on, the PSU runs with lower power consumption and is whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.





Specifications:

Model	HPT2-850M
Rated Output Power	850W
Form Factor	ATX
80 PLUS Certification	Platinum
Input Voltage	100-240V
Input Current	11-5.5A
Input Frequency	50-60Hz
PFC	Active PFC
Efficiency	≥ 92%
Fan Type	FDB Fan, 135mm
Dimensions(L x W x H)	150 x 190 x 86 mm
Protection	OCP, OVP, SCP, OPP, OTP, UVP

AC Input	100-240Vac~  11-5.5A  50-60Hz (Not for China)
	200-240Vac~  5.5A        50-60Hz (Only for China)
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	70.83A	0.3A	3A
Max Combined Power	120W		850W	18.6W
Total Power	850W

	ATX 20+4	4+4 PIN	PCI-E 6+2	SATA	Molex (PERIPHERAL)	Floppy
Connectors	1	3	8	14	5	1
