FSP ADVAN-1000GM

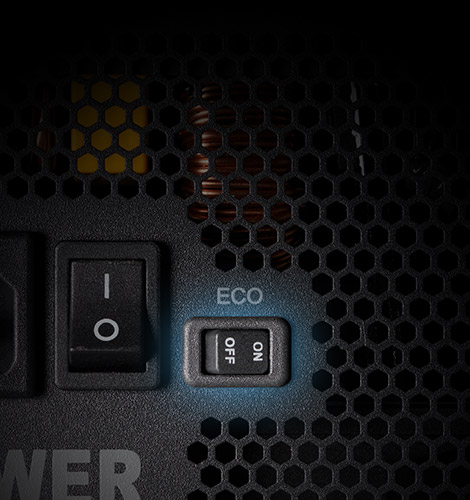

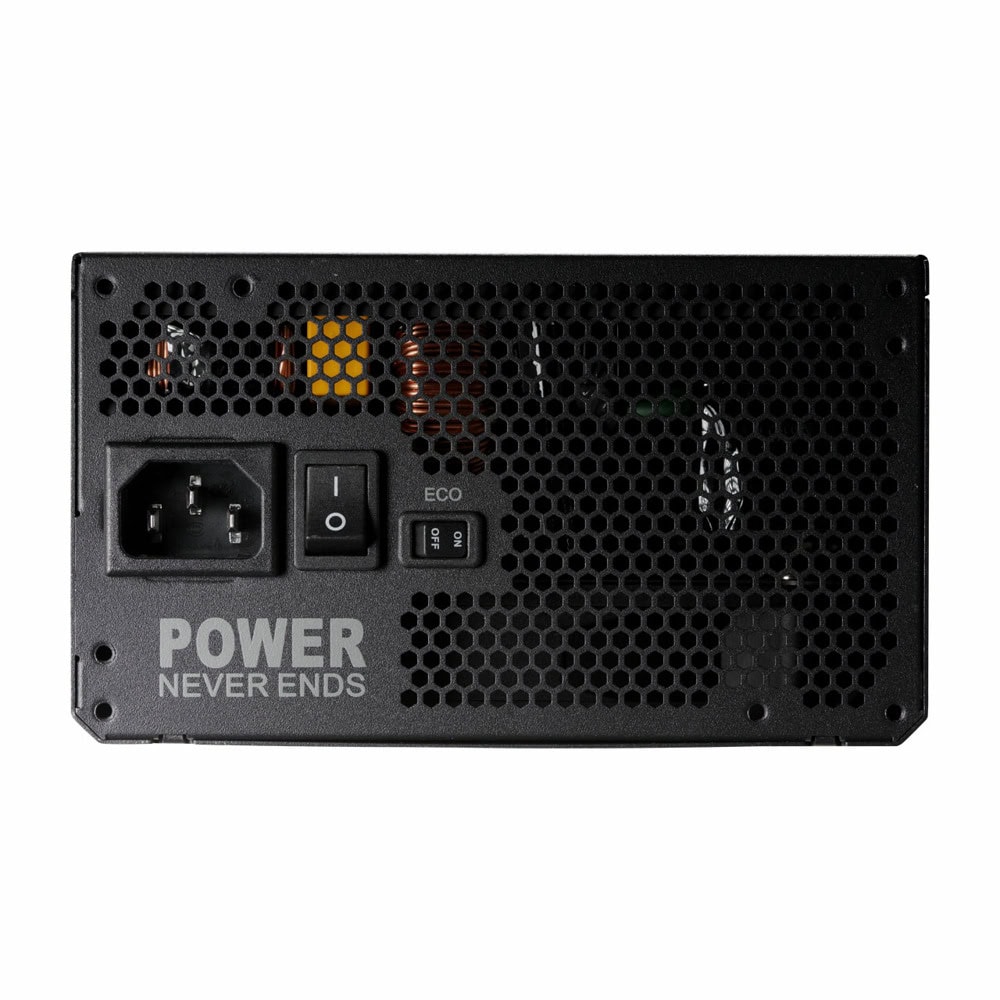

ECO Switch with ZERO RPM Silent Operation Activating the eco semi-fanless fan control switch, when the PSU operates at less than 40% capacity, will ensure the fan does not run, resulting in silent operation. |  |

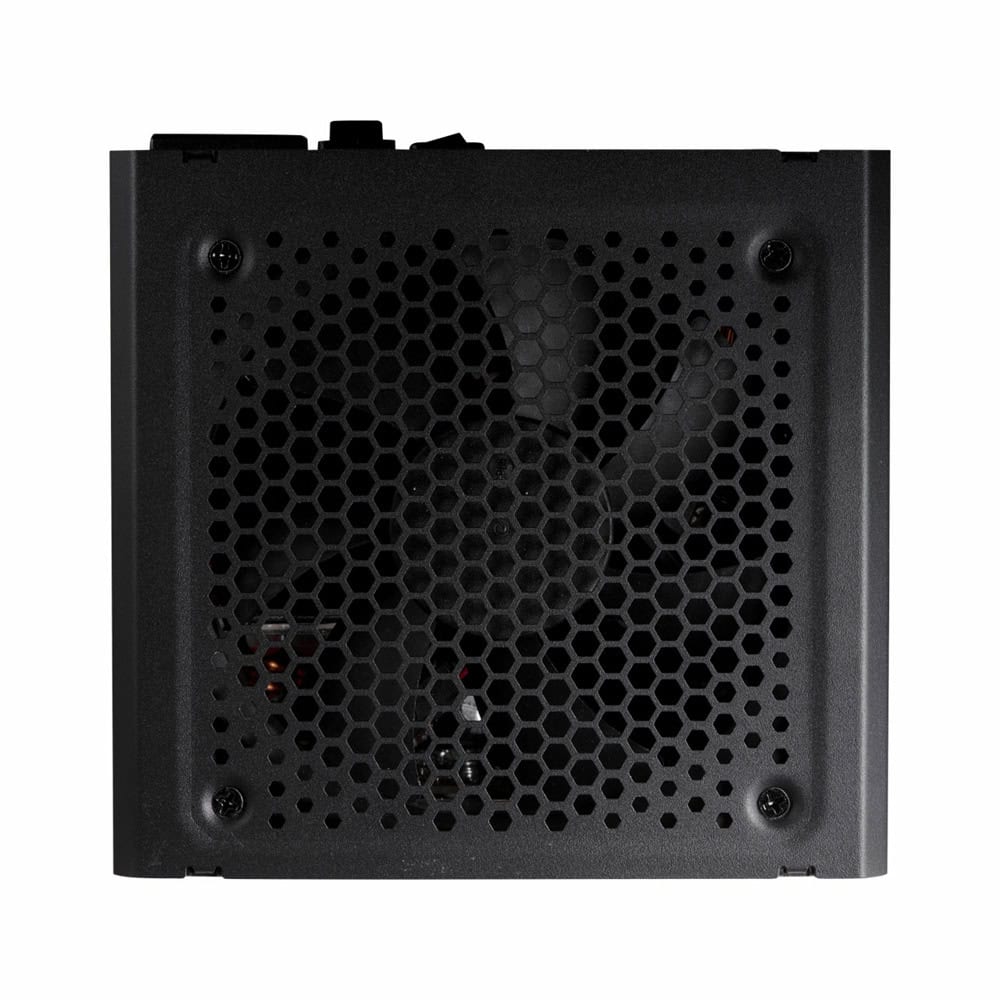

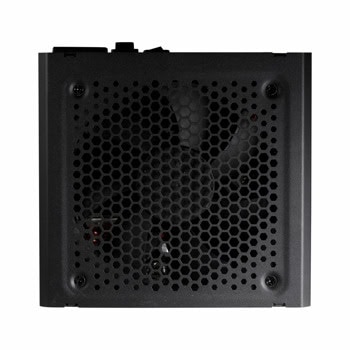

120 mm Hydraulic Bearing (HYB) Fan Quality bearing keeps fan noise to a minimum while providing maximum cooling performance. |  |

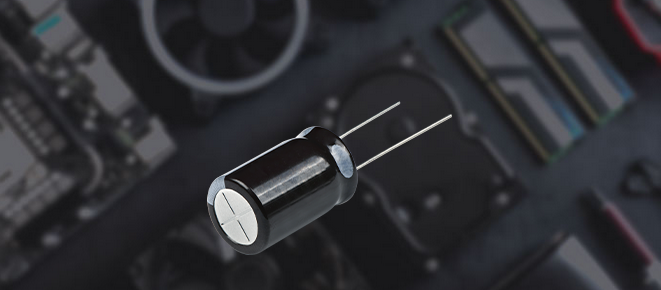

105°C Japanese Bulk Capacitor Maximize reliability and performance by using top-quality Japanese electrolytic capacitors for a longer lifespan. | %20FSP.png) |
Technical specifications
Connectors
MB 20+4 PIN
1 cable
1 connector
600 mm
2x PCIe 6+2 PIN
1 cable and 1 cable
2 connector and 2 connector
655 mm and 805 mm
PCIe 12V-2x6
1 cable
1 connector
700 mm
SATA
1 cable
4 connector
965 mm
CPU 4+4 PIN
2 cable
2 connector
700 mm
MOLEX
1 cable
4 connector
965 mm
AC/DC
| AC Input | 100-240V~ 12-6A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 83.33A | 0.3A | 3A |
| Max Combined Power | 100W | 1000W | 3.6W | 15W | |
| Total Power | 1000W | ||||
Specifications
| Rated Output Power | 1000W |
|---|---|
| Form Factor | ATX12V V3.1 |
| 80 PLUS Certification | Gold |
| Cybenetics Certification | Gold |
| Input Voltage | 100-240V |
| Input Current | 6A |
| PFC | Active ≧ 0.9 |
| Efficiency(at typical load) | Efficiency ≧ 90% at typical load |
| Fan Type | HYB Bearing, 120mm |
| Dimensions(L x W x H) | 140×150×86 mm |
| Operation Temp. | 40°C |
| Protection | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
