Кутия Fractal Design Meshify 2 XL Black TG Light Tint, E-ATX/ATX/mATX/Mini-ITX/EE-ATX/SSI-CEB/SSI-EEB, черна, 2x USB 3.0, 1 x USB 3.1 Type-C, с прозорец, без захранване

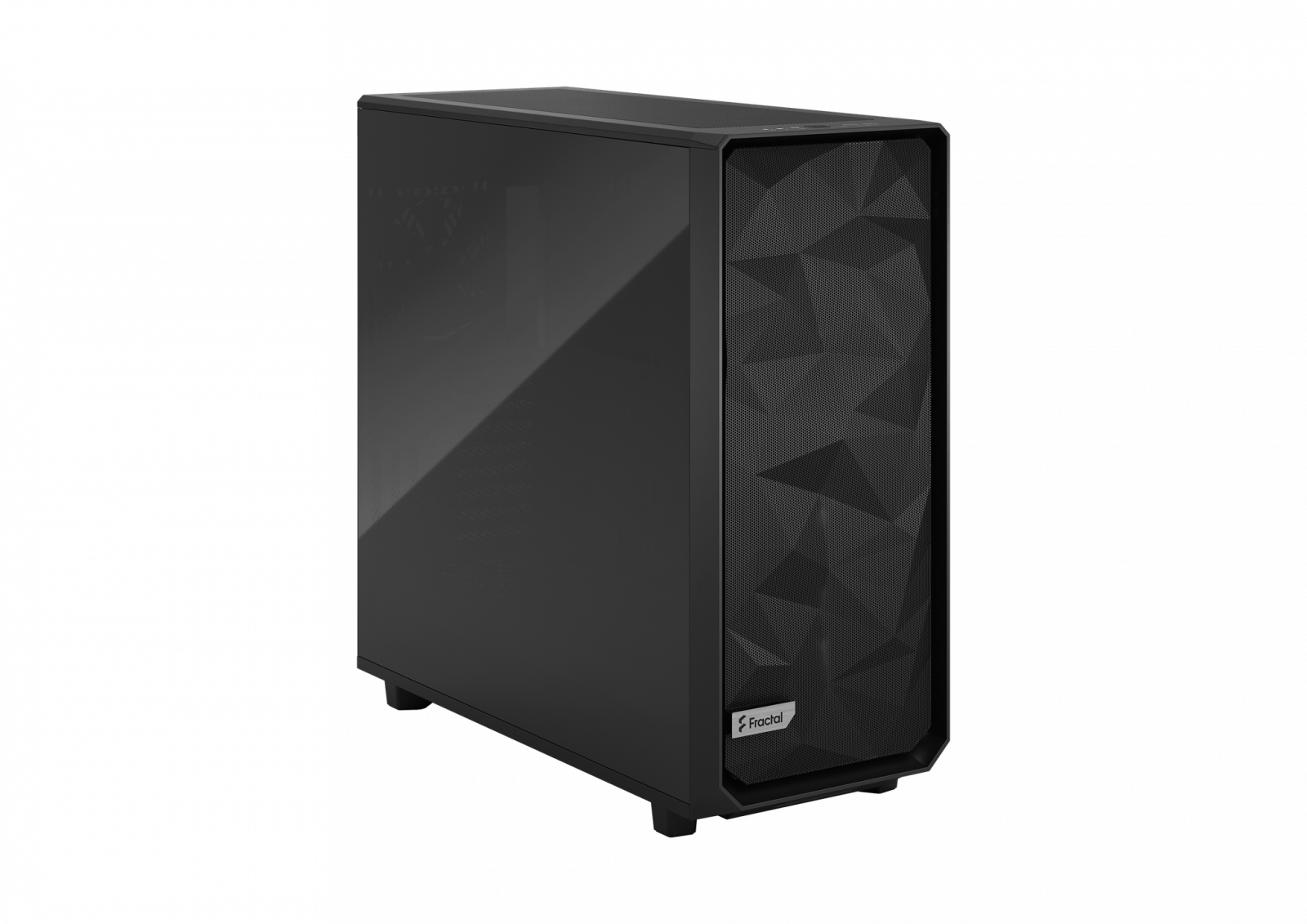

Кутия Fractal Design Meshify 2 XL Black TG Light Tint

FD-C-MES2X-02

Meshify 2 XL

A classic evolved.
The Meshify 2 XL is a massive high-performance case with a bold,
stealth-inspired aesthetic. Its striking exterior features bolt-free, flush
tempered glass, a fully removable top granting excellent interior
access, and a fully redesigned front complete with USB 3.1 Gen 2
Type-C. The enormous dual-layout interior supports full-sized E-ATX
and SSI-EEB boards, gigantic storage arrays and radiators up to
480 mm to make cooling a breeze.

Key features:

• Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
• Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including E-ATX and SSI-EEB
• Support for radiators up to 480/420 mm in front, 480/420 mm up top, or 280/240 mm in the base in the default Open Layout
• Includes 6 HDD/SSD trays, 2 SSD brackets, and 2 universal Multibrackets for mounting up to 10 drives
• Expandable to 16 trays and 5 SSD brackets with 2 Multibrackets installed in the top for a max of up to 23 drives in Storage Layout
• New chassis design that opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
• New front nylon filter that can be removed for increased airflow
• New front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
• Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
• Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
• Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
• Easy-to-clean high airflow nylon filters on the top and base with full PSU coverage and convenient front access
• Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
• Versatile Multibrackets that convert any unused fan position to an HDD, SSD or pump mount
• Bridgeless expansion slots ensure obstruction-free connections and allow for a more centered vertical GPU installation via the new Flex B-20 PCIe riser (sold separately)
• Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
• Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
• Tool-less, top-latching panels allow quick access while preventing accidental drops

General specifications:

3.5"/2.5" drive mounts
• 6 included, 18 positions total + 2 Multibrackets

Dedicated 2.5" drive mounts
• 2 included, 5 positions total

5.25” drive mounts
• 0

Expansion slots
• 9 + 3

Motherboard compatibility
• E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB

Power supply type
• ATX

Front interface
• 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0,
 Audio I/O, Power button, Reset button

Total fan mounts
• 11x 120 mm or 9x 140 mm

Front fan
• 4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included)

Top fan
• 4x 120 mm or 3x 140 mm

Rear fan
• 1x 120/140 mm, (1x Dynamic X2 GP-14 included)

Bottom fan
• 2x 120/140 mm

Dust filters
• Top, front and bottom

Front radiator
• Up to 480/420 mm

Top radiator
• Up to 480/420 mm

Rear radiator
• 120 mm

Bottom radiator
• Up to 240/280 mm

PSU max length
• 250 mm (both HDD cages installed)

GPU max length
• Storage layout: 359 mm
• Open layout: 549 mm (524 mm w/ front fan)

CPU cooler max height
• 185 mm

Cable routing space
• 30 mm

Cable routing grommets
• Yes

Fixed velcro straps
• Yes

Tool-less push-to-lock
• Top, front and side panels

Captive thumbscrews
• HDD, SSD and PSU brackets

Left side panel
• Tempered glass

Right side panel
• Steel

Case dimensions (LxWxH)
• 600 x 240 x 566 mm

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
