Name: Монитор EIZO CG3100X, 30 (76.20 см) IPS панел, DCI/4K, 15ms, 1800:1, 500 cd/m2, DisplayPort, HDMI, USB, USB-C, LAN
Brand: Eizo
SKU: MNLCEIZOCG3100X
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

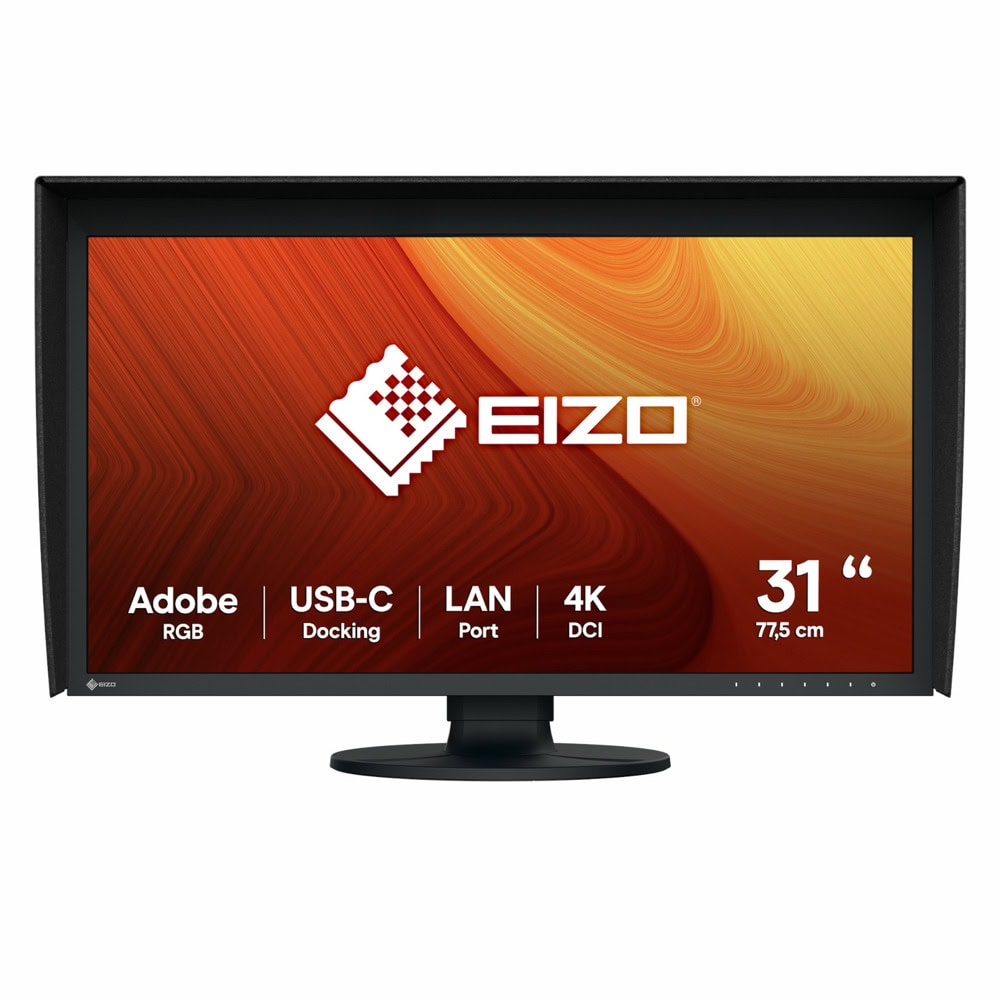

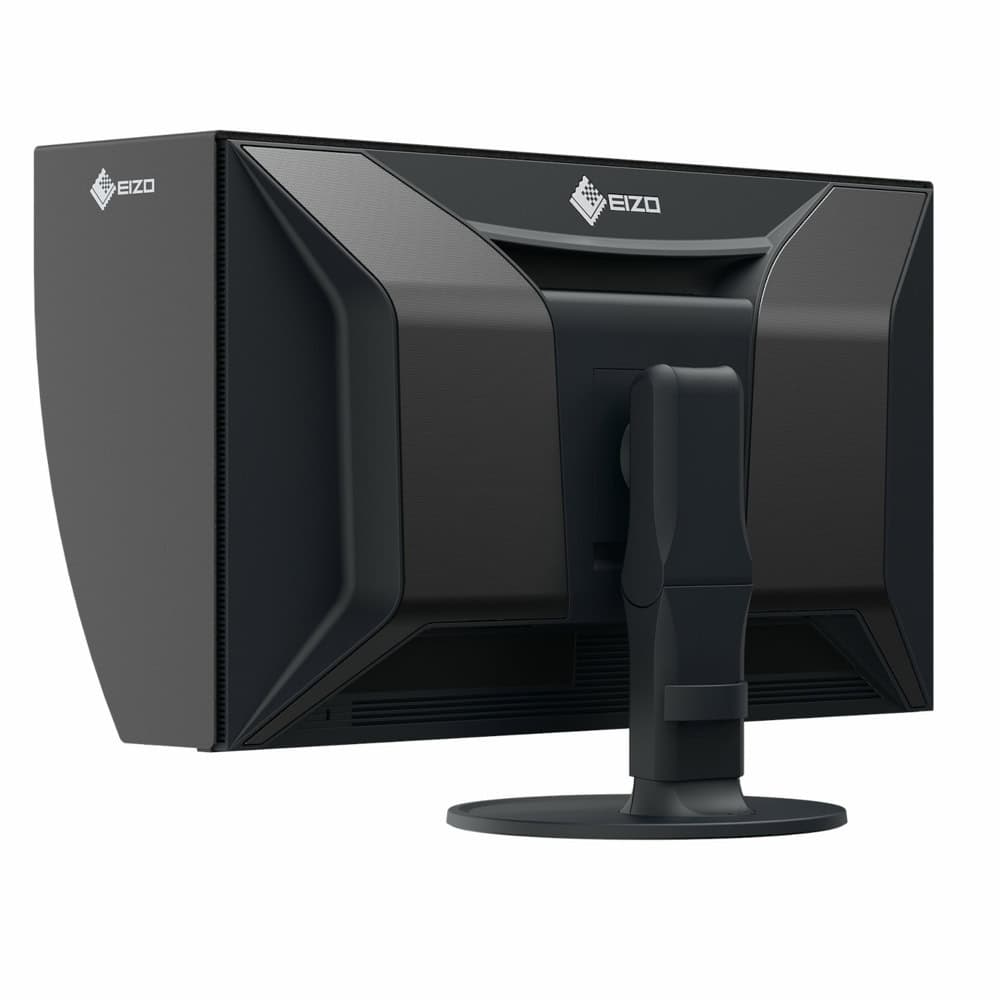

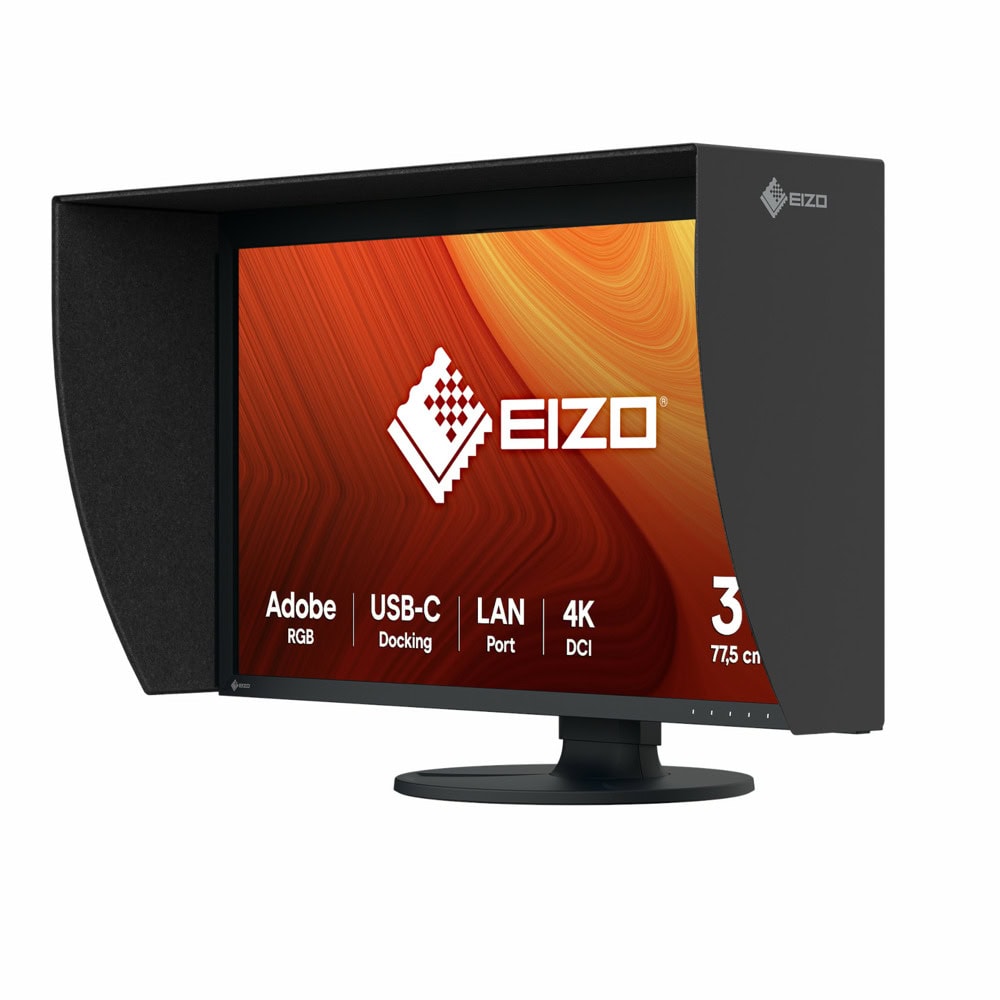

EIZO CG3100X

DCI-4K top-of-the-line model with full features for professional video post-production and image editing.

77,5 cm (30,5")
4096 x 2160 (4K DCI)
IPS (Wide Gamut)

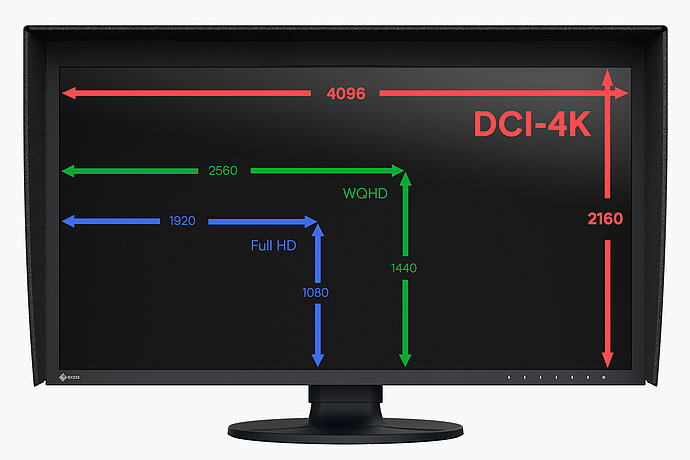

DCI-4K resolution

Thanks to its resolution of 4096 x 2160 (DCI-4K), the CG3100X has an enormous pixel density of 152 ppi. Visible monitor pixels are now a thing of the past, and even the monitor display gives a very accurate impression of the final print resolution. The IPS panel has a maximum brightness of 500 cd/m2 and achieves a contrast ratio of 1800:1. Movies can be evaluated, edited, and graded in native DCI-4K resolution with the CG3100X. The LCD module allows a viewing angle of 178 degrees. This keeps colors and contrasts stable in the user's cone of vision.

Wide gamut color space

To be able to use the entire colour spectrum of modern cameras, you need a monitor with the largest possible colour space. Only then is it possible to visually assess and edit the saturated hues contained in the file. That is why the IPS panel of the ColorEdge CG3100X covers, for example, the wide AdobeRGB photo gamut as well as the CMYK print gamut ISO-Coated V2 to more than 97 %. This means that the full colour spectrum of modern cameras is represented unaltered and without gaps. And a precise simulation of the print result in the softproof view is also guaranteed.

The CG3100X covers 99 % of the DCI-P3 color space used in the film industry and also supports the Rec. 2020 standard.

True Black

With its high contrast ratio, the CG3100X displays deep blacks, which often look pale or washed out on a typical LCD monitor due to the backlight. This is especially true when viewing the monitor from the side in dimly lit rooms. The CG series is equipped with a retardation film for this purpose, which allows for this depth of blacks even at wide viewing angles.

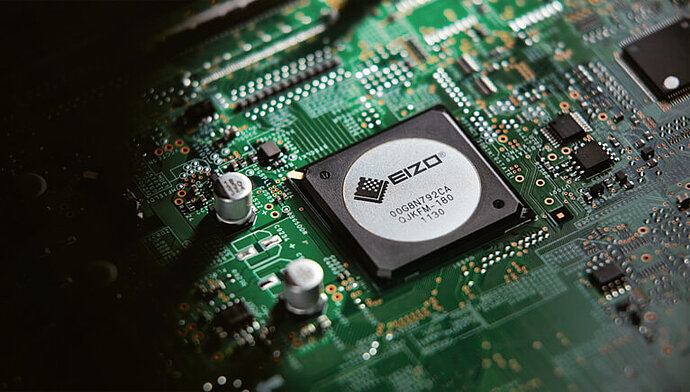

IZO microchip

The CG3100X has a high-quality microchip whose features EIZO has developed specifically for the special requirements of color-accurate work. This microchip is the brain of a ColorEdge as it guarantees the precise, uniform and constant image display that is the hallmark of EIZO.

Category	Specification	Details
	Case Color	Black
	Product Line	ColorEdge
	Areas of Application	Photography, Image Editing & Retouching, Video Editing, Post Production & Colour Grading, Design & Illustration, Printing & Fine Art Printing, Textile & Fashion Industry
	System Requirements	None; compatible with macOS & Windows
Screen	Screen Size	30.5 in / 77.5 cm
	Aspect Ratio	17:9
	Viewable Area (W × H)	685.7 × 361.6 mm
	Recommended Resolution	4096 × 2160 (4K DCI)
	Pixel Pitch	0.167 × 0.167 mm
	Pixel Density	152 ppi
	Supported Resolutions	4096×2160 (4K DCI), 3840×2160 (4K UHD), 2560×1600, 2560×1440, 1920×1200, 1680×1050, 1600×1200, 1280×1024, 1024×768, 800×600, 720×400, 640×480, 1080p/i, 720p, 576p, 480i
Panel	Panel Technology	IPS (Wide Gamut)
	Viewing Angle (H / V)	178° / 178°
	Number of Colors	1.07 billion (10-bit via USB-C, HDMI, DisplayPort)
	LUT	24-bit 3D-LUT (>278 trillion colors)
Color Performance	Color Gamut	AdobeRGB >97%, DCI-P3 99%, ISO Coated V2 >99%, Rec.709 / EBU / SMPTE-C / sRGB 100%
	Color Presets	DCI-P3, BT.2020, BT.709, sRGB, AdobeRGB
	YUV Matrix	BT.2020, BT.709, BT.601, Auto
	HDR Support	PQ, HLG
	EOTF Presets	HLG, PQ, EBU 2.35, sRGB, Gamma 1.6–2.7
	Color Temperature	DCI, D65, D50, Native, User, 4000–10000 K
Brightness & Contrast	Max Brightness	500 cd/m²
	Recommended Brightness	120 cd/m²
	Contrast Ratio	1800:1
Performance	Response Time (GtG)	15 ms
	Backlight	Wide Gamut LED
Features	Calibration	Hardware calibration, integrated sensor, scheduled self-calibration
	Image Quality	Digital Uniformity Equalizer, True Black, No Flicker, Brightness & Color Drift Correction
	Professional Tools	3D-LUT Film Emulation, Pixel Inspection, Safe Area Marker, Gamut & Luminance Warning
	Signal & Processing	I/P Conversion, RGB & CMYK Emulation, HDCP Decoder, Auto Input Detection
OSD & Controls	OSD Languages	DE, EN, FR, ES, IT, SE
	Adjustment Options	Color modes, brightness, contrast, gamma, scaling, markers, signal info, key lock, power indicator
Connectivity	Video Inputs	USB-C (DP Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (FRL Deep Color, HDCP 2.3)
	USB Standard	USB 5 Gbps (USB 3)
	USB Upstream	1× USB-C (94 W), 1× USB-B
	USB Downstream	4× USB-A (2× USB 3, 2× USB 2)
	Network	RJ-45 (IEEE 802.3ab, 1000BASE-T)
	Audio	USB-C / DP / HDMI input, 3.5 mm headphone output
Power	Typical Consumption	86 W
	Max Consumption	270 W
	Standby Consumption	0.5 W
	Power Off	0 W
	Energy Class	G
	Energy Consumption	52 kWh / 1000 h
	Power Supply	AC 100–240 V, 50/60 Hz
	USB-C Power Delivery	Up to 94 W
Dimensions & Weight	With Stand (W × H × D)	721 × 428.1–583.1 × 290 mm
	Weight with Stand	12.3 kg
	Without Stand (W × H × D)	721 × 413.9 × 87.2 mm
	Weight without Stand	8.9 kg
Ergonomics & Mounting	Rotation	344°
	Tilt	5° forward / 35° backward
	Height Adjustment	155 mm
	VESA Mount	100 × 100 mm

Виж още Монитори Eizo
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
DisplayPort:	Да
HDMI:	Да
DVI:	Не
Mini DisplayPort:	Не
Thunderbolt:	Не
USB Type-C:	Да
USB Type-А:	Да
VGA (D-Sub):	Не

Гама:	Професионален
Екран размер:	30" (76.20 cm)
Разделителна способност (max):	4096 x 2160
Аспект изображение:	17:9
Тип матрица:	IPS
Честота на опресняване:	60 Hz
Време за реакция:	15 ms
Яркост:	500 cd/m²
TV Тунер:	Не
Тъчскрийн:	Не
Вградени колони:	Не
3D:	Не
Цвят:	Черен
Формат екран:	Wide
Извит:	Не
Преносим:	Не
