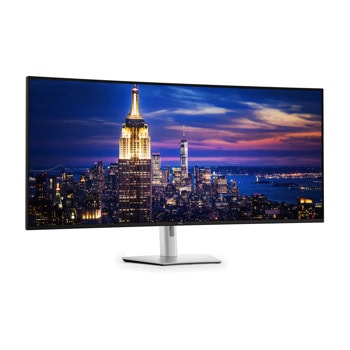

Монитор Dell UltraSharp U5226KW (210-BTHW), 51.5" (130.81 cm) IPS панел, 120Hz, 6K, 5ms, 400 cd/m2, DisplayPort, HDMI, USB, RJ45

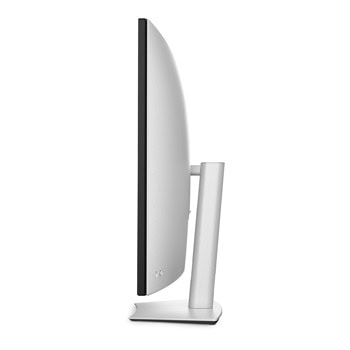

Dell UltraSharp U5226KW

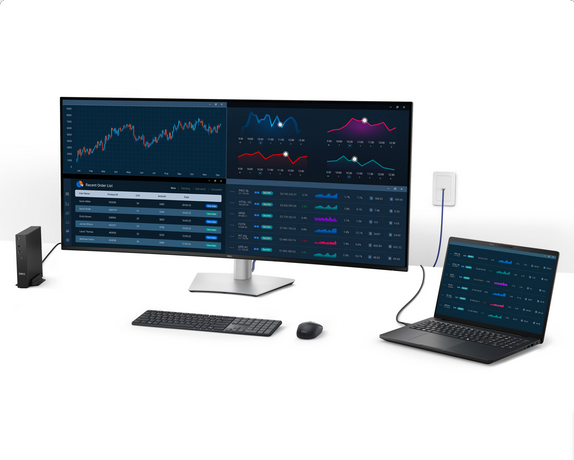

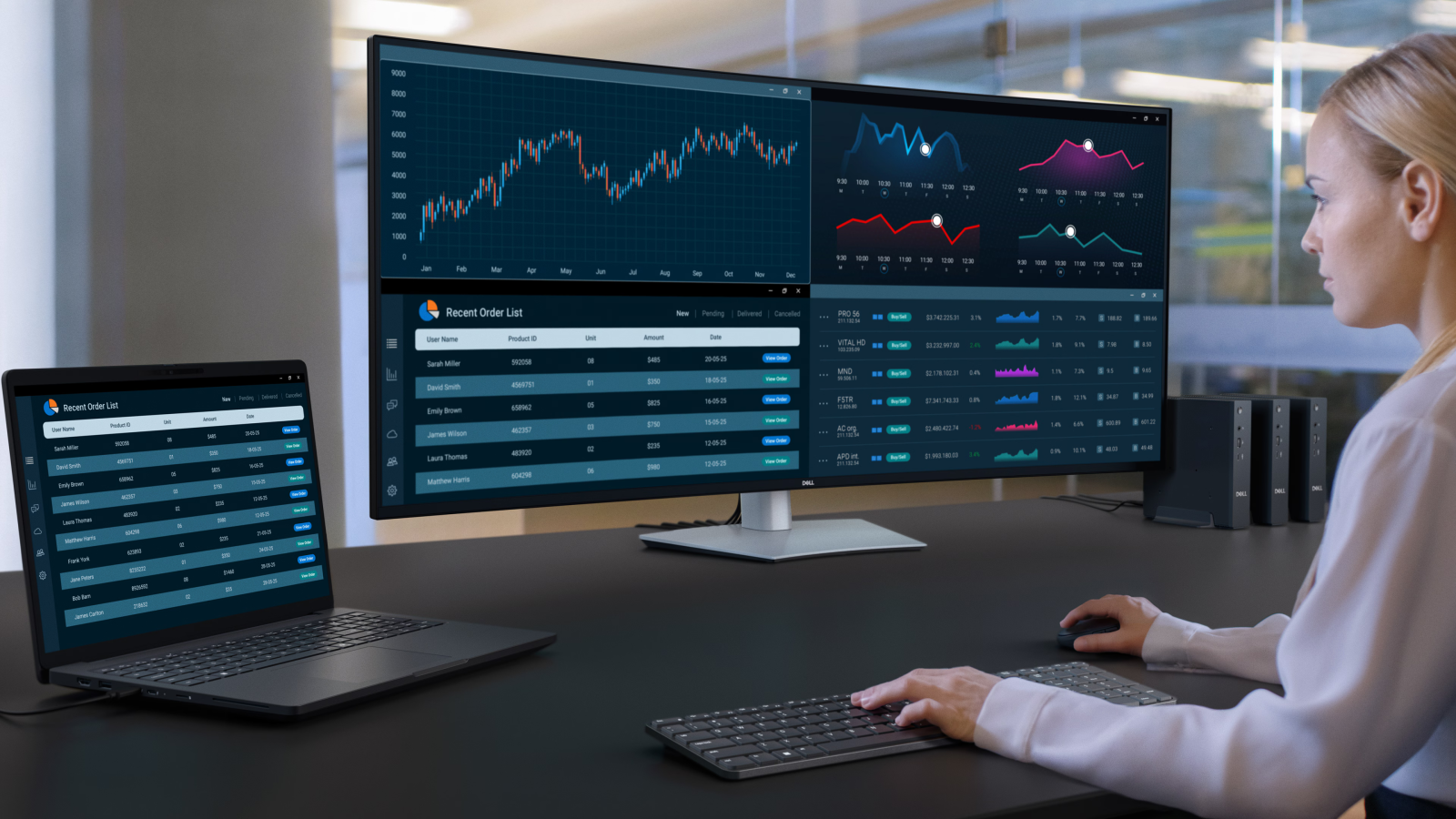

Connect up to four PCs

Picture-by-Picture (PbP) lets you view content from multiple PCs on one screen. The KVM (Keyboard, Video, Mouse) and Auto KVM features empower you to control them with a single keyboard and mouse.

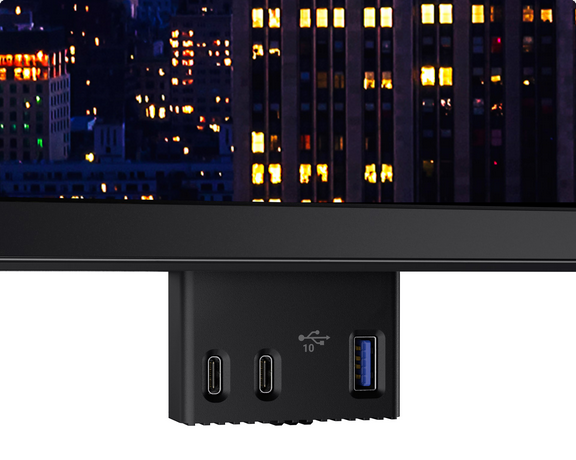

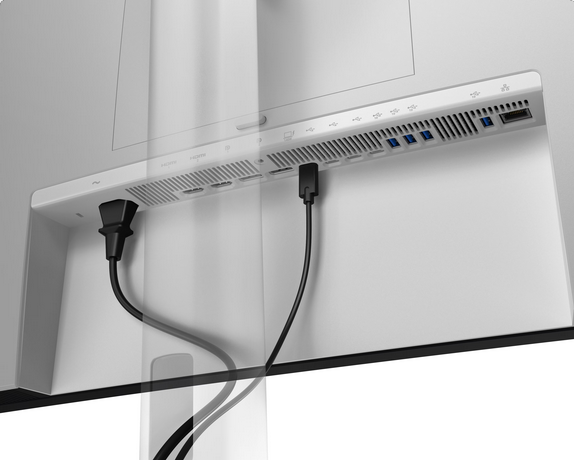

Thunderbolt 4 Power your devices with a single cable connection with up to 140W EPR (Extended Power Range) enabled by Thunderbolt 4.	Extensive connectivity Connect all your devices with a multitude of ports, including a pop-out quick access module featuring two USB-C ports (up to 27W power delivery) and one USB-A port.	Stable connection Connect to the Ethernet with a built-in RJ45 port with up to 2.5GbE. The Ethernet Switch mode feature gives you the flexibility to lock the wired Ethernet to a chosen PC while continuing to share one set of peripherals to control multiple PCs.

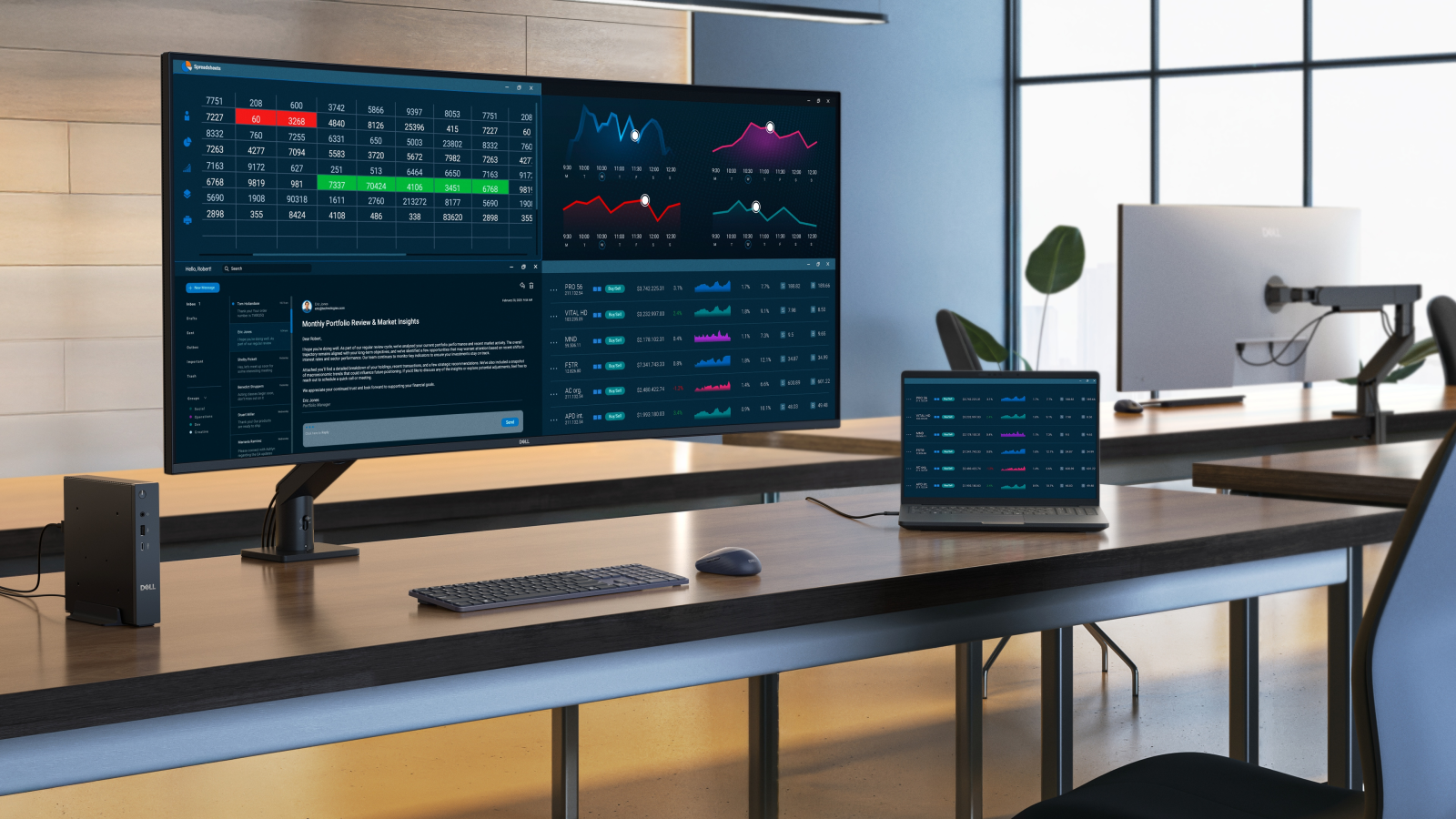

Effortless deployment and setup

This monitor is purpose-built with lightweight aluminum and a VESA-mounting solution for easy installation and flexible management.

Specifications

Technical Information

Number of Screens

1

Screen Size Class

52"

Viewable Screen Size

51.5"

Screen Mode

6K

Panel Technology

In-plane Switching (IPS) Black Technology

Response Time Details

• 5 ms GTG (Fast)
• 8 ms GTG

Aspect Ratio

21:9

Pixel Pitch

0.19644 mm x 0.19644 mm

Horizontal Viewing Angle

178°

Vertical Viewing Angle

178°

Mount Type

Panel Mount

HDCP Supported

Yes

Maximum Adjustable Height

3.54"

Tilt Angle

-5° to 10°

Swivel Angle

-20° to 20°

Slant Angle

-2°/2°

Features

• Internal Multi-Stream Transport (iMST)
• Anti-glare
• Low Reflection
• Eye Comfort Technology
• Low Blue Light
• Flicker-free
• Color Calibration
• Security Lock
• Cable Lock Slot
• Ambient Light Sensor
• Picture by Picture
• Picture in Picture
• Arsenic-free Glass
• Mercury-free
• BFR Free
• PVC Free

Adjustable Stand

Yes

Stand Adjustments

• Height
• Tilt
• Slant
• Swivel

Stand Included

Yes

Pivot

No

Curved Screen

Yes

Curvature

4200R

Glass Hardness

3H

Surface Treatment

Anti-glare Low Reflectance

Flicker Free

Yes

HDMI Feature Support

Variable Refresh Rate (VRR)

Video

Maximum Resolution

6144 x 2560 at 120Hz

Standard Refresh Rate

120 Hz

Color Supported

1.07 Billion Colors

Native Contrast Ratio

2,000:1

Brightness

400 cd/m2

Color Gamut

• 99% DCI-P3 (CIE 1976)
• 100% sRGB (CIE 1931)
• 100% BT.709 (CIE 1931)
• 99% Display P3

Calibration Accuracy

E < 1.5

Pixel Per Inch (PPI)

129

Audio

Number of Speakers

2

Speakers

Yes

Speaker Output Power

2 x 9 W

Interfaces/Ports

Connectivity

• 2 HDMI port/s (HDCP 2.2) (Supports up to 6144 x 2560, 120 Hz, VRR, , as specified in HDMI 2.1 (FRL))
• 2 DisplayPort 1.4 (HDCP 2.2) port/s
• 4 USB Type-A 10Gbps downstream port/s
• 3 USB-C 10Gbps upstream port/s
• 1 Thunderbolt 4 40Gbps upstream port/s (DisplayPort 1.4 Alt Mode, Power Delivery up to 140 W EPR)
• 1 RJ45 Ethernet port/s, 2.5GbE
• 1 USB Type-A 10Gbps downstream port/s with Battery Charging 1.2
• 2 USB-C 10Gbps downstream port/s, Power Delivery up to 27 W

Built-in Devices

Built-in Devices

• USB Hub
• KVM Switch

Microphone

No

Environmental Conditions

Operating Temperature Range

32°F (0°C) to 104°F (40°C)

Non-operating Temperature Range

-4°F (-20°C) to 140°F (60°C)

Operating Humidity Range

10% to 80% (Non-condensing)

Non-operating Humidity Range

5% to 90% (Non-condensing)

Maximum Operating Altitude

16404 ft

Maximum Non-operating Altitude

40000 ft

Power Description

Input Voltage Range

100V AC to 240V AC

Operating Power Consumption

63.60 W

Standby Power Consumption

0.5 W

Off-Mode Power Consumption

0.3 W

Frequency

• 50 Hz
• 60 Hz

Maximum Power Consumption

430 W

Voltage Current

5.50 A

Physical Characteristics

VESA Mount Compatible

Yes

VESA Mount Standard

• 100 x 100
• 200 x 100
• 200 x 200

Color Family

Silver

Product Color

Platinum Silver

Height

20.83"

Width

48.16"

Depth

4.41"

Height with Stand

26.25"

Width with Stand

48.16"

Depth with Stand

10.04"

Compressed Height with Stand

22.71"

Extended Height with Stand

26.25"

Bezel Width (Top)

0.41"

Bezel Width (Bottom)

0.62"

Bezel Width (Left)

0.41"

Bezel Width (Right)

0.41"

Weight (Approximate)

28.57 lb

Stand Height

26.25"

Stand Width

48.16"

Stand Depth

10.04"

Weight with Stand (Approximate)

40.19 lb

Miscellaneous

Certifications & Standards

• Israel EE
• CEL
• Ukrain EE
• Mexico EE
• Ghana EE
• GS Mark
• Arsenic-Free glass and Mercury-Free for the panel only
• BFR/PVC free monitor (excluding external cables)
• California CEC

Platform Supported

• Windows
• ThinOS
• Linux
• Mac

Energy Star

Yes

Country of Origin

China/Vietnam

TAA Compliant

No

TCO Certified

Yes

Eye Comfort Certification

Yes

Eye Comfort Rating

5 Star

Remote Asset Management

• Dell Display and Peripheral Manager (DDPM)
• Dell Device Management Console (DDMC)
• Dell Color Management (DCM)

Environmentally Friendly

Yes

Environmental Certification

• China Environmental United Certification Center (CEC)
• Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
• Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
• TCO Certified 10.0
• TCO Certified Edge

Energy Efficiency Certification

• China Energy Conservation Program (CECP)
• ENERGY STAR 8.0

Energy Efficiency Compliance

• Energy-related Products Directive Lot 5 (ErP Lot 5)
• Energy-related Products Directive (ErP)
• Korea Minimum Energy Performance Standards (MEPS)

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
