Chieftec UNI Mesh Chassis BX-10B-M-OP
НазадChieftec UNI Mesh Chassis BX-10B-M-OPChieftec UNI Mesh Chassis BX-10B-M-OPChieftec UNI Mesh Chassis BX-10B-M-OPChieftec UNI Mesh Chassis BX-10B-M-OPНапред

Кутия Chieftec UNI Mesh Chassis, Mini-ITX/mATX, 1x USB 3.2 Gen 1 Type-C, черна, без захранване

id 265323 Код: CASEPCHIEFTECBX10BMOP
105.68 лв

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиДокументацияВземи на изплащане

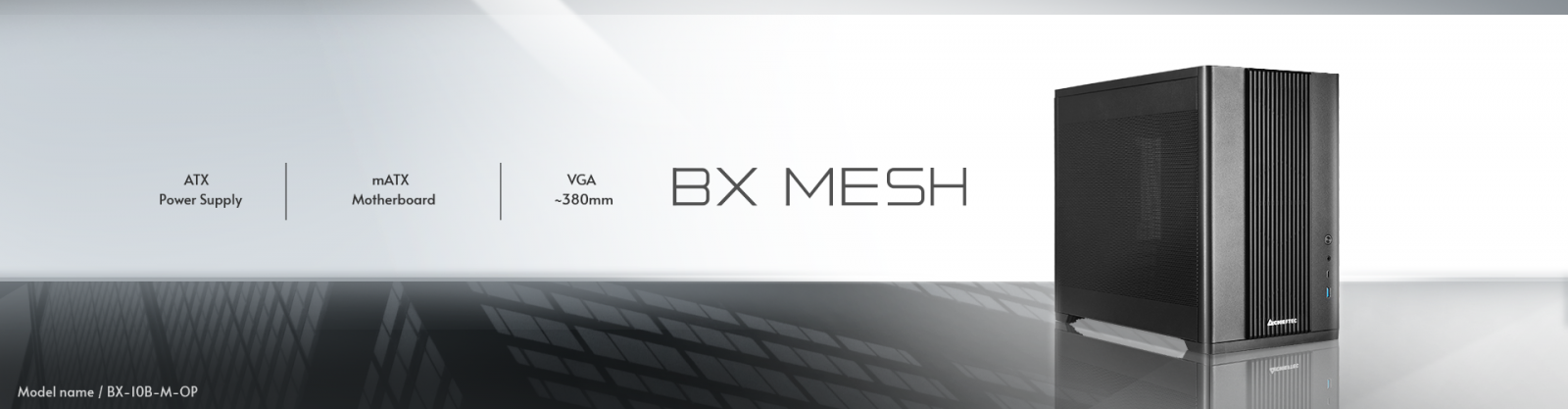

BX-MESH
BX-10B-M-OP

  • Compact, modern m-ATX tower
  • Optimal cooling compatibility
  • Support 240mm radiator
  • 1x 120mm PWM fan pre-installed



The CHIEFTEC BX-MESH is a modern, compact mini tower that combines elegant and subtle design with high functionality and easyinstallation for a capable system. Featuring standard ATX PSU compatibility, m-ATX boards and graphics cards up to a maximum length of 380mm, as well as a total of 6 possible installed fans, modern configurations should have no trouble being installed into the BX-10B-M-OP from a space or cooling perspective.



Specifications:

ColorBlack
Material0.6mm SPCC
Motherboard supportMini ITX, mATX
Dimension (DxWxH)415mm x 204mm x 325mm + (15mm feet)
Drive bay external-
Drive bay internal1 x 3,5" & 3 x 2,5" or 4 x 2.5”
Power supplyATX PSU (optional, ~180mm recommended if GPU >300mm installed)
Front I/O1x USB3.2 Gen1 Type-A, 1x USB 3.2 Gen1 Type-C, Audio-Out/Mic-In
Scope of deliverySet of screws , 1x 120mm PWM fan pre-installed
Expansion slots4
Cooling CompatibilityBottom: 3x 120mm or 2x 140mm (140mm only with ITX board)
Rear: 1x 120mm pre-installed
Top: 2x 120mm or 2x 140mm fans or 240mm radiator
CPU cooler height (max.)165mm
VGA card length (max.)380mm (300mm, if PSU longer than 180mm installed)


JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Компютърни кутии Chieftec
    Виж всички Компютърни кутии в категорията
    Документация
    Технически характеристики
    Захранване:  Не
    Прозорец:  Не
    Цвят:  Черен
