Chipset
Intel H610
CPU SUPPORT
Support for 12th/13th/14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY
Supports Dual Channel DDR4 - 3200/ 2933/ 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/ 8/ 16/ 32 GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO
By CPU model
Supports
DX12
Supports
HDCP
STORAGE
Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H610 Chipset
1 x M.2 (M Key) Socket (M2M_SB):
Supports M.2 Type 2242/2260/2280 SSD module
Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD
4 x SATA III Connector (6Gb/s)
* Specifications vary by CPU types
LAN
Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC
ALC897
7.1 Channels, High Definition Audio
USB
4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port (4 on rear I/Os and 2 via internal headers)
EXPANSION SLOT
Intel 12th/13th/14th Processors
1x PCIe 4.0 x16 Slot
Intel H610 Chipset
1x PCIe 3.0 x1 Slot
* Specifications vary by CPU types

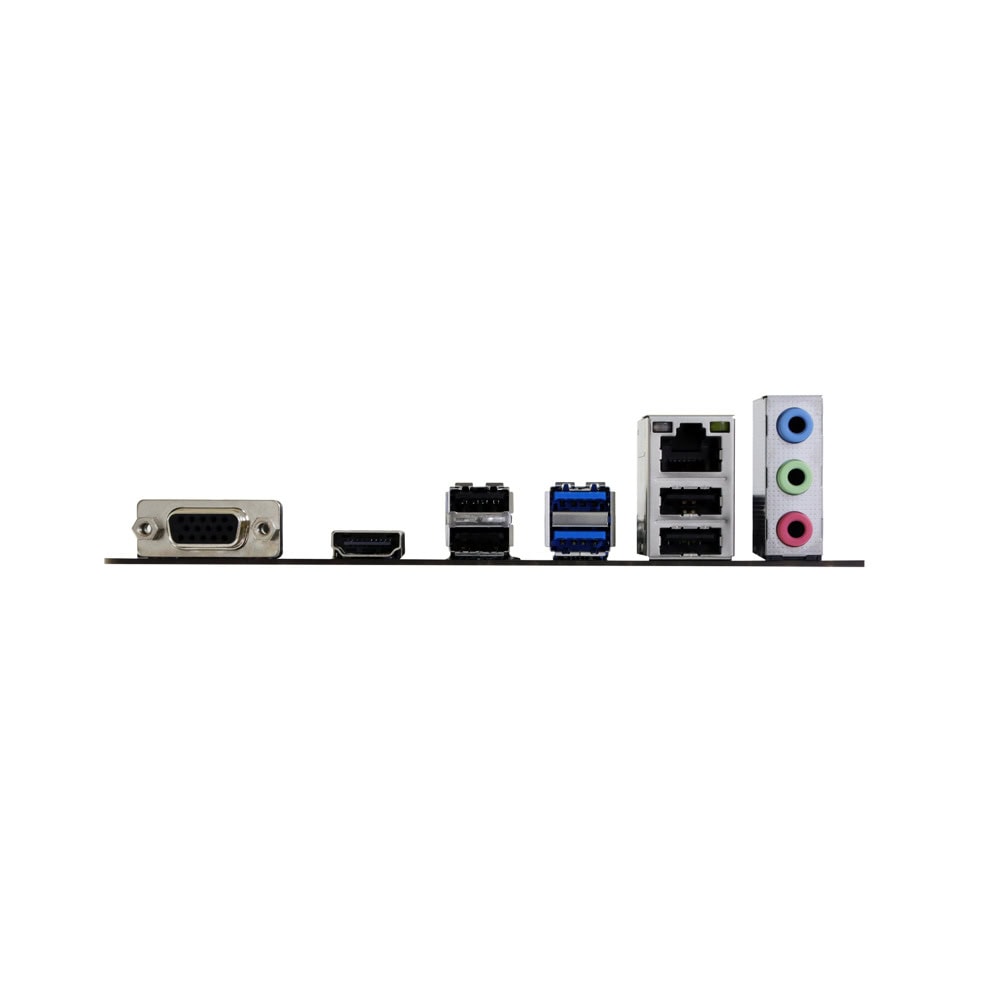

REAR I/O
1 x HDMI 1.4 Port
1 x VGA Port
2 x USB 3.2 (Gen1) ports
4 x USB 2.0 ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O
4 x SATA III Connector (6Gb/s)
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Speaker Header
1 x Clear CMOS Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
Dimensions
Micro ATX Form Factor
Dimensions: 18.5cm x 22.6cm ( W x L )
OS SUPPORT
Supports Windows 10 (64bit) / 11(64bit)
Виж още Дънни платки за Intel процесори Biostar
Виж всички Дънни платки за Intel процесори в категорията
Intel H610
CPU SUPPORT
Support for 12th/13th/14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY
Supports Dual Channel DDR4 - 3200/ 2933/ 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/ 8/ 16/ 32 GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO
By CPU model
Supports
DX12
Supports
HDCP
STORAGE
Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H610 Chipset
1 x M.2 (M Key) Socket (M2M_SB):
Supports M.2 Type 2242/2260/2280 SSD module
Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD
4 x SATA III Connector (6Gb/s)
* Specifications vary by CPU types
LAN
Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC
ALC897
7.1 Channels, High Definition Audio
USB
4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port (4 on rear I/Os and 2 via internal headers)
EXPANSION SLOT
Intel 12th/13th/14th Processors
1x PCIe 4.0 x16 Slot
Intel H610 Chipset
1x PCIe 3.0 x1 Slot
* Specifications vary by CPU types
REAR I/O
1 x HDMI 1.4 Port
1 x VGA Port
2 x USB 3.2 (Gen1) ports
4 x USB 2.0 ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O
4 x SATA III Connector (6Gb/s)
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Speaker Header
1 x Clear CMOS Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
Dimensions
Micro ATX Form Factor
Dimensions: 18.5cm x 22.6cm ( W x L )
OS SUPPORT
Supports Windows 10 (64bit) / 11(64bit)
Виж още Дънни платки за Intel процесори Biostar
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1700 |
|---|---|
| Чипсет: | H610 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI VGA (D-Sub) |
| Форм фактор: | Micro ATX |
