Захранване be quiet! Pure Power 13 M, 750W, Active PFC, 80 Plus Gold, 120mm вентилатор

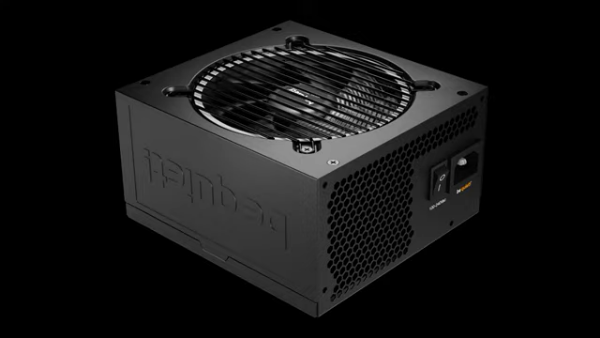

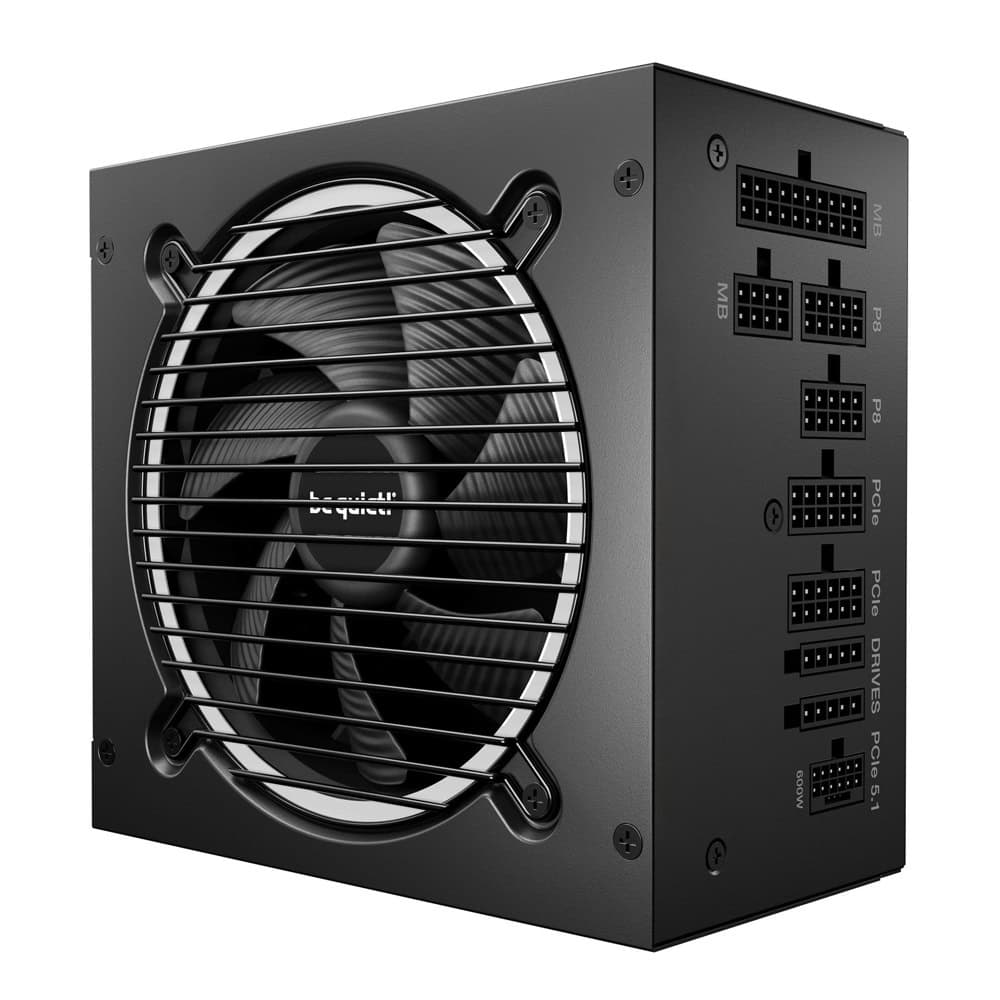

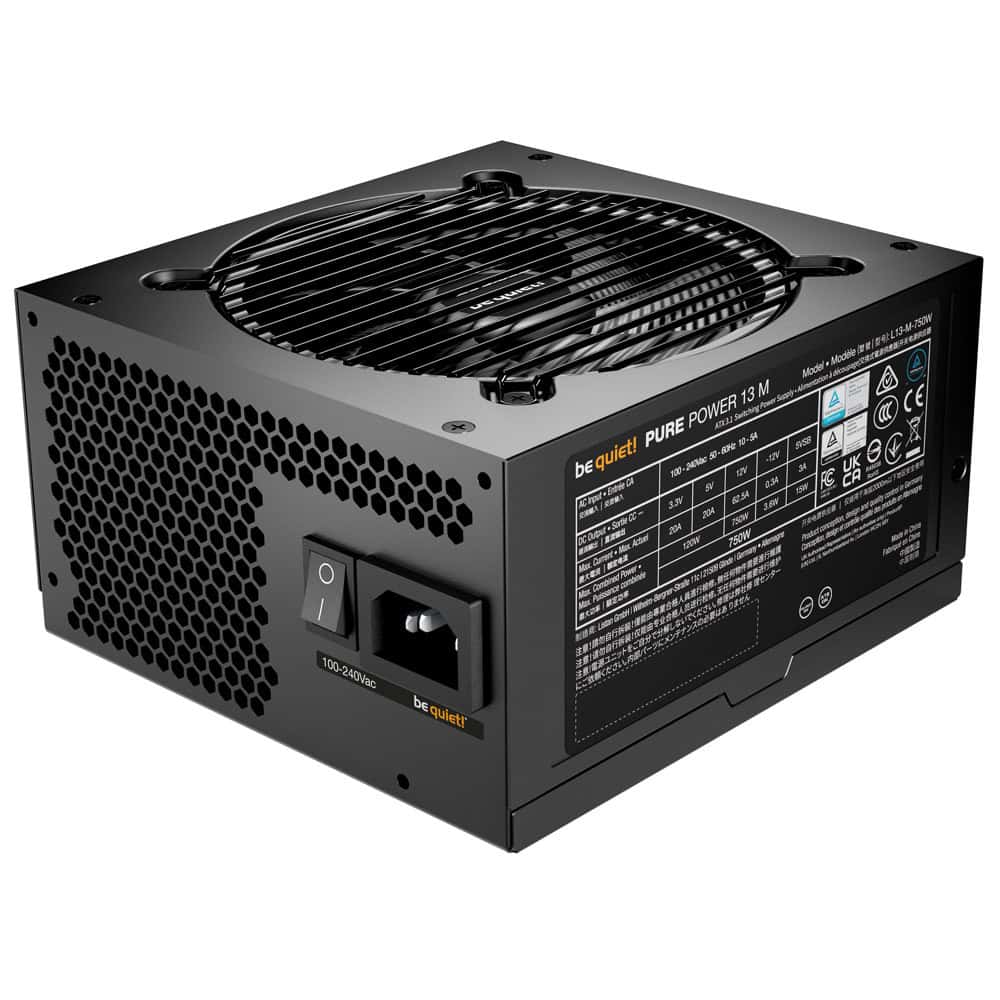

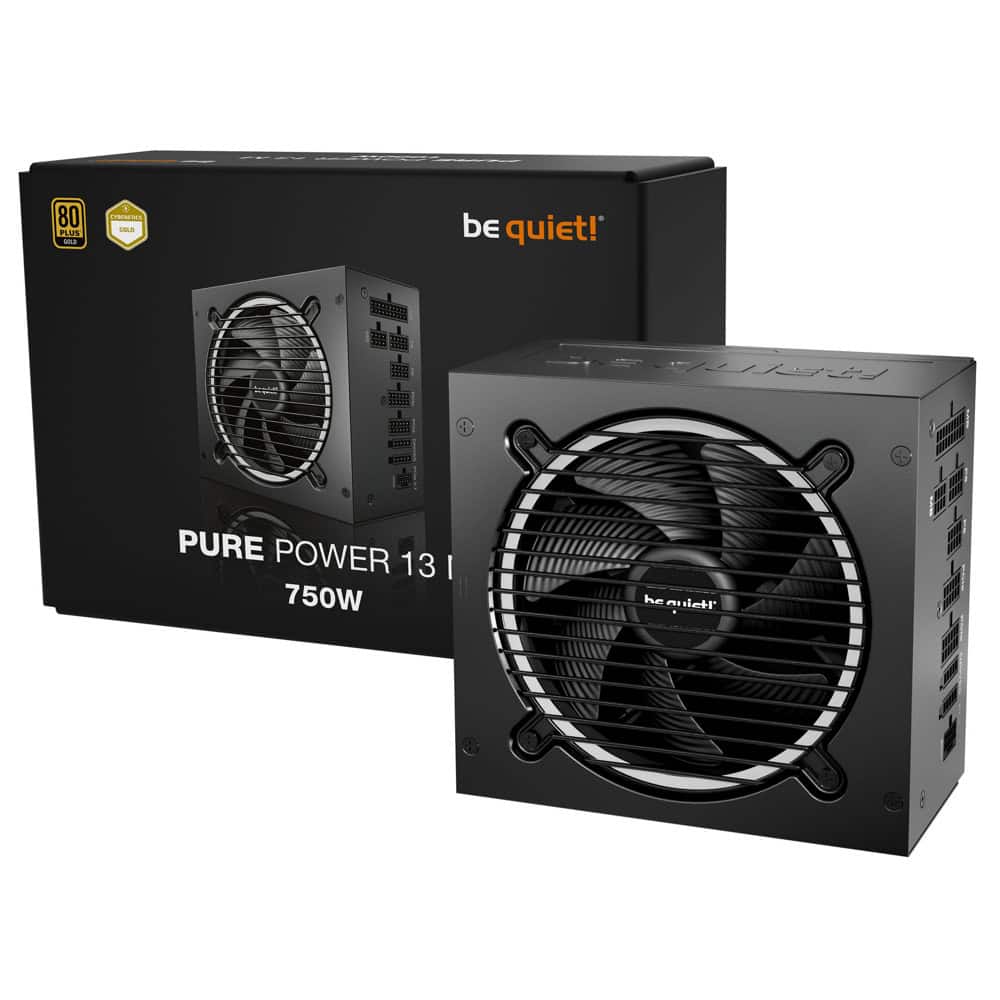

be quiet! Pure Power 13 M 750W

Exceptional quiet, superior features

Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.

• 80 PLUS® Gold efficiency (up to 94.3%)
• ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
• Exceptionally silent semi-passive 120mm be quiet! fan
• Semi-passive construction for quiet and energy-saving operation
• LLC technology for advanced stability and voltage regulation
• One massive high-performance 12V-rail
• One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs

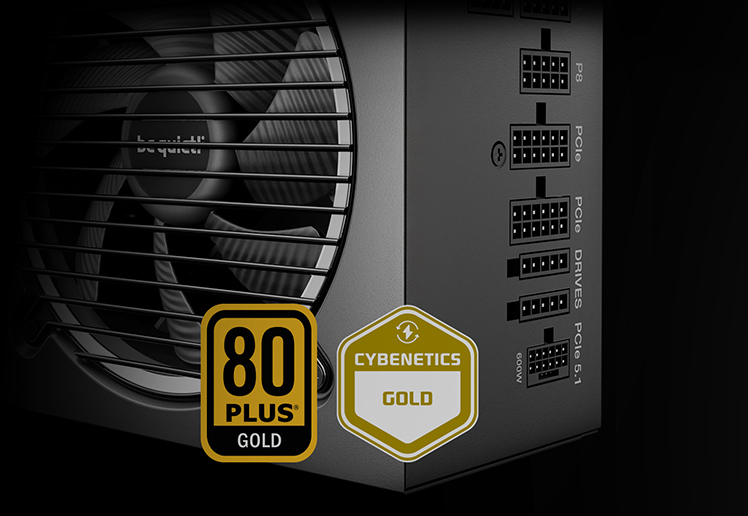

80 PLUS® GOLD CERTIFIED

Very high operating efficiency

Pure Power 13 M 750W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 94.3%.  The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 750W is always the correct choice for quiet systems and gaming PCs!

FUTURE-PROOF YOUR SYSTEM

Fulfills all ATX 3.1 specifications

Pure Power 13 M 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER

For massive transient loads

Pure Power 13 M offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 13 M 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

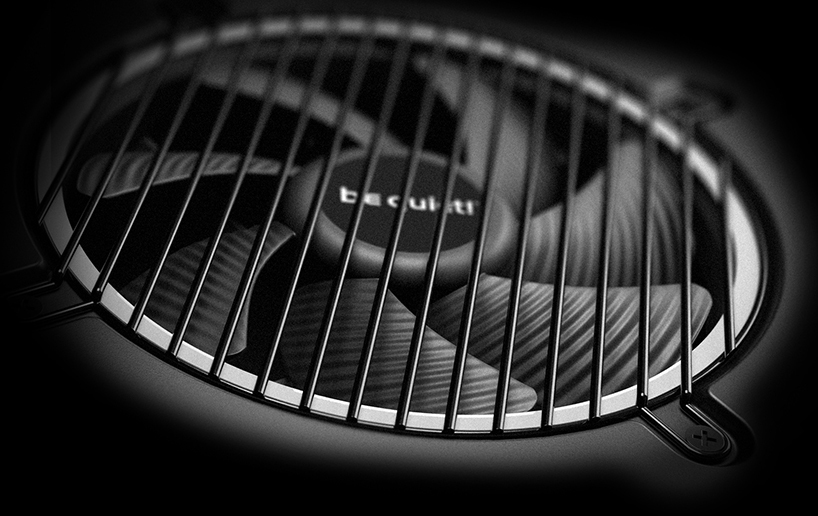

SEMI-PASSIVE ZERO-RPM COOLING

Enjoy the silence

While under low load, the fan turns off completely until its services are needed again for more demanding operations. This feature, combined with the reliable be quiet! fan and its airflow-optimized fan blades, make Pure Power 13 M 750W exceptionally silent in all load scenarios.

Model: PURE POWER 13 M | 750W.

Continuous Power: 750 W.

Peak Power: 820 W.

Form Factor: ATX 3.1.

EPS Standard: EPS 12V Version 2.92.

Topology: LLC + SR + DC/DC.

Digital Control: No.

Input Voltage: 100–240 V AC.

Input Frequency: 50–60 Hz.

Input Current: 10 A / 5 A.

Power Factor (at Full Load): >0.98.

Modern Standby Support: Yes.

Standby Power Consumption: <0.1 W.

Estimated Lifetime: Over 100,000 hours (at 25°C).

Maximum Operating Temperature: 40°C.

80 PLUS Certification: Gold.

Efficiency (230 V):

• 2% Load: 71.9%
• 10% Load: 90.6%
• 20% Load: 93.4%
• 50% Load: 94.3%
• 100% Load: 92.6%

Cooling Fan: be quiet! silence-optimized 120 mm fan.

Bearing Type: Rifle bearing.

Fan Motor: 4-pole motor.

Maximum Fan Speed: 1800 RPM.

Noise Level:

• 7.2 dB(A) at 10% load.
• 7.2 dB(A) at 20% load.
• 8.5 dB(A) at 50% load.
• 16.5 dB(A) at 100% load.

+12V Rail: Single rail (62.5 A).

Maximum Combined +12V Output: 750 W.

12V-2x6 Power Output: Up to 600 W.

Maximum Combined +3.3V & +5V Output: 120 W.

Hold-Up Time: 20.9 ms at 100% load, 28.62 ms at 80% load.

Power Good Signal: 100–150 ms.

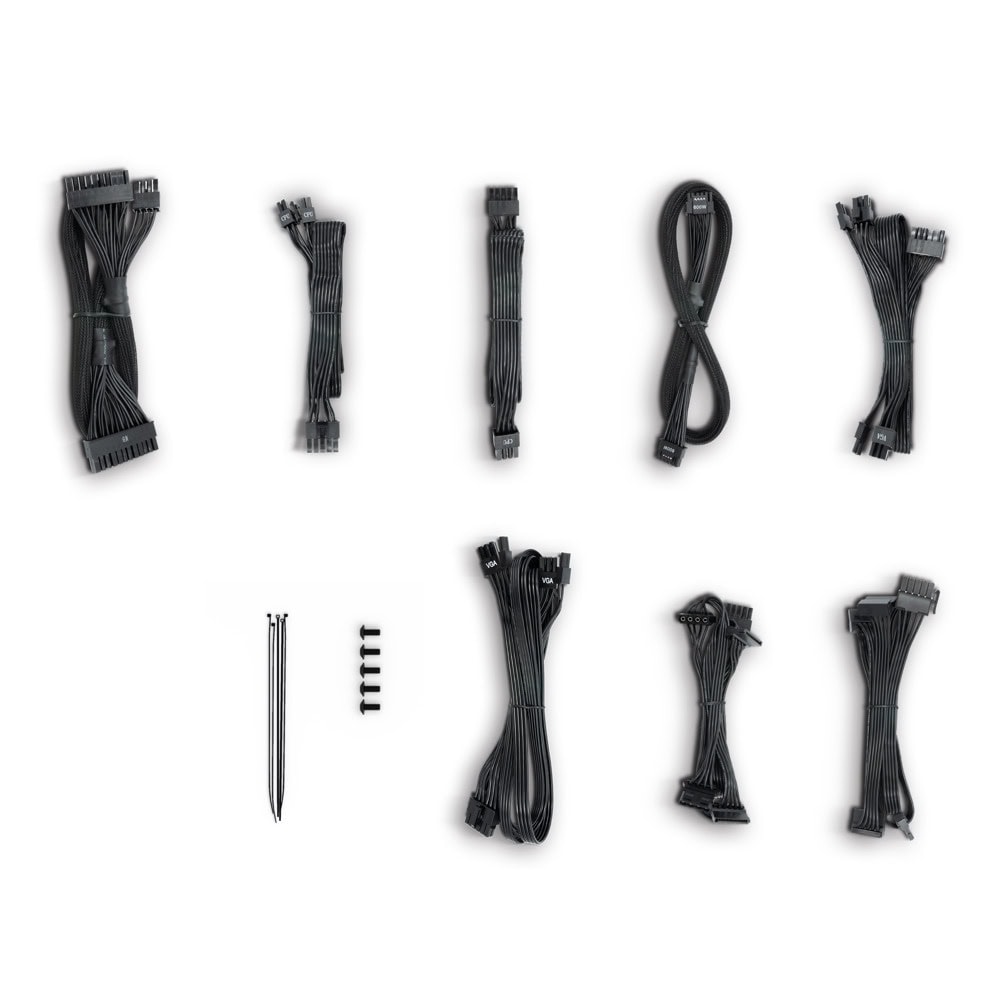

Cable Design: Fully modular, sleeved, and flat cables.

Maximum Cable Length: 95 cm.

Motherboard Cable Length: 55 cm.

Connectors:

• 1 × 20+4-pin ATX
• 2 × CPU power connectors (1 × 4+4-pin, 1 × 8-pin)
• 1 × 12V-2x6
• 4 × PCIe 6+2-pin
• 6 × SATA
• 2 × PATA

Protection Features: OTP, OCP, OPP, SCP, OVP, UVP, and SIP.

Energy Certifications: Energy Star 8.0, ErP, WEEE, RoHS.

Dimensions (L × W × H): 160 × 150 × 86 mm.

Weight: 2.46 kg.

Color: Black.
