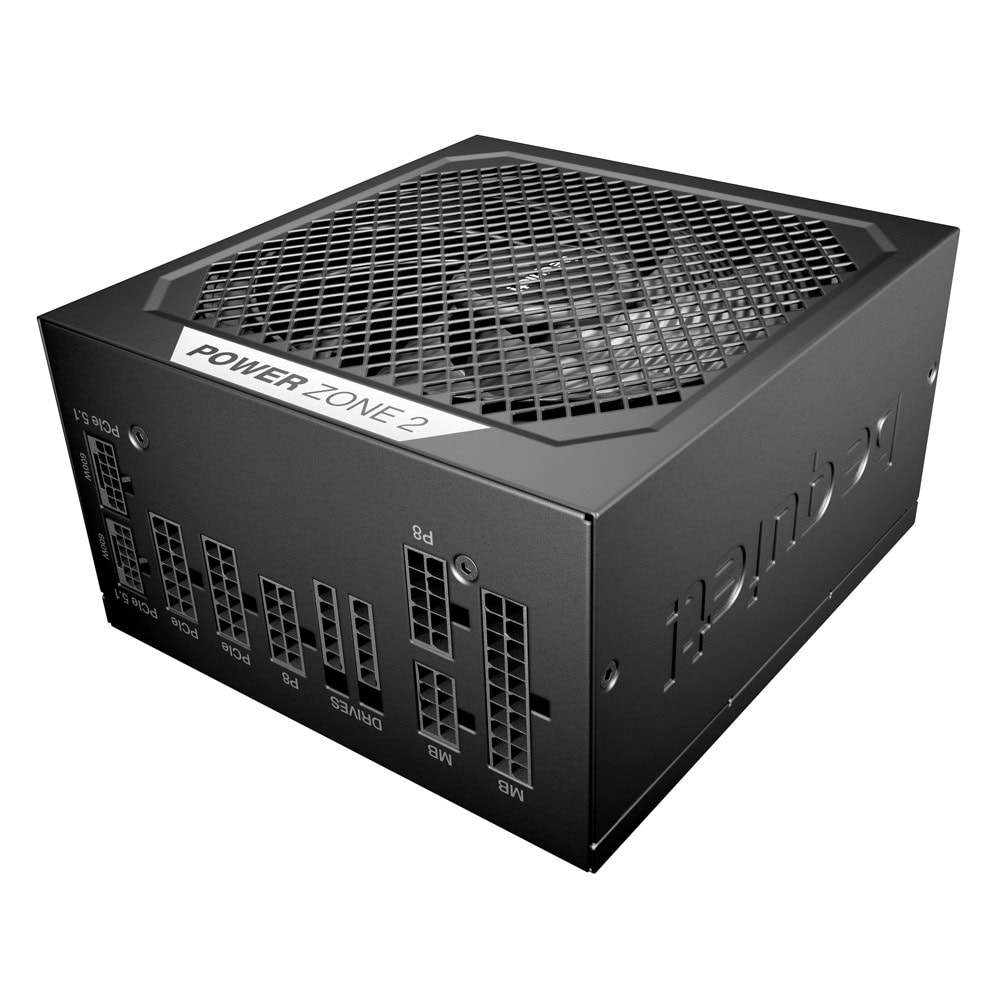

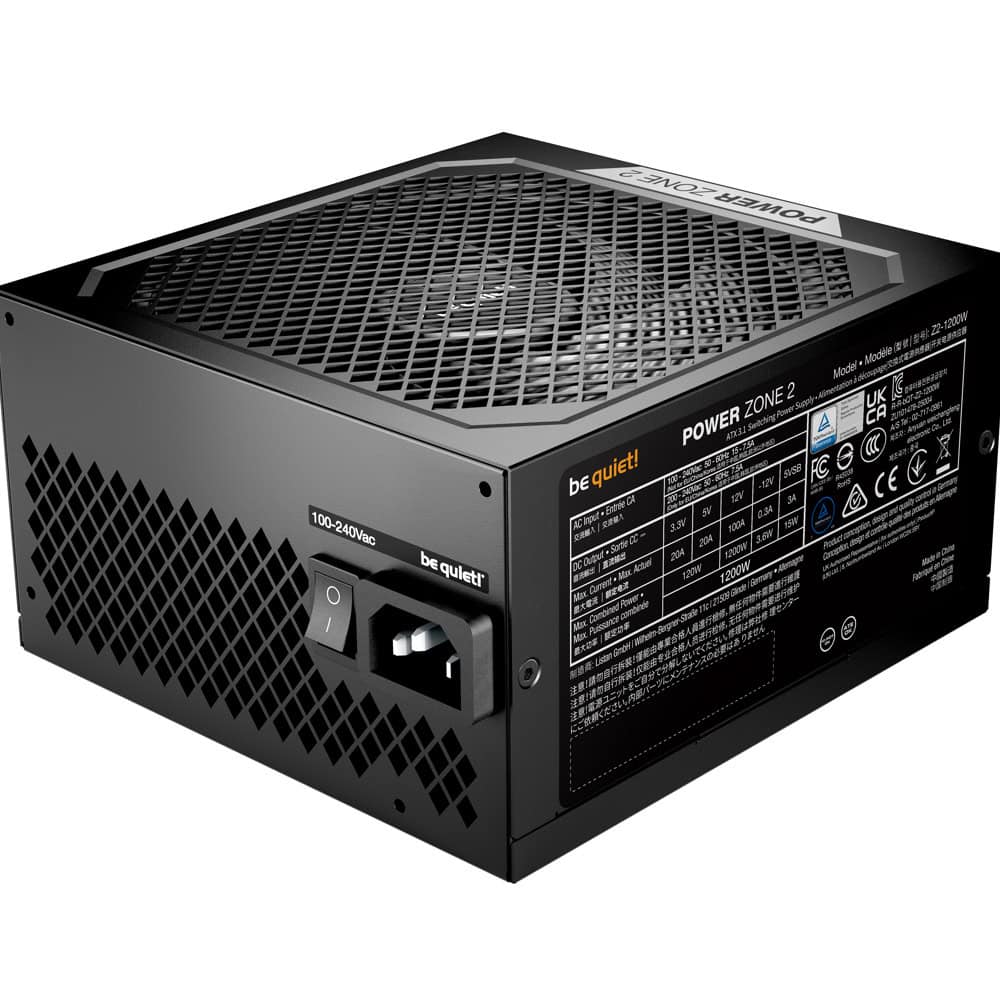

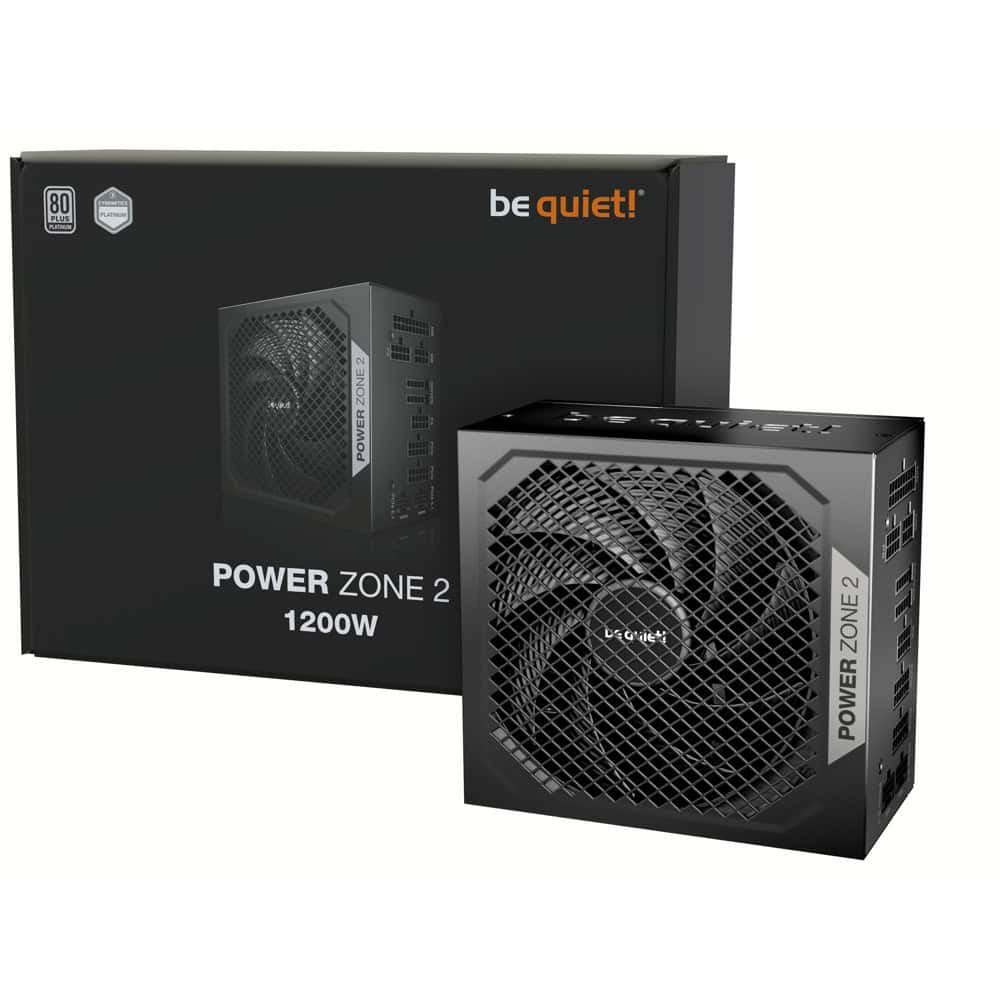

Захранване be quiet POWER ZONE 2, 1200W, Active PFC, 80 PLUS Platinum, 140mm вентилатор

be quiet! POWER ZONE 2

Exceptional efficiency for Gamers

Power Zone 2 1200W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.

• 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.3%)
• Semi-passive zero-RPM cooling
• Fan runs on for 2-5 minutes to avoid frequent starting noise
• Pure Wings 3 140mm fan for quiet and efficient cooling
• 2 x 90° angled 12V-2x6 connectors and PCIe 5.1/ATX 3.1 compatibility
• Advanced voltage regulation and stability thanks to LLC technology
• Unique look with an unmistakable mesh design
• One massive high-performance 12V-rail

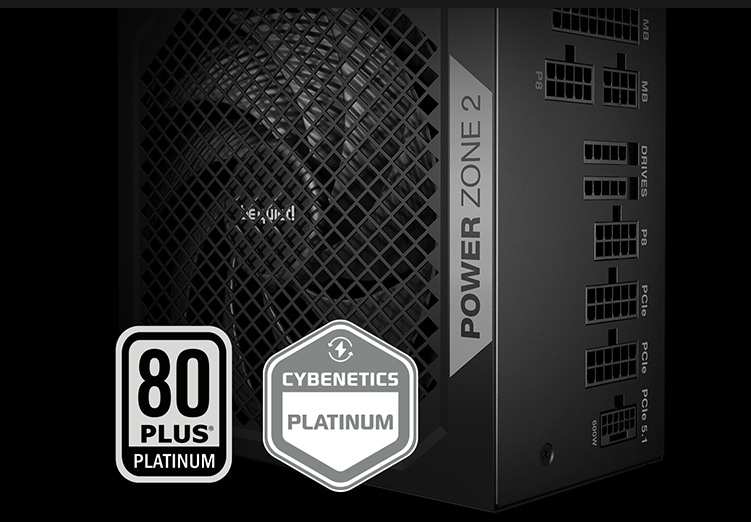

PLATINUM CERTIFIED

Highly efficient operation

Power Zone 2 1200W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.3%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.

SEMI-PASSIVE ZERO-RPM COOLING

Enjoy the silence

A large Pure Wings 3 140mm fan is keeping Power Zone 2 1200W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.

PURE WINGS 3 FAN

Specially designed for Power Zone 2

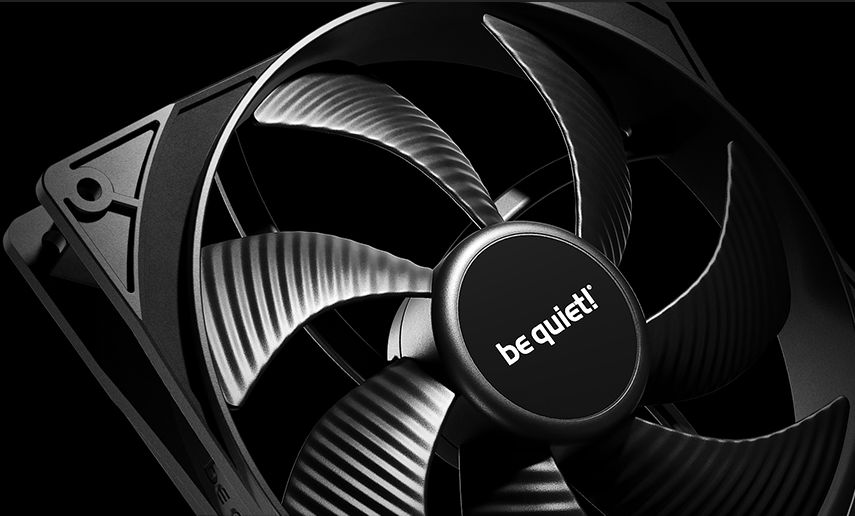

No power supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 1200W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.

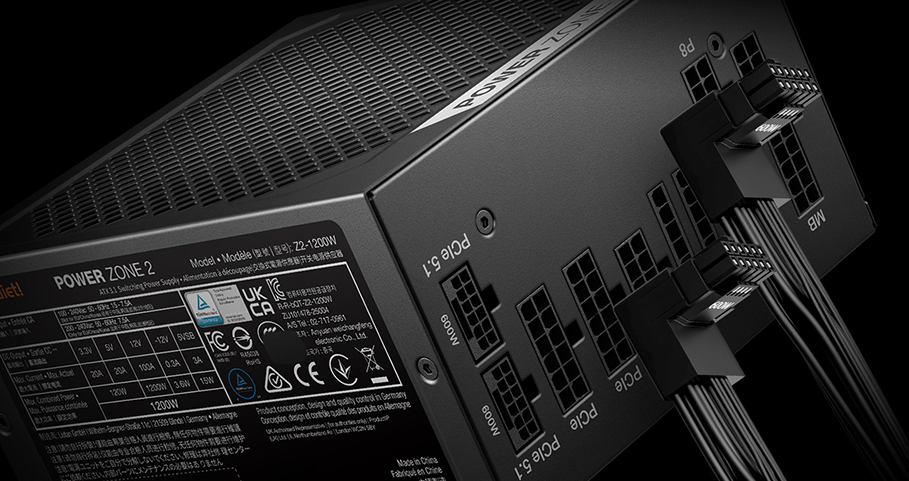

FUTURE-PROOF YOUR SYSTEM

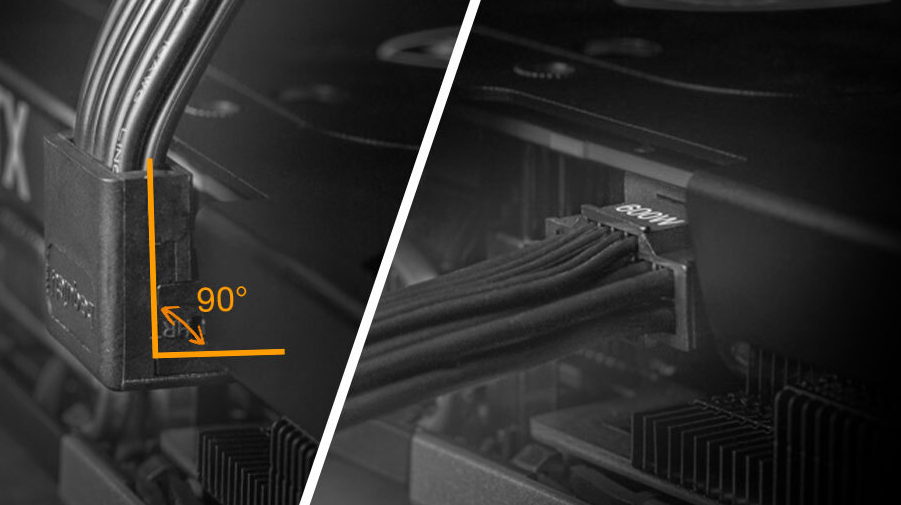

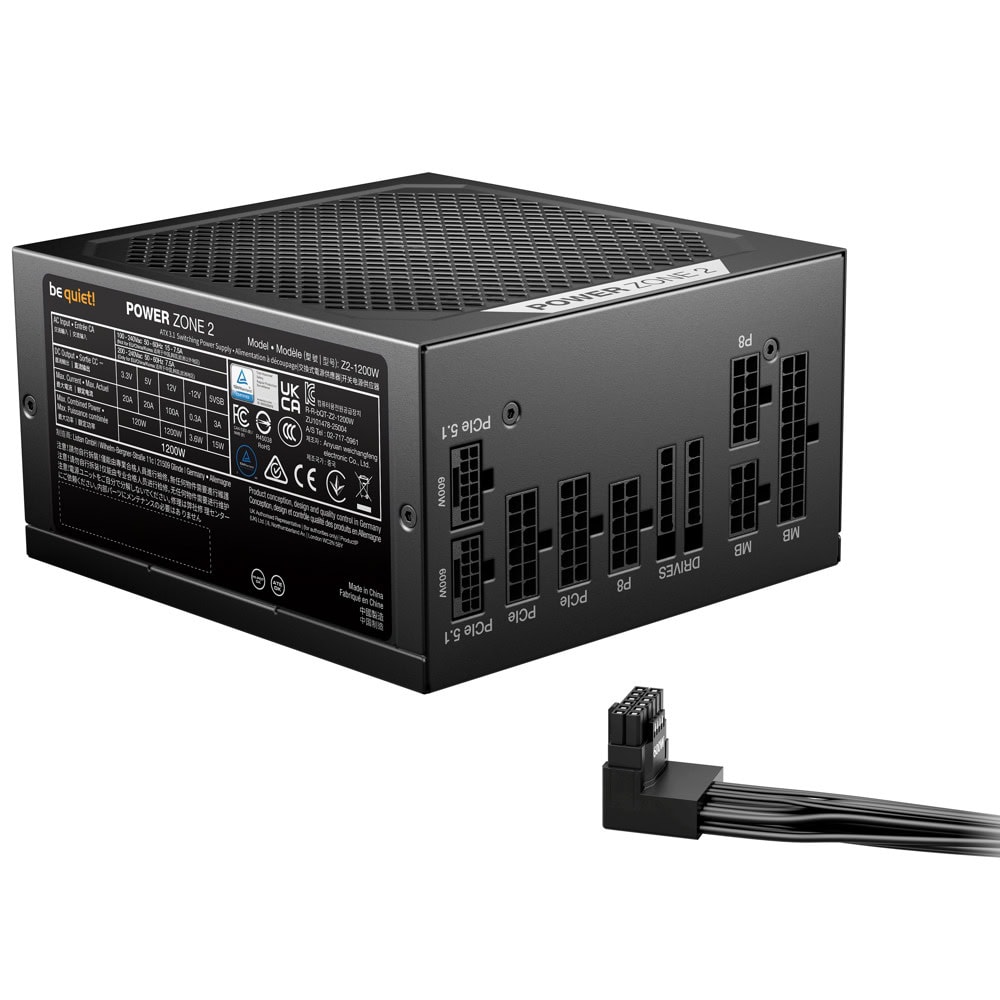

With 90° angled 12V-2x6 connectors in scope of delivery

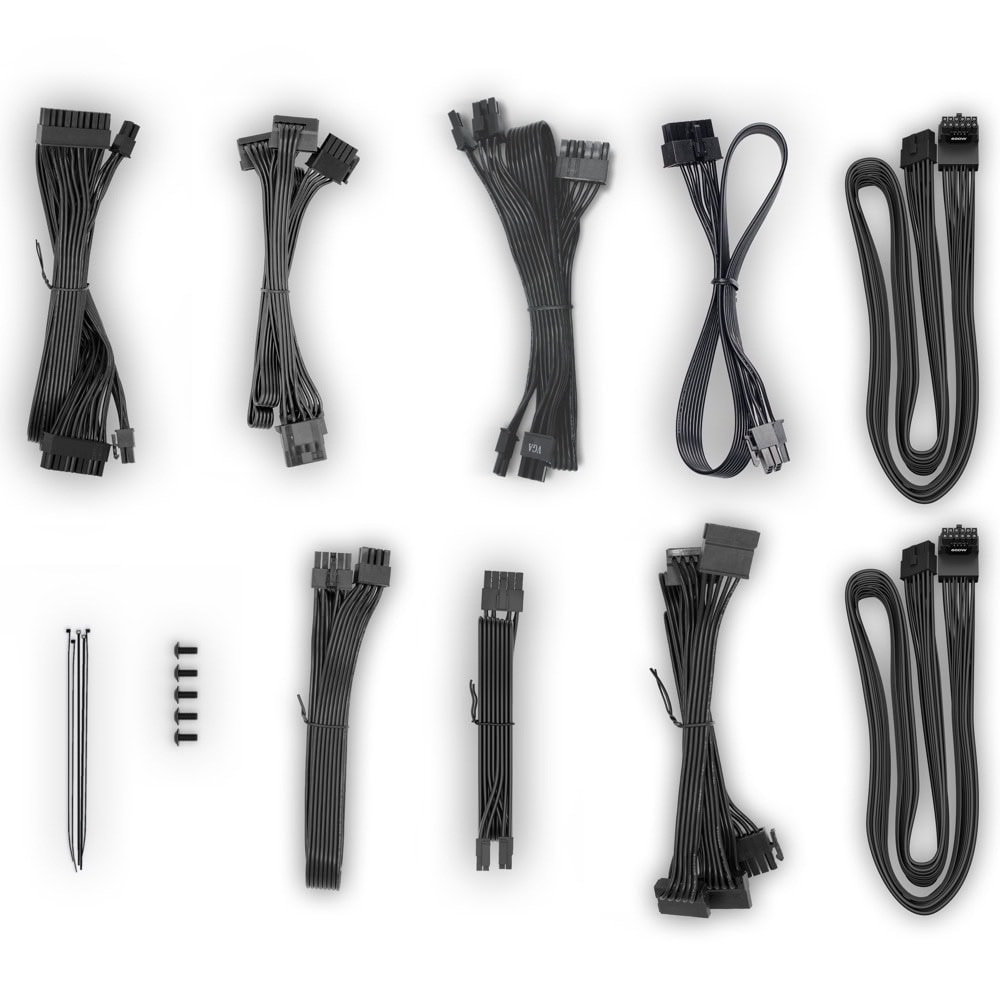

Power Zone 2 1200W is an ATX 3.1 PSU and comes with both native integration of the two 12V-2x6 connectors for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. The 90° angled 12V-2x6 connectors in the scope of delivery leave no doubt that this PSU is here to stay. All of this makes Power Zone 2 1200W extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER

For massive transient loads

Power Zone 2 offers 1200W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 1200W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

HIGH-CLASS TECHNOLOGIES

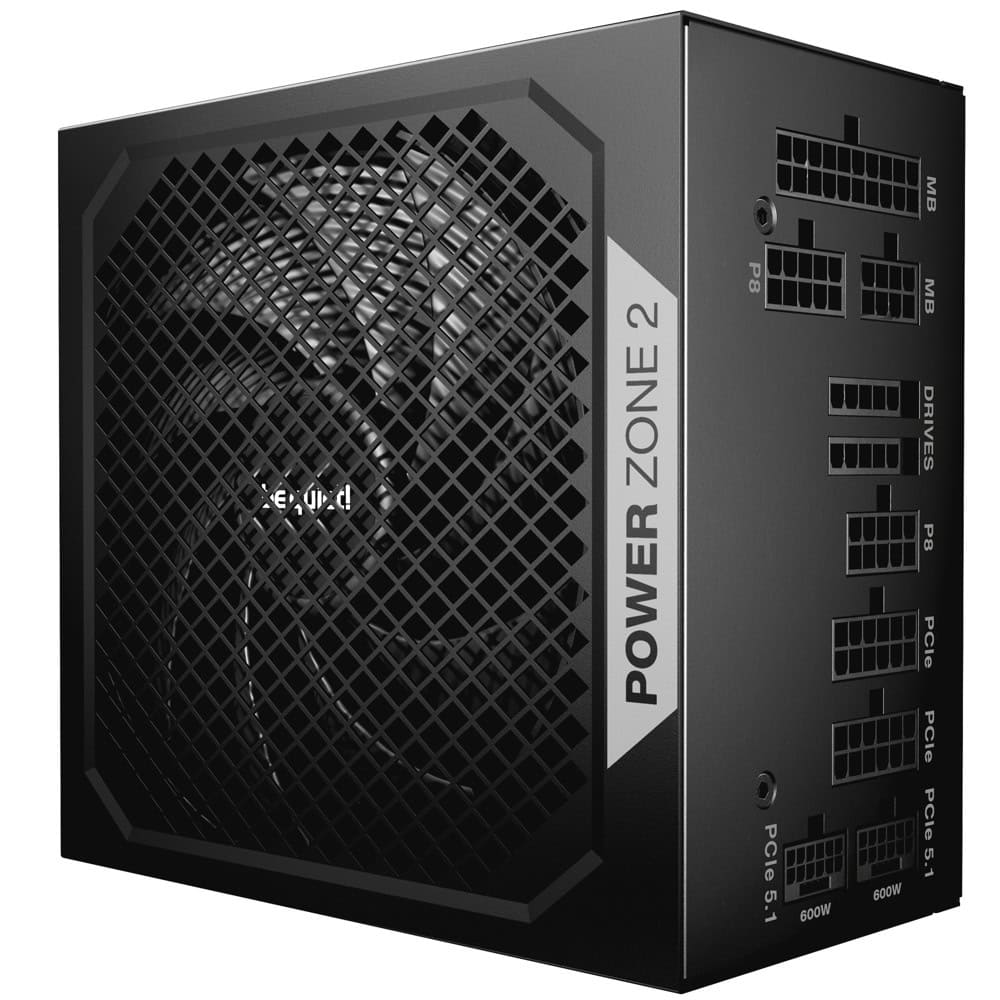

All packed in a stunning design

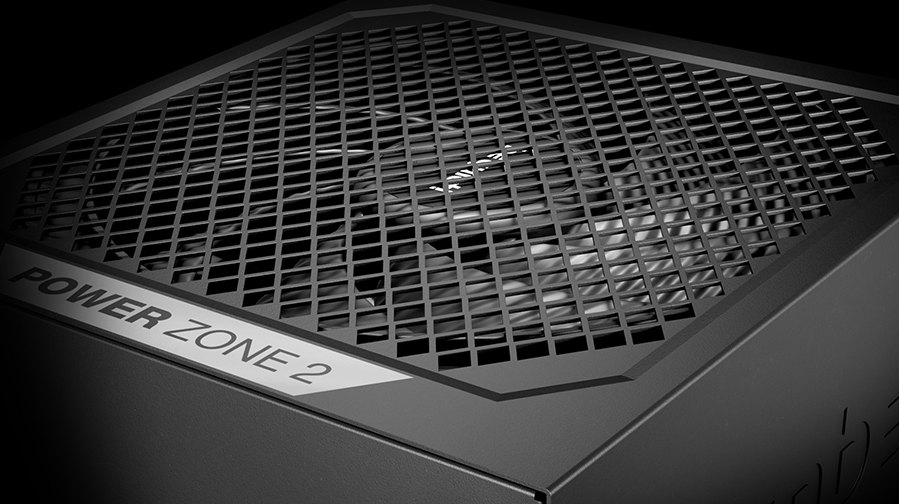

With its LLC topology, the Power Zone 2 1200W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply, but looks cannot be completely ignored. That is why the Power Zone 2 1200W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.

General data

Continuous power (W)

1200

Peak power (W)

1270

Form factor
ATX 3.1

Form factor EPS 12V
Version 2.92

Topology
LLC + SR + DC/DC

Voltage (Vac)
100 - 240

Frequency (Hz)
50 - 60

Input current (A)
15 / 7.5

Power factor at 100% load
>0.97

Modern standby
✓

Power consumption in standby (W)
<0.18

Average life time (h / 25°C)
>100,000

Operating temperature up to (°C)
40

Efficiency

80 PLUS certification
Platinum

Cybenetics ETA
2

Efficiency (%) at 230V, 2% load
63.3

Efficiency (%) at 230V, 10% load
89.8

Efficiency (%) at 230V, 20% load
93.2

Efficiency (%) at 230V, 50% load
94.3

Efficiency (%) at 230V, 100% load
92.7


Fan and cooling technology

Cybenetics LAMBDA
A

Fan
Pure Wings 3

Fan size (mm)
140

Bearing technology
Rifle

Motor technology
4-pole fan motor

Max. fan speed (rpm)
2100

dB(A) at 10% load
7.7

dB(A) at 20% load
7.7

dB(A) at 50% load
7.7

dB(A) at 100% load
25.5
