Name: Суич Asustor ASW209X, 2500Mbps, 9 порта, 5x 100/1000/2500Mbps RJ-45, 1x SFP+
Brand: ASUSTOR
SKU: NTLHASUSTORASW209X
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

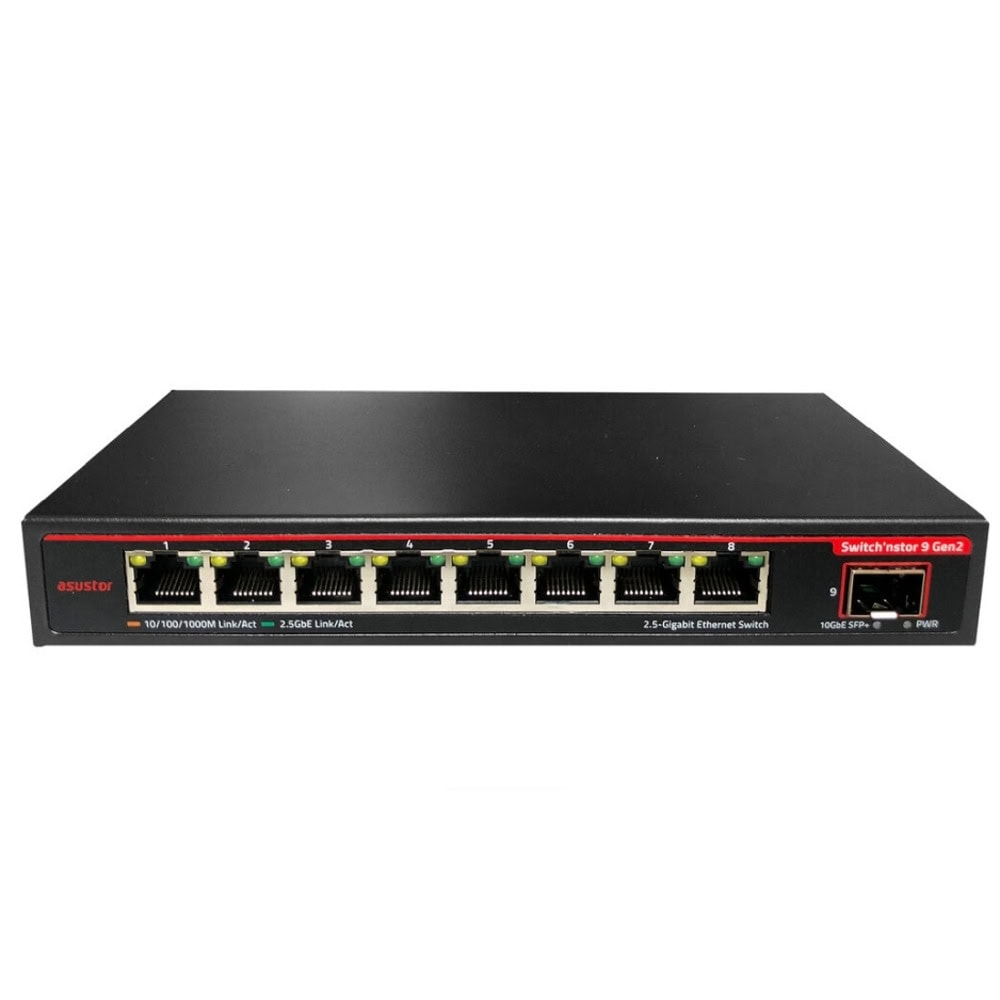

Switch'nstor 9 Gen2

ASW209X

Plug-and-play 8 port 2.5GbE on copper and 1 port 10GbE using SFP+ hybrid unmanaged network switch

One 10-Gigabit Ethernet SFP+ port
Eight 2.5-Gigabit Ethernet 8p8c RJ45 port
Provides up to 60 Gbps switching capacity
Plug and Play – Easily deployed and ready to use
Silent and fanless – seamless in any environment
Can be mounted on walls
Durable and aesthetically pleasing metal housing

Silent operation

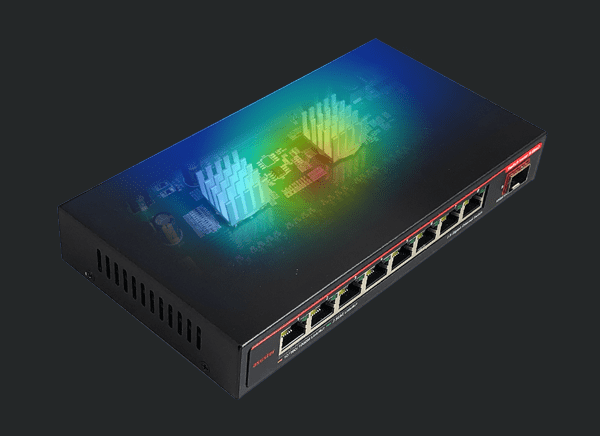

The Switch’nstor 9 Gen2 uses a sturdy design that incorporates efficient passive cooling for stable and quiet operation, making it ideal for an environment free from noise such as a content creation studio.

Collaborate Quickly

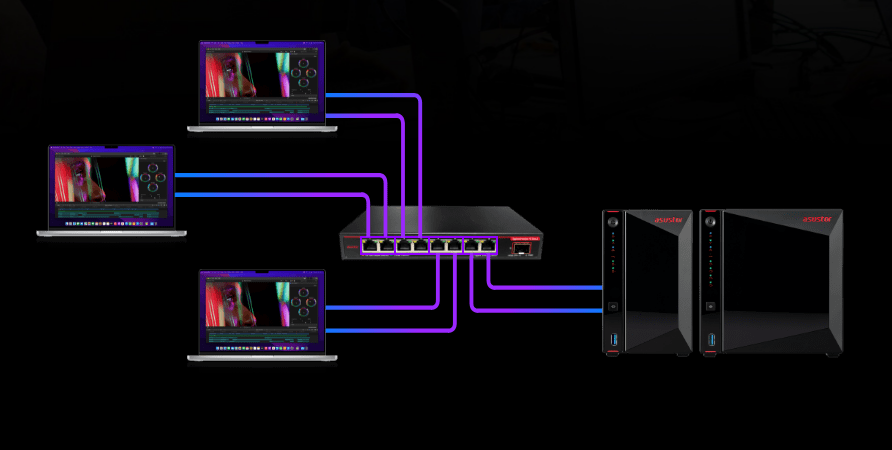

The Switch’nstor 9 Gen2 is great for work collaboration, home entertainment, small businesses and home offices. Not only can you use the 10-Gigabit Ethernet port to send data quickly to multiple client computers, it is also fast when using 2.5-Gigabit equipment. If your ASUSTOR NAS and PC have dual 2.5-Gigabit Ethernet ports, it can double performance between the NAS and PC.

Hardware Specifications

Management Type: Unmanaged
Chipset : RTL8373 + RTL8224
Number of Ports: 9
Speed:
- 1x 10GbE (10G/2.5G/1G,SFP+)
- 8x 2.5GbE (2.5G/1G/100M,RJ45)
Jumbo Frames: 10K
Supported Standards
- IEEE 802.3 Ethernet
- IEEE 802.3u (100BASE-T)
- IEEE 802.3ab (1000BASE-T)
- IEEE 802.3z (1000BASE-X)
- IEEE 802.3bz (2.5GBASE-T)
- IEEE 802.3ae (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4)
- IEEE 802.3x (Full-Duplex Flow Control)
Switching Capacity: 60Gbps
MAC Address Table: 4K
Total Non-Blocking Throughput : 44.64Gbps
Power Supply Description: Adapter
Max. Power Consumption : 12W
Input Power Type: DC
AC Input Voltage Range: 100V~240V 50/60Hz
Fanless : Yes
LED Indicators
- Power
- Per Port: Speed / Activity
Operating Temperature: 0˚C to 40°C (32°F to 104°F)
Operating Humidity: < 85% No condensation
Non-Operating Temperature: -10°C-85°C (14-176°F)
Certification: FCC, CE, VCCI, BSMI, RCM, UKCA
