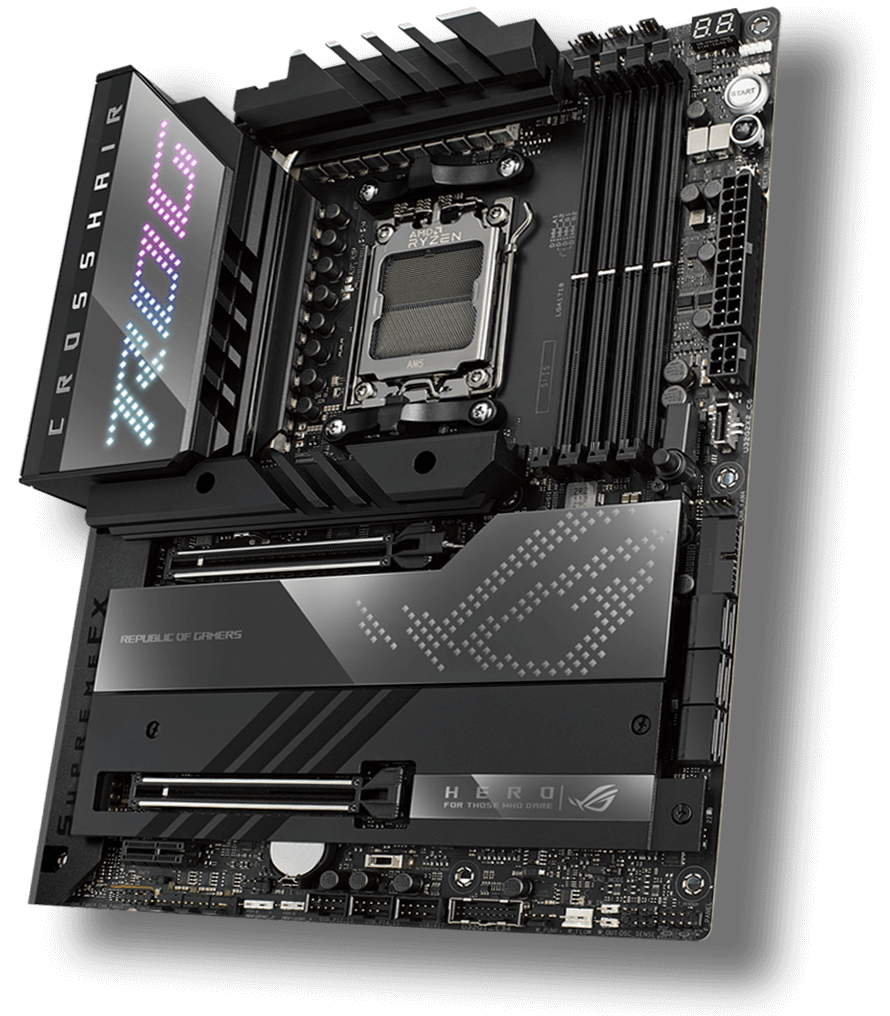

Asus ROG Crosshair X670E Hero
.png)
Unyielding power delivery and robust thermal management form the indelible tenets of its creed. Hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support, and Polymo lighting add potent layers of build personalization on top. And the finishing touches are added by exclusive utilities and overclocking controls that allow you to uniquely flex the performance of Ryzen 7000 Series processors. Define your AM5 build with the ROG Crosshair X670E Hero.

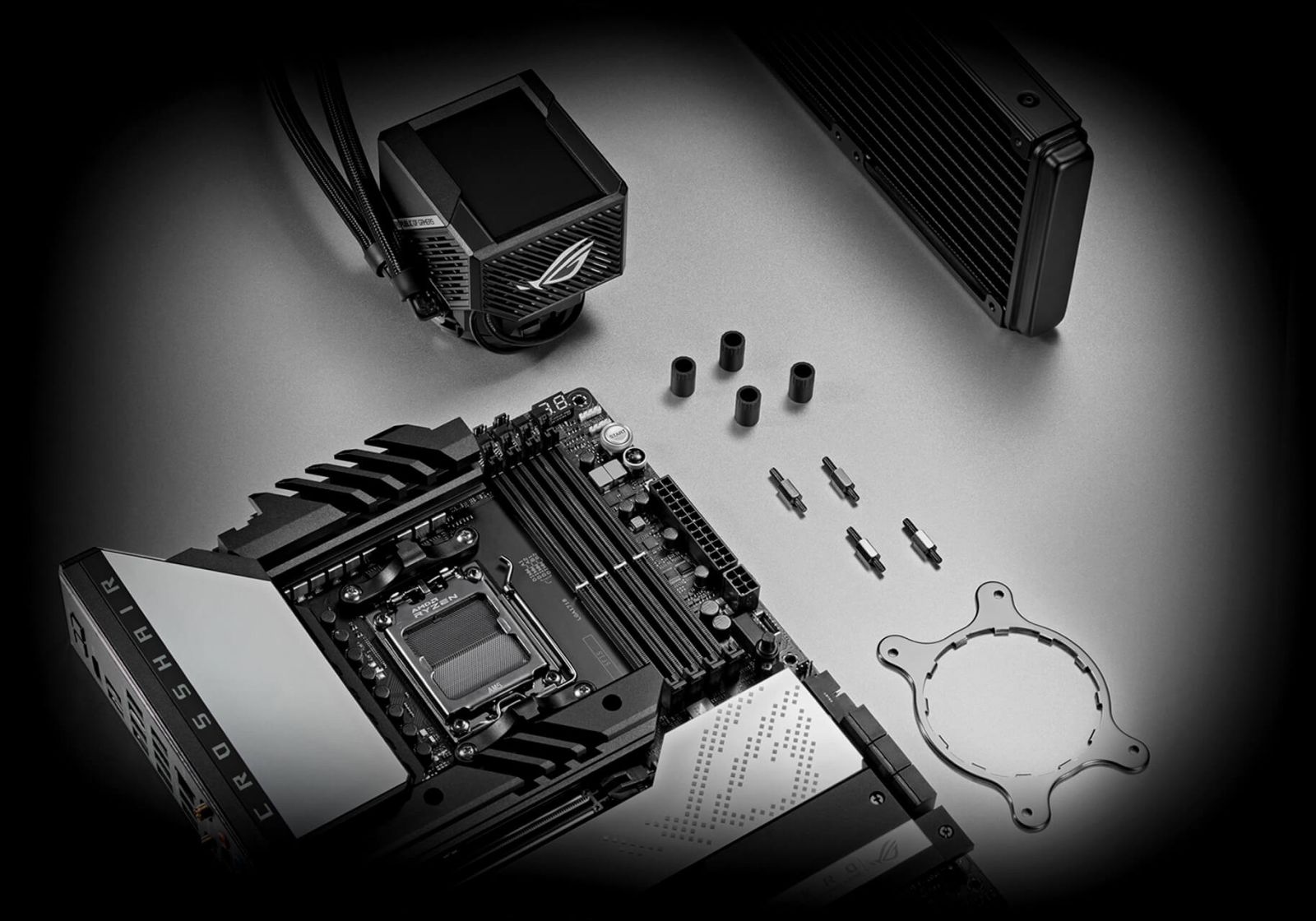

COOLER COMPATIBILITY
The ROG Crosshair X670E Hero bears the same mounting hole alignment as AM4 platforms, so it is backward compatible with many existing coolers, including all AIO offerings from ASUS and ROG.

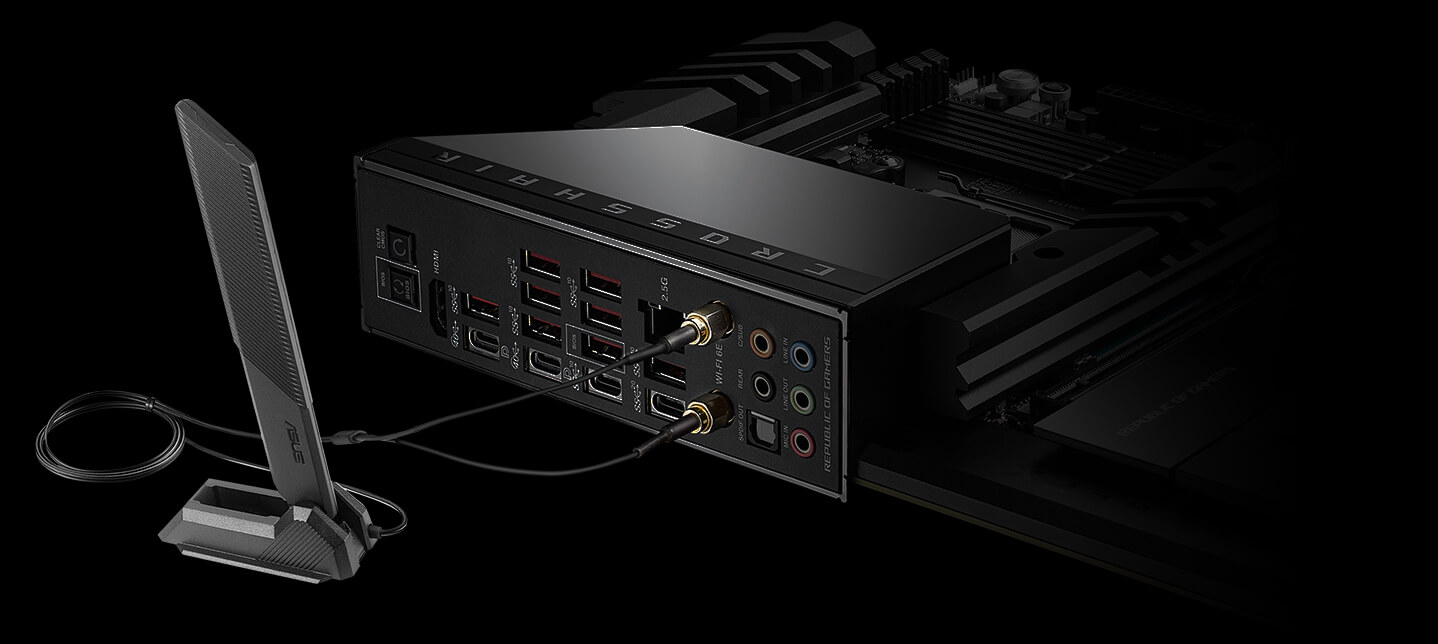

WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Specifications:
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Chipset
AMD X670
Memory
4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD® Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD® Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x HDMI® port*
2 xUSB4® ports support USB Type-C® display outputs**
*Supports 4K@60Hz as specified in HDMI 2.1.
**VGA resolution support depends on processors' or graphic cards' resolution.
2 xUSB4® ports support USB Type-C® display outputs**
*Supports 4K@60Hz as specified in HDMI 2.1.
**VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*
AMD X670 Chipset
1 x PCIe 4.0 x1 slots
* When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*
AMD X670 Chipset
1 x PCIe 4.0 x1 slots
* When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.
Storage
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
6 x SATA 6Gb/s ports
*AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
6 x SATA 6Gb/s ports
*AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be
ready in Windows 11 or later.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be
ready in Windows 11 or later.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 12 ports)
2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
Front USB (Total 11 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
*To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
Front USB (Total 11 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
*To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
Audio
ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4082
- Impedance sense for front and rear
headphone outputs
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Definition Audio CODEC ALC4082
- Impedance sense for front and rear
headphone outputs
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Back Panel I/O Ports
2 x USB4® ports with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C®)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C®)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pinPCIe Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pinPCIe Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
- Polymo Lighting
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ Power Control
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
- Polymo Lighting
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ Power Control
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Виж още Дънни платки за AMD процесори Asus
Виж всички Дънни платки за AMD процесори в категорията
Технически характеристики
| Процесор сокет: | AM5 |
|---|---|
| Чипсет: | X670E |
| Поддържана памет: | DDR5 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | 802.11ax |
| Bluetooth: | Да |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI |
| Форм фактор: | ATX |
| Видеокарта: | Вградена |
Добави Ревю / Въпрос
Оцени продукта или задай въпрос?
0.00 от 0 ревюта
- 5
0 ревюта
- 4
0 ревюта
- 3
0 ревюта
- 2
0 ревюта
- 1
0 ревюта
Вземи на изплащане
Свързани продукти
Дънна платка Asus ROG Strix X670E-E Gaming WIFI, X670E, AM5, DDR5, PCI-E 5.0 (DP&HDMI), 4x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi 6E, Bluetooth 5.2, ATX
1175.70лв
Дънна платка Asus ProArt X670E-Creator WIFI, X670E, AM5, DDR5, PCI-E 5.0 (DP&HDMI), 4x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi 6E, Bluetooth 5.2, ATX
1102.11лв
Дънна платка ASRock X670E Taichi, X670E, AM5, DDR5, PCI-E 5.0 (HDMI)(CF), 8x SATA 6Gb/s, 4x M.2, 2x USB 4 Type-C, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi 6E, Bluetooth, 2.5G LAN, E-ATX
1058.82лв
