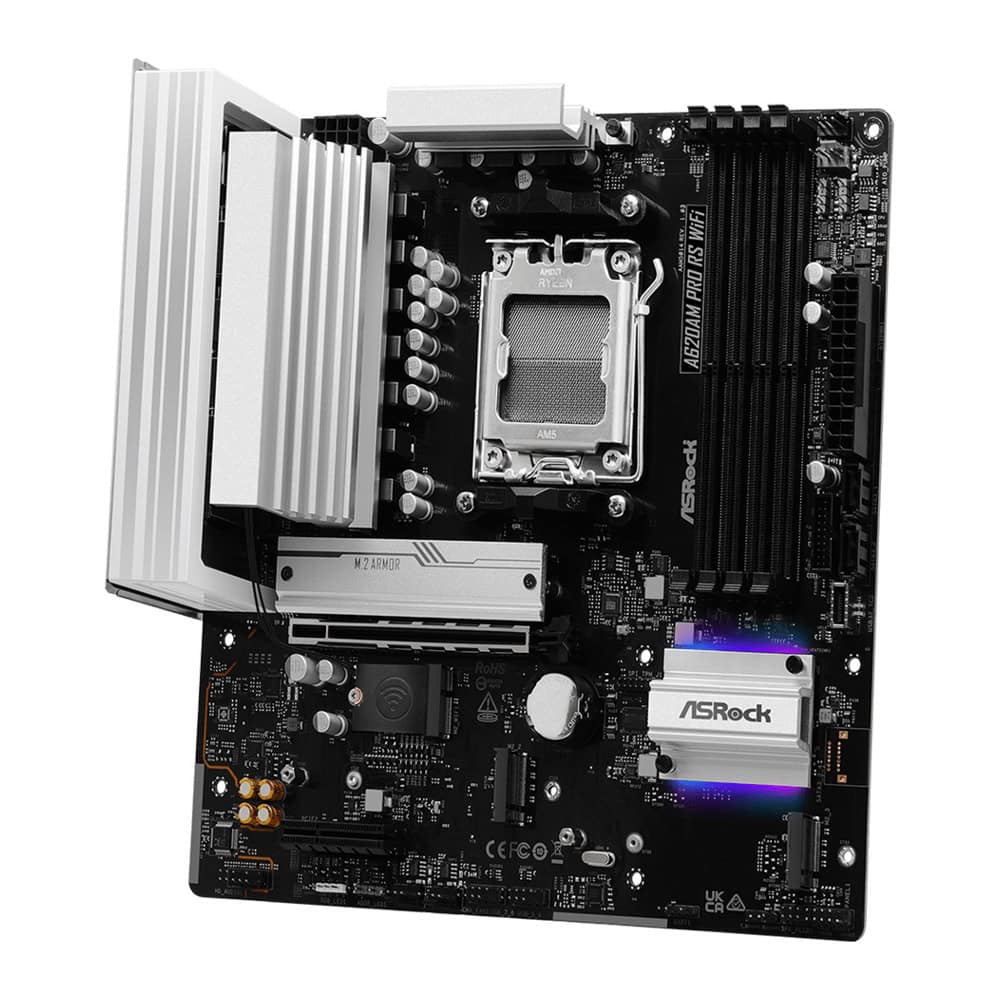

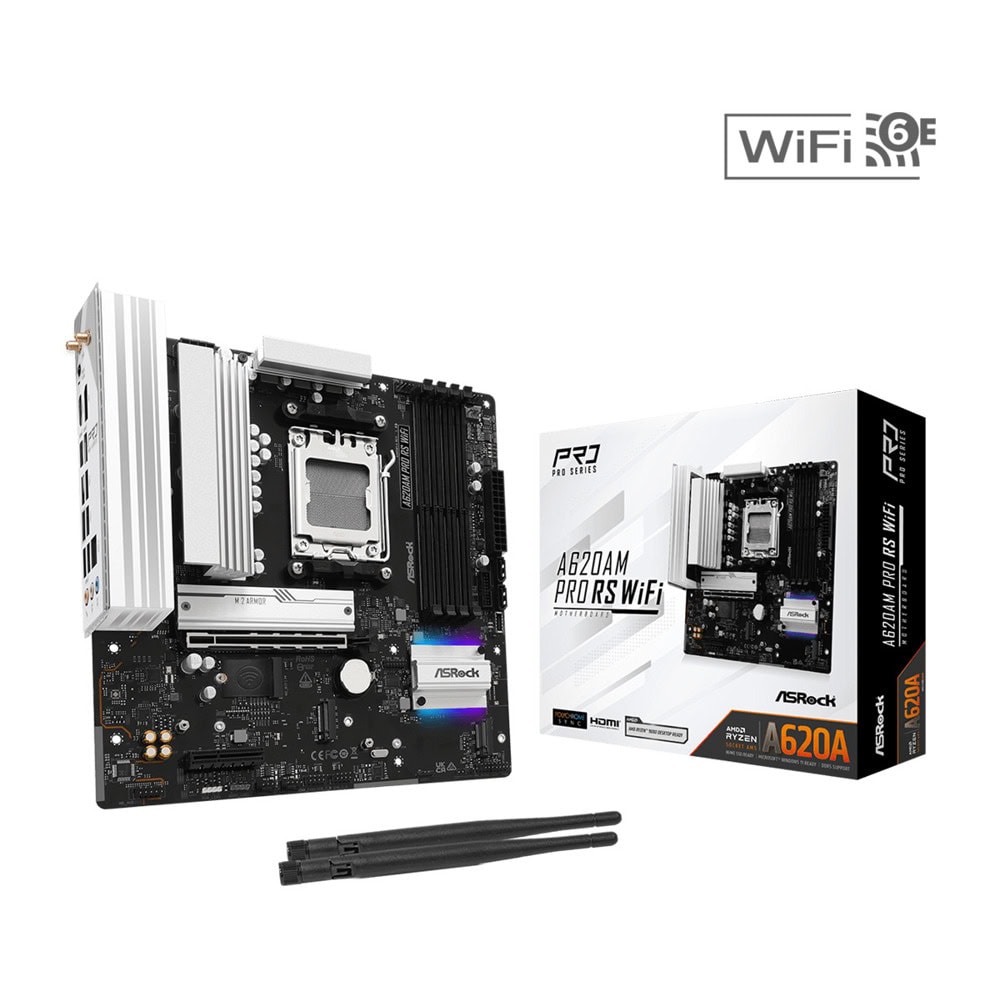

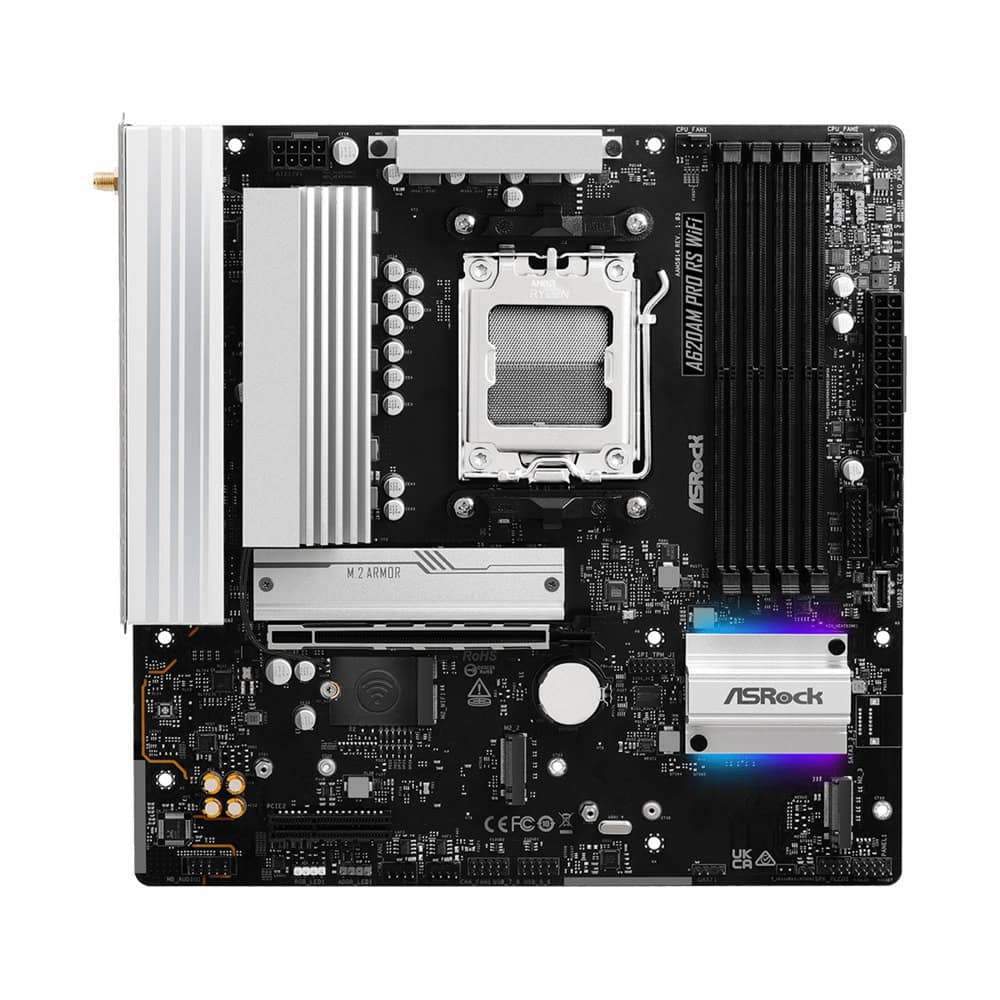

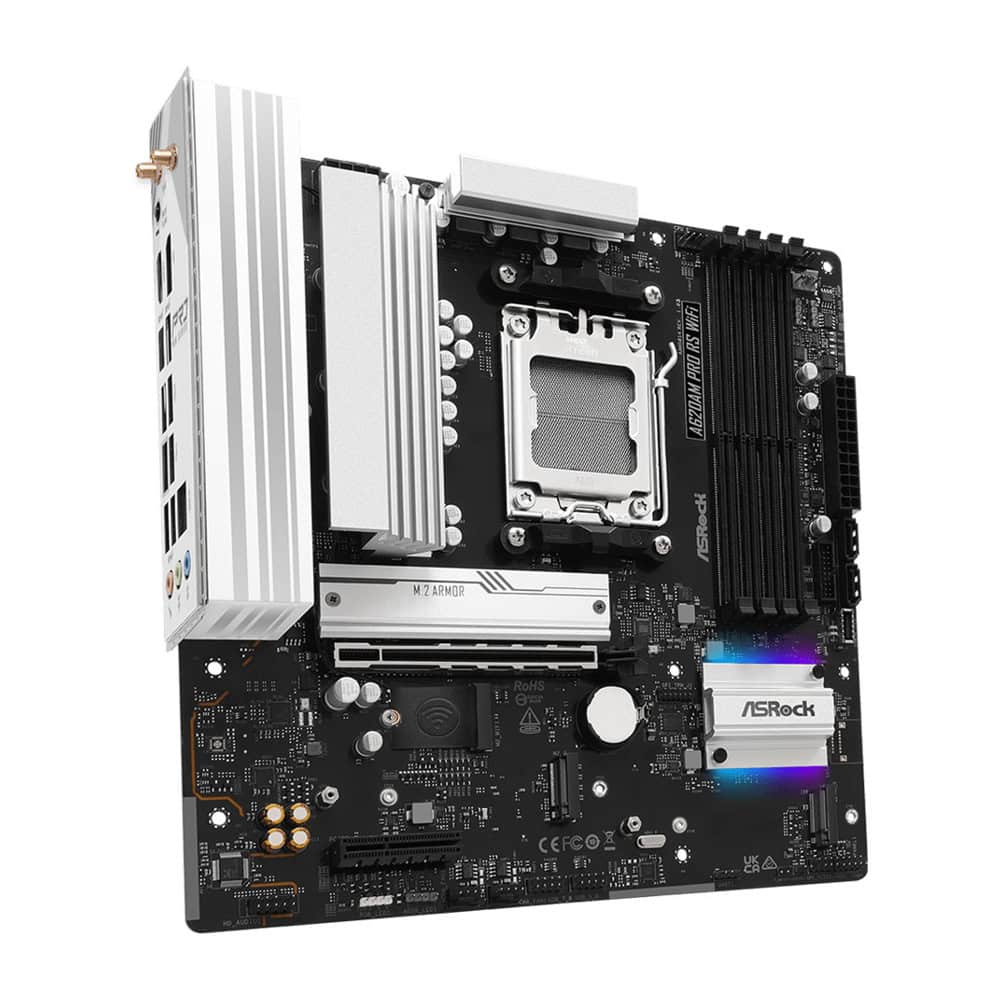

Дънна платка ASRock A620AM PRO RS WIFI, A620A, AM5, DDR5, PCI-E 4.0 (DP&HDMI), 2x SATA3 6.0 Gb/s, 3x M.2 slots, 1x USB 3.2 Gen1 Type-C, 3x USB 3.2 Gen1 Type-A, Wi-Fi 6E, 2.5GbE LAN, Micro ATX

Specifications

• Unique Feature

  Superb Productivity
  - Dual Channel DDR5
  Rock-Solid Durability
  - 6+2+1 Power Phase, Dr.MOS
  - Pre-Installed I/O Shield
  Ultrafast Connectivity
  - 2.5G LAN, 802.11axe Wi-Fi 6E Module
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer
  EZ Troubleshooter
  - ASRock Post Status Checker

• CPU

  - Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

• Chipset

  - AMD A620A

• Memory

  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
  - Max. capacity of system memory: 256GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

• Audio

  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio

• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Dragon 2.5G LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control

• Wireless LAN

  - 802.11axe Wi-Fi 6E Module
  - Supports IEEE 802.11a/b/g/n/ac/ax/axe
  - Supports Dual-Band 2x2 with extended 6GHz band* support
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.2 + High speed class II
  - Supports MU-MIMO

  *The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.

• Slots

  CPU:
  - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode*
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

  * Supports NVMe SSD as boot disks

• Storage

  CPU:
  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
  - 2 x SATA3 6.0 Gb/s Connectors

  * Supports NVMe SSD as boot disks

• RAID

  - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

  * Requires additional M.2 NVMe expansion cards to support RAID 10

• USB

  CPU:
  - 1 x USB 3.2 Gen1 Type-C (Rear)
  - 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) Chipset:
  - 1 x USB 3.2 Gen1 Type-C (Front)
  - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front)
  - 8 x USB 2.0 (4 Rear, 4 Front)

  * All USB ports support ESD Protection

• Connector

  - 1 x SPI TPM Header
  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen1 Header

  * Supports in total up to 12V/3A, 36W LED Strip
  ** Support in total up to 5V/3A, 15W LED Strip
  *** CPU_FAN1 supports the fan power up to 1A (12W).
  **** CPU_FAN2/WP supports the fan power up to 2A (24W).
  ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

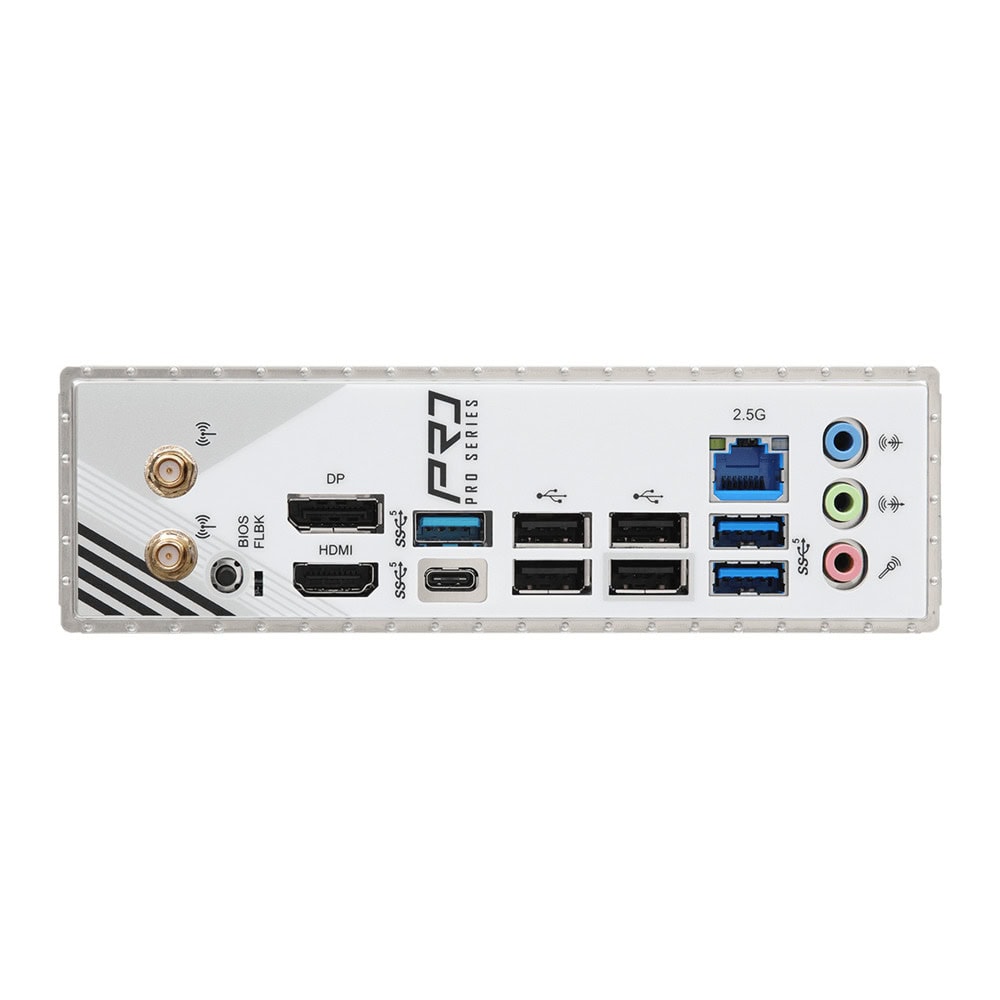

• Rear Panel I/O

  - 2 x Antenna Ports
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 3 x USB 3.2 Gen1 Type-A Ports
  - 1 x USB 3.2 Gen1 Type-C Port
  - 4 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - 1 x BIOS Flashback Button
  - HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock Dragon 2.5G LAN Software
  - ASRock Polychrome SYNC*
  UEFI
  - ASRock Full HD UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Form Factor

  - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

• OS

  - Microsoft Windows 10 64-bit / 11 64-bit

• Certifications

  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
