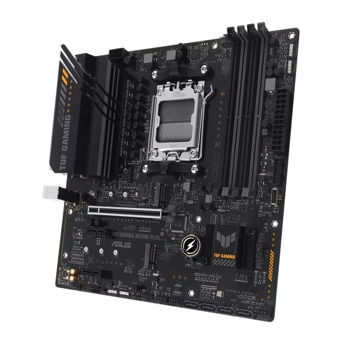

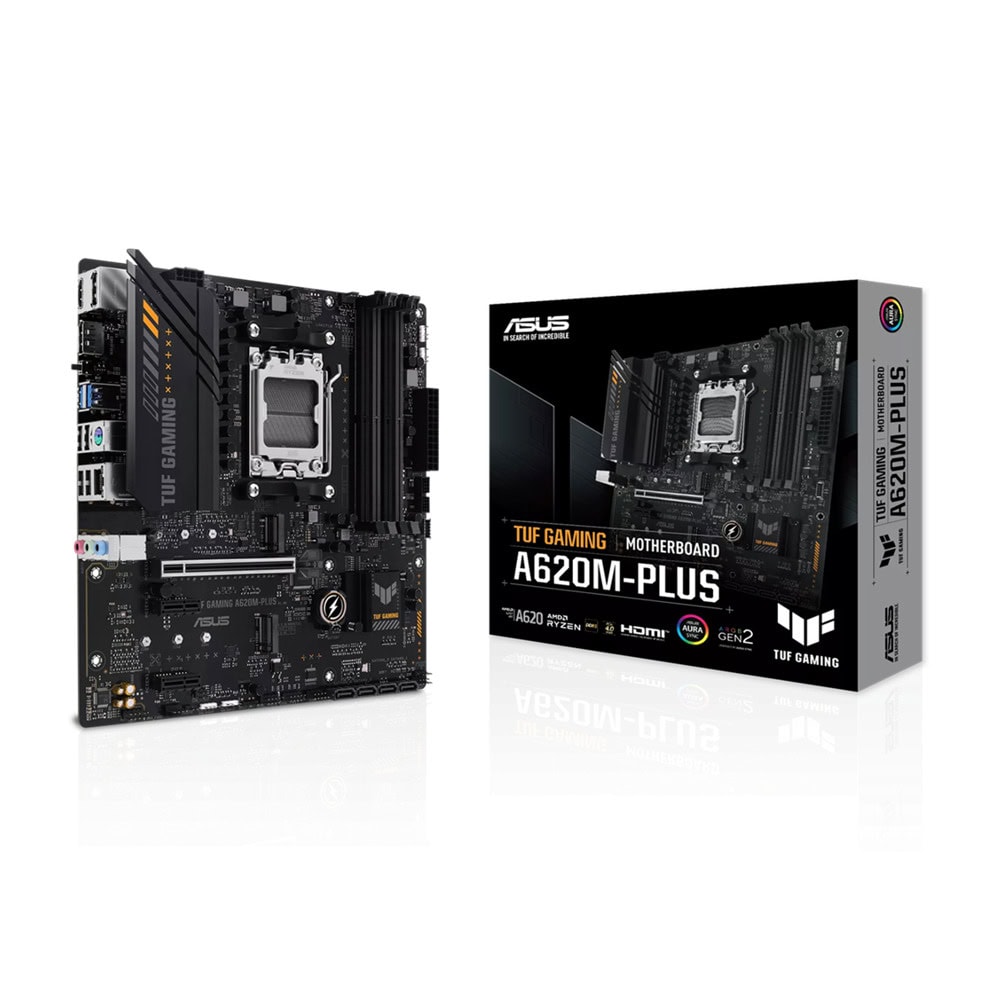

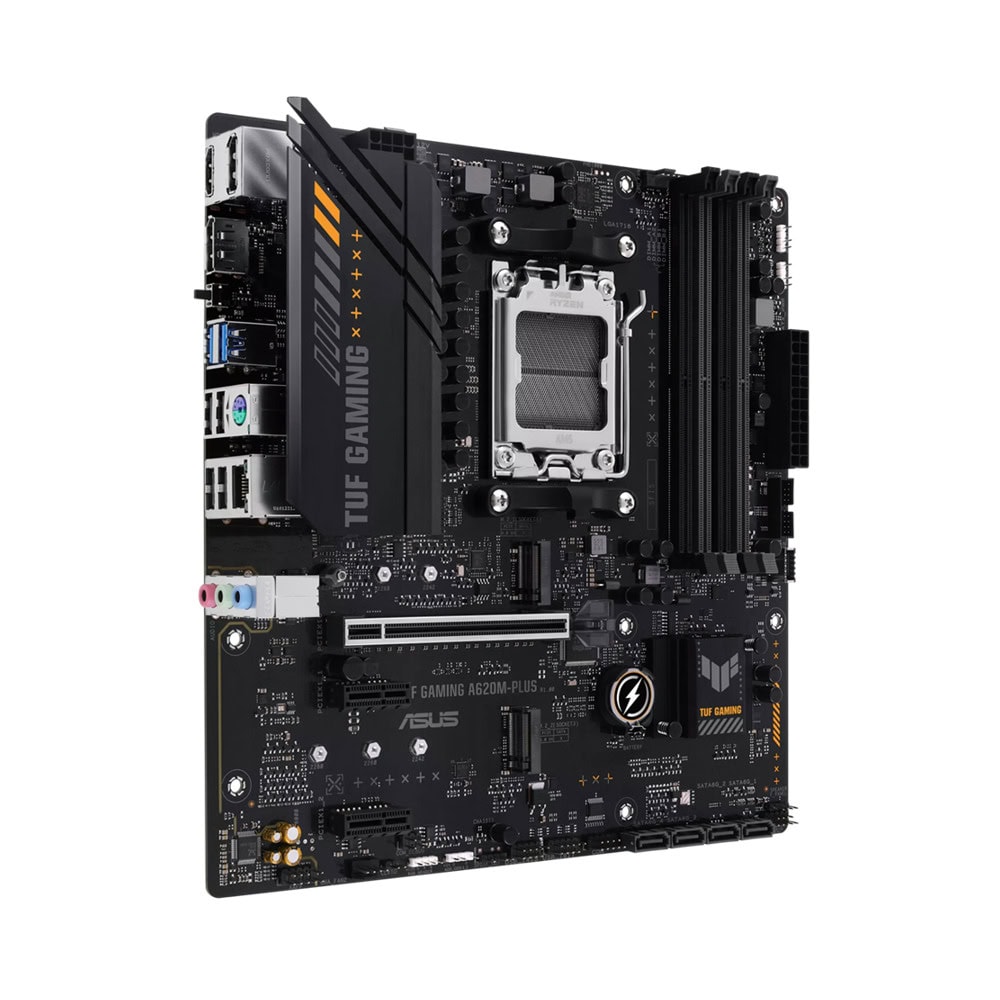

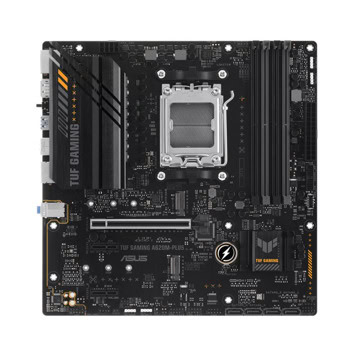

Дънна платка Asus TUF GAMING A620M-PLUS, A620, AM5, DDR5, PCI-E 4.0 (DP&HDMI), 2x M.2 slots, 4x SATA 6Gb/s, 2x USB 3.2 Gen 1 Type-A, 2.5GbE LAN, Micro ATX

Asus TUF GAMING A620M-PLUS
90MB1EZ0-MOEAY0


CPU:
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
Supports up to AMD 170W CPU

Chipset:
AMD A620A Chipset

Memory:
4 x DIMM slots, max. 192GB, DDR5 ECC and Non-ECC Un-buffered DIMM*
Supports up to 7600+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
2 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots:
AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD A620A Chipset
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
* Specifications vary by CPU types.

RAID Support:
AMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.

Ethernet:
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

USB:
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

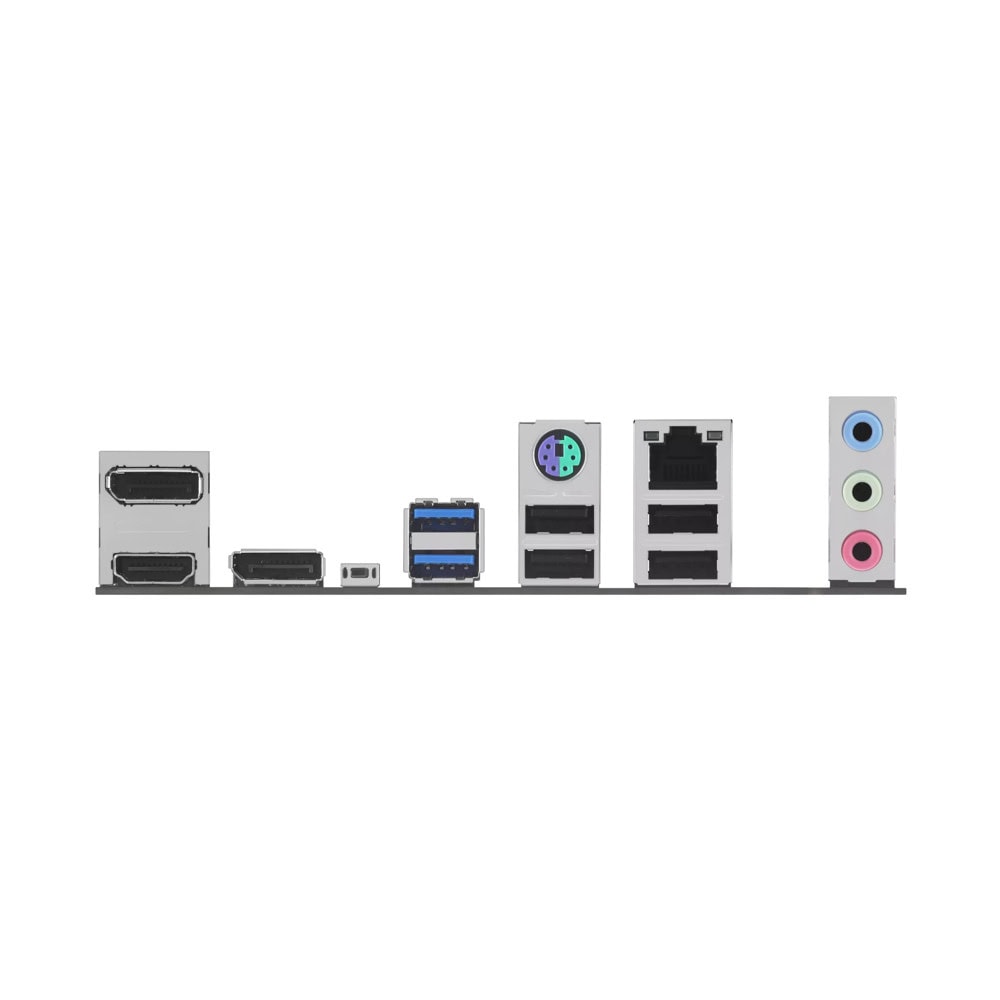

Back Panel I/O Ports:
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors:
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x 10-1 pin Front Panel System header

Special Features:
ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot Core+

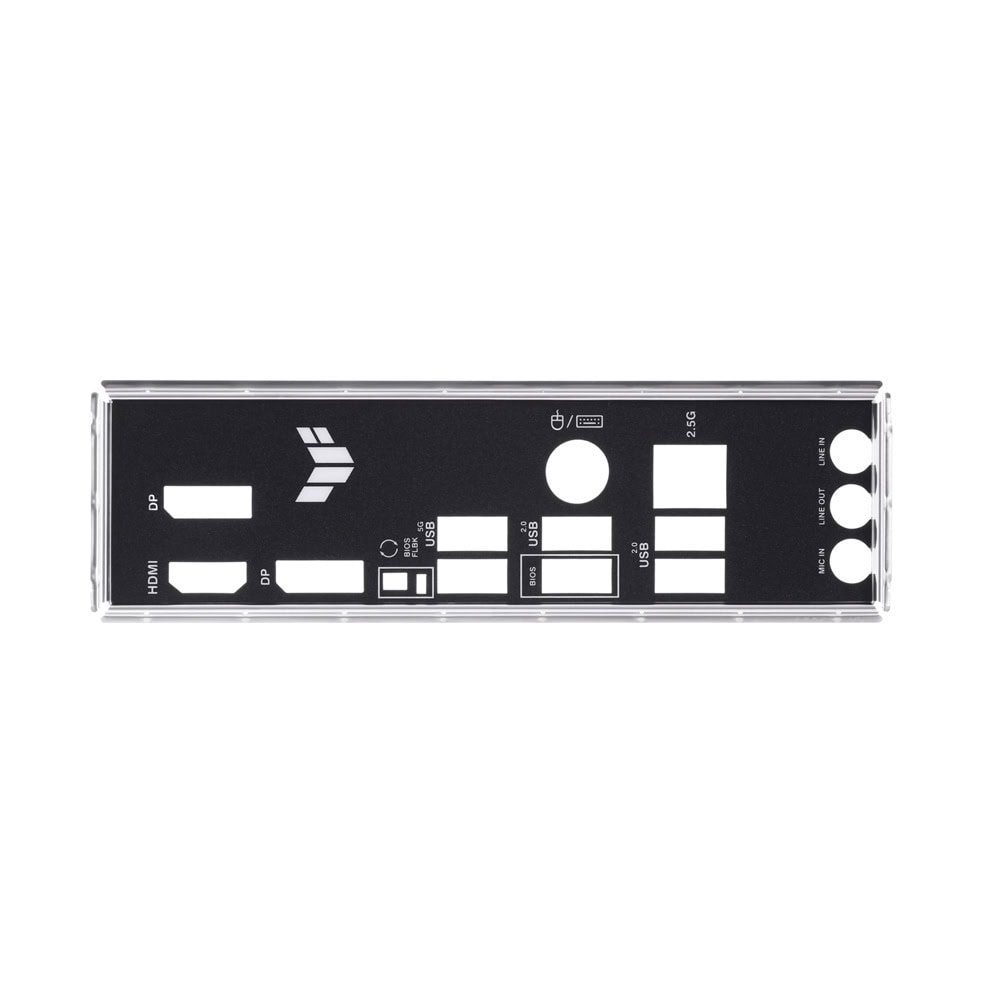

- Stainless-steel back I/O
- ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
- ASUS Thermal Solution
- VRM heatsink design
- ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Aura Sync
- Addressable RGB Gen 2 headers
UEFI BIOS
- AI Cache Boost
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.

BIOS:
256 Mb Flash ROM, UEFI AMI BIOS

Operating System:
Windows 11, Windows 10 64-bit

Form Factor:
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
