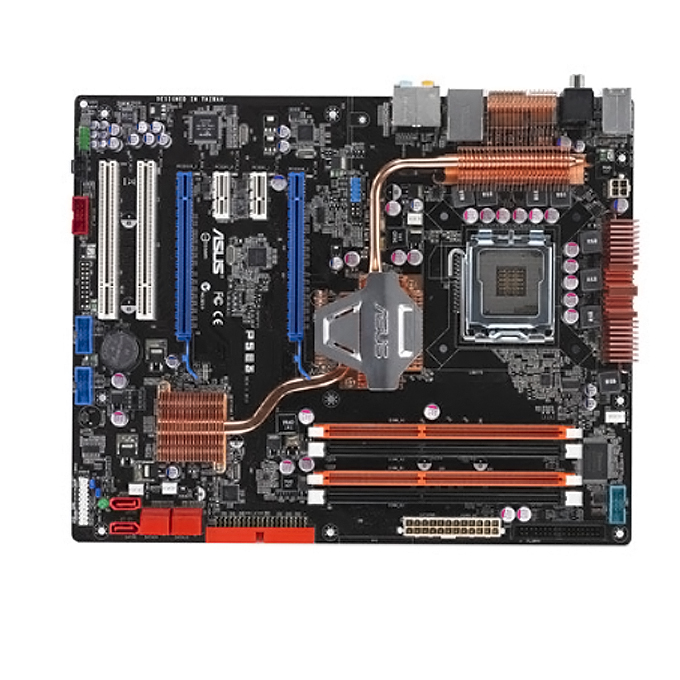

Дънна платка Asus P5E3, X38, LGA775, DDR3, 2xPCI Express, SB7.1, Lan1000, SerialATA, Raid 0,1,5, 1394, ATX

y tuning from 100MHz up to150MHz at 1MHz increment
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports

1 x PS/2 Keyboard
1 x S/PDIF Out (Coaxial + Optical)
1 x External SATA
1 x IEEE1394a
1 x RJ45 port
6 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors

3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
1 x CPU Fan connector
2 x Chassis Fan connector
1 x Power Fan connector
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS

8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Accessories

UltraDMA 133/100/66 cable
FDD cable
6 x Serial ATA cables
1 x 2-port Serial ATA power cable
ASUS Q-shield
User's manual
3 in 1 Q-connector
1 x 2-port USB2.0 / 1-port IEEE1394 module
1 x Optional Fan for Water-Cooling or Passive-Cooling only
Support Disc

Drivers
ASUS PC Probe II
ASUS Update
ASUS AI Suite
Anti-virus software (OEM version)
Image-Editing Suite
Form Factor

ATX Form Factor, 12"x 9.6" (30.5cm x 24.4cm)Specification
CPU

LGA775 socket for Intel® Core™2 Extreme / Core™2 Quad /
Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Supports Intel® next generation 45nm Multi-Core CPU
Chipset

Intel® X38 / ICH9R with Intel® Fast Memory Access Technology
Front Side Bus

1600 / 1333 / 1066 / 800 MHz
Memory

4 x DIMM, max. 8GB, DDR3 1800* / 1600* / 1333 / 1066 / 800 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
* DDR3 1800 / 1600 are O.C. speeds
* Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).
Expansion Slots

2 x PCIe2.0 x16 (both @ x16 mode) supports CrossFire Technology
2 x PCIe x1
2 x PCI
Storage

Southbridge
- 6 x SATA 3.0 Gb/s ports
- Intel Matrix Storage Technology supports RAID 0, 1, 5 and 10
Marvell 88SE6111
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
- 1 x External SATA 3.0 Gb/s port (SATA On-the-Go)
LAN

Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2
Audio

Realtek ALC 883, 8-channel High-Definition Audio CODEC
- Support Jack-Sensing, Enumeration, Multi-streaming
- Coaxial / Optical S/PDIF out ports at back I/O
- ASUS Noise Filter
IEEE 1394

Agere® L-FW3227 1394a controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel)
USB

12 x USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS AI Lifestyle Features

ASUS Power Saving Solution
- ASUS EPU (Energy Processing Unit)
- ASUS 3rd Generation 8-phase Power
- ASUS AI Nap
ASUS AI Lifestyle Features:
- ASUS AI Direct Link
ASUS Quiet Thermal Solution:
- Pure Copper Heat-pipe
- ASUS Q-Fan 2
- ASUS Optional Fan for Water-cooling or Passive-Cooling only
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS AI Slot Detector
Special Features

ASUS MyLogo 3
Multi-language BIOS
Overclocking Features

ASUS AI Booster utility
Precision Tweaker 2:
- vCore: Adjustable CPU voltage at 0.00625V increment
- vDIMM: 41-step DRAM voltage control
- vChipset (N.B.): 25-step voltage control
- vFSB Termination: 15-step voltage control
- vCPU PLL: 64-step voltage control
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tuning from 800MHz up to 3200MHz
- PCI Express frequenc
