ASUS GX-D1241, 24Port 1000Mbps

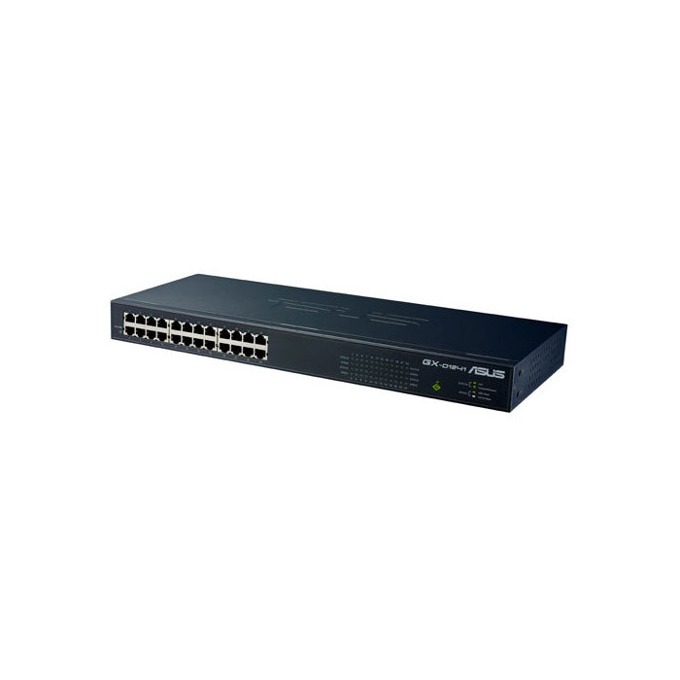

ASUS GX-D1241

• Port Attributes
24 RJ-45 for 10/100/100Mbps Ethernet ports
Auto MDI/MDIX
Auto-negotiation: Speed, Duplex mode, and Flow control
AC Power

• Protocol
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.1p Priority Queuing

• Data Transfer Rates
Ethernet: 10Mbps (Half-duplex)
Ethernet: 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex)
Fast Ethernet: 200Mbps (Full-duplex)
Gigabit Ethernet: 2000Mbps (Full-duplex)

• Performance
Up to 8,000 MAC Address
Forwarding Rate: 35.7Mpps
Switch Fabric: 48Gbps
Buffer Memory: 500KB
9.6KB Jumbo Frame support

• Transmission Method
Store-and-forward

• Power Supply
Power Supply: Input 100-240Vac, 50/60 Hz Internal Universal Power
Power Consumption: Max. 30Watts

• Environmental
Operating Temperature: 0°C to 40°C (32°F to 104?F)
Storage Temperature: -20° to 70° C (-4°F to 158°F)
Operating Humidity: 10% to 90% RH (Non-condensing)
Storage Humidity: 5% to 95% RH (Non-condensing)

• Dimensions (app.)
Dimensions: 444mm (L) x 180.2mm (W) x 43.9mm (H)

• Net Weight (app.)
Weight: 2.2Kg

• Safety
LVD

• EMC
CE / FCC / CCC
