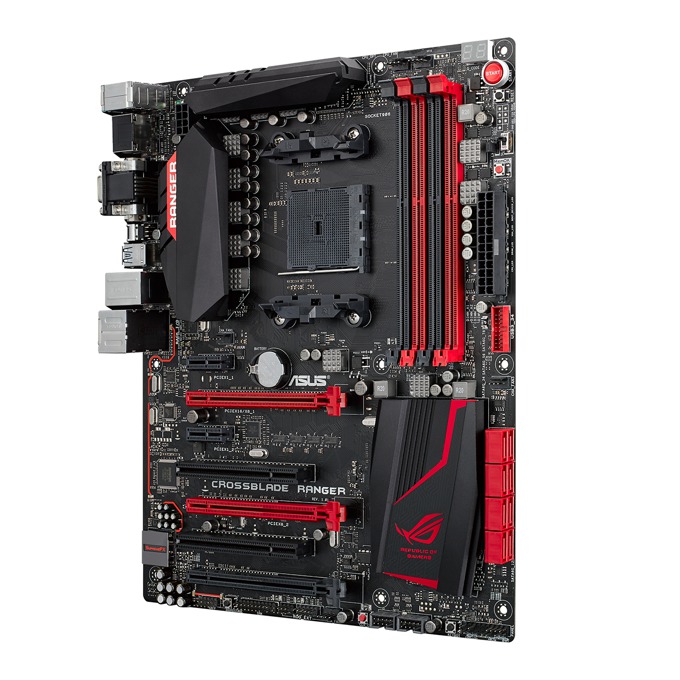

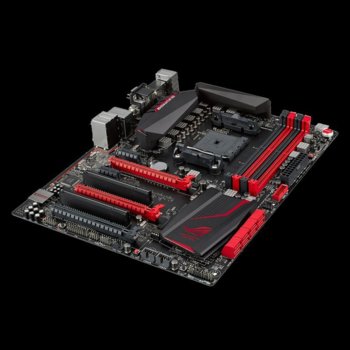

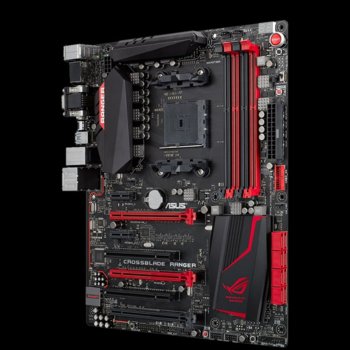

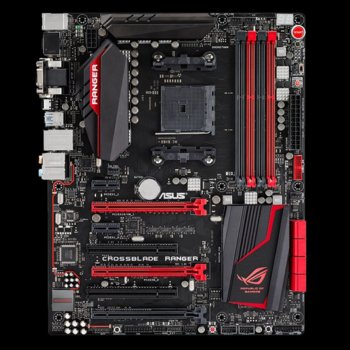

Дънна платка Asus CROSSBLADE RANGER, AMD A88X, FM2+, DDR3 2666(O.C.), PCI-E 3.0 (CFX)(HDMI&DVI), SB7.1, Lan1000, 8x SATA 6Gb/s RAID,0,1,5,10, 4x USB 3.0, ATX

CROSSBLADE RANGER

ROG's flagship AMD FM2+ ATX gaming motherboard boosts your game with superb networking and audio performance

- AMD Socket FM2+ Athlon™/A-series processors
- AMD A88X FCH (Bolton D4) chipset
- Intel™ Ethernet + LANGuard + GameFirst III – Game networking taken to the next level
- SupremeFX 2014 + Sonic Radar II – New and improved audio that’s beyond compare
- KeyBot – An instant keyboard upgrade
- Gamer’s Guardian - All-round protection for the best quality, reliability and durability

CPU

AMD Socket FM2+ Athlon™/A- Series Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 3.0 Technology
* Refer to www.asus.com for CPU support list

Chipset

AMD A88X (Bolton D4)

Memory

4 x DIMM, Max. 64GB, DDR3 2666(O.C.)/2400(O.C.)/2250(O.C.)/2200(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series APU
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*1
- Supports DVI-D with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD® Dual Graphics technology support
Multi-GPU Support
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8, red) *2
1 x PCIe 2.0 x16 (max at x4 mode, black)
2 x PCIe 2.0 x1
2 x PCI

Storage

AMD A88X FCH(Bolton D4) chipset :
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10, JBOD

LAN

Intel® I211-AT, 1 x Gigabit LAN Controller(s)

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ELNA® premium audio capacitors
Audio Feature :
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SoundStage
- Sonic SenseAmp
- Sonic Studio
- Sonic Radar II

USB Ports

ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
AMD A88X FCH(Bolton D4) chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD A88X FCH(Bolton D4) chipset :
8 x USB 2.0 port(s) (2 at back panel, , 6 at mid-board)

ROG Exclusive Features

Extreme Engine Digi+ III :
- Full Digital CPU/DRAM Power
- NexFET™ Power Block MOSFET
- New Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- Slow Mode
- LN2 Mode
ProbeIt
KeyBot
- CPU Level Up
- XMP
- Direct Key
UEFI BIOS features :
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
GameFirst III
Extreme Tweaker
USB BIOS Flashback

Special Features

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 3 optimize the digital power setting, system performance, power saving and whole system cooling configuration
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- USB 3.0 BoostUtilities

- Disk Unlocker
Interactive HomeCloud
- Media Streamer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

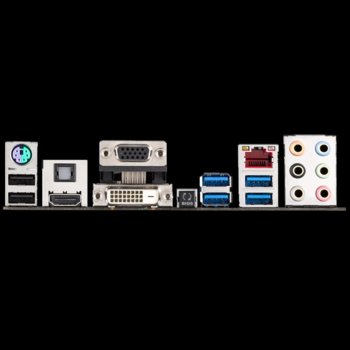

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)Utilities

1 x System panel(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Slow Mode switch(es)
7 x ProbeIt Measurement Points
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x KeyBot Button
1 x Sonic SoundStage Button

Accessories

User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1)
1 x 12 in 1 ROG Cable Label(s)
1 x ROG Door Hanger(s)
1 x ROG Mouse Mat

BIOS

64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS
Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE

Support Disc

Drivers
ROG GameFirst III
ROG RAMDisk
ROG CPU-Z
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
HomeCloud
ASUS Utilities

Operating System

Windows® 8.1 32/64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit\

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Management Solution

WfM 2.0, DMI 2.7, WOL by PME, PXE

Note

1: Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port.

2: Only FM2+ processors can support PCIe 3.0.

3: 1 x USB 2.0 connectors support additional 2 USB 2.0 ports(2 ports share with ROG_EXT header).
