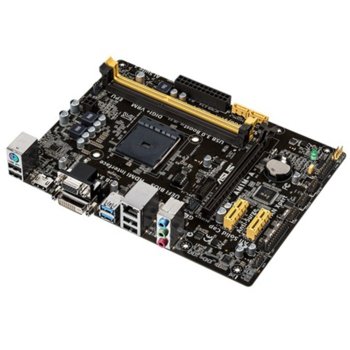

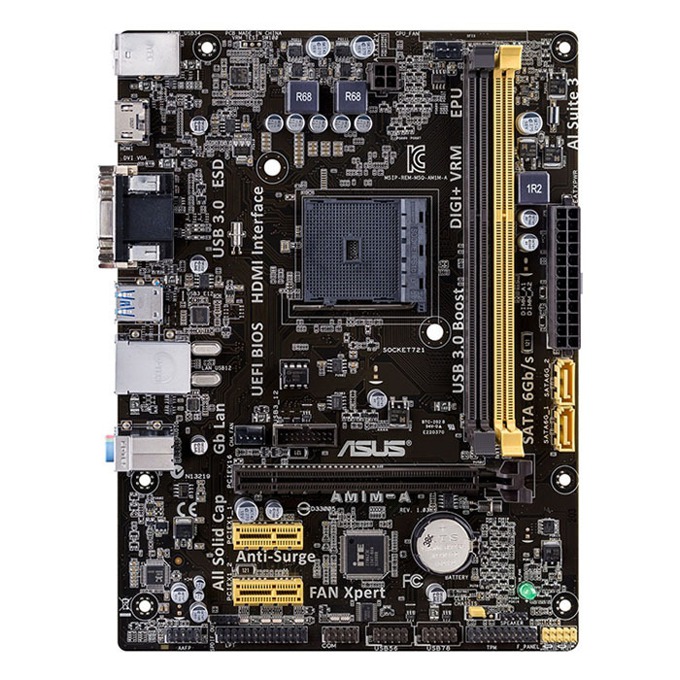

Дънна платка ASUS AM1M-A, AMD Sempron & Athlon-Series APUs, AM1, DDR3 DIMM, Lan1000, 2xSATA 3.0, 2xUSB 3.0, mATX

ASUS AM1M-A

CPU
AMD Socket AM1 Athlon™/Sempron™ Processors
Supports CPU up to 4 cores

Chipset
Build in AMD Sempron & Athlon-Series APUs

Memory
2 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
Single Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

VGA
Integrated AMD Radeon™ R Series Graphics in the APU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1080 @ 60 Hz*1
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB

Expansion Slots
1 x PCIe 2.0 x16 (x4 mode)
2 x PCIe 2.0 x1

Connectors
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

Storage
AMD® Sempron & Athlon-Series APUs :
2 x SATA 6Gb/s port(s), yellow

Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

LAN
Realtek® 8111GR, 1 x Gigabit LAN Controller(s)

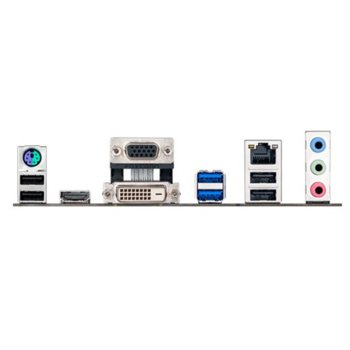

Rear Panel I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s)

BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

• Form Factor
mATX

• Dimensions
22.6 cm x 17.0 cm
