Кутия APNX V2-F, ATX/MicroATX/Mini-ITX, 1x USB 3.2, 3x 120mm вентилаторa, черна, с прозорец, без захранване

APNX V2-F

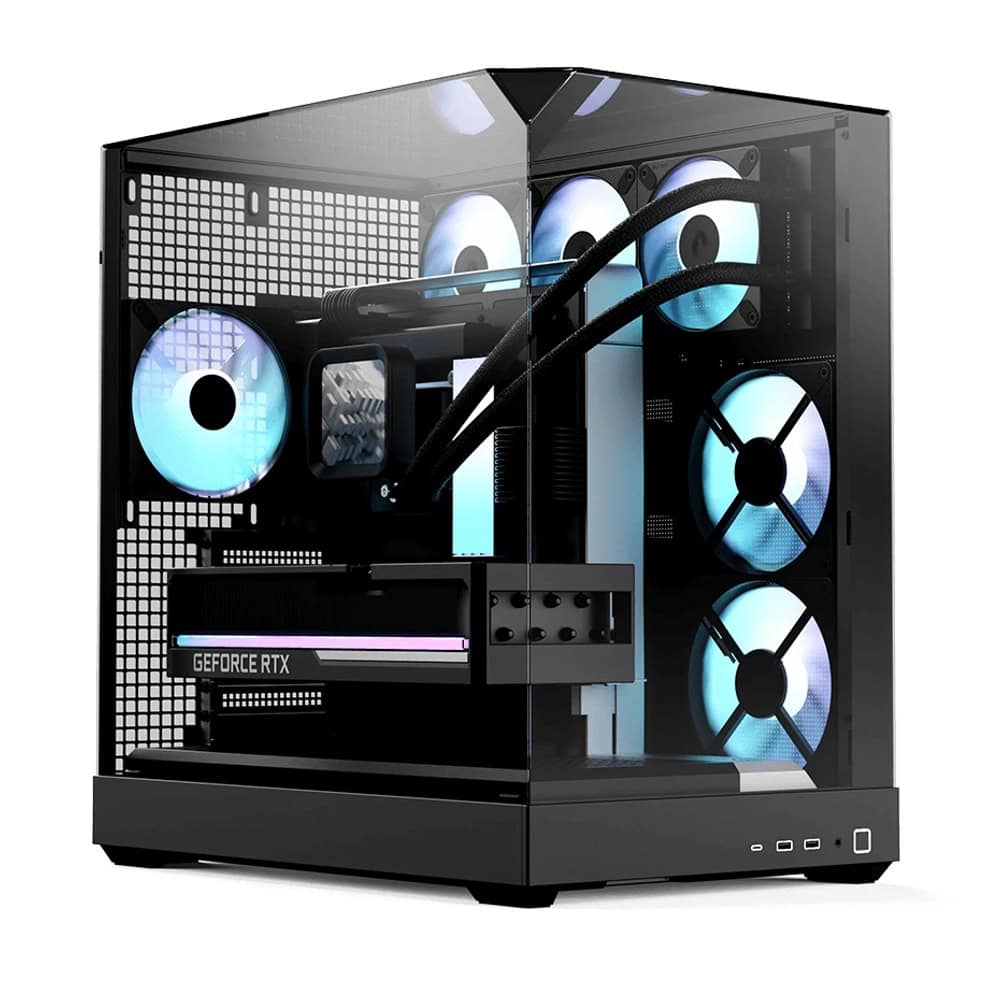

The APNX V2-F is a premium PC case designed for best-in-class cooling performance, sleek aesthetics, and maximum flexibility. With support for multiple fans and radiators, it delivers exceptional thermal performances, making it the perfect choice for high-performance systems. Featuring one of the largest viewing area in its class, V2-F lets you showcase your components with an unobstructed view. Combined with user-friendly features, it ensures the best building experience for your ultimate PC.

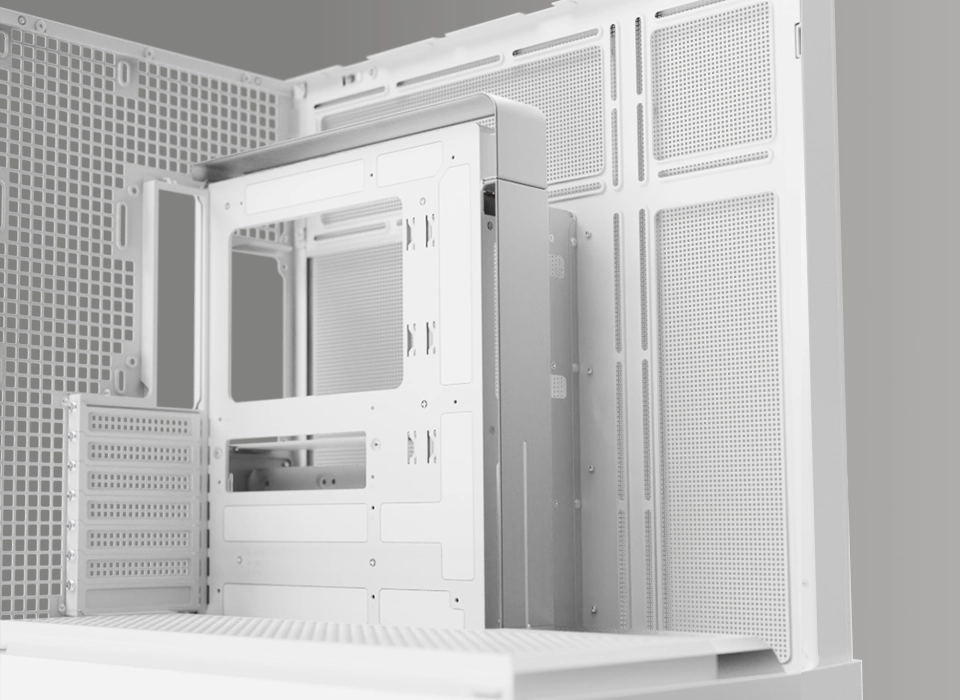

Innovative X-Pand Flow Design

The headlining feature of the APNX V2-F is its X-Pand Flow Design—a groundbreaking advancement in case engineering. True to its name, it optimizes cooling by expanding the space behind the motherboard tray. That can support up to two radiators (360mm+240mm), delivering superior cooling that outperforms competitors.

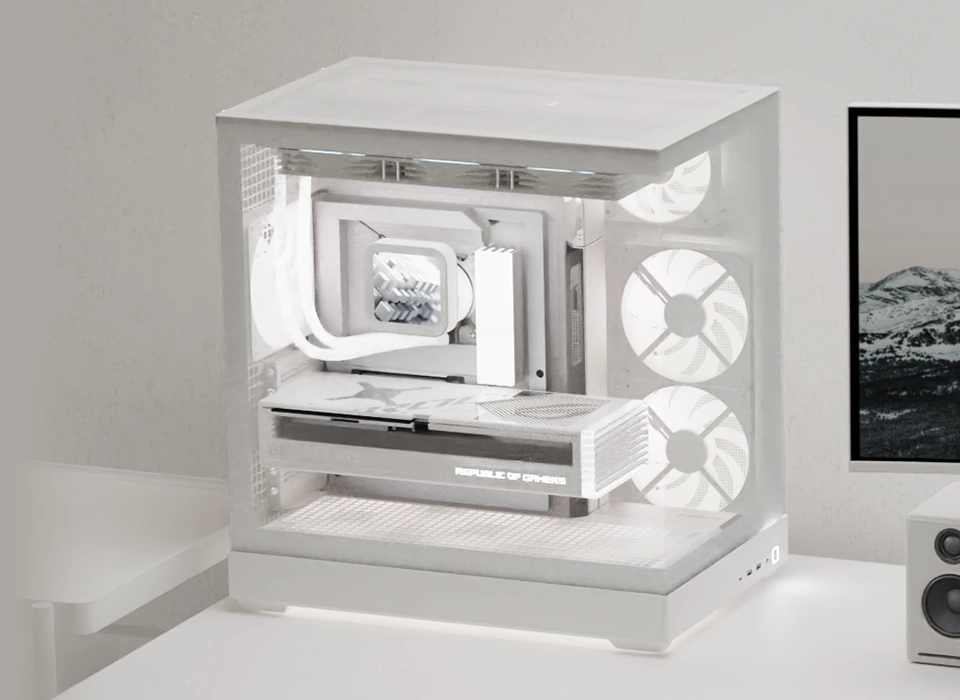

Crystal-Clear Panoramic View

With an 86.5% viewing area, your setup is showcased beautifully from multiple angles.

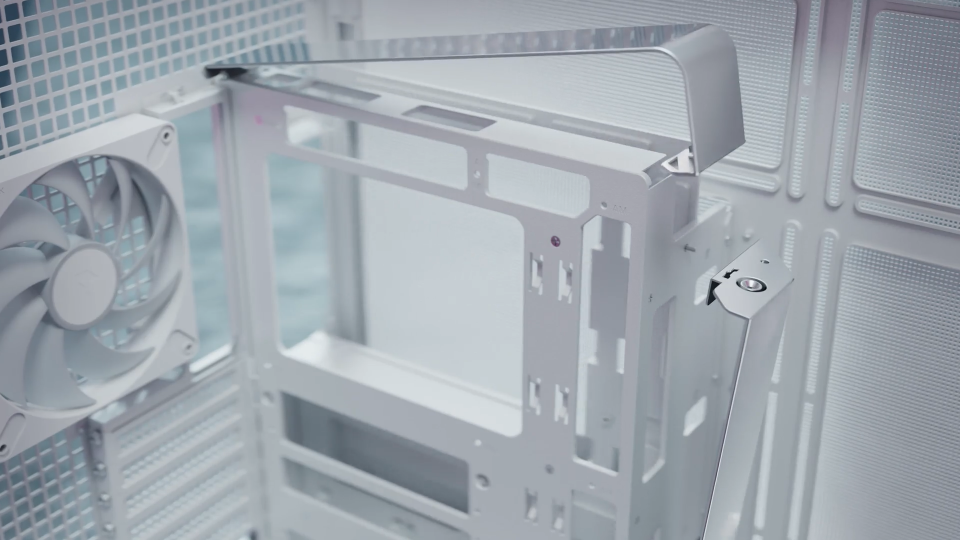

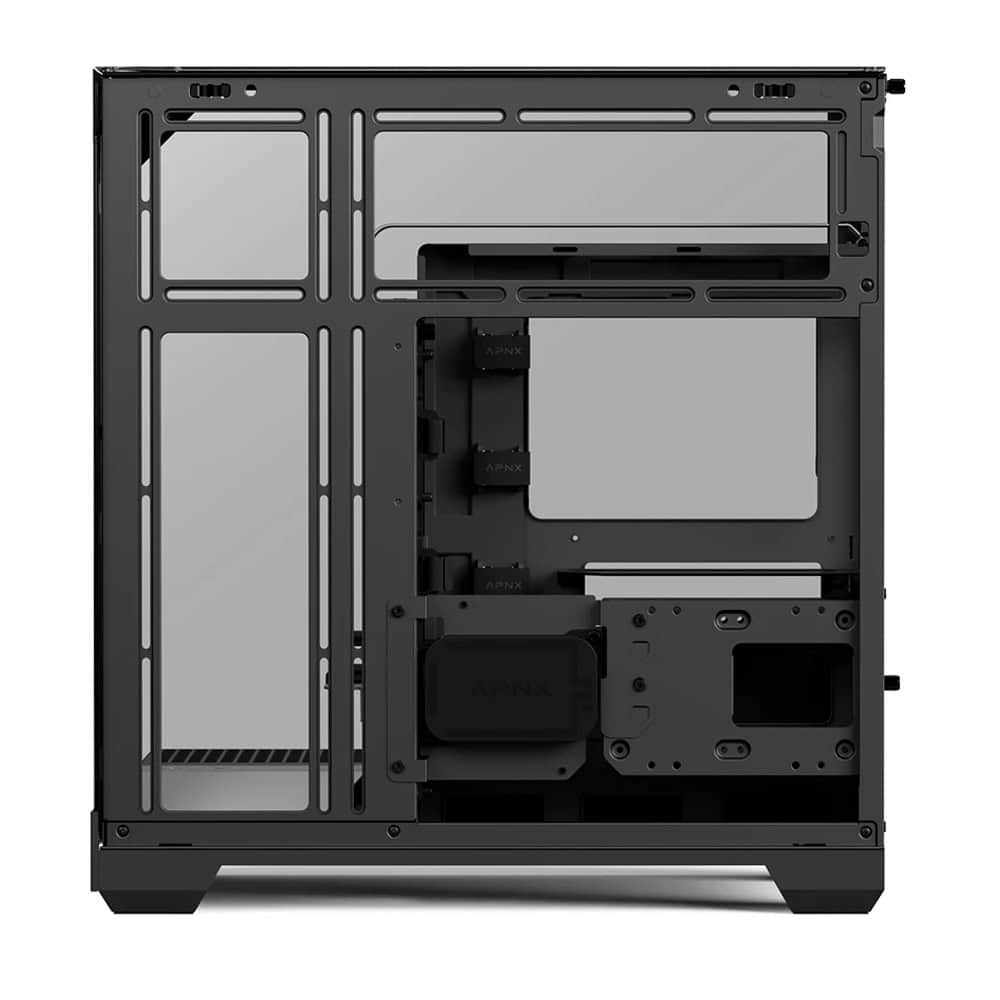

Removable Motherboard Cable Cover

Looking at the removable motherboard cable covers, you can see echoes of our signature frame style first introduced in the AP1-V cooler.
Beyond just tucking away cables for a neater look, they’re finished in silver paint to create a bold visual accent that stands out while complementing the case’s overall design.

Next-Gen Motherboard Compatibility

Designed to support mainstream reverse connector motherboards, the APNX V2-F can minimize visible cables for a cleaner build.

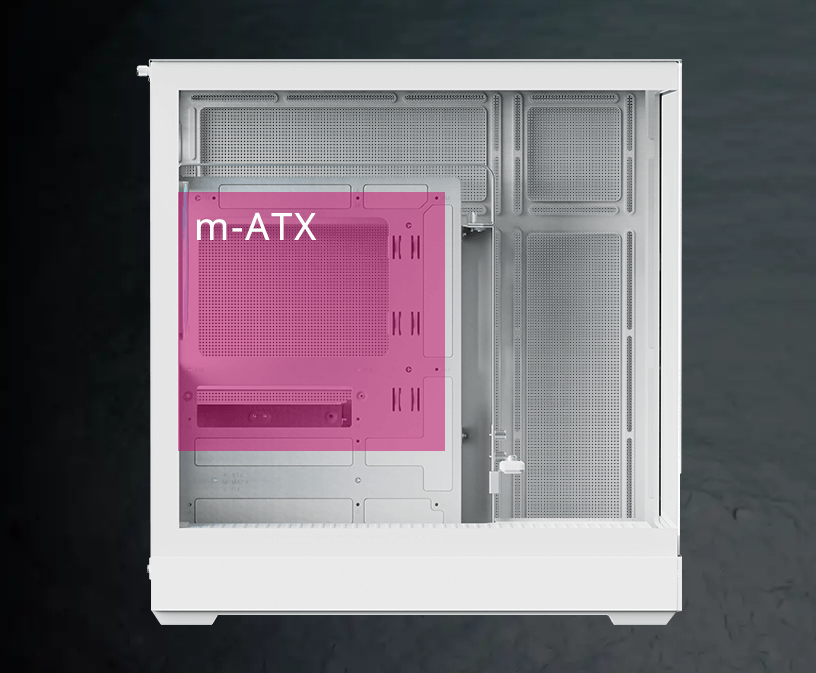

This optimized layout simplifies cable management, while a dedicated motherboard cover conceals unnecessary cutouts when using standard ATX or m-ATX motherboards.

*Compatible with ASUS BTF, MSI Project Zero and Gigabyte Project Stealth Motherboards

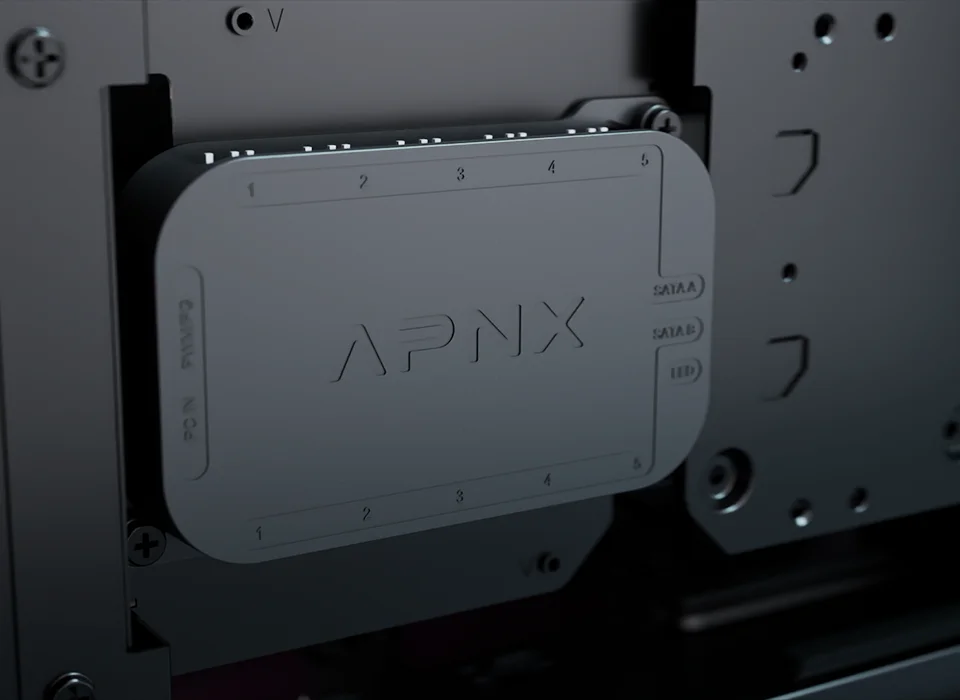

APNX ARGB PWM Hub 1 Included

Enjoy effortless cable management and synchronized lighting with the pre-installed APNX ARGB PWM Fan Hub 1 (10 port hub), ensuring optimal airflow and seamless control of your fans and RGB lighting.

Specifications

Case Type: Mid Tower

Color: Black / White

Body Material: SGCC

Steel Thickness: 0.8 mm

Motherboard Support: ATX / Micro-ATX / Mini-ITX

Case Dimensions (D × W × H): 466 × 309 × 500 mm

Capacity: 71 L

3.5" Drive Bays: 1 maximum (1 × 3.5" / 2 × 2.5")

2.5" Drive Bays: 4 maximum (2 × 2.5" and 1 × 3.5" / 2 × 2.5")

Expansion Slots: 7

GPU Clearance: Supports GPUs up to 445 mm (without radiator in the front-right position)

CPU Cooler Clearance: Up to 183 mm

Fan Support:

Right-Front: 3 × 120 mm or 3 × 140 mm

Right-Top: 3 × 120 mm

Top: 3 × 120 mm or 3 × 140 mm

Bottom: 3 × 120 mm, 3 × 140 mm, or 2 × 160 mm

Rear: 2 × 120 mm or 1 × 140 mm

Included: 3 × FP3-140 fans (case version), 1 × FP3-140 fan (case version)

Radiator Support:

Right-Front: 120 / 140 / 240 / 280 / 360 mm

Right-Top: 120 / 240 / 360 mm

Top: 120 / 140 / 240 / 360 mm

Bottom: 120 / 140 / 240 / 280 / 360 mm (bottom fan filter must be removed)

Rear: 120 mm

I/O Ports: 1 × USB 3.2 Gen 2×2 Type-C, 2 × USB 3.2 Gen 1 Type-A, HD Audio & Mic

Net Weight: 11.8 kg

Gross Weight: 14.2 kg

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
