Точка за достъп ZyXEL WAX620D-6E-EU0101F, 2.4GHz (575 Mbps)/ 5GHz (4800Mbps)/ 6GHz (4800Mbps), Wireless AX, 1x RJ-45 10/100/1000, 1x RJ-45 10/100/1000/2500, 4x вътрешни антени

WiFi 6E for High-density WiFi

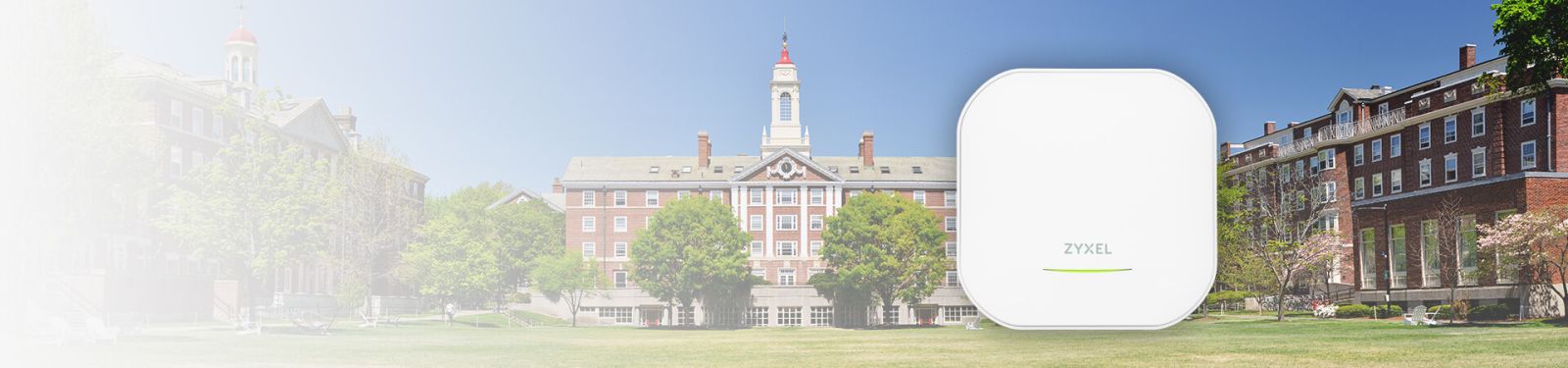

Zyxel WAX620D-6E AXE5400 WiFi 6E Access Point





WiFi 6E – the Fastest Speed EVER

WiFi 6E, the extended version of the WiFi 6, provides a huge innovation leap to wireless industry by taking it into a much wider 6GHz radio spectrum that more than doubles WiFi capacity to further meet today’s demands and tomorrow’s challenges.

It includes all the benefits of WiFi 6 capabilities like OFDMA, MU-MIMO, BSS Coloring, and brings them into the brand-new, interference-free 6GHz that more than doubles the WiFi capacity to deliver ultra-fast speed and low-latency connections.





WAX620D-6E for High-density WiFi

WiFi 6E, the new 6 GHz band, presents a solution to quenching the thirst for today’s hunger for more bandwidth. The WAX620D-6E’s BandFlex radio design allows the AP to support either 5GHz or 6GHz band by configuration, making it the most economical choice to fit into your existing 5GHz coverage, as well as futureproofing the use of 6Ghz. The WAX620D-6E is a perfect choice for:





Specifications:



Wireless

Standard

IEEE 802.11 ax/ac/n/g/b/a

MIMO

MU-MIMO



Wireless speed

2.4GHz: 575 Mbps

5 GHz: 4800 Mbps

6 GHz: 4800 Mbps



Frequency band

2.4 GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz



5 GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz



6 GHz:

USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz

European (ETSI): 5.925 to 6.425 GHz

Bandwidth

20-, 40-,80- and 160-MHz

Conducted typical transmit output power*1
(limited by local regulatory requirements)

US (2.4GHz/5GHz/6GHz):

24/28/24dBm



EU (2.4GHz/5GHz/6GHz):

18/25/19dBm



RF Design

Antenna type

4x4 + 2x2 Dual-optimized Antenna

Antenna gain

2.4 GHz:

Peak Gain 3dBi



5 GHz:

Peak Gain 6dBi



6 GHz:

Peak Gain 6dBi

Minimum receive sensitivity

Min. Rx sensitivity up to -101 dBm



WLAN Feature

Band steering

Yes

WDS/Mesh*2

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

Yes

Advanced cellular coexistence

Yes



Security

Encryption

WEP

WPA

WPA2-PSK

WPA3

Authentication

WPA

WPA2

WPA3-Enterprise

EAP

IEEE 802.1X

RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection



Networking

IPv6

Yes

VLANs

Yes (Doesn’t support traffic shaping in NCC)

WMM

Yes

U-APSD

Yes



Management

Operating mode

Nebula cloud managed

Controller-managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

Yes



Physical Specifications

Item

Dimensions (WxDxH)(mm/in.)
180 x 180 x 42 / 7.09 x 7.09 x 1.65

Weight (g/lb.)
650/1.43

Packing

Dimensions (WxDxH)(mm/in.)
197 x 190 x 60 / 7.76 x 7.48 x 2.36

Weight (g/lb.)
780/1.72

Included accessories

Mount plate

Mounting screws

MTBF (hr)

711,333



Physical Interfaces

Ethernet port

1 x 1/2.5Gbps LAN

1 x 1Gbps LAN

Power

PoE (802.3)at: power draw 21.5 W

DC input : 12 VDC 2A

PoE modes

IEEE802.3af: No Wireless

IEEE802.3at: Unrestricted

IEEE802.3bt: Unrestricted
