Name: Точка за достъп Zyxel WAC6303D-S, 1600Mbps, 2.4 GHz(300 Mbps)/5 GHz(1300 Mbps), 2x LAN1000, 2 вътрешни антени
Brand: ZyXEL
SKU: NTWBZYXELWAC6303DS
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

Ultimate wireless experience for high-density with true flexibility

The WAC6303D-S has been designed with Smart Antenna technology, to provide clients with the ultimate wireless experience, especially in high-density environment.

Additionally the WAC6303D-S supports NebulaFlexTM Pro which includes one year of Professional pack and triple mode functionality (standalone, hardware controller and Nebula).

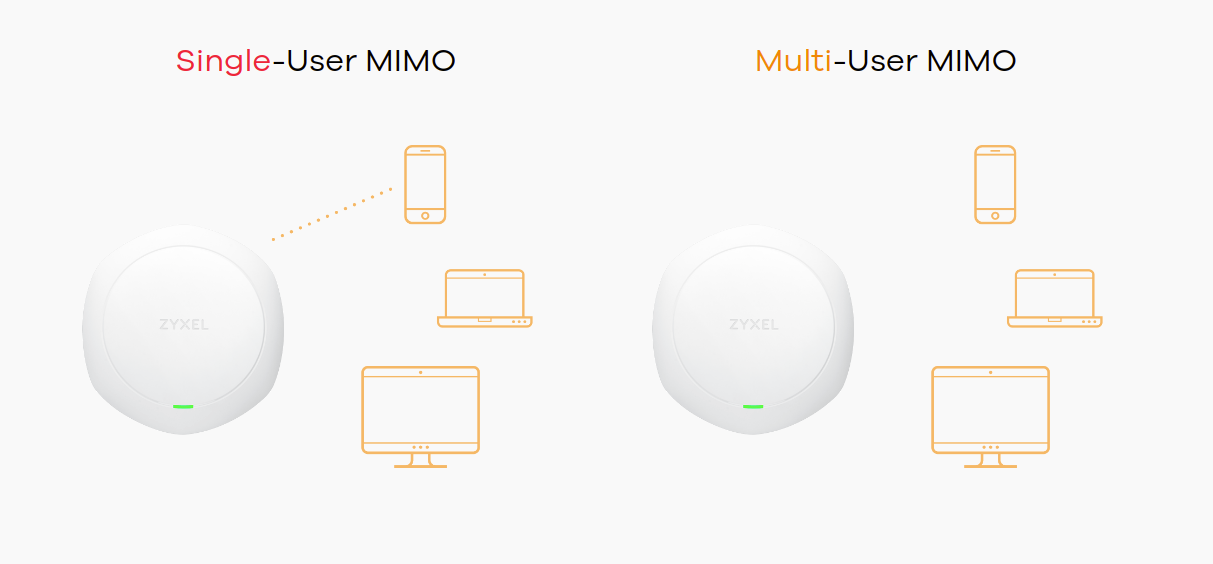

MU-MIMO, New Definition of Wi-Fi

Stepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP.

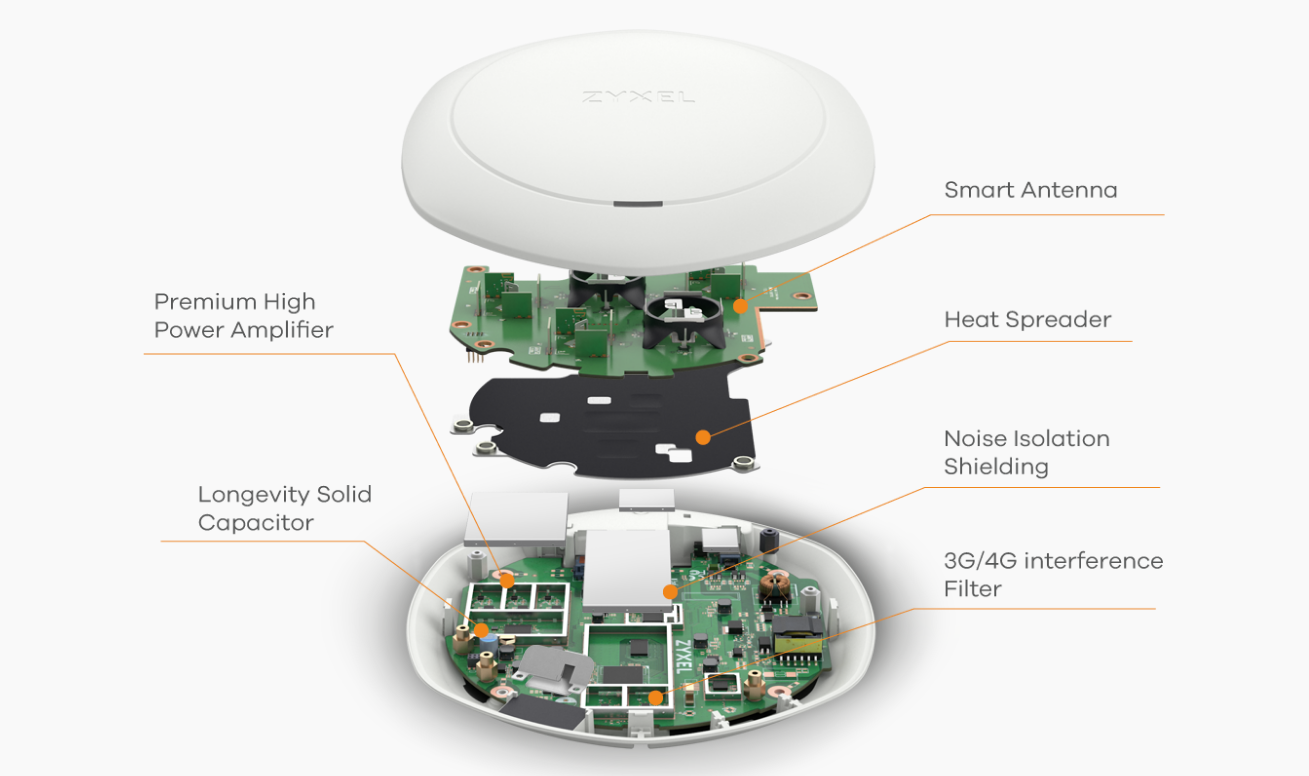

Built for Superior performance

The WAC6303D-S is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market

WAC6303D-S Specifications
Wireless
Standard		IEEE802.11 ac/n/g/b/a
MIMO		SU-MIMO and MU-MIMO
Wireless Speed		2.4 GHz: 300 Mbps 5 GHz: 1300 Mbps
Frequency band		2.4 GHz (IEEE 802.11 b/g/n) USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz Taiwan (TW): 2.412 to 2.462 GHz 5 GHz (IEEE 802.11 a/n/ac) USA (FCC): 5.150 to 5.250 GHz; 5.250 to 5.350 GHz; 5.470 to 5.725 GHz; 5.725 to 5.850 GHz European (ETSI): 5.150 to 5.350 GHz; 5.470 to 5.725 GHz Taiwan (TW): 5.150 to 5.250 GHz; 5.250 to 5.350 GHz; 5.470 to 5.725 GHz; 5.725 to 5.850 GHz
Bandwidth		2x2 Multiple-Input Multiple-Output (MIMO) with two spatial streams Maximal Ratio Combining (MRC) 20-, 40- and 80-MHz channels PHY data rates up to 300 + 866 Mbps Transmit Beamforming (TxBF) support Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Cyclic Delay Diversity (CSD) support
Transmission power		US (FCC) 2.4 GHz: 18 dBm, 2 antennas US (FCC) 5 GHz: 19 dBm, 2 antennas EU (ETSI) 2.4 GHz: 17 dBm, 2 antennas EU (ETSI) 5 GHz: 19 dBm, 2 antennas
RF Design
Antenna type		2.4 GHz: 2x2 MIMO smart antenna 5 GHz: 3x3 MIMO smart antenna
Antenna gain		2.4 GHz: 3 dBi 5 GHz: 4 dBi
Minimum Receive sensitivity		Min. Rx sensitivity up to -103 dBm
WLAN Features
Band Steering		Yes
WDS		Yes
Mesh AP (By license)		Yes
Mesh AP for multiple SSID with VLAN		Yes
Fast roaming		Pre-authentication and PMK caching
Security
Encryption		WEP/ WPA/WPA2-PSK
Authentication		WPA/WPA2-Enterprise/ EAP (-TLS, -TTLS, -PEAP, -FAST, -AKA and -SIM)/ IEEE 802.1X/ RADIUS authentication
Access management		L2-isolation/ MAC filtering/ Rogue AP detection
Networking
IPv6 host		Yes
VLANs		Yes
WMM		Yes
U-APSD		Yes
DiffServ marking		Yes
Management
Operating mode		Controller-managed / Standalone
ZON Utility		Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with Zyxel AP Configurator (ZAC)
ZAC		Batch AP configuration Batch AP firmware upgrade Batch AP profile backup
Zyxel Wireless Optimizer		WiFi AP planning WiFi coverage detection*3 Wireless health management
Web UI/ CLI		Yes
SNMP		Yes
Physical Interfaces
Ethernet port		2x 10/100/1000 Mbps (switch port)
Power		12 V 2 A DC input 802.3at (Full mode; power draw 16.2 W) 802.3af (Restrict 2.4G & 5G radio to one transmit stream only.)
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.)	211 x 223 x 39 / 8.31 x 8.78 x 1.54
Item	Weight (kg/lb.)	800 / 1.76
Packing	Dimensions (WxDxH)(mm/in.)	251 x 247 x 55 / 9.88 x 9.72 x 2.17
Packing	Weight (kg/lb.)	1040 / 2.29
Included accessories		Wall/ceiling mount plate Mounting screws
Environmental Specifications
Operating	Temperature	-20°C to 60°C/-4°F to 140°F
Operating	Humidity	10% to 90% (non-condensing)
Storage	Temperature	-40°C to 70°C/-40°F to 158°F
Storage	Humidity	10% to 90% (non-condensing)
MTBF (hr)		3,960,217
Certification
Radio		FCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC		FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55032, EN55024, EN61000-3-2/-3, BSMI CNS13438
Safety		EN 60950-1, IEC 60950-1, BSMI CNS14336-1

Виж още Аксеспойнт/Репитер Безжични ZyXEL
Виж всички Аксеспойнт/Репитер Безжични в категорията

Документация

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	1600 Mbps
Wi-Fi Стандарт:	Wi-Fi 5 (802.11ac)
Честота:	2.4 & 5 GHz
Антени:	2 Външни
dBi на антена/и:	4
PoE:	Няма
Интерфейс:	2x 1000
Други:	Няма
