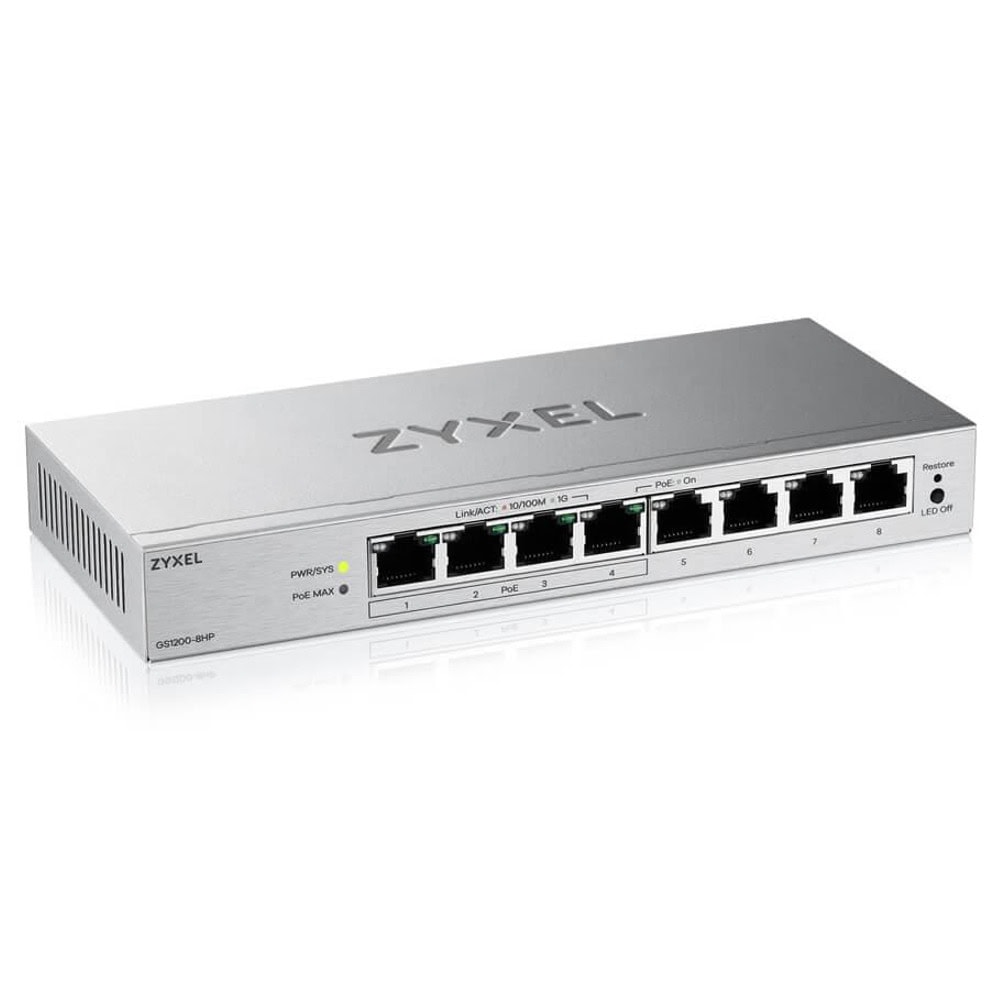

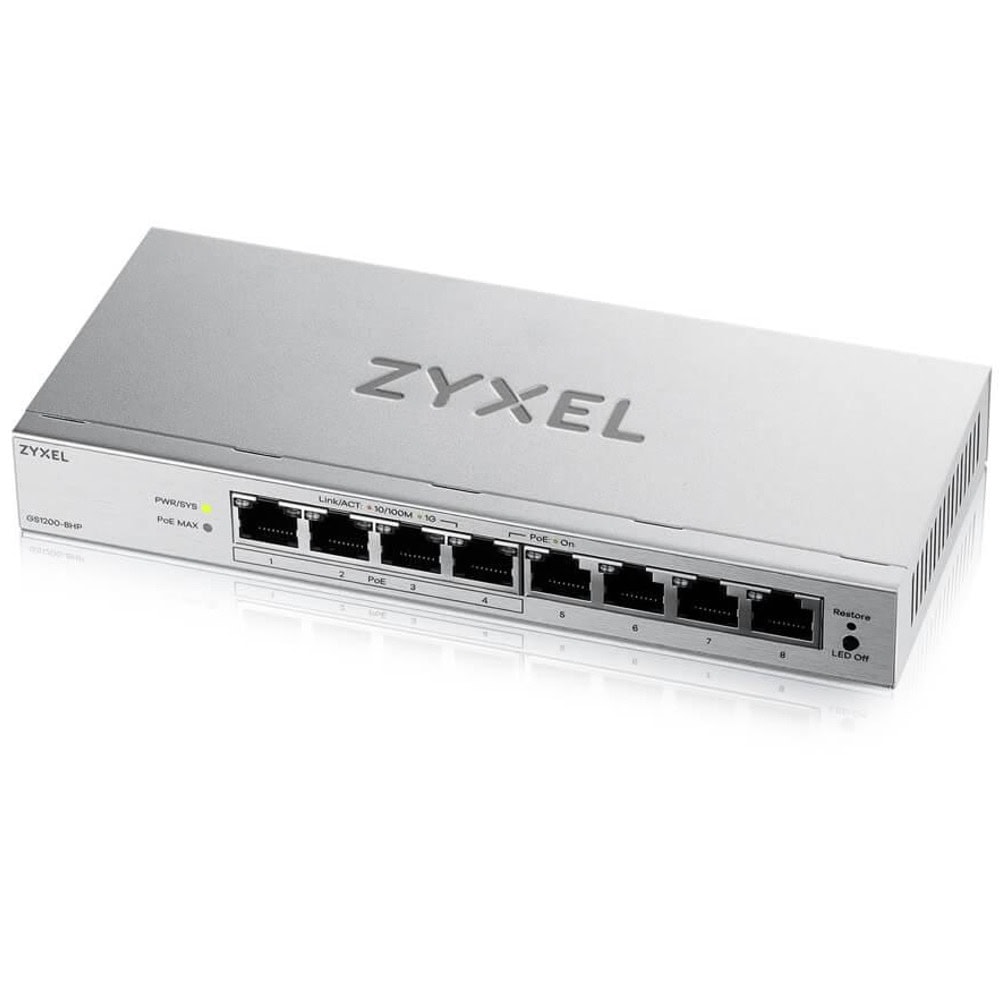

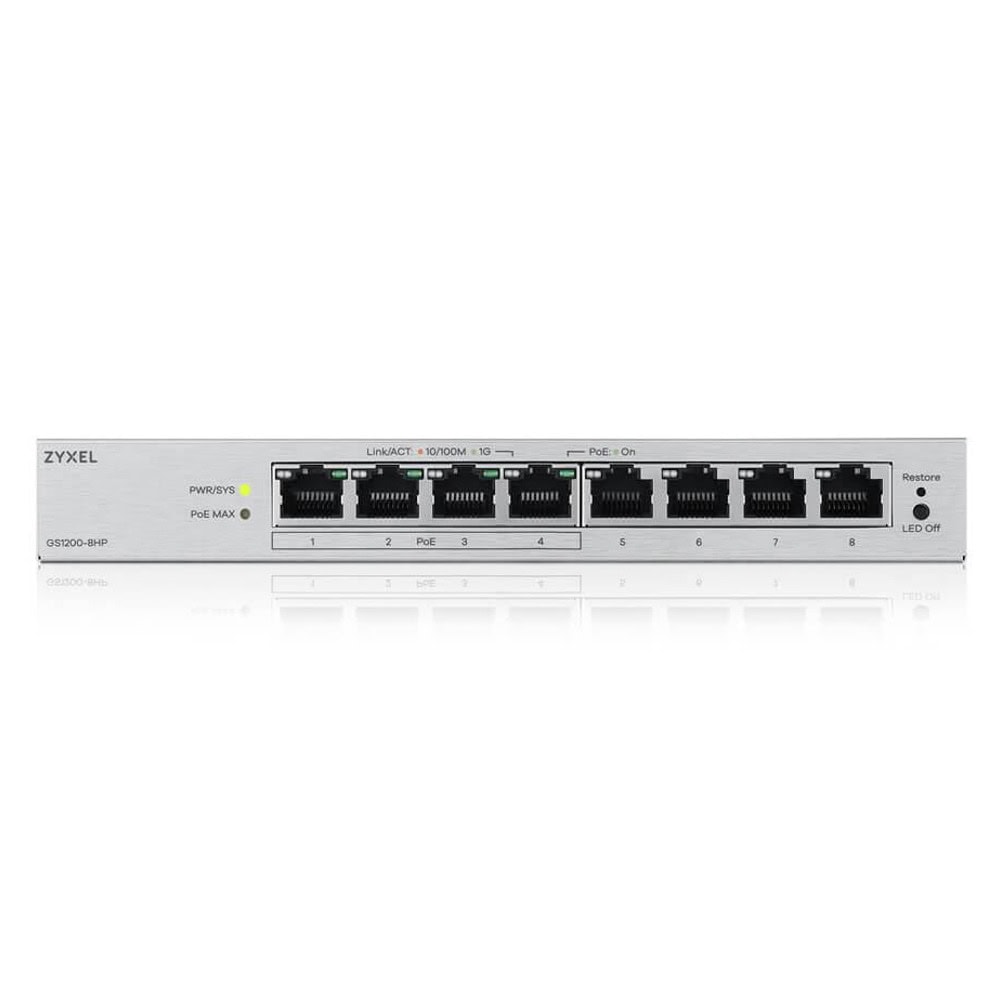

Суич ZyXEL GS1200-8HP v3, 1000Mbps, 8 порта, 8x 10/100/1000 Mbps RJ-45 (4x PoE)

Tidy Switch. Simple Control.

GS1200v3 Series Gigabit Web Managed Switch

Easy Web Management

This Series of switch comes with a user-friendly web-based set-up interface that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. Some advanced features such as Link aggregation, VLAN, IGMP Snooping can be configured just with a few simple clicks.

Smart PoE+ 802.3at Support

PoE models support the IEEE 802.3at PoE+ standard, providing a maximum of 30 watts per port (with a max total power budget of 68 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed.

Description

Product name

8-Port GbE PoE Web Managed Switch

Switch class

Web Managed

Port Density

Total port count

8

10M/100M/1G (RJ-45)

8

Gigabit SFP

-

PoE

PoE ports

4

Total PoE budget (watts)

68

IEEE 802.3at (PoE+)

Yes

Performance

Switching capacity (Gbps)

16

Forwarding rate (Mpps)

11.9

Packet buffer (byte)

192 KB

MAC address table

4 K

Jumbo frame (byte)

15 KB

Power

Input

100 - 240 V AC, 50/60 Hz

Power supply

External

Min. power consumption (watts) Without any port connection

1.54

Max. power consumption (watts) All ports full load without PoE

4.7

MMax. power consumption (watts) All ports full load with PoE

81.27

Physical Specifications

Dimensions
(WxDxH)(mm/in.)

193 x 85 x 26/7.6 x 3.35 x 1.02

Weight
(kg/lb.)

0.337/0.74

Green Features

Energy-Efficient Ethernet

Yes

Environmental Specifications

Operating

Temperature: 0°C to 40°C/ 32°F to 104°F

Humidity: 10% to 95% (non-condensing)

Storage

Temperature: -40°C to 70°C/-40°F to 158°F

Humidity: 10% to 95% (non-condensing)
