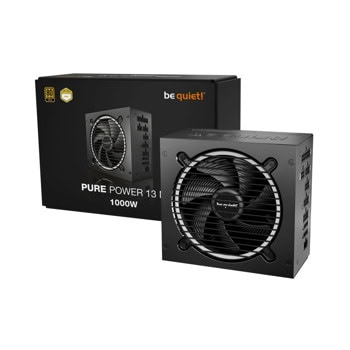

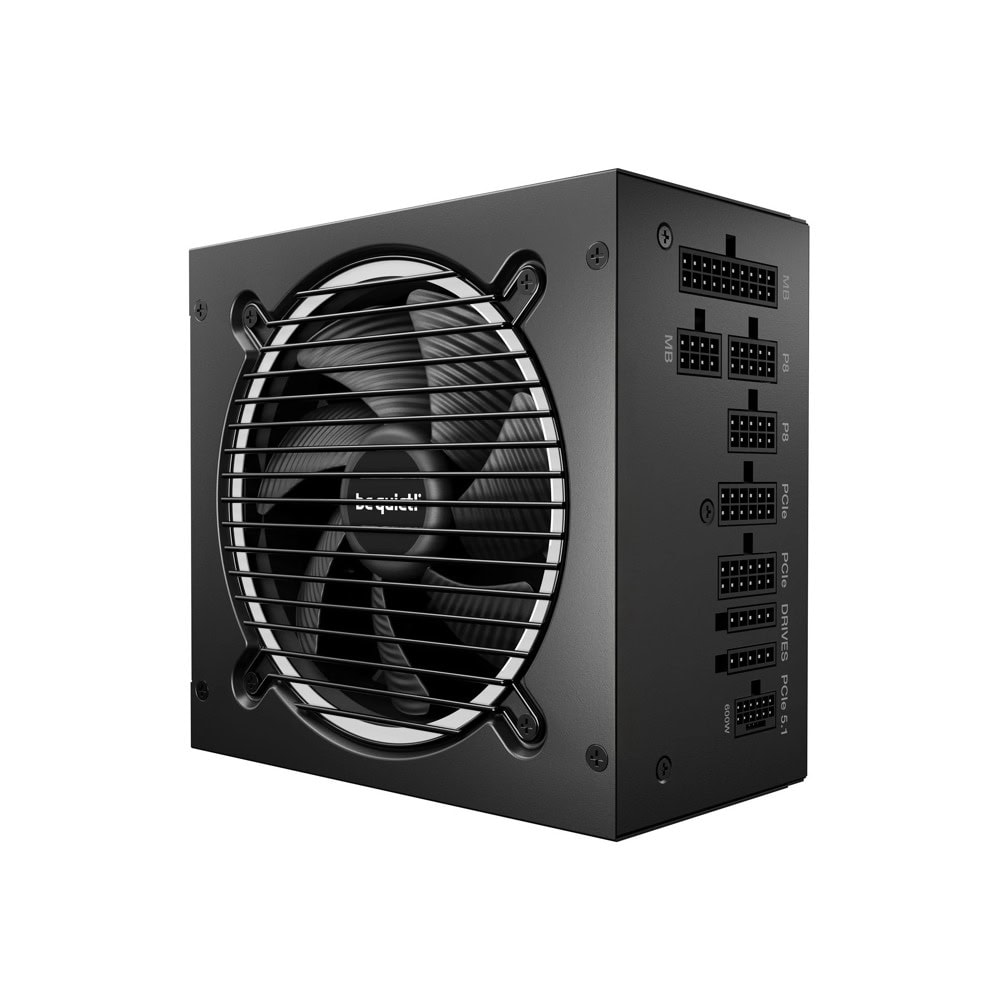

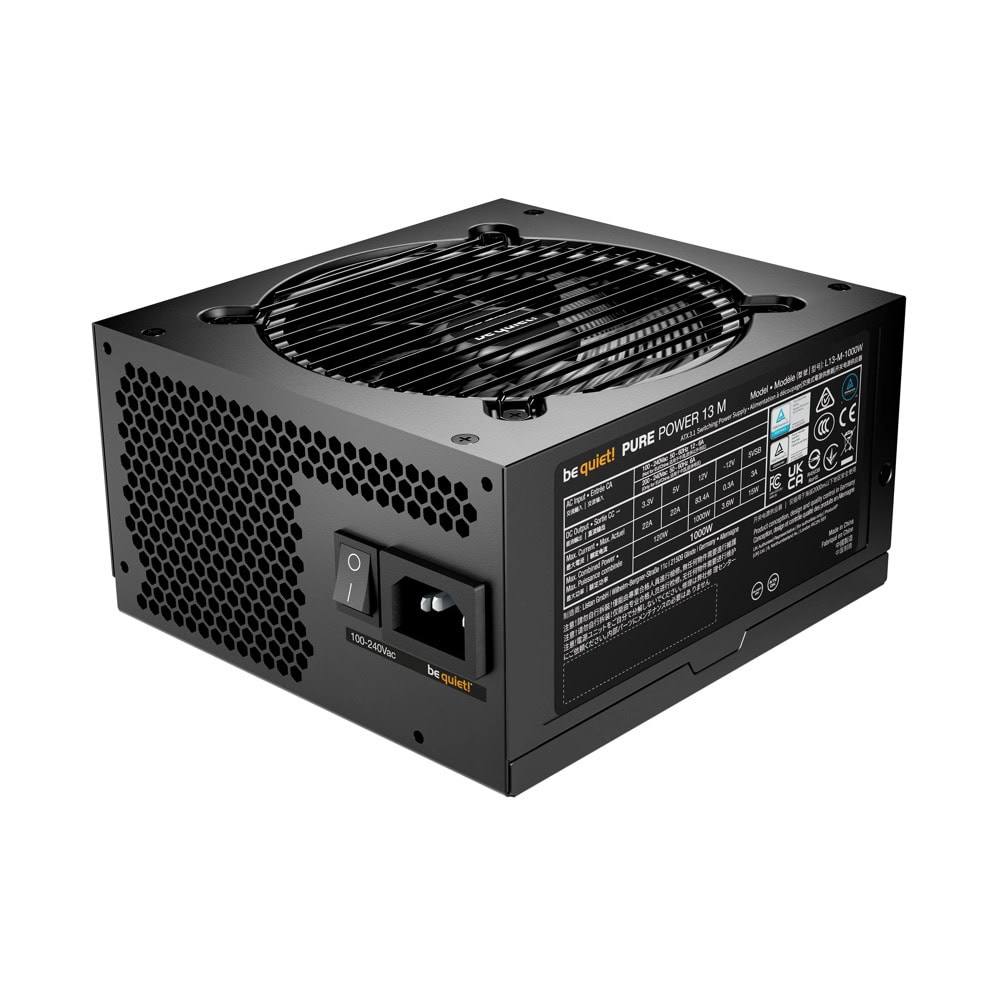

Захранване be quiet! Pure Power 13 M (BP028EU)
Икона нов продукт
Захранване be quiet! Pure Power 13 M (BP028EU)Захранване be quiet! Pure Power 13 M (BP028EU)Захранване be quiet! Pure Power 13 M (BP028EU)Захранване be quiet! Pure Power 13 M (BP028EU)

Захранване be quiet! Pure Power 13 M (BP028EU), 1000W, Active PFC, 80+ Gold, 120mm вентилатор

id 295115 Код: PWRPCBEQUIETBP028EU

344.35 лв

/

176.06 €

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

PURE POWER 13 M

1000W

Exceptional quiet, superior features

Pure Power 13 M 1000W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 1000W offers the best combination of features with outstanding compatibility.

  • 80 PLUS® Gold efficiency (up to 94.4%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors

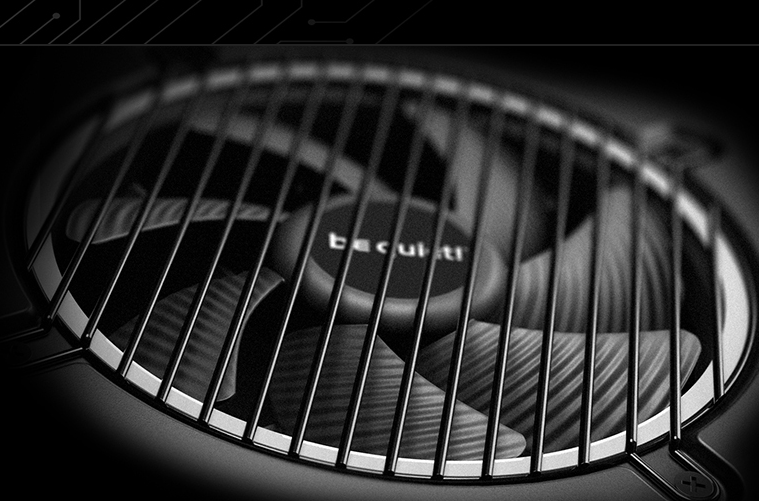

  • Exceptionally silent semi-passive 120mm be quiet! fan
  • Semi-passive construction for quiet and energy-saving operation
  • LLC technology for advanced stability and voltage regulation
  • One massive high-performance 12V-rail
  • One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs

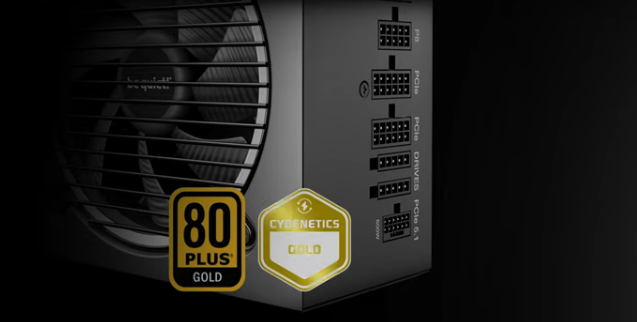

80 PLUS® GOLD CERTIFIED

Very high operating efficiency

Pure Power 13 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 94.4%.  The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 1000W is always the correct choice for quiet systems and gaming PCs!

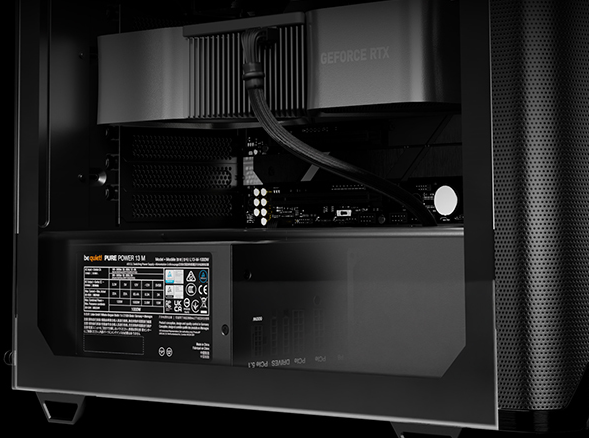

FUTURE-PROOF YOUR SYSTEM

Fulfills all ATX 3.1 specifications

Pure Power 13 M 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER

For massive transient loads

Pure Power 13 M offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 13 M 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

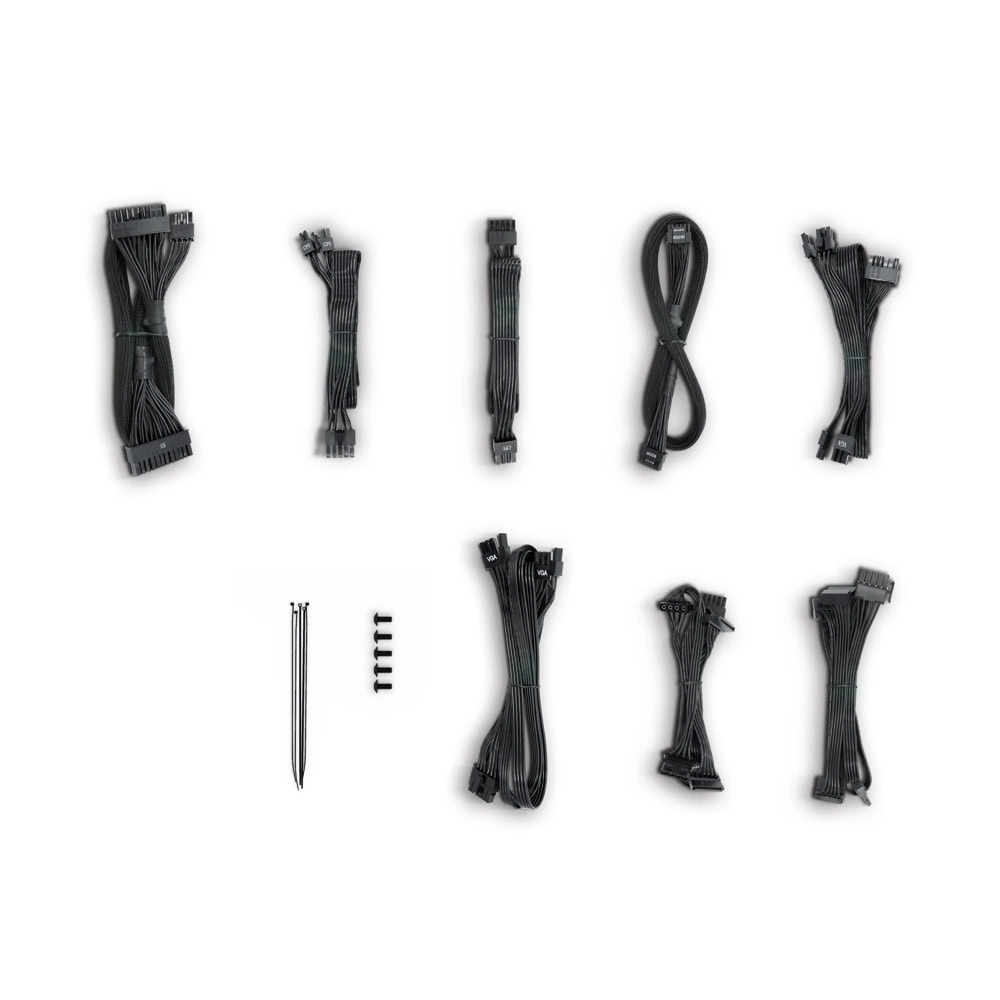

MODULAR CABLES

Utmost convenience and compatibility

Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 13 M 1000W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.





CategorySpecification
ModelPure Power 13 M
Continuous Power1000 W
Peak Power1050 W
Form FactorATX 3.1, EPS 12V v2.92
TopologyLLC + SR + DC/DC
Digitally ControlledNo
Input Voltage100 – 240 V
Frequency50 – 60 Hz
Input Current12 / 6 A
Power Factor @ Full Load>0.98
Modern StandbyYes
Standby Power Draw< 0.1 W
Average Lifespan>100,000 h (at 25°C)
Max Operating Temp40°C
80 PLUS CertificationGold
Efficiency @ 2% Load72.6%
Efficiency @ 10% Load91.2%
Efficiency @ 20% Load93.9%
Efficiency @ 50% Load94.4%
Efficiency @ 100% Load92.5%
Fan TypeSilence-optimized be quiet! 120mm fan
Bearing TechnologyRifle bearing
Motor4-pole fan motor
Max Fan Speed2000 RPM
Noise @ 20% Load13.6 dB(A)
Noise @ 50% Load14.1 dB(A)
Noise @ 100% Load30.3 dB(A)
12V RailsSingle rail (✓), Multi-rail (-)
Overclocking Key-
+3.3V / +5V22A / 22A
+12V183.4A
-12V / +5Vsb0.3A / 3A
Combined 12V Power1000 W
Combined 3.3V + 5V120 W
Hold-up Time21.09 ms (100% load), 28.62 ms (80% load)
Power Good Signal100 – 150 ms
Cables Included8
Cable TypesModular, Sleeved, Flat
Max Cable Length95 cm
MB Cable Length55 cm

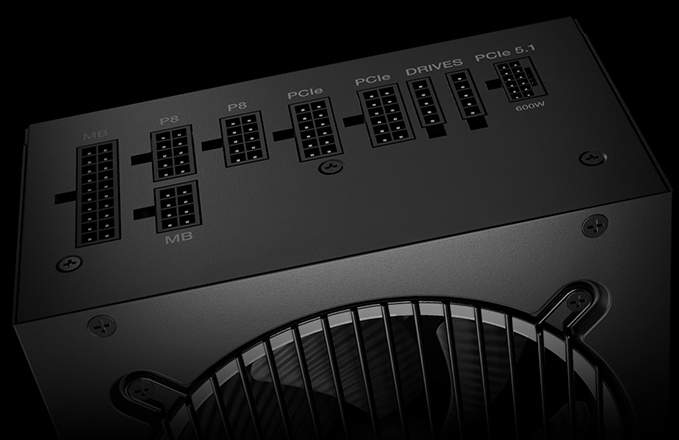

Connectors1× ATX 24-pin, 1× P4+4, 1× P8, 1× 12V-2x6, 4× PCIe 6+2, 6× SATA, 2× PATA
ProtectionsOTP, OCP, OPP, SCP, OVP, UVP, SIP
CertificationsBSMI, CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA
Eco DirectivesEnergy Star 8.0, ErP, WEEE, RoHS
Included in BoxScrews, Cable ties, Manual (CN, DE, EN, ES, FR, JP, PL, RU, TW)
Dimensions (mm)160 × 150 × 86
Weight2.64 kg
ColorBlack
Warranty10 Years
Support HotlineYes (Free in DE, FR)
Article NumberBP028EU
EAN Code4260052192207
Package Size (mm)320 × 210 × 133
Package Weight3.4 kg
Shipping Box (mm)580 × 325 × 233
Shipping Weight22.7 kg





JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри be quiet!
    Виж всички Захранвания Настолни компютри в категорията
    Технически характеристики
    Изходна мощност:  1000 W
    Модулен блок:  Да
    Форм фактор:  ATX
