Рутер TP-Link TL-WR1502X (Ver. 1.0), 4G, преносим, 1500Mbps, 2.4GHz (300Mbps)/ 5GHz (1201Mbps), Wireless AX, 1x LAN, 1x WAN, 1x USB 2.0

Enjoy Flawless Connection Everywhere

TL-WR1502X, with its versatile modes including Router, USB Tethering, 3G/4G USB Modem, Hotspot, Access Point, Range Extender, and Client, enables flexible WiFi setup for homes, hotel stays, and travel.

Share your Mobile’s Cellular Data for Wider Coverage

The tethering mode can use your phone signal to create a localised wireless internet connection. Compared with the normal hotspot mode, it can provide a more stable and wider coverage network.

Your Tacit Companion on the Road

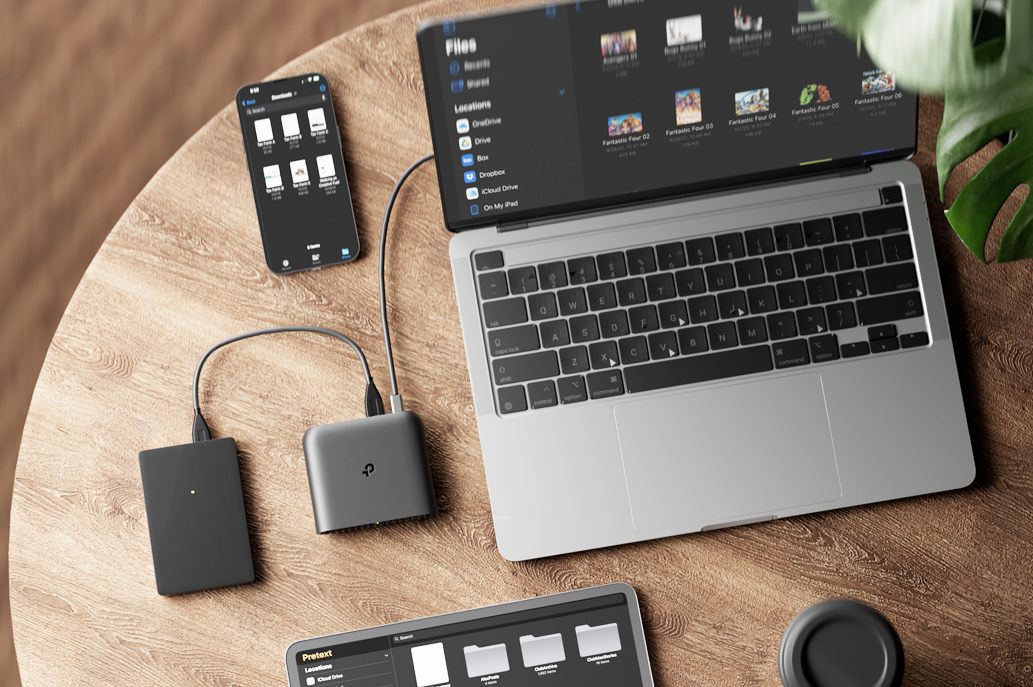

Say Goodbye to Messy Files and Cable Clutter

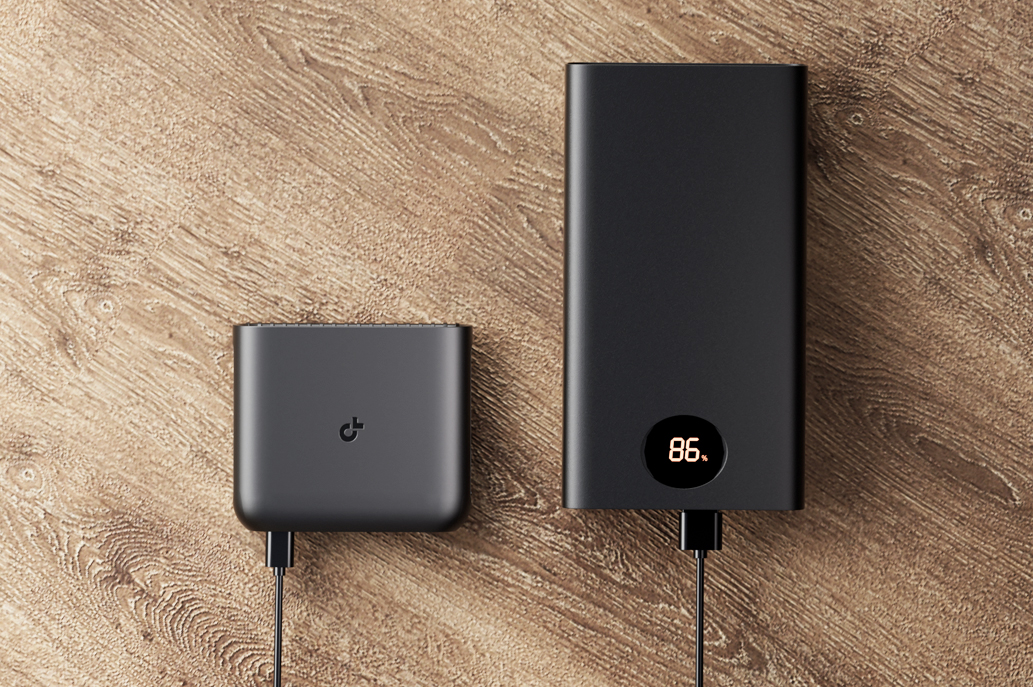

Your Digital Filing Cabinet By plugging into an external drive, keep all your important files in one secure hub accessible to every device on your network.	Your Flexible Mobile Router The Type-C interface let you flexibly turn it into a mobile router with a power bank. And, you can charge other devices with the same cable you use to charge the router.

Specifications

WIRELESS
Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)

WiFi Capacity

HighDual-Band
Allocate devices to different bands for optimal performance

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth

Working Modes

Router Mode
Access Point Mode
Range Extender Mode
USB Tethering Mode
3G/4G USB Modem Mode
Client Mode
Hotspot Mode (WISP Mode)

SECURITY
Network Security

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network

1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server

• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• Wireguard VPN Server

VPN Client

• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• Wireguard VPN Client

WiFi Encryption

WPA2-PSK
WPA3-Personal
WPA/WPA2-Enterprise

HARDWARE
Ethernet Ports

1× Gigabit WAN Port
1× Gigabit LAN Port

USB Support

1× USB 2.0 Port

Buttons

WPS/Reset Button
Mode Switch

Power

12V/1.5A，External DC power adapter

SOFTWARE
Protocols

IPv4
IPv6

WAN Types

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service

QoS by Device

NAT Forwarding

Port Forwarding
Port Triggering
DMZ
UPnP

DHCP

DHCP Server
DHCP Client List
Address Reservation

DDNS

TP-Link
NO-IP
DynDNS

Management

Tether App
Webpage

OTHER
Certifications: FCC, CE
Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing


TEST DATA
WiFi Transmission Power

CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity

2.4GHz
11b 1M:-96dBm
11n HT20M MCS7:-73dBm
11n HT40M MCS7:-70dBm

5GHz
11a 6M:-93dBm
11ax HE20M MCS11:-63dBm
11ax HE40M MCS11:-60dBm
11ax HE80M MCS11:-59dBm
