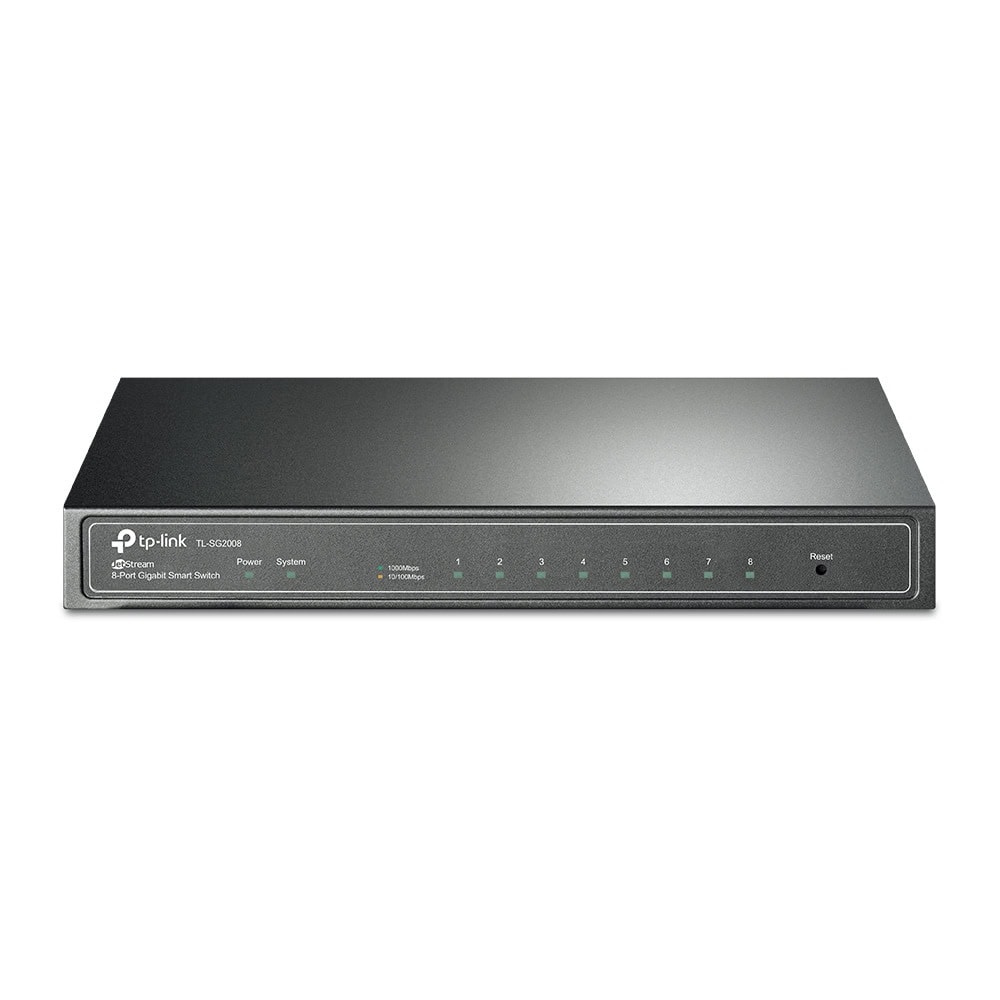

Суич TP-Link TL-SG2008, 8 Port 1000Mbps

HARDWARE FEATURES


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p

Interface

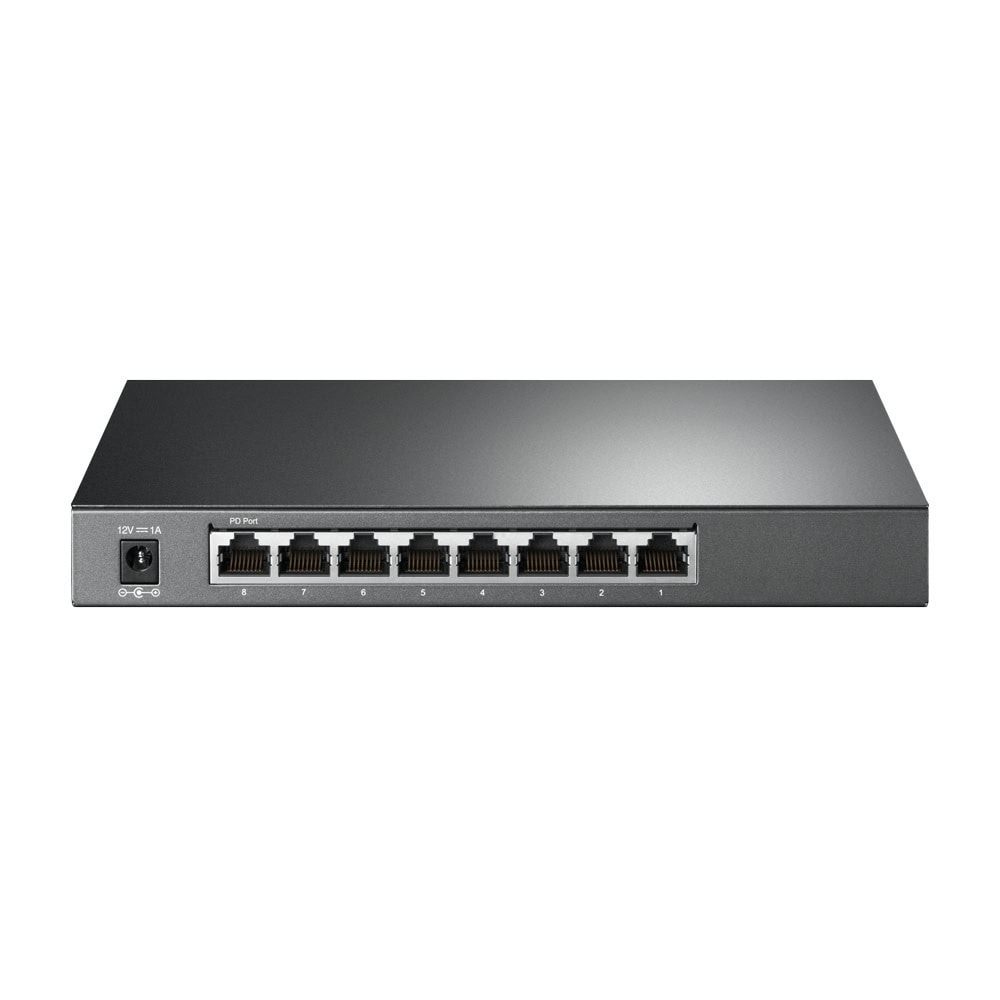

8 10/100/1000Mbps RJ45 Ports
(Auto-Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)

Dimensions (W X D X H): 8.2* 4.9* 1.0 in. (209* 126* 26mm)
Fan Quantity: Fanless
Power Consumption: Maximum: 6.42W (220V/50Hz)
Power Supply: 100~240VAC, 50/60Hz


PERFORMANCE

Bandwidth/Backplane: 16Gbps
MAC Address Table: 8k
Packet Forwarding Rate: 11.9Mpps
Jumbo Frame: 9216 Bytes

SOFTWARE FEATURES

Quality of Service

Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN

L2 Features

IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control

VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)

Access Control List

L2～L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based

Security

SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control

Management

Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS

OTHERS


Certification CE, FCC, RoHS

Package Contents

TL-SG2008
Power Adapter
Quick Installation Guide
Resource CD
Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
