Name: Точка за достъп TP-Link Omada EAP783, 22000Mbps, 2.4GHz (1148Mpbs)/ 5GHz (8640Mbps)/ 6GHz (11520Mbps), 2x 100/1000/10000 RJ-45(PoE), 12x вътрешни антени
Brand: TP-Link
SKU: NTWBTPLINKEAP783
Price: 1305.29 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

EAP783

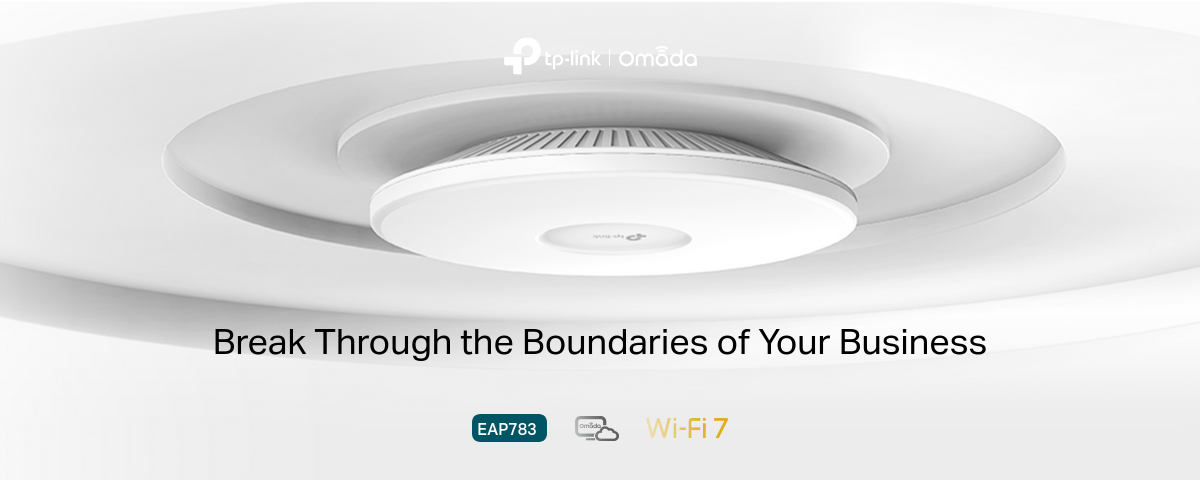

BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

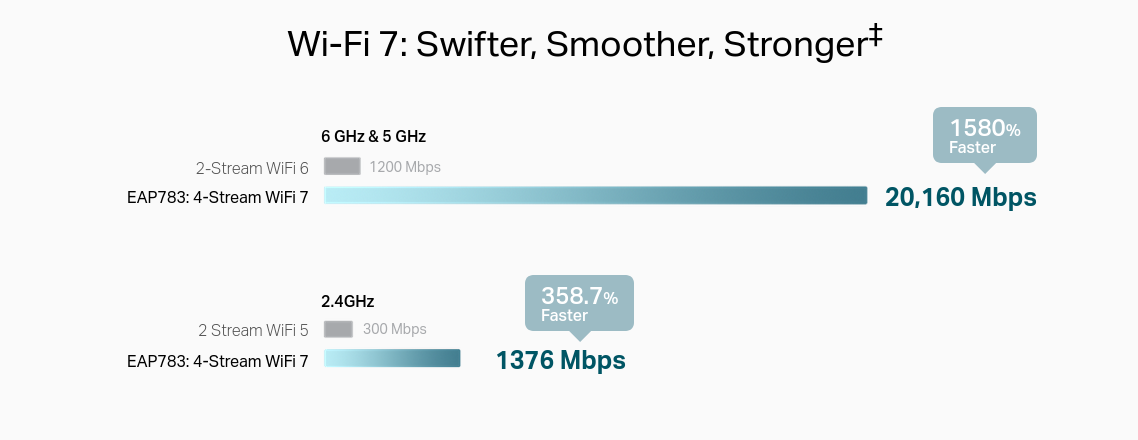

BE22000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 8640 Mbps on 5 GHz + 1148 Mbps on 2.4 GHz).
A clear 6 GHz band brings cleaner and wider band resources.
2× 10G ports unlock the full potential of Wi-Fi 7.
320 MHz bandwidth enables many more simultaneous transmissions.
Multi-Link Operation and Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management, mesh, and AI roaming

Specifications:

GENERAL
Weight	Net Weight:1384.6g

HARDWARE FEATURES
Interface	2× 10G Ethernet Ports
Button	Reset
Power Supply	• 802.3bt PoE++ • 12V DC Note：Power adapter is not included.
Power Consumption	39W
Dimensions ( W x D x H )	11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm)
Antenna Type	Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5.5 dBi • 6 GHz: 4× 5 dBi
Bluetooth	Yes
Mounting	Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES
Coverage	200㎡ (2150 ft²) §
Concurrent Clients	760+**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Signal Rate	• 6 GHz: Up to 11520 Mbps • 5 GHz: Up to 8640 Mbps • 2.4 GHz: Up to 1376 Mbps
Wireless Functions	• MLO • 4K-QAM • 4x4 MU-MIMO DL/UL • HE320 (320 MHz Bandwidth)‡ • Mesh§ • AI Roaming • Automatic Channel Selection and Power Adjustment* • BSS Coloring • UL/DL OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP
Wireless Security	• PPSK • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Transmission Power	• FCC: <28 dBm (2.4 GHz) <28 dBm (5G band 1&band 4) <24 dBm (5G band 2&band 3) <28 dBm (6 GHz)

MANAGEMENT
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes

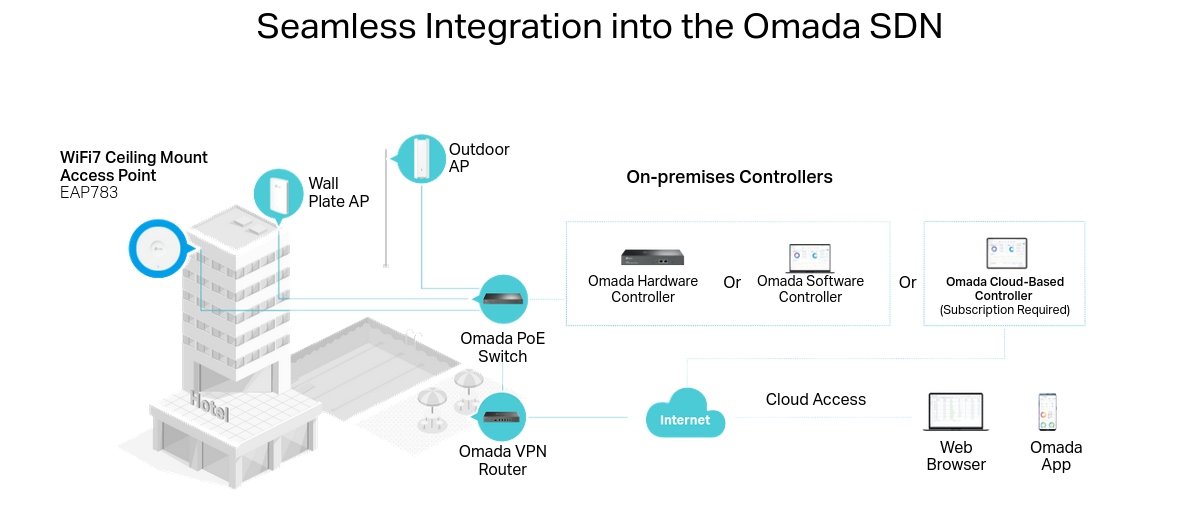

Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes

Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията

Документация

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	22000 Mbps
Wi-Fi Стандарт:	Wi-Fi 7 (802.11be)
Честота:	2.4 & 5 & 6 GHz
Антени:	12 вътрешни
dBi на антена/и:	5.5
PoE:	In
Интерфейс:	2x 10000
Други:	Няма
