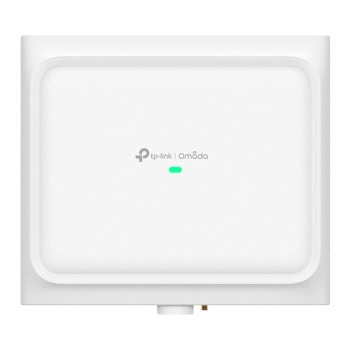

Name: Точка за достъп TP-Link Omada EAP650 D120-Outdoor, 2.4 GHz (574Mbps)/5GHz (2402Mbps), 1x 10/100/1000Mbps LAN PoE
Brand: TP-Link
SKU: NTWBTPLINKEAP650D120OUTDOOR
Price: 200.68 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

AX3000 Indoor/Outdoor WiFi 6 Access Point

Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.
Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.

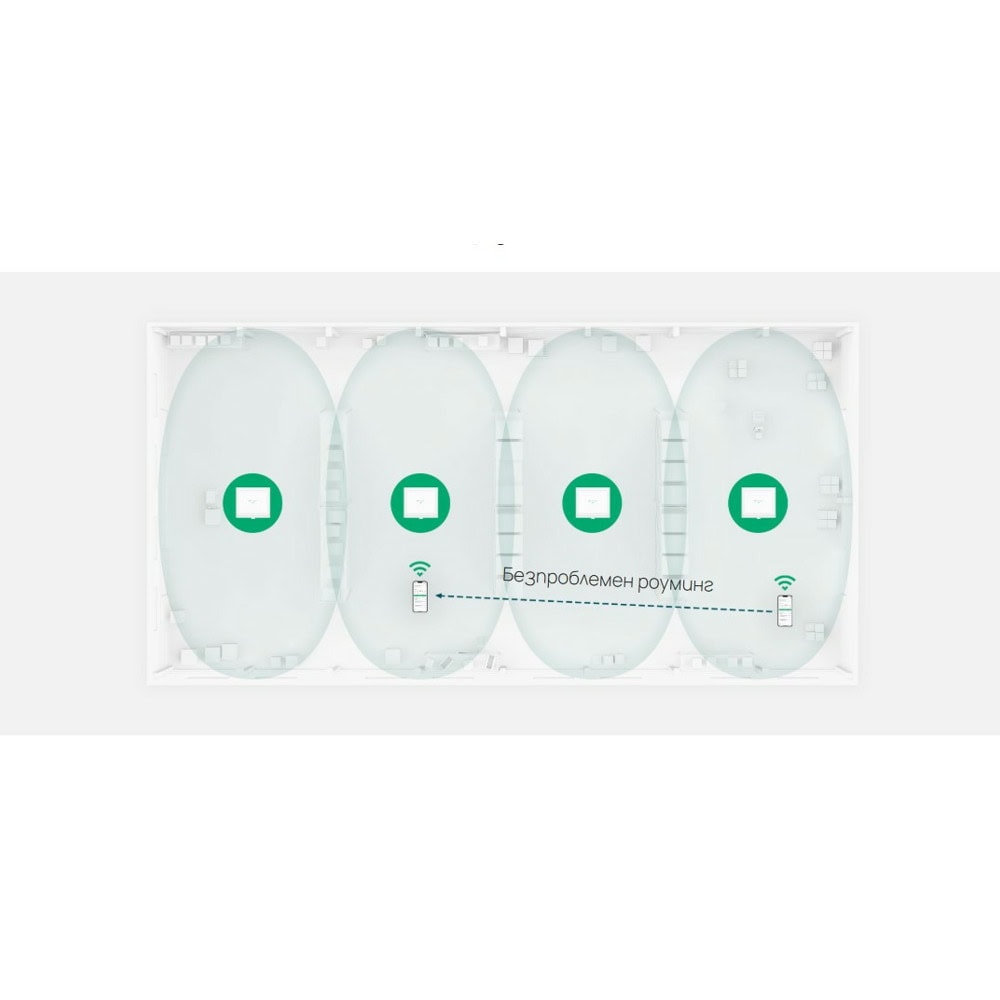

802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.

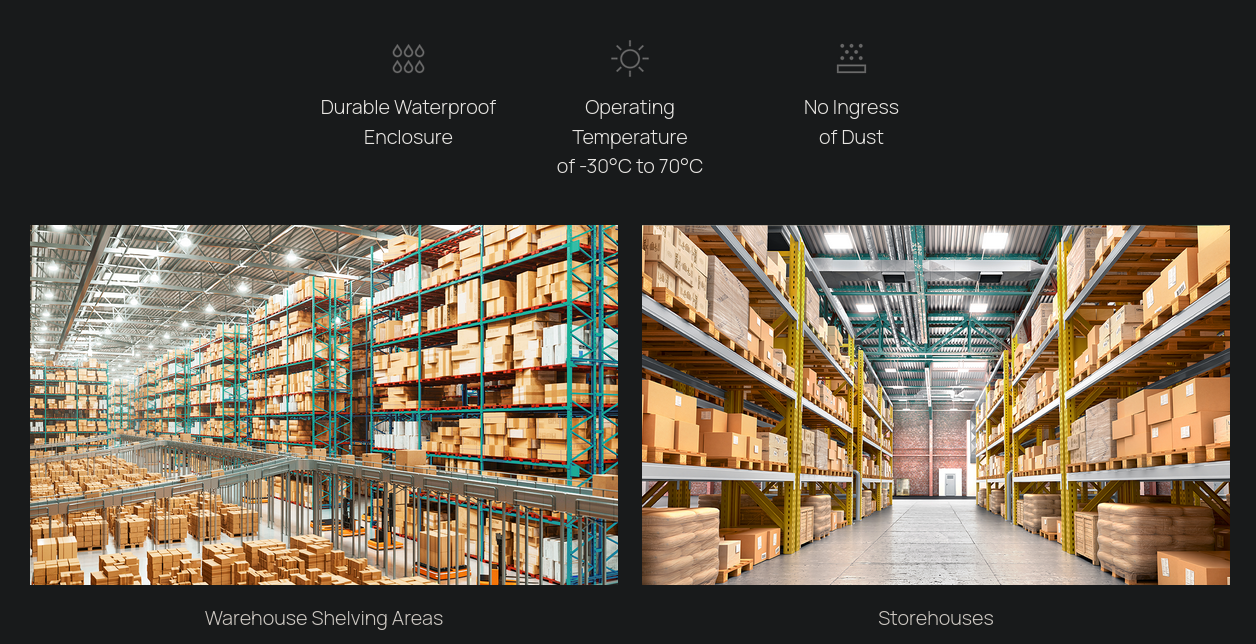

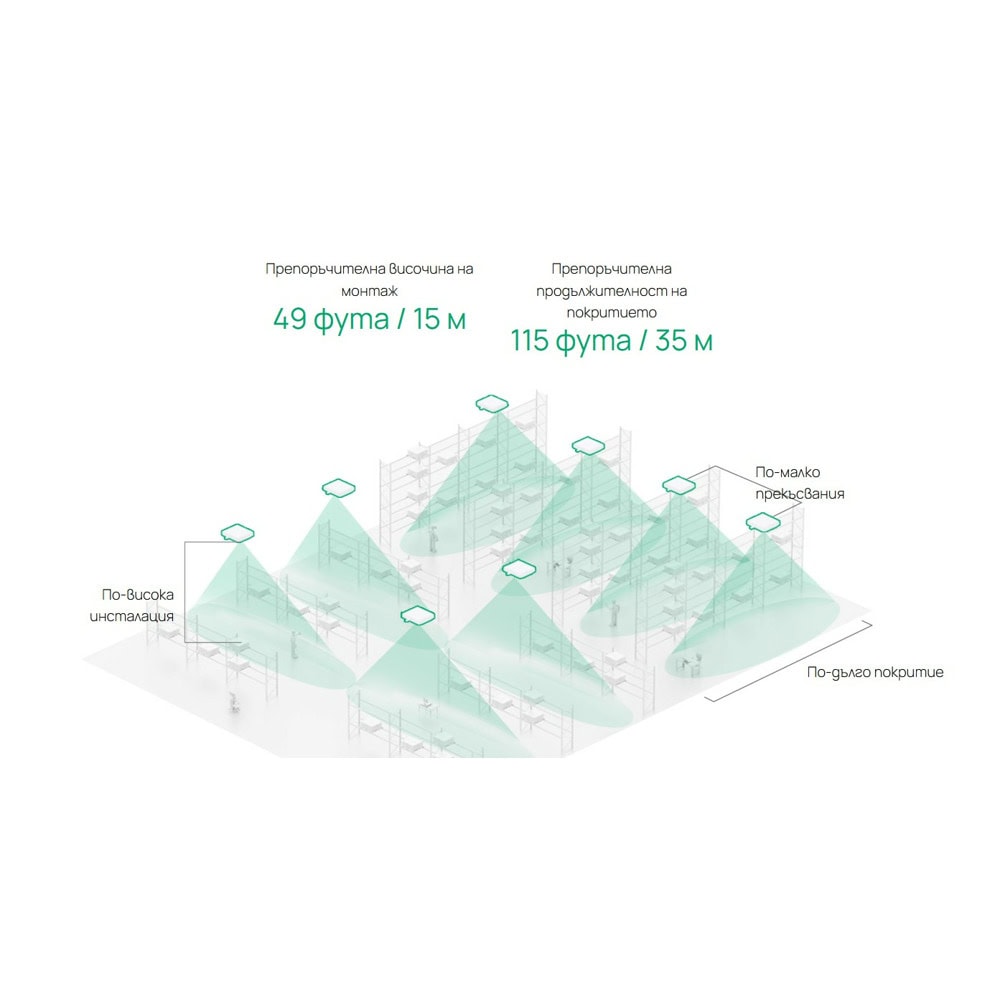

Designed for Warehouses

The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.

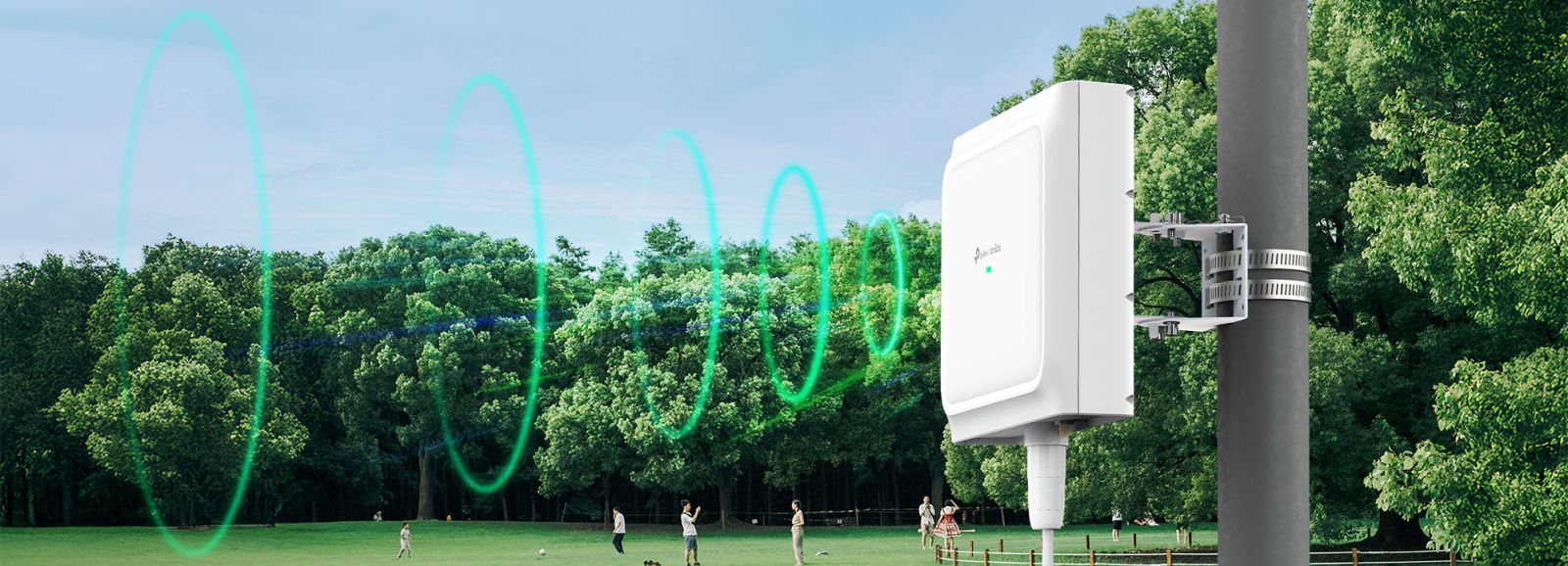

Directional Antennas for
Ultra-Range Coverage in Outdoor Scenarios

2.4 GHz up to
787 ft /240 m*
5 GHz up to
1640 ft /500 m*

Category	Specification
HARDWARE FEATURES

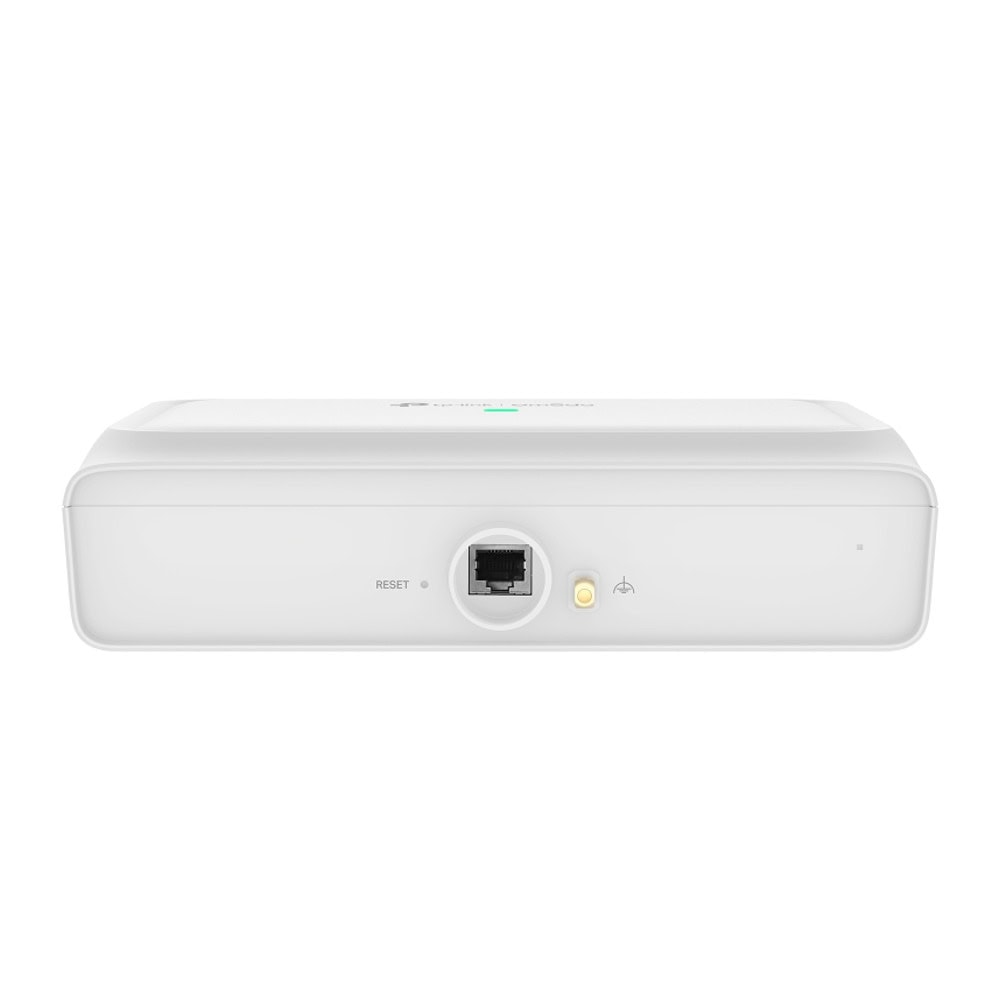

Interface	1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
Button	Reset
Power Supply	• 802.3at PoE• 48V Passive PoE
Max. Power Consumption	• EU: 12.5W (802.3at PoE or Passive PoE)• US: 14.7W (802.3at PoE or Passive PoE)
Dimensions (W × D × H)	9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
Antenna	Built-in Directional Antennas:• 2.4 GHz: 2× 8 dBi• 5 GHz: 2× 10 dBi Beamwidth: 120° Horizontal; 30° Vertical
Bluetooth	Yes
Weatherproof Enclosure	IP68
Mounting	Optional Brackets (sold separately):• APM-110: Vertical ±180°, Horizontal ±45°• APM-100: Vertical ±45°, Horizontal ±45°
WIRELESS FEATURES
Coverage	• 2.4 GHz: 200+ m• 5 GHz: 500+ m
Concurrent Clients	250+**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	2.4 GHz, 5 GHz
Signal Rate	574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)†
Wireless Functions	• 1024-QAM• DL/UL OFDMA• Multiple SSIDs (Up to 16, 8 per band)• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Automatic Channel Assignment• Transmit Power Control (in dBm)• QoS (WMM)• 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO• Omada Mesh§• Seamless Roaming (802.11k/v/r)§• Band Steering• Load Balance• Airtime Fairness• Beamforming• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule• Wireless Statistics• Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication§• Access Control• Wireless MAC Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise• WPA2-Personal/Enterprise• WPA3-Personal/Enterprise
Transmission Power	• CE: < 20 dBm (2.4 GHz); < 23 dBm (5 GHz Band 1 & 2); < 30 dBm (5 GHz Band 3)• FCC: < 30 dBm (2.4 GHz & 5 GHz)
MANAGEMENT FEATURES
Omada App	Yes
Restore & Backup	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller• Omada Software Controller• Omada Cloud-based Controller• Omada APP
Cloud Access	Yes (via any Omada Controller or App)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging	Local/Remote Syslog
SSH	Yes
Web-based Management	Yes
Multi-site Management	Yes
Zero-Touch Provisioning	Yes (requires Omada Cloud-Based Controller)
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Access Point EAP650 D120-Outdoor• Mounting Kits• Installation Guide
System Requirements	Microsoft Windows XP/Vista/7/8/10/11, Linux

Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията

Документация

Ценова листа – Активно мрежово оборудване Omada by TP

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За външен монтаж
Безжична скорост:	3000 Mbps
Wi-Fi Стандарт:	Wi-Fi 6 (802.11ax)
Честота:	2.4 & 5 GHz
Антени:	2 Вътрешни
dBi на антена/и:	10
PoE:	In & Out
Интерфейс:	1x 1000
Други:	Няма
