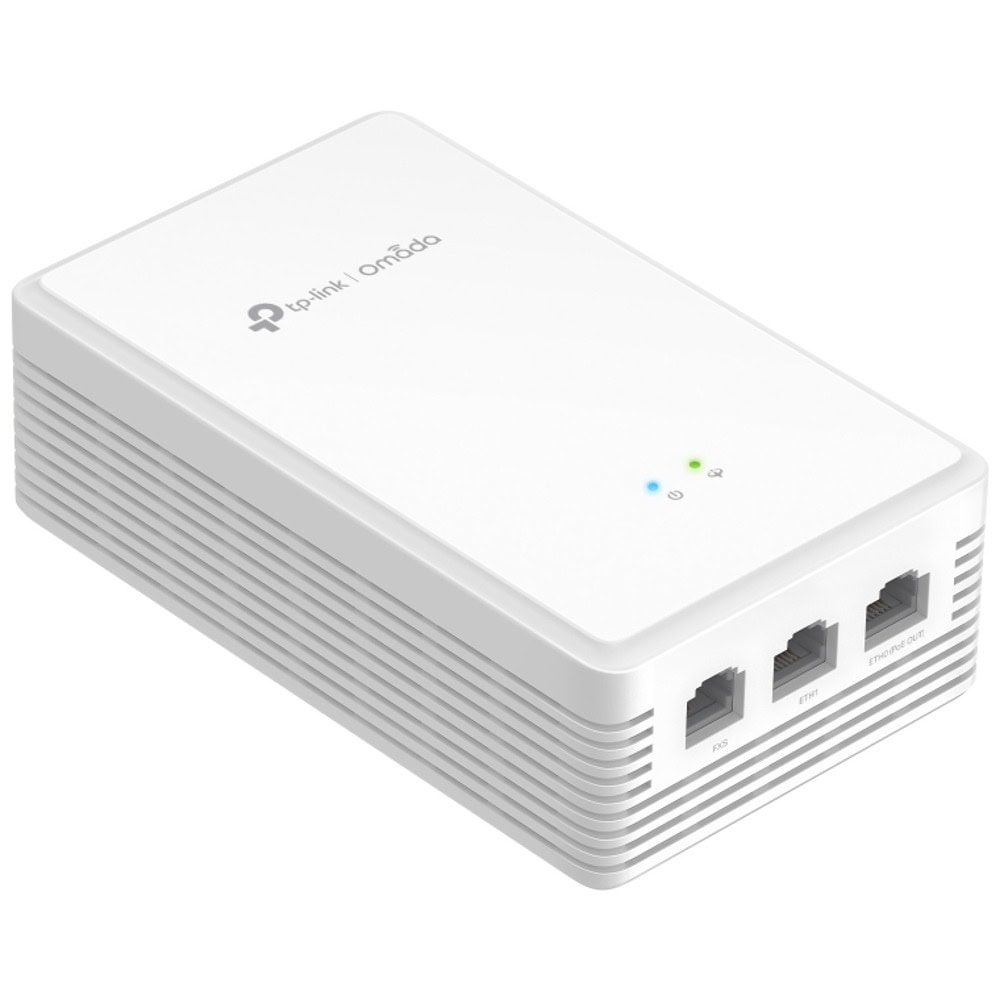

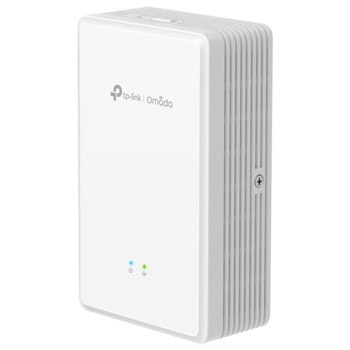

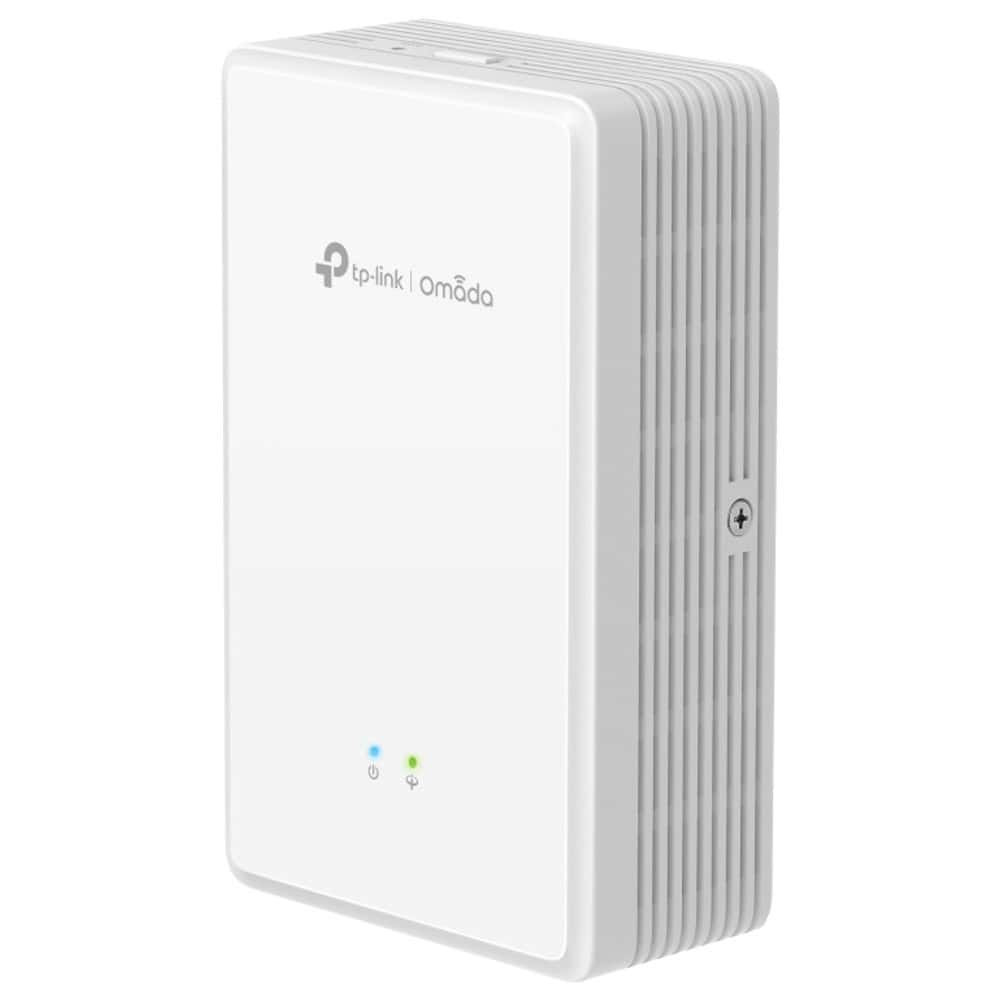

EAP625GP-Wall
Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point
- Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
- Multiple Ports: 1× GPON port for high-speed, ultra-range access and 2× Gigabit RJ45 ports (one supporting 802.3af PoE out) for flexible deployment
- One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
- VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
- Easy Use: One-Click Pairing and Automatic Adoption
- Advanced Functions: Omada Mesh, Seamless Roaming, Centralized Cloud Management


Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for PtMP (point-to-multipoint) environments like hotels and MDUs.

Category | Specification |
---|---|
HARDWARE FEATURES | |

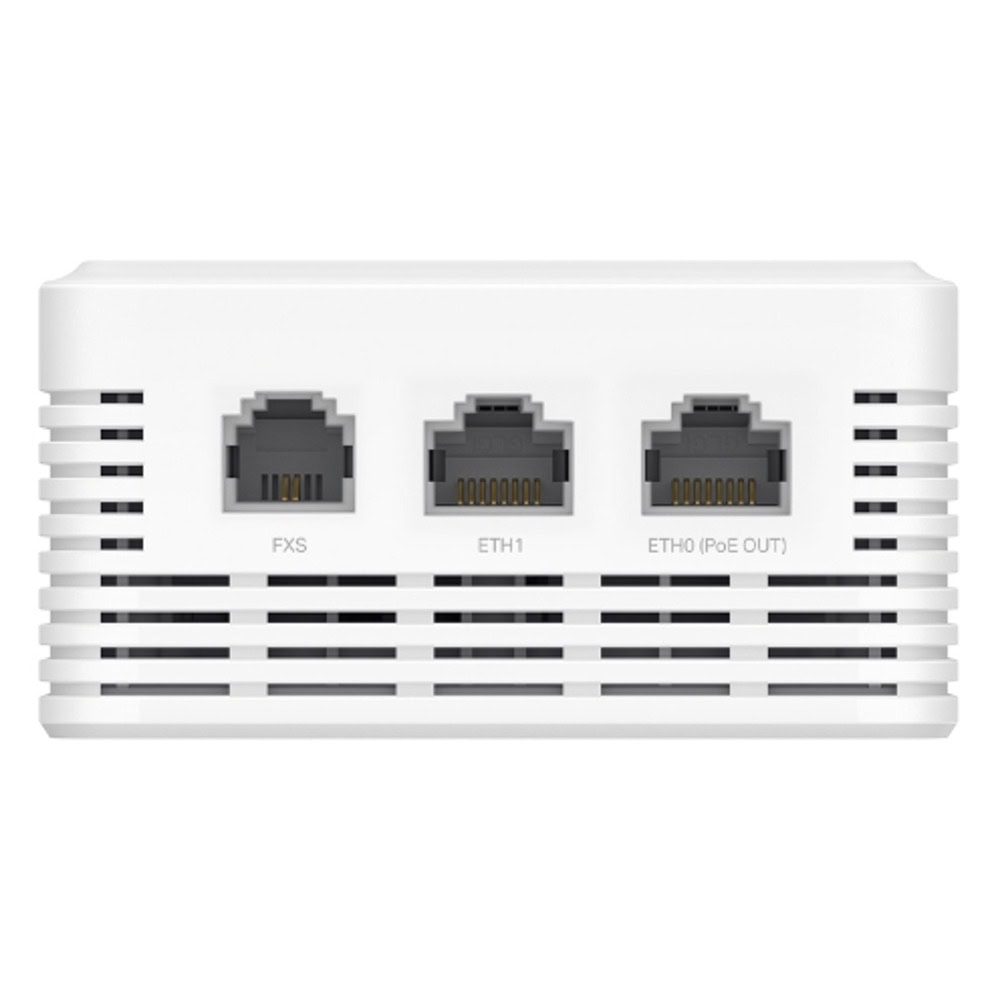

Interface | 1x GPON Port; 1x FXS Port; 2x Gigabit RJ45 Ports (One supporting 802.3af PoE Out) |
GPON Interface | Port Type: SC-APC; Standards and Protocols: ITU-984.x, G.988, Class B+; Data Rate: 2.488 Gbps Downstream, 1.244 Gbps Upstream; Fiber Type: 9/125 um Single mode; Max. Cable Length: 20 km |
Button | Reset; LED |
Power Supply | 100–240V~ 50/60Hz, 0.5A |
Max. Power Consumption | 30.5W (PoE out full load 15W) |
Weight | 350g |
Dimensions (W x D x H) | 5.6 × 3.4 × 1.8 in (143 × 86 × 44.6 mm) |
Antenna | Internal Omni; 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 6.5 dBi |

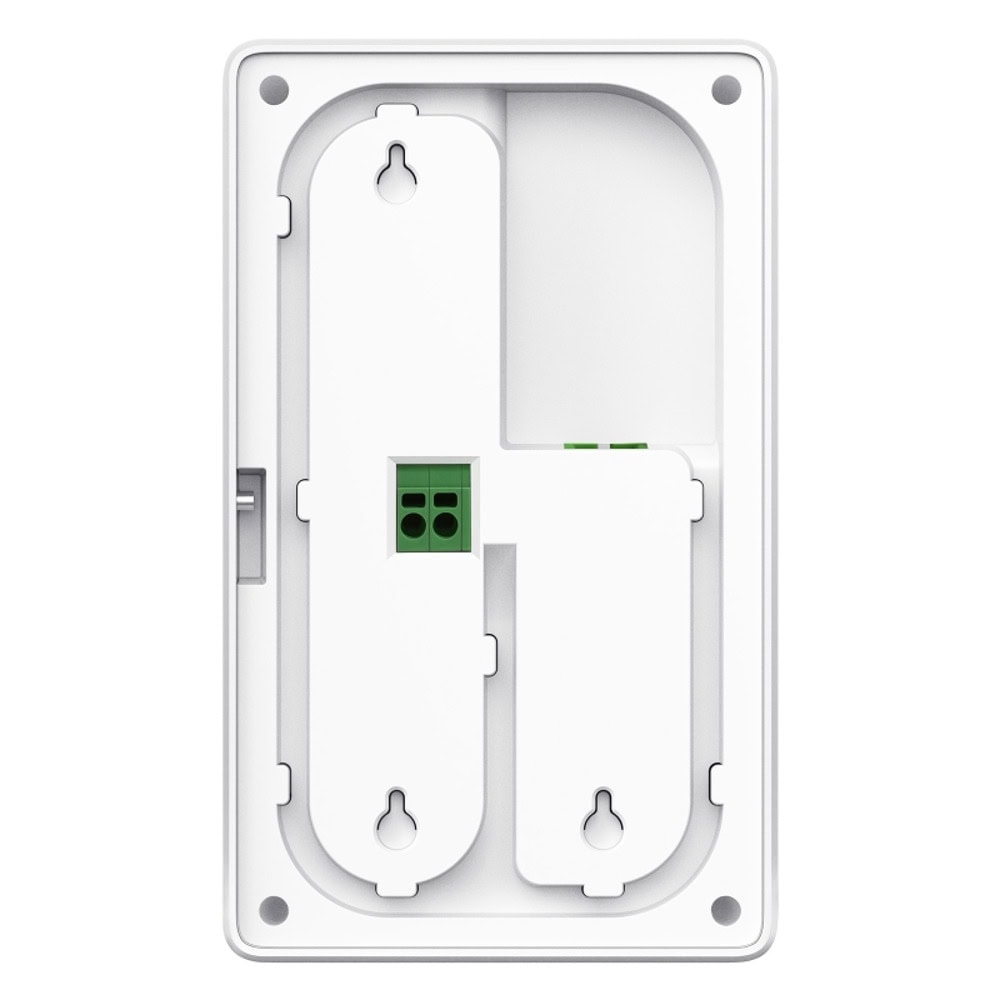

Mounting | Wall Mounting (Kits included) |
WIRELESS FEATURES | |
Coverage | 50㎡ (600 ft²)** |
Concurrent Clients | 120+* |
Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 5 GHz: 1201 Mbps†; 2.4 GHz: 574 Mbps |
Wireless Functions | 2×2 (2.4G & 5G) MU-MIMO‡; HE80 (80 MHz Bandwidth)‡; OFDMA‡; Mesh§; Seamless Roaming§; Multiple SSIDs (16 total: 8 per band); Enable/Disable SSID Broadcast; Enable/Disable Wireless Radio; Guest Network; Automatic Channel Assignment; Beamforming; Rate Limit; Band Steering; Load Balance; Airtime Fairness; Transmit Power Control; QoS (WMM); RADIUS Accounting; MAC Authentication; Reboot Schedule; Wireless Schedule and Statistics; Static IP/Dynamic IP |
Wireless Security | Captive Portal Authentication§; Access Control; Wireless MAC Address Filtering; Wireless Isolation Between Clients; VLAN; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise; WPA2-Personal/Enterprise; WPA3-Personal/Enterprise |
Transmission Power | CE: <20 dBm (2.4 GHz, EIRP); <23 dBm (5 GHz, band1 & band2, EIRP); <24 dBm (5 GHz, band3, EIRP); FCC: <21 dBm (2.4 GHz); <21 dBm (5 GHz) |
Management Features | |
Omada App | Yes |
Centralized Management | Omada Hardware Controller; Omada Software Controller; Omada Cloud-Based Controller |
Cloud Access | Yes (Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access | Yes |
SNMP | v1, v2c, v3 |
System Logging | Local/Remote Syslog System Log |
SSH | Yes |
Web-based Management | Yes |
Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) |
OTHERS | |
Certification | CE, FCC, RoHS, IC |
Package Content | EAP625GP-Wall; Wall Mounting Kit; Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията
Технически характеристики
Тип: | Аксес пойнт |
---|---|
Монтаж: | За вътрешен монтаж |
Безжична скорост: | 1200 Mbps |
Wi-Fi Стандарт: | Wi-Fi 6 (802.11ax) |
Честота: | 2.4 & 5 GHz |
Антени: | 4 Вътрешни |
dBi на антена/и: | 6 |
PoE: | Out |
Интерфейс: | 2x 1000 |
Други: | Няма |
