Name: Точка за достъп TP-Link Omada Mesh EAP653 UR, 3000Mbps, 2.4GHz (574Mpbs)/ 5GHz (2402Mbps), 1x 10/100/1000 RJ-45 PoE+, 5x вътрешни антени
Brand: TP-Link
SKU: NTWBTPLINKEAP653UR
Price: 127.79 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

EAP653 UR

AX3000 Ceiling Mount WiFi 6 Access Point

Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz
Ultra-range wireless coverage by more antennas with higher transmit power
Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
Advanced Features: Omada Mesh, Seamless Roaming, etc
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility
Integrates with the Omada SDN platform for centralized management

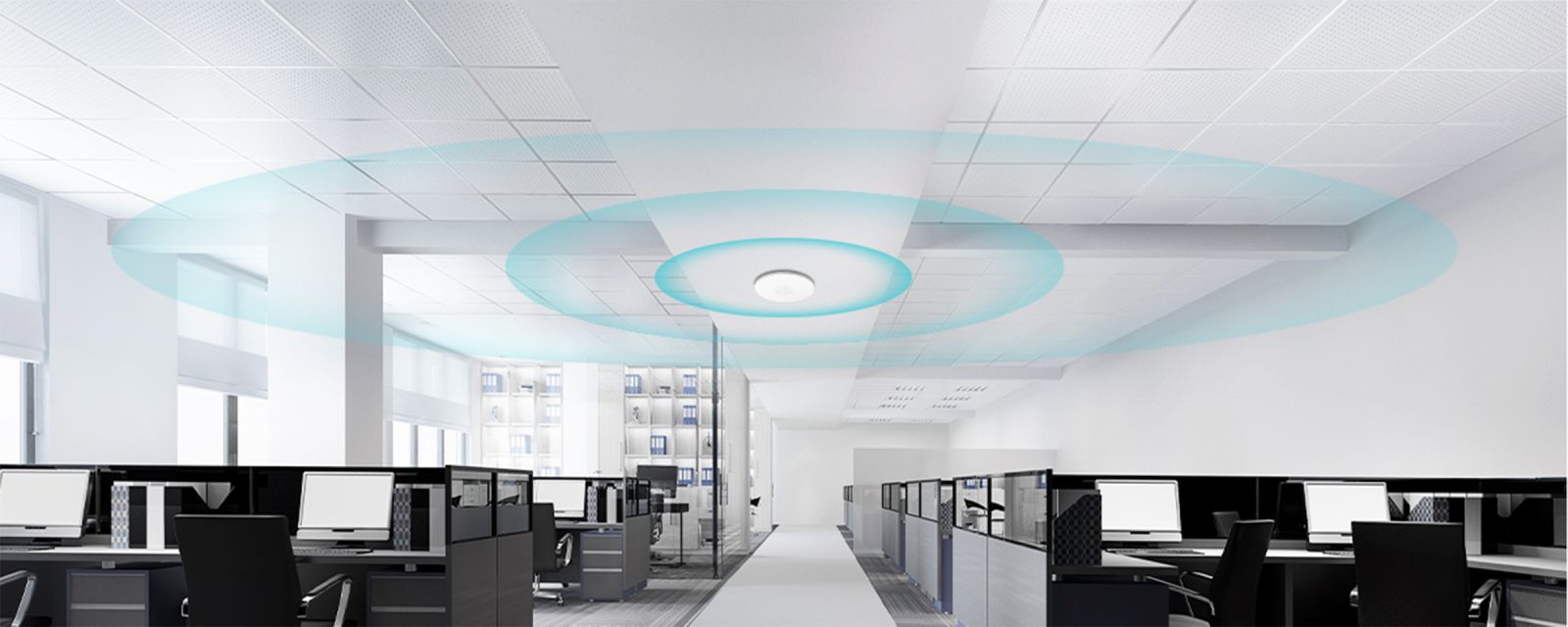

Ultra-Range Wireless Coverage

More antennas with high transmission power offer robust and extensive wireless coverage. Always have full coverage for your office.

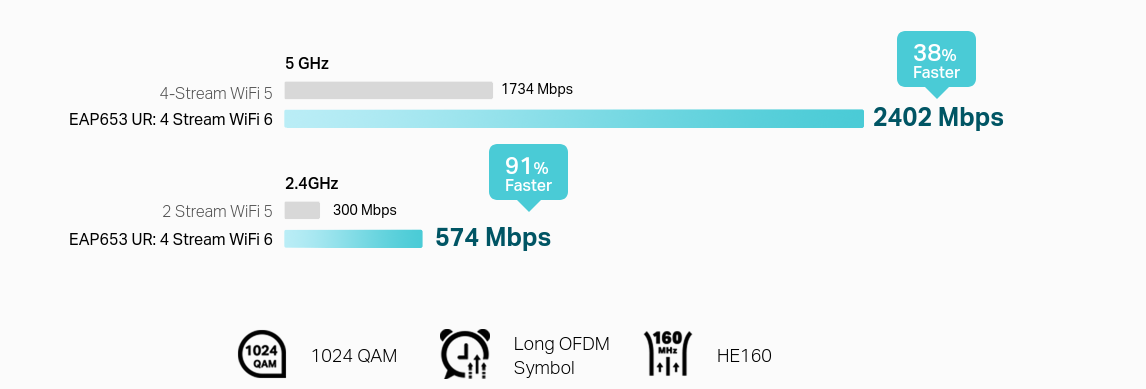

Ultra-Fast AX3000 WiFi 6 Speeds

Specifications:

HARDWARE FEATURES
Interface	1× Gigabit PoE+ Port
Button	Reset
Power Supply	• 802.3at PoE • 12V DC / 1.5 A (Power Adapter IS NOT included) • 48V Passive PoE
Power Consumption	• EU: 14.2 W • US: 15.5 W
Dimensions ( W x D x H )	6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type	Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 5 dBi
Mounting	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting

WIRELESS FEATURES
Coverage	185 ㎡ (2000 ft²)
Concurrent Clients	250+
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO(2G: 22 MU-MIMO DL/UL; 5G:22 MU-MIMO DL/UL) • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming(802.11k/v/r)§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <29 dBm(5 GHz, Band3, EIRP) • FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията

Документация

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	3000 Mbps
Wi-Fi Стандарт:	Wi-Fi 6 (802.11ax)
Честота:	2.4 & 5 GHz
Антени:	5 Вътрешни
dBi на антена/и:	5
PoE:	In & Out
Интерфейс:	1x 1000
Други:	Няма
