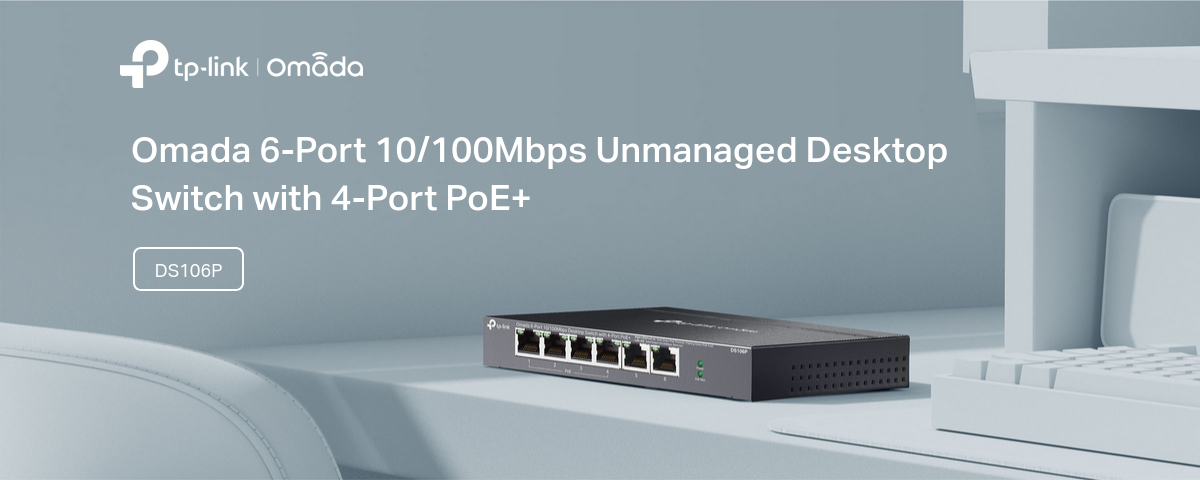

TP-Link DS106P
Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+

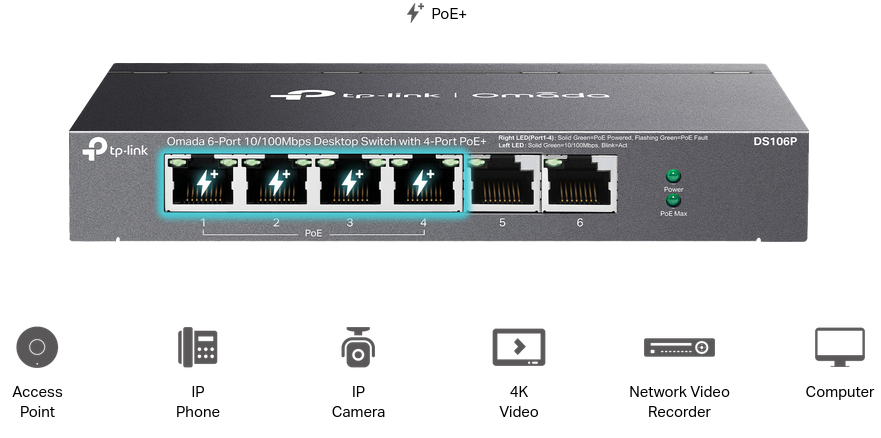

6× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports*
- Up to 250m (820ft) data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.


Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 67 W with 30 W max per PoE+ port. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

Specifications:
HARDWARE FEATURES | |
---|---|
Interface | • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
External Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
Packet Forwarding Rate | 0.8928 Mpps |
PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W |
Mac Address Table | 2K |
Jumbo Frame | 2 KB |
Switching Capacity | 1.2 Gbps |
Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
Max Power Consumption | • 2.52 W (220 V / 50 Hz, no PD connected) • 75.4 W (220 V / 50 Hz, with 67 W PD connected) |
Max Heat Dissipation | • 8.59 BTU/h(no PD connected) • 257.11 BTU/h(with 67 W PD connected) |
SOFTWARE FEATURES | |
---|---|
Transmission Method | Store-And-Forward |
Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4 • Priority Mode: Ports 1–2 • PoE Auto Recovery: Ports 1-4 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Технически характеристики
Брой портове: | 6 |
---|---|
Максимална скорост: | <1 Gbit/s |
Стандарт: | IEEE 802.3 at |
Управляем: | Не |
