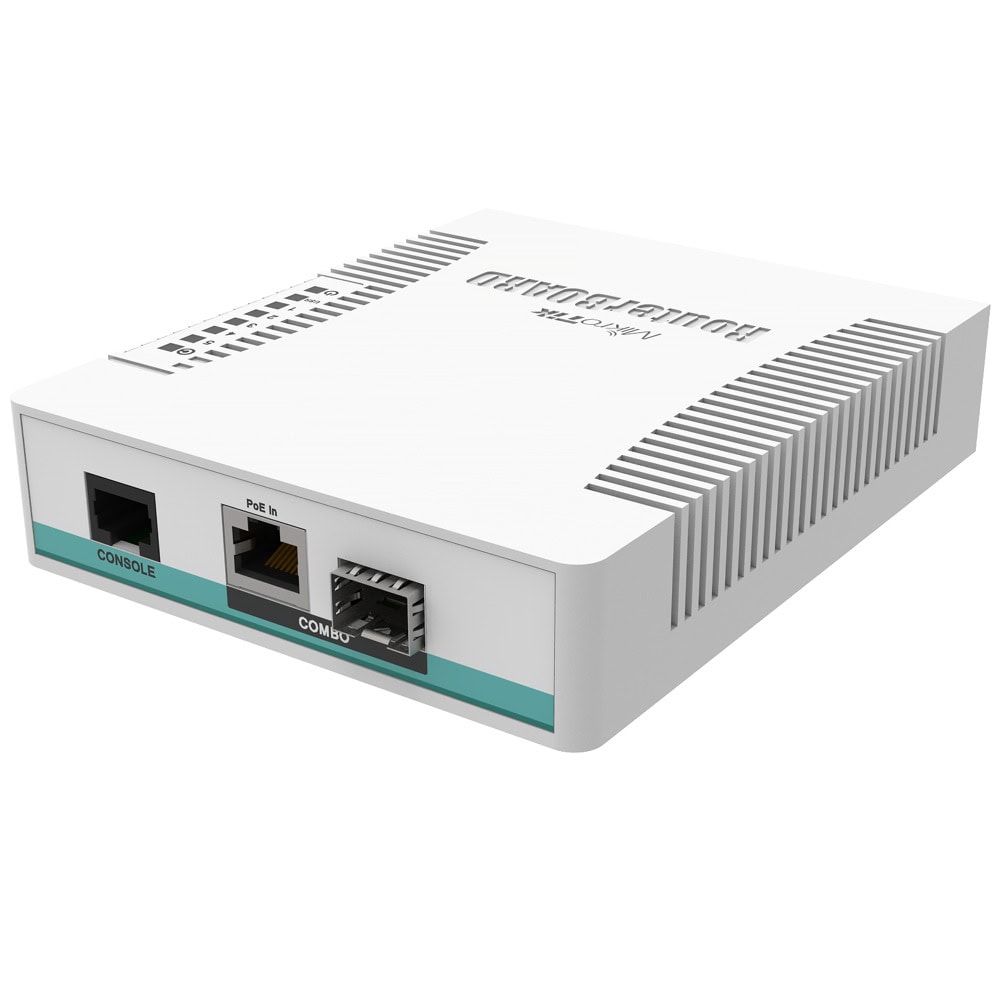

Суич Mikrotik Cloud Router CRS106-1C-5S, 1000Mbps, 1x SFP/LAN1000 Combo Port, 5x SFP Ports

The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.

At $59 this product provides a market-leading solution for connecting up to six SFP devices.

Specifications

• Product code CRS106-1C-5S
• Architecture MIPSBE
• CPU QCA8511
• CPU core count 1
• CPU nominal frequency 400 MHz
• Switch chip model QCA8511
• Dimensions 114 x 137 x 29mm
• RouterOS license 5
• Operating System RouterOS
• Size of RAM 128 MB
• Storage size 16 MB
• Storage type FLASH
• MTBF Approximately 100'000 hours at 25C
• Tested ambient temperature -20°C to 70°C

Powering

• Number of DC inputs 2 (DC jack, PoE-IN)
• DC jack input Voltage 11-30 V
• Max power consumption 11 W
• PoE in Passive PoE
• Cooling type Passive
• PoE in input Voltage 11-30 V

Ethernet

• Ethernet Combo ports 1

Fiber

• SFP ports 5

Peripherals

• Serial console port RJ45

Certification & Approvals

• Certification CE, EAC, ROHS
• IP IP20
