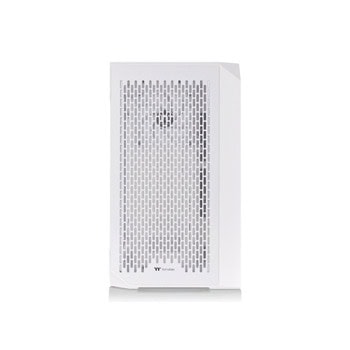

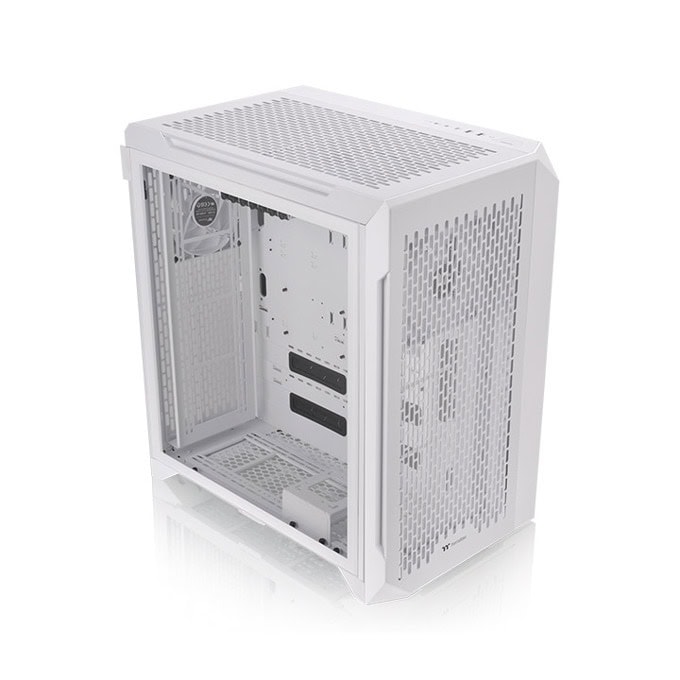

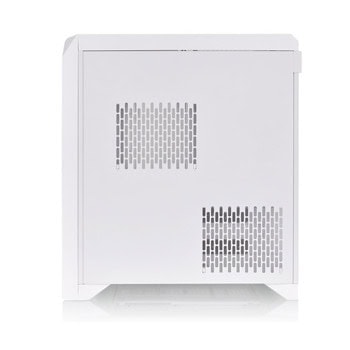

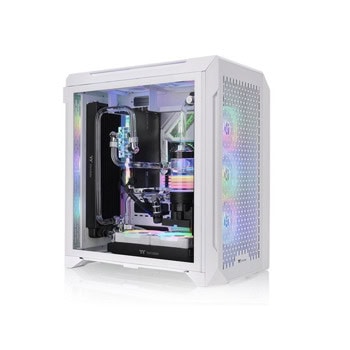

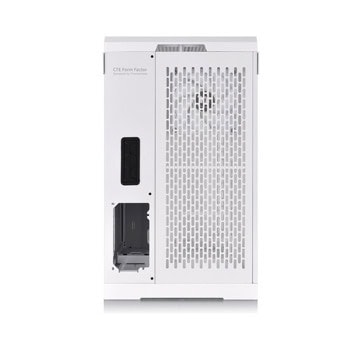

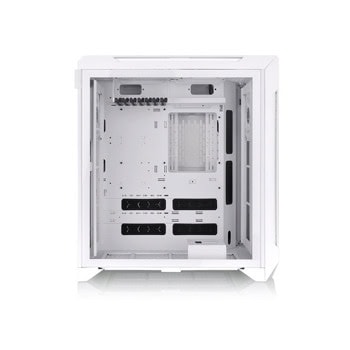

Thermaltake CTE C700 Air Snow CA-1X7-00F6WN-00
Икона в кампания
НазадThermaltake CTE C700 Air Snow CA-1X7-00F6WN-00Thermaltake CTE C700 Air Snow CA-1X7-00F6WN-00Thermaltake CTE C700 Air Snow CA-1X7-00F6WN-00Thermaltake CTE C700 Air Snow CA-1X7-00F6WN-00Напред

Кутия Thermaltake CTE C700 Air, E-ATX/ATX/mATX/Mini-ITX, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.0, 3x 140mm вентилатора, с прозорец, бяла, без захранване

id 299228 Код: CASEPTHERMALTAKECA1X700F6WN00
  • Модел: CTE C700 Air Snow
  • Марка: Thermaltake
  • Код на продукта: CA-1X7-00F6WN-00
  • Захранване: Не
  • Прозорец: Да
  • Цвят: Бял
  • E-ATX: Да
  • ATX: Да
  • Micro-ATX: Да
  • Mini-ITX: Да
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / ВъпросиДокументация



    Thermaltake CTE C700 Air





    CTE Form Factor

    Designed by Thermaltake

    The CTE Form Factor Designed by Thermaltake, stands for Centralized Thermal Efficiency, and is focused around providing high level thermal performance to critical components. The design utilizes a 90-degree rotation of the motherboard providing more efficient airflow pathways.

    Since the CPU location has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively. This overall approach has allowed CTE to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.











    Move Critical Heat Sources (CPU And Graphic Cards) Closer Towards Cool Air

    Since the CPU location of the CTE C700 has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively.











    Active Cooling for More Efficient Intake Airflow

    This overall approach has allowed CTE C700 to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.











    All Your Dream Cooling Components Can Fit!

    The CTE C700 has enormous fan and cooler installation capacity: up to twelve 120mm fans (eleven140mm fans) and 360mm/420mm AIO coolers at the front and the rear. Moreover, equipped fan brackets at the front, rear, bottom and right side, and the installation spot at the top ensure easy installation of all your desired cooling components.











    Blow Your World Away with Three Pre-installed 140mm CT140 Fans

    CTE C700 Air mid tower Chassis features three 140mm PWM Fans at the front, top and rear. The CT140 fan are the best-performing case fans among all the case fans in Thermaltake's collection so far.











    Perfect Dust Protection

    There are fine removable filters at the top, front, bottom, rear and right side of the chassis to provide excellent protection against dust, and they are easily removable for cleaning.











    Everything You Need Is Located In One Place

    Two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, and HD Audio ports are placed on the top panel to grant direct access when needed.









    Specs:

    SeriesCTE
    CASE TYPEMid Tower
    Dimension (H x W x D)566.5 x 327.6 x 505.5 mm
    NET WEIGHT15.6 kg
    PANEL4mm Tempered Glass x 1
    ColorWhite
    MATERIALSPCC / ABS
    COOLING SYSTEMFront(intake):
    140 x 140 x 25 mm CT140 fan
    (1500rpm, 30.5 dBA) x 1
    Top(exhaust):
    140 x 140 x 25 mm CT140 fan
    (1500rpm, 30.5 dBA) x 1
    Rear(intake):
    140 x 140 x 25 mm CT140 fan
    (1500rpm, 30.5 dBA) x 1
    Drive Bays7 x 3.5” or 6 x 2.5”
    EXPANSION SLOTS7
    MOTHERBOARDS6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
    12” x 9.6” (ATX), 12” x 13” (E-ATX)
    I/O PortUSB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
    PSUStandard PS2 PSU (optional)
    FAN SUPPORTFront:
    3 x 120mm, 2 x 120mm, 1 x 120mm
    3 x 140mm, 2 x 140mm, 1 x 140mm
    2 x 200mm, 1 x 200mm
    Top:
    2 x 120mm, 1 x 120mm
    2 x 140mm, 1 x 140mm
    Right:
    1 x 120mm, 1 x 140mm
    Rear:
    3 x 120mm, 2 x 120mm, 1 x 120mm
    3 x 140mm, 2 x 140mm, 1 x 140mm
    Bottom:
    3 x 120mm, 2 x 120mm, 1 x 120mm
    2 x 140mm, 1 x 140mm
    RADIATOR SUPPORTFront:
    1 x 360mm, 1 x 240mm, 1 x 120mm
    1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
    Rear:
    1 x 360mm, 1 x 240mm, 1 x 120mm
    1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
    Bottom:
    1 x 360mm, 1 x 240mm, 1 x 120mm
    1 x 280mm, 1 x 140mm
    CLEARANCECPU cooler max height:
    190mm
    VGA max length:
    327mm (With radiator)
    410mm (Without radiator)
    PSU max length:
    220mm


    JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Компютърни кутии Thermaltake
    Виж всички Компютърни кутии в категорията
    Документация
    Технически характеристики
    Захранване:  Не
    Прозорец:  Да
    Цвят:  Бял
    E-ATX:  Да
    ATX:  Да
    Micro-ATX:  Да
    Mini-ITX:  Да
