Точка за достъп Tenda I24, 1200Mbps, 2.4GHz(300Mbps), Wireless AC, 1x RJ-45 10/100/1000, 2x вътрешни антени

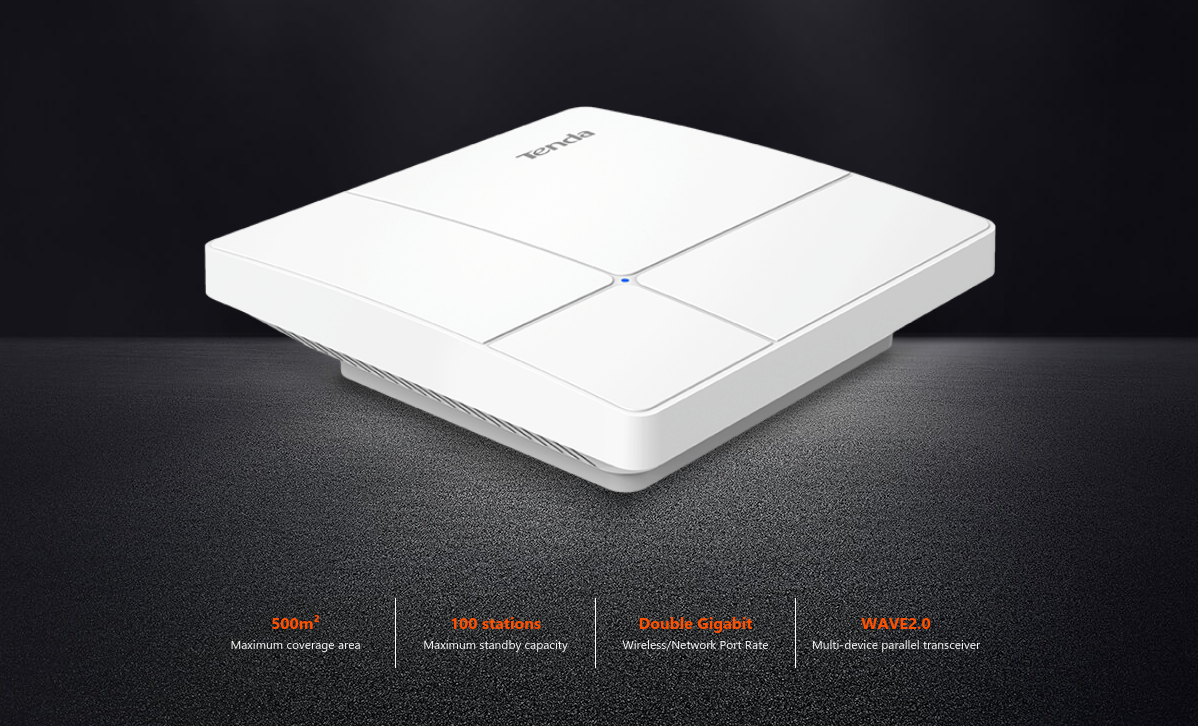

Tenda I24

i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps. Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI, and use an IEEE 802.3at-compliant PoE sourcing equipment to power on it, achieving long-distance power supply without tampering your existing grid network. You are also allowed to use Tenda access controllers (AC) to configure and manage multiple i24 in a centralized manner.

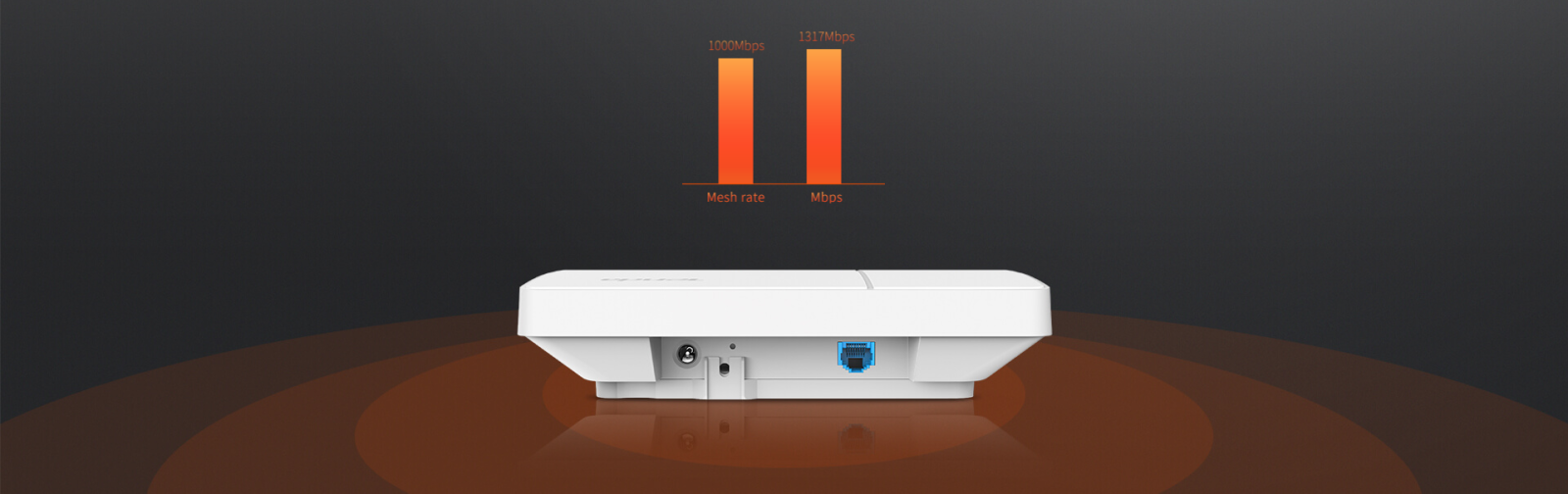

Gigabit internet connections for ultra-fast experience

Up to 1317 Mbps dual-band data rate, and the 1000 Mbps Ethernet port let you enjoy ultra-fast internet connections.





IEEE 802.11ac Wave 2 and MU-MIMO

A single can communicate with multiple wireless clients at one time, letting you enjoy higher throughput and better experience.

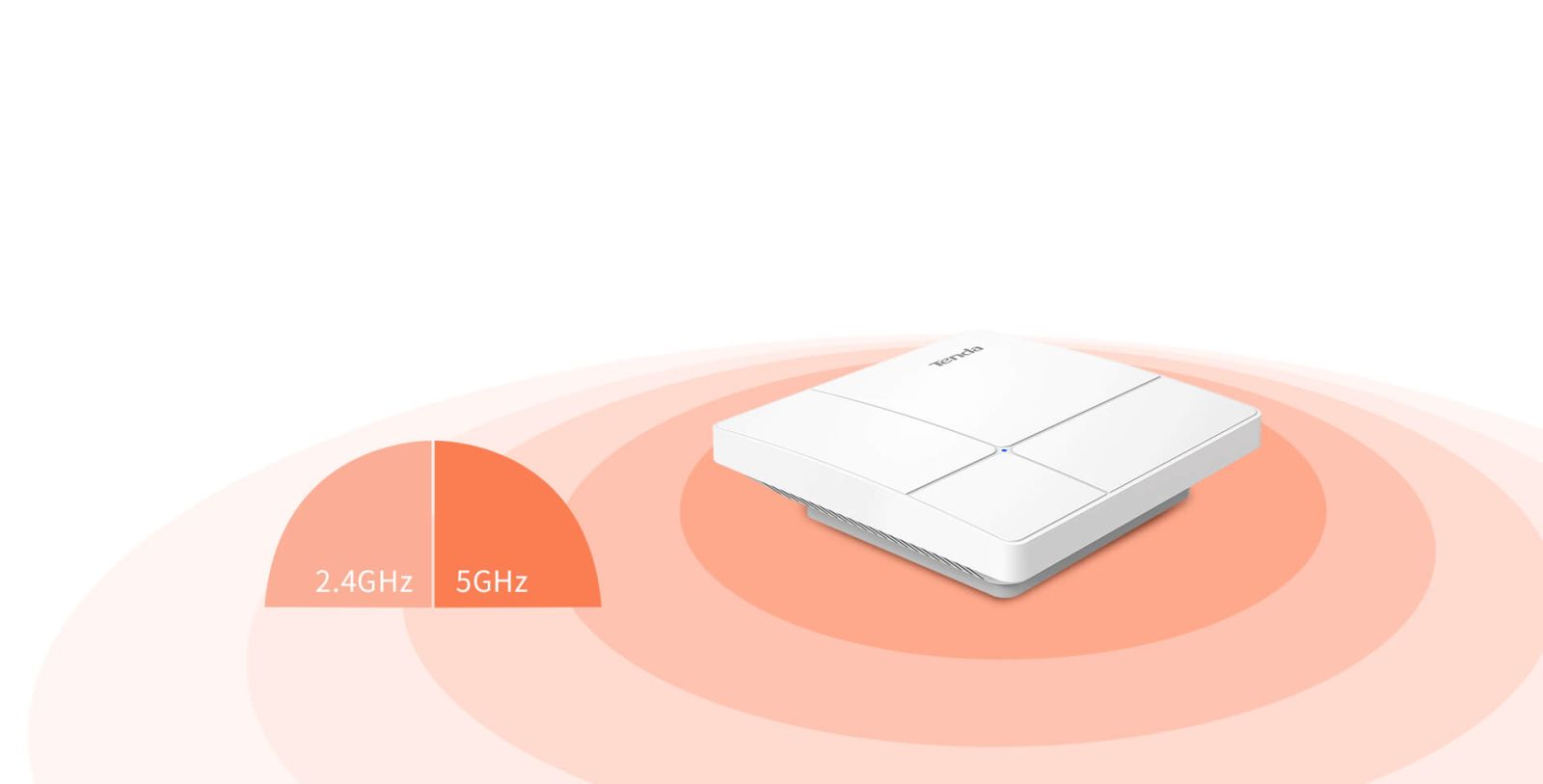

Dual-band for more connected clients

Allows clients that support either 2.4 GHz or 5 GHz band , or both to connect to it at the same time, tripling the quantity of connected clients of traditional single-band AP.





Resource allocation fairness for reliable wireless network

Featuring air interface scheduling, it could evenly allocate air interface resources, thus improving your wireless network speed as a whole by preventing clients with low data rate from consuming too much network resources. What's more, it also allows you to customize the RSSI threshold value, so that you can disconnect clients that do not reach the RSSI.

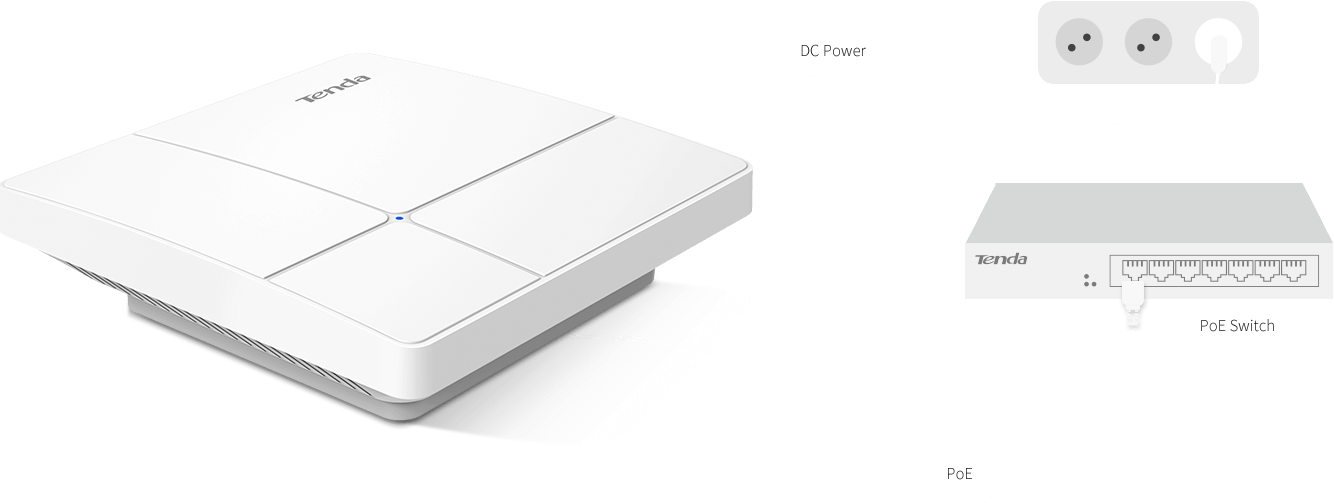

Standard PoE sourcing and DC power supply for easy deployment

You can use an IEEE 802.3at-compliant PoE sourcing equipment, or a DC power adapter to power on it.





Specifications:

Hardware

Dimension

178 × 178 × 38mm



Ethernet Interface

1 x 10/100/1000 Base TX



Antenna

2.4GHz: 2 x 4dBi
5GHz: 2 x 4dBi



Button

1 x RESET



LED Indicator

1 x SYS



Maximum Power Consumption

<11.5W



Power supply standard

802.3af/at and DC: 12V 1A





Wireless

Frequency Band

2.4GHz



Data Rate

2.4GHz: 300Mbps
5GHz: 867Mbps

Wireless Standard

802.11a/b/g/n/ac(wave2)



Max Transmit Power

2.4GHz: 23dBm
5GHz: 23dBm



Sensitivity

802.11b :-93 dBm
2.4 GHz 802.11n (MCS7):-73dBm
5 GHz 802.11a :-93 dBm
5 GHz 802.11n (MCS7) :-74 dBm





Software

MU-MIMO

Support



Operating Mode

AP/Client AP



Hide SSID

Support



Max. No. of SSID

2.4GHz: 8
5GHz: 4



Max. connected clients

256



WEP

Support

WPA-PSK

Support

WPA2-PSK

Support

WPA

Support

WPA2

Support

Access control

Support

Adjustable power transmit

Support

AP isolation

Support

Connected clients control

Support

RSSI Threshold

Support

WMM

Support

VLAN tagging for SSID

Support

LED control

Support

Diagnostics

Support

Schedule Reboot

Support

Reboot at specified interval

Support

Centralized Management

Support

System Logs

Support

Firmware upgrade

Support

Reboot

Support

Reset Button

Support

Backup configuration

Support

Restore configuration

Support





Others

Default login IP

192.168.0.254



Default Login Username

admin



Default Login Password

admin



Operation Temperature

-10℃ ~ 40℃



Operating humidity

10%~90% non-condensing



Storage temperature

-30℃ ~ 70℃



Storage humidity

10%~90% non-condensing
