Network Ports
· 24 10 or 100 Mbps RJ-45 ports
Performance (64 byte packets)
· Store-and-forward packet switching
· Forward rate (10 Mbps) 14,800 packet per sec.
· Forward rate (100 Mbps) 148,000 packet per sec.
· Latency (10 to 100 Mbps) 20 usec max
· MAC address database: 4,000
· Queue buffer KBytes 320
Weight
· 2.0 kg (4.4 lb)
Dimensions
· W 330 mm (13")
· D 202 mm (8")
· H 43 mm (1.7")
AC Power
· 15W maximum
· Auto-sensing 100 to 240V, 50/60 Hz
· Localized plug for North America, Japan, UK, Europe, Australia
Standards Compliance
· IEEE 802.3i 10BASE-T Ethernet
· IEEE 802.3u 100BASE-TX Fast Ethernet
· Compatible with all major network software
Status LEDs
· Unit: power
· Per network port: 10 or 100 Mbps operations, Rx/Tx and collision, link, half/full duplex
Electromagnetic Emissions
· CE mark, commercial
· FCC Part 15 Class A
· EN 55 022 (CISPR 22), Class A
· VCCI Class A
· C-Tick
· MIC
Environmental Specifications
· Operating temperature: 0 to 40° C
· Operating humidity: 80% max. relative humidity, noncondensing
Safty Agency Approvals
· UL listed (UL 1950)/CUL
Warranty
· Limited Lifetime
Package Contents

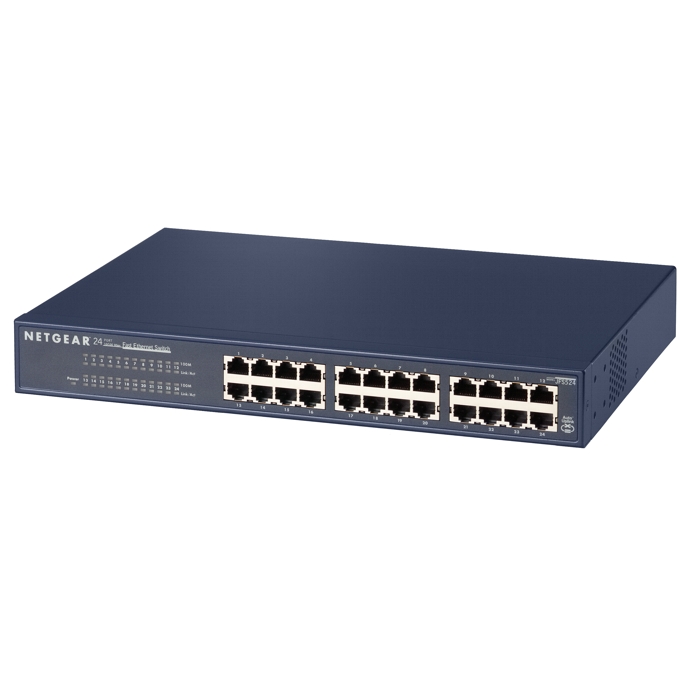

· 24 Port 10/100 Rackmount Switch JFS524
· Power cord
· Rack-mount kit
· User guide
· Warranty card
· Support card
