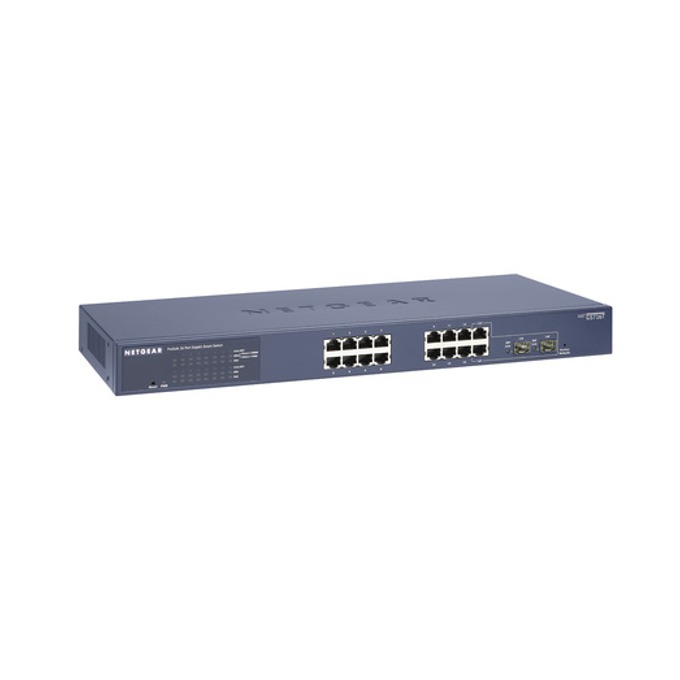

Суич Netgear GS716T-200EUS, 16 Port 1000Mbps, 2 SFP, Advanced QoS and Security

Technical Specifications
•
Network Protocol and Standards
Compatibility
–
IEEE 802.3 10BASE-T Ethernet
–
IEEE 802.3u 100BASE-TX Fast Ethernet
–
IEEE 802.3ab 1000BASE-T Gigabit
Ethernet
–
IEEE 802.3x full-duplex flow control
•
Interfaces
–
GS724T-300: 24 RJ-45 connectors for
10BASE-T, 100BASE-TX, and 1000BASE-T
(Auto Uplink on all ports)
–
GS716T-200: 16 RJ-45 connectors for
10BASE-T, 100BASE-TX and 1000BASE-T
(Auto Uplink on all ports)
–
2 Dual Personality SFP slots for fiber
Gigabit Ethernet modules
•
Administrative Switch Management
–
IEEE 802.1D Spanning Tree Protocol
–
IEEE 802.1W Rapid Spanning Tree
Protocol
–
IEEE 802.1S Multiple Spanning Tree
Protocol
–
Auto-voice VLAN
–
SNMP v1, v2c, v3
–
RFC 1213 MIB II
–
RFC 1643 Ethernet Interface MIB
–
RFC1493 Bridge MIB
–
Jumbo Frame Support
(up to 9 KB)
–
IEEE 802.1Q Tag VLAN
–
GS716T-200: 128 Static VLANs
–
GS724T-300: 128 Static VLANs
–
IEEE 802.1p (Class of Service)
–
DSCP - L3 QoS
–
Port -based ingress/egress rate limiting
–
IEEE 802.3ad static or dynamic link
aggregation (LACP)
–
DHCP client function
–
Broadcast storm control
–
Port mirroring (many-to-one)
–
Port setting
–
Green features: Power saving by cable
length ( <10m). Power saving by auto
power when link down
–
IGMP snooping v1/v2
–
IEEE 802.1x (RAIDUS)
–
Access control list (ACL) - MAC, IP
–
SNTP
–
IEEE 802.1ab LLDP
–
Protected ports
***
–
HTTP and HTTPS
–
Auto denial-of-service (DoS) prevention
–
Syslog
–
Ping & traceroute
–
Web-based configuration, anywhere
on the network
–
Smartwizard Discovery Utility
program auto discovers devices (up
to 254 agents/switches); set system
configuration to each agent
–
Configuration backup/restore (easy to
configure more than one switch)
–
Password access control
–
Firmware upgradeable
–
Support of Ethernet audio/video (EAV)
