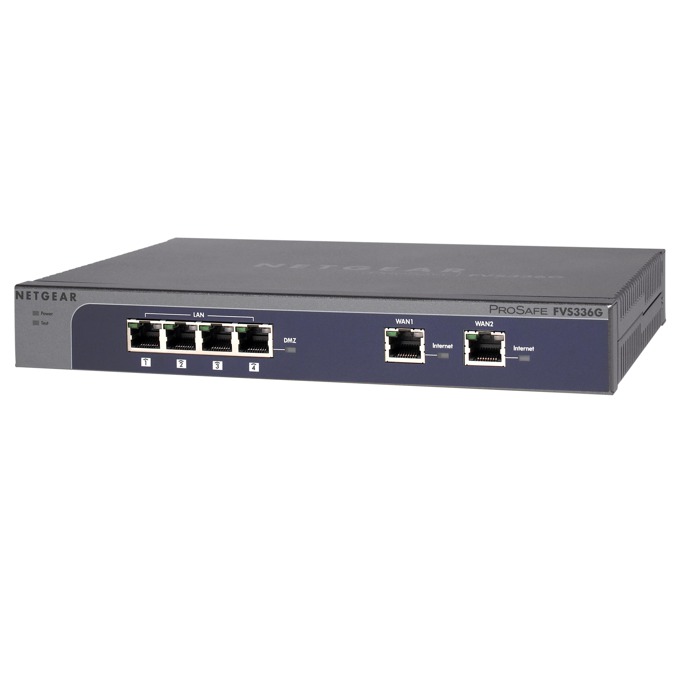

NETGEAR FVS336G ProSafe VPN Dual WAN Gigabit Firewall with SSL & Ipsec & VPN Client Software

DUAL WAN GIGABIT SSL VPN FIREWALL

FVS336G

Supports up to 25 IPsec VPN tunnels and 10 SSL VPN tunnels simultaneously

Supports two broadband connections, in either a load-balancing or fail-over configuration

Backed by a lifetime warranty


Technical Specifications:

Physical Interfaces

* LAN ports: Four (4) 10/100/1000 ––Mbps auto-sensing, Auto Uplink™ RJ-45 ports
* WAN ports: Two (2) 10/100/1000 ––Mbps auto-sensing, Auto Uplink™ RJ-45 ports to connect to any broadband modem, such as DSL or cable
* Load balancing or fail-over modes

SPI firewall

* Stateful packet inspection (SPI):
o prevents denial-of-service (DoS) attacks
o provides stealth mode
o User support: Unrestricted
* Keyword filtering on:
o address
o service (ex. FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3,SSH, etc.)
o protocol
o Web URL port/service blocking
o file extension (ex. Java, URL, ActiveX)
* Port/service blocking

IPsec VPN functionality

* Twenty-five (25) dedicated IPsec VPN tunnels
* Manual key and Internet Key Exchange Security Association (IKE SA) assignment
o pre-shared key signature
o RSA/DSA signature
* Key life and IKE lifetime time settings
* Perfect forward secrecy
* Diffie-Hellman groups 1 and 2
* Oakley support
* Operating modes
o main
o aggressive
* Fully qualified domain name (FQDN) support for dynamic IP address VPN connections

IPsec support

* IPsec-based 56-bit (DES) 168-bit (3DES), or 256-bit (AES) encryption algorithm
* MD5 or SHA-1 hashing algorithm
* ESP support
* PKI features with X.509 v.3 certificate support
* remote access VPN (client-to-site), site-to-site VPN
* IPsec NAT traversal (VPN pass-through)

SSL VPN Functionality

* Ten (10) dedicated SSL VPN tunnels
* SSL version support: SSLv3 and TLS 1.0
* SSL encryption support: DES, 3DES, ARC4, AES (ECB, CBC, XCBC, CNTR) 128/256 bit
* SSL message integrity: MD5, SHA-1, MAC-MDS/SHA-1, HMAC-MD5/SHA-1
* Certificate support:
o RSA
o Diffie-Hellman
o Self

Routing Modes of Operation

* Many-to-one Multi-network Address Translation (NAT)
* Classical routing
* Unrestricted users per port

IP Address Assignment

* Static IP address assignment
* Internal DHCP server on LAN
* DHCP client on WAN
* PPPoE client support

Performance Features

Throughput

* LAN-to-WAN: 60 Mbps total
* IPsec VPN (3DES): 16 Mbps
* SSL VPN: 10 Mbps

Connections

* 10,000 concurrent sessions

Management Features

Administrative Interface

* SNMP (v2c) support
* Web graphic user interface
* Secure Sockets Layer (SSL) remote management
* User name and password protected
* Secure remote management support authenticated through IP address (or IP address range) and password
* Configuration changes/upgrades through Web GUI

Logging:

* SYSLOG
* Email alerts

Functions

* VPN Wizard to simplify configuration of IPsec VPNs
* Auto Detect to automatically detect ISP address type (static, dynamic, PPPoE)
* Port range forwarding
* Port triggering
* Enable/disable WAN ping
* DNS proxy
* MAC address cloning/spoofing
* Network Time Protocol NTP support
* Diagnostic tools (ping, DNS lookup, trace route, other)
* Port/service
* Auto-Uplink on switch ports
* L3 Quality of Service (QoS) LAN-to-WAN and WAN-to-LAN (ToS)

Protocol support

* Network: IP routing, TCP/IP, UDP, ICMP, PPPoE
* IP addressing: DHCP (client and server)
* Routing: RIP v1, RIPv2 (static routing, dynamic routing)
* VPN/security: IPsec (ESP), IKE, PKI, HTTPS

User support

* LAN: Up to 253 users

Maintenance

* Save/restore configuration, restore defaults, upgrades via Web browser, display statistics

Hardware Specifications

* Processor Speed: 300 MHz
* Memory: 16 MB flash, 64 MB DRAM
* Power adapter: 12V DC, 1.2A -plug is localized to country of sale
* Dimensions: 25.4 x 17.8 x 3.96 cm (10 x 7 x 1.56 in)
* Weight: 1.7 kg (3.7 lb)

Environmental Specifications

* Operating temperature: 0° to 40°C (32° to 104°F)
* Operating humidity: 90% maximum relative humidity, non-condensing

Warranty

* Firewall: NETGEAR Lifetime Warranty†
* Power supply: NETGEAR 3-year Warranty

Package Contents

* ProSafe Dual WAN Gigabit Firewall (FVS336G)
* Ethernet cable
* Installation guide
* Warranty/support information card
* Resource CD with single user ProSafe VPN Client Software license
