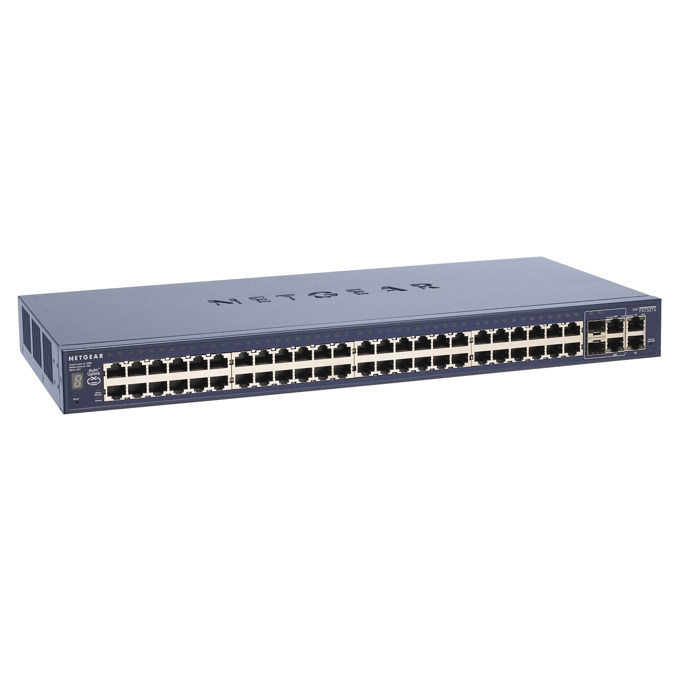

Суич NETGEAR FS752TSEU, 48 x 10/100 Layer2 Managed Суич with 4x 10/100/1000 Ports and 2 GBIC slots

Network Protocol and Standards Compatibility:
· IEEE 802.3 10BASE-T
· IEEE 802.3u 100BASE-TX
· IEEE 802.3ab 1000BASE-T
· IEEE 802.3z 1000BASE-X
· IEEE 802.3x full-duplex flow control

Interfaces
· 48 10/100 Mbps auto sensing Fast Ethernet switching ports
· 4 built-in RJ-45 Gigabit Ethernet ports for 10/100/1000 Mbps connectivity
· 2 SFP slots for fiber Gigabit Ethernet modules
· Auto-sensing and auto-negotiating capabilities for all ports
· Auto Uplink™ on all ports to make the right connection

Administrative Switch Management
· IEEE 802.1Q VLAN (128 groups, Static or Dynamic)
· IEEE 802.1p Class of Service (CoS)
· Port-based QoS
· IEEE 802.3ad Link Aggregation (LACP)
· IEEE 802.1D Spanning Tree Protocol
· SNMP v1, v2c, v3
· RFC 1213 MIB II
· RFC 1643 Ethernet Interface MIB
· RFC 1493 Bridge MIB
· RFC 2131 DHCP client
· IEEE 802.1x
· Port-based security by locked MAC addresses
· Storm control for broadcast, multicast and unknown unicast packets
· Port-based ingress/egress rate limiting
· SNTP
· RMON group 1, 2, 3, 9
· Private Enterprise MIB
· Port Mirroring Support
· Web-based configuration
· Configuration Backup/Restore
· Password Access Control
· Firmware upgradeable

Performance Specifications
· Forwarding modes: Store-and-forward
· Bandwidth: 17.6 Gbps
· Network latency: Less than 20 microseconds for 64-byte frames in store-and-forward mode for100 Mbps to 100 Mbps transmission
· Buffer memory: 128 KB
· Address database size: 8,000 media access control (MAC) addresses per system
· Addressing: 48-bit MAC address
· Mean Time Between Failure (MTBF): 84,000 hours (~9 years)

LEDs
· Unit: Power, Master, Stack ID
· Per Port: Link, Speed, Activity
· Per Gigabit Port: Link, Speed, Activity, Stack

Power Supply
· Power Consumption: 15 W maximum
· 100-240VAC/50-60 Hz universal input

Physical Specifications
· Dimensions (H x W x D): 1.70 x 17.32 x 10.12 in. (43.2 x 440 x 257 mm)
· Weight: 6.57 / 2.98 (lbs/kg)

Environmental Specifications
· Operating temperature: 32 to 104° F (0 to 40° C)
· Storage temperature: -4 to 158° F (-20 to 70° C)
· Operating humidity: 90% maximum relative humidity, non-condensing
· Storage humidity: 95% maximum relative humidity, non-condensing
· Operating altitude: 10,000 ft
(3,000 m) maximum
· Storage altitude: 10,000 ft
(3,000 m) maximum

Electromagnetic Compliance
· CE mark, commercial
· FCC Part 15 Class A
· VCCI Class A
· EN 55022 (CISPR 22)
· EN 55024 (CISPR 24)
· C-Tick

Safety
· CE mark, commercial
· CUL 60950 (Listed)/ EN60950 (Low Voltage Directive)

Package Contents
· FS752TS ProSafe 48 port Stackable Smart Switch with 4 Gigabit Ports
· Rubber footpads
· Power cord
· Rack-mount kit
· Resource CD Installation Guide
· Warranty/Support information card
