Захранване Super Flower Zillion DB, 850W, Active PFC, 80+ Bronze, 120mm вентилатор

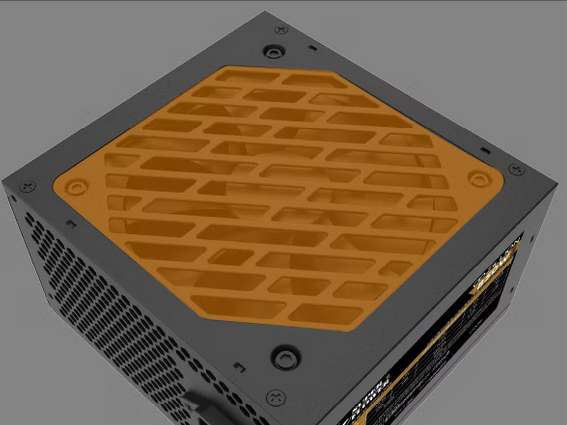

Long life silent fan

The silent and efficient fan offers excellent heat dissipation performance and a quiet operating environment.

Model

Zillion DB Bronze 850W ATX3.1

Wattage

850W

Efficiency

20%: 85% ; 50% : 88% ; 100% : 85% (115V Internal Bronze)

Intel Power Design Guide

ATX 12V v3.1, EPS 12V v2.92 Specification.

AC Input / Frequency

100V~240V | 50-60Hz

Fan Size

120mm Sleeve Fan

Dimension

140mm(L) x 150mm(W) x 86mm(H)

Protection

OVP / OCP / OTP / SCP / OPP / NLP

Safety

TÜV / CB / CE / RoHS / FCC

Weight

Around 1.5 KG

Cable Spec

20+4Pin

Fixed Cables

1 (500 mm)

8Pin & (4+4Pin) CPU

2 (600mm+150mm)

SLI (2 x PCI 6+2pin)

2 (500mm+150mm)

3SATA+1PATA

2 (450mm+150mm+150mm+150mm)

12V-2x6

1 (600 mm)

AC INPUT

100-240V~  10A  50-60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

5VSB

850W

Max Output Current

18A

18A

70.8A

0.3A

3A

Max Combined Wattage

100W

849.6W

3.6W

15W

850W
