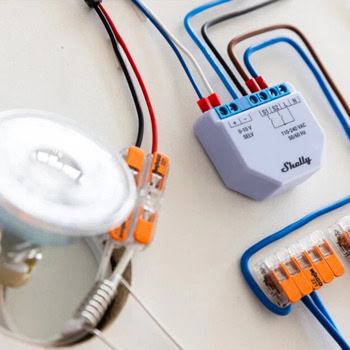

Wi-Fi реле Shelly Plus 0-10V, сензор за вътрешна температура, до 30m обхват, Bluetooth, синьо

Brightness that suits your activities Depending on your activities and the time of day, different types of light and luminosity are suitable. With Shelly Plus 0-10V Dimmer, you can align the minimum and maximum brightness levels with your driver's range for exact precision when adjusting your lights. Whether you want to set the ambiance for a relaxing evening or ensure the best brightness for focused tasks, it grants you fine-tuned control to match every moment. No need to navigate through the app - just use your voice!
Personalized light schedules Shelly Dimmers can effortlessly blend with your daily routine. Consider bedtime: Many kids prefer to fall asleep with the lights turned on. You can set schedules that, over an hour, gently dim the room before switching the lights off completely. That way, the little one will be comfortably asleep, and no energy will go to waste!
Set the mood instantly Shelly Dimmers doesn't stop at schedules- it embraces moments too. With its pre-set lighting scenes, a simple voice command can transform your room. Feel like watching a movie? Just tell Alexa, "Movie night," and your space instantly adapts, casting the perfect ambiance for your cinematic experience.
"Night mode" for soft night light Walking to the bathroom at night could no longer irritate your sleepy eyes. Shelly Plus 0-10V Dimmer has a "Night mode" functionality, setting the lights' brightness at a low level during the night hours. Now when the lights are turned on manually, through voice, or a motion sensor, they will always be dimmed and soft.

Wi-Fi operated

Connect Shelly Plus 0-10V Dimmer to your Wi-Fi network. No HUB required!

Smart schedules

Set custom schedules based on your daily agenda, or follow the sunrise/sunset and control your lighting accordingly.

Smart scenes

Set custom scenes by combining Shelly Plus 0–10V Dimmer with your other Shelly devices.

Bluetooth

Quick inclusion via Bluetooth or use it as a Bluetooth gateway.

Flexible input control

Use it with your existing switches, no matter if they're single or dual button.

Scripting

Shelly Plus 0-10V Dimmer fully supports scripting, allowing you local control and custom functionalities.

Specifications

Physical

Size (HxWxD):

42x37x17 ±0.5 mm / 1.65x1.46x0.66 ±0.02 in

Weight:

17 g / 0.60 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.5 to 1.5 mm² / 20 to 16 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

5 to 6 mm / 0.20 to 0.24 in

Mounting:

In-wall

Shell material:

Plastic

Shell color:

Shell: 2716C, print: black

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

110 - 240 VAC ±10%

Power consumption:

< 1.2 W

Neutral not needed:

No

0-10V voltage control type:

Current sinking

Output circuits ratings

Max. switching voltage:

10 VDC

Max. switching power:

0.35 W

Max. switching current:

35 mA

Sensors, meters

Internal-temperature sensor:

Yes

Wi-Fi

Protocol:

802.11 b/g/n

RF band:

2401 - 2495 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth

Protocol:

4.2

RF band:

2400 - 2483.5 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Microcontroller unit

CPU:

ESP32-U4WDH

Flash:

4 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

MQTT:

Yes

Scripting:

Yes
