One Device, Different possibilities

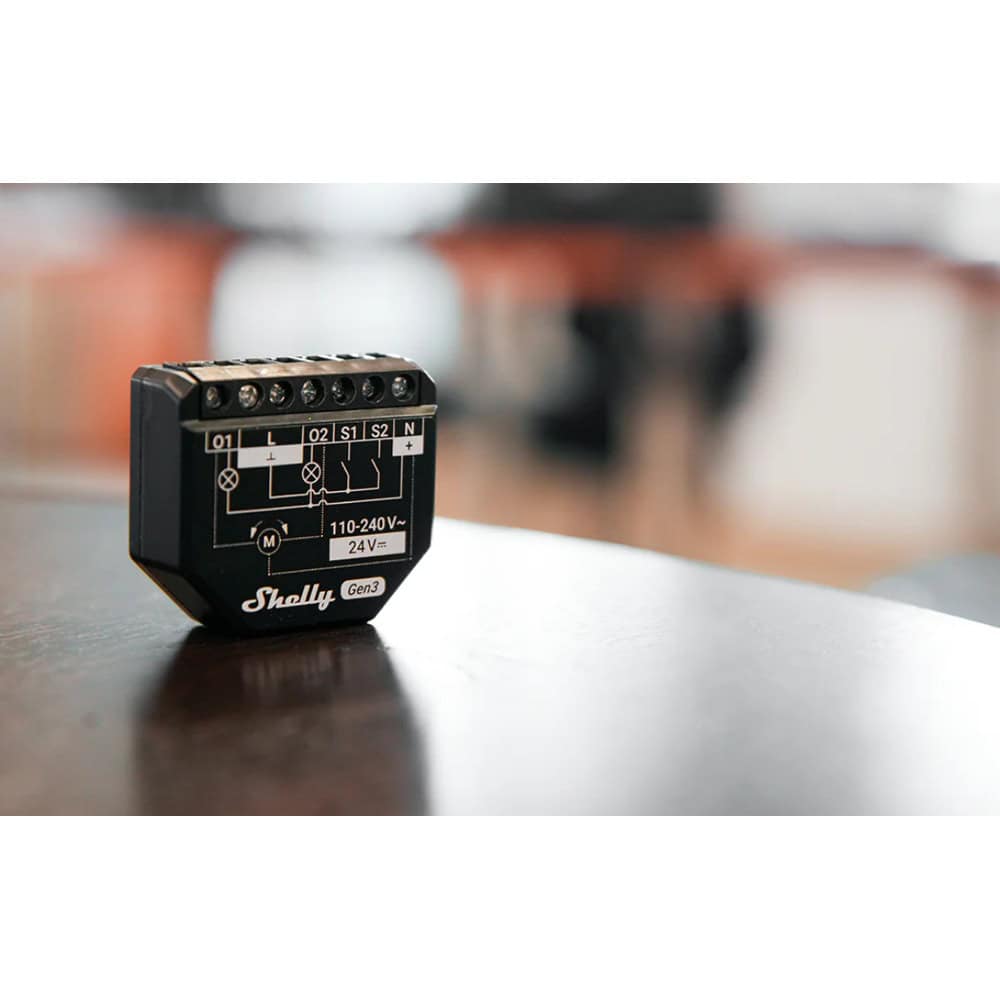

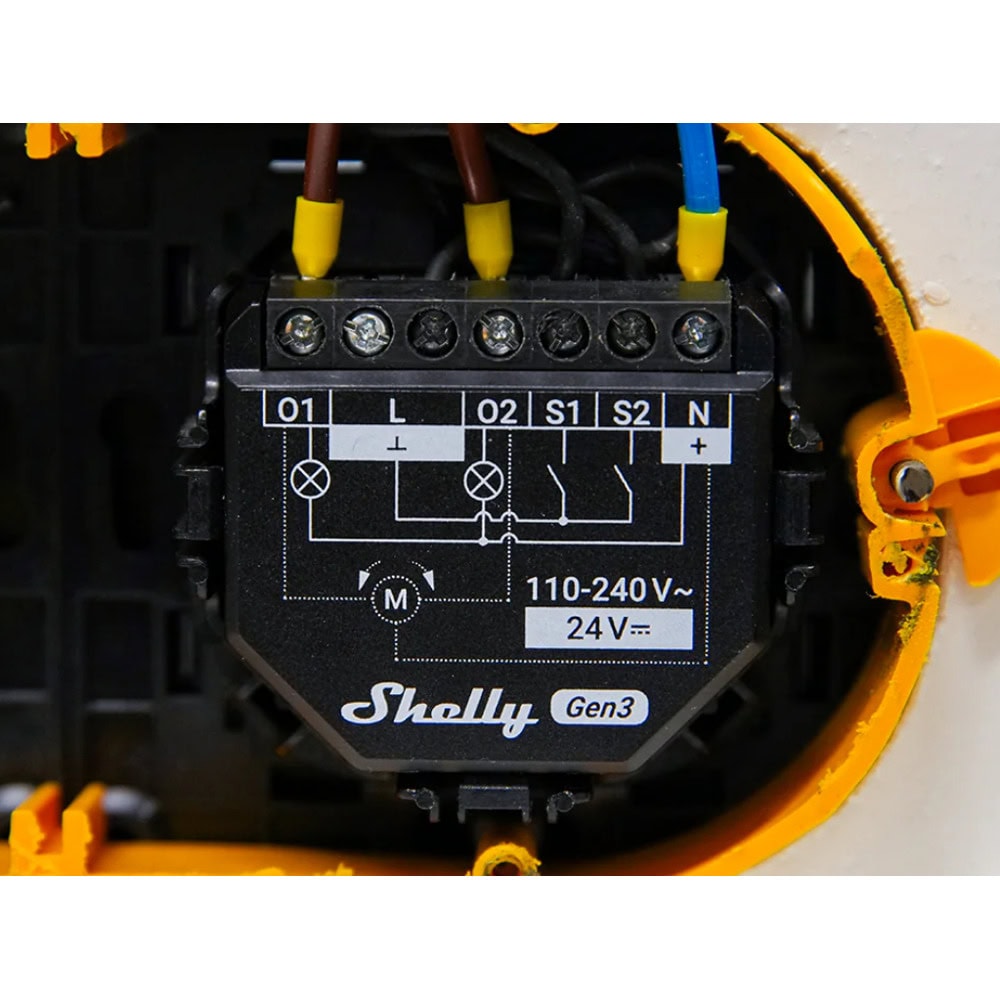

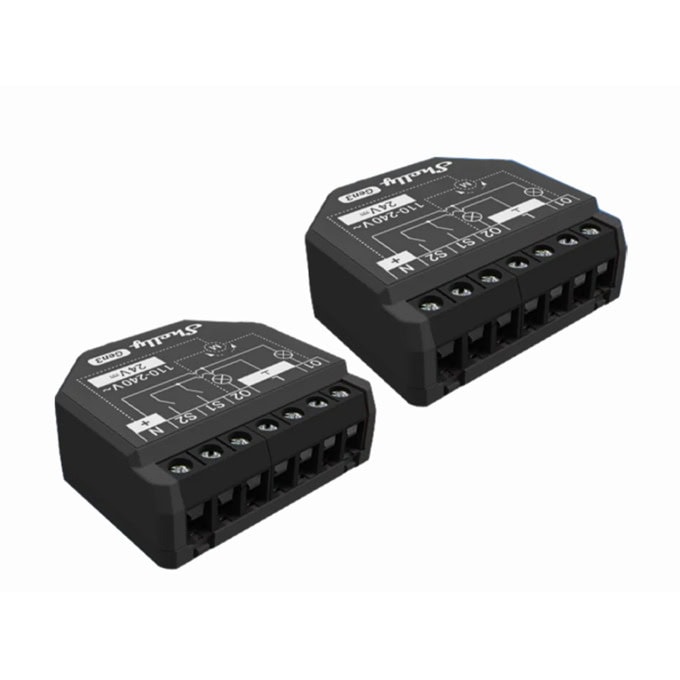

2-Channel Smart Switch
Automate your lights and track their real-time power usage.
Cover (Roller) Control
Automate and control the positioning of roller shutters, curtains, blinds, awnings, gates, pool covers, and other bi-directional AC motors.
Wi-Fi Operated
Connect Shelly 2PM Gen3 to your Wi-Fi network. No HUB required!
Bluetooth
Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.

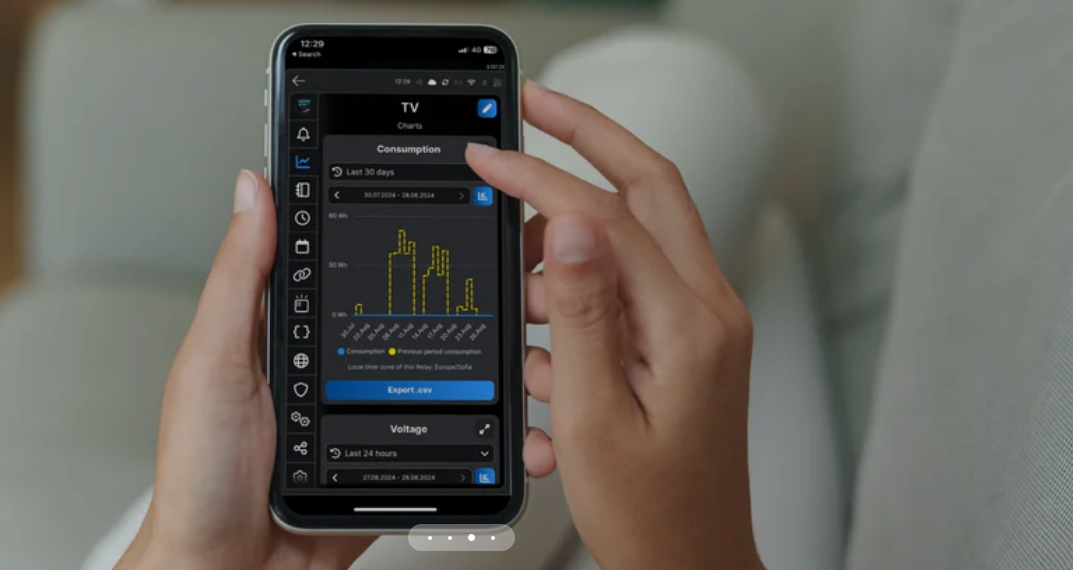

Power monitoring
Two integrated precise power meters allow you to monitor the consumption for each channel.
Slats angle control
Use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
Smart scenes
Set custom scenes by combining Shelly 1 Gen3 with your other Shelly devices.
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
Specifications
Environmental
| Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting: | Wall box |
| Shell material: | Plastic |
Electrical
| Power supply: | 110 - 240 V~ / 24 V⎓ ±10% |
| Power consumption: | < 1.4 W |
| External protection: | Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3 |
Output circuits ratings
| Max. switching voltage: |
|
| Max. switching current AC: | 10 A (per channel), 16 A (total), 18 A (total peak) |
| Max. switching current DC: | 10 A |
Sensors, meters
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
| Internal-temperature sensor: | Yes |
Radio
Wi-Fi
| Protocol: | 802.11 b/g/n |
| RF band: | 2412 - 2472 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
Bluetooth
| Protocol: | 4.2 |
| RF band: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Microcontroller unit
| CPU: | ESP-Shelly-C38F |
| Flash: | 8MB |
