Дънна платка Gigabyte B650M S2H, B650, AM5, DDR5, PCI-E 4.0 (VGA&DP&HDMI), 1x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen 1, Micro ATX

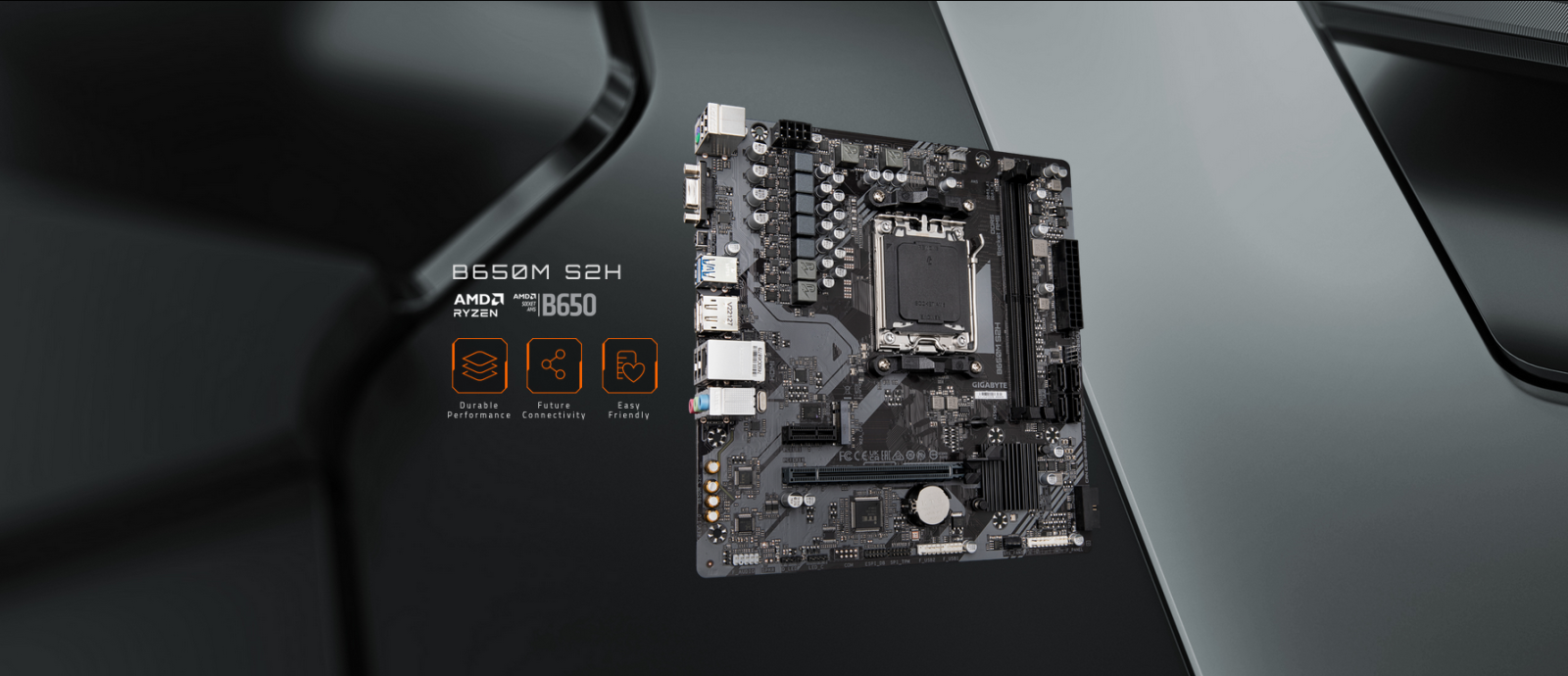

Gigabyte B650M S2H

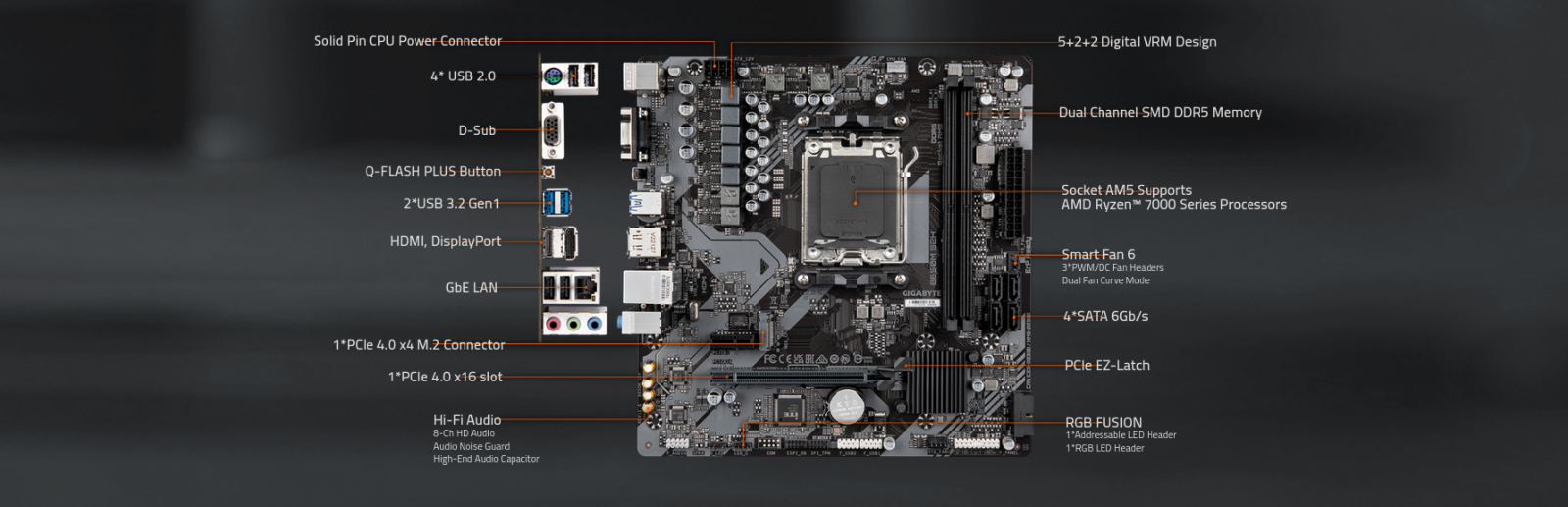

• AMD Socket AM5：Supports AMD Ryzen 7000 Series Processors
• Unparalleled Performance：5+2+2 Phases Digital VRM Solution
• Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
• SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
• EZ-Latch：PCIe x16 Slot with Quick Release Design
• Fast Networks：GbE LAN
• Extended Connectivity：DP, HDMI, D-Sub
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Tech specs:

• CPU

  AMD Socket AM5, support for:
  AMD Ryzen 7000 Series Processors



• Chipset

  AMD B650



• Memory

  Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules


• Onboard Graphics

  Integrated Graphics Processor:
  - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

  * Support for DisplayPort 1.4 version.


  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.
  (Graphics specifications may vary depending on CPU support.)
  Support for up to 3 displays at the same time



• Audio

  Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel



• LAN

  Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)



• Expansion Slots

  CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16


  Chipset:
  - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



• Storage Interface

  CPU:
  - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)


  Chipset:
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices



• USB

  CPU:
  - 2 x USB 3.2 Gen 1 ports on the back panel
  - 1 x USB 2.0/1.1 port on the back panel


  Chipset:
  - 2 x USB 3.2 Gen 1 ports available through the internal USB header
  - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)



• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x addressable LED strip header
  1 x RGB LED strip header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
  1 x Clear CMOS jumper



• Back Panel Connectors

  4 x USB 2.0/1.1 ports
  1 x PS/2 keyboard/mouse port
  1 x D-Sub port
  1 x Q-Flash Plus button
  2 x USB 3.2 Gen 1 ports
  1 x DisplayPort
  1 x HDMI port
  1 x RJ-45 port
  3 x audio jacks



• I/O Controller

  iTE I/O Controller Chip



• BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


• Operating System

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit



• Form Factor

  Micro ATX Form Factor; 23.0cm x 22.5cm
