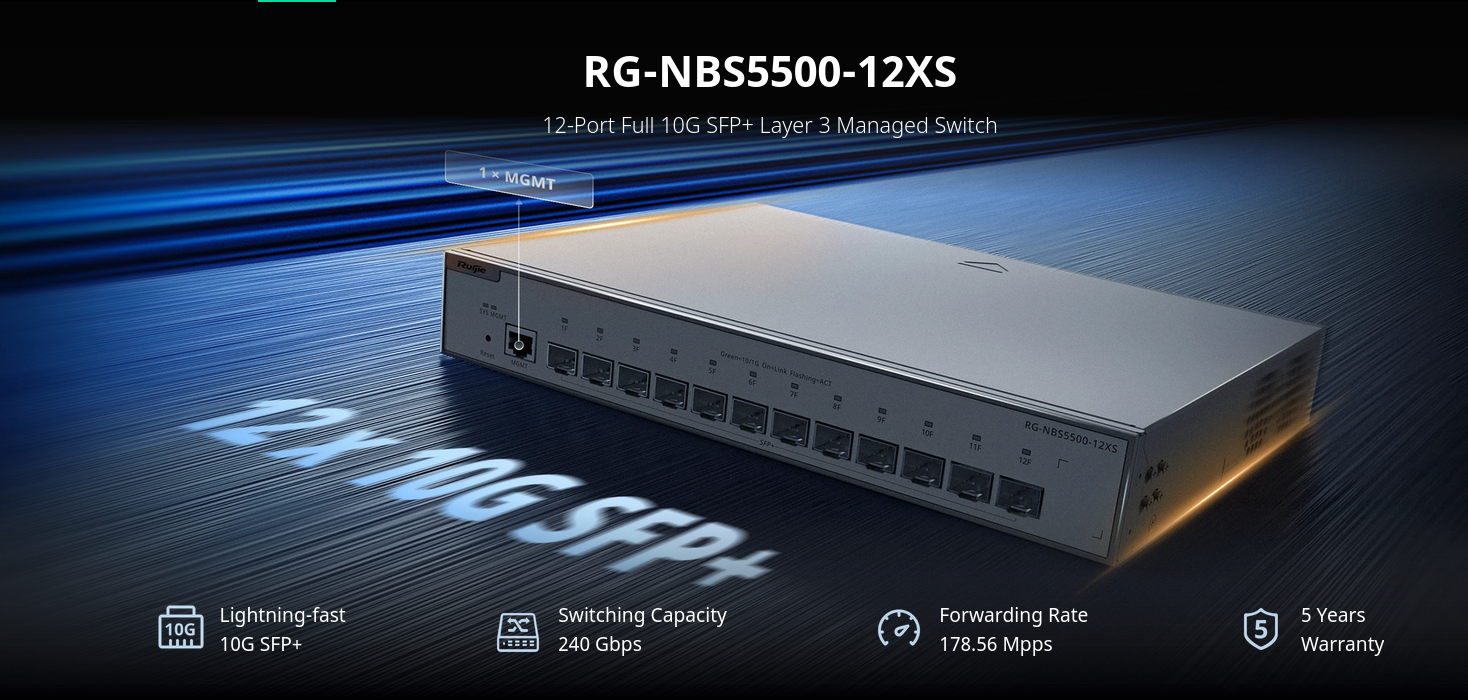

RG-NBS5500-12XS, 12-Port Full 10G SFP+ Layer 3 Managed Switch
Highlight Features
- 12-Port Full 10G SFP+ Layer 3 Managed Switch
- Lightning-fast 10G Ports, Unleashing the Full Performance of Wi-Fi 7 APs
- Easy Configuration with the MGMT Port
- Rich Layer 3 Features: VCS, Static Routing, RIP, OSPF, DHCP Server, etc.
- Multiple Security Policies Protect Your Network
- Easy cloud management anytime and anywhere

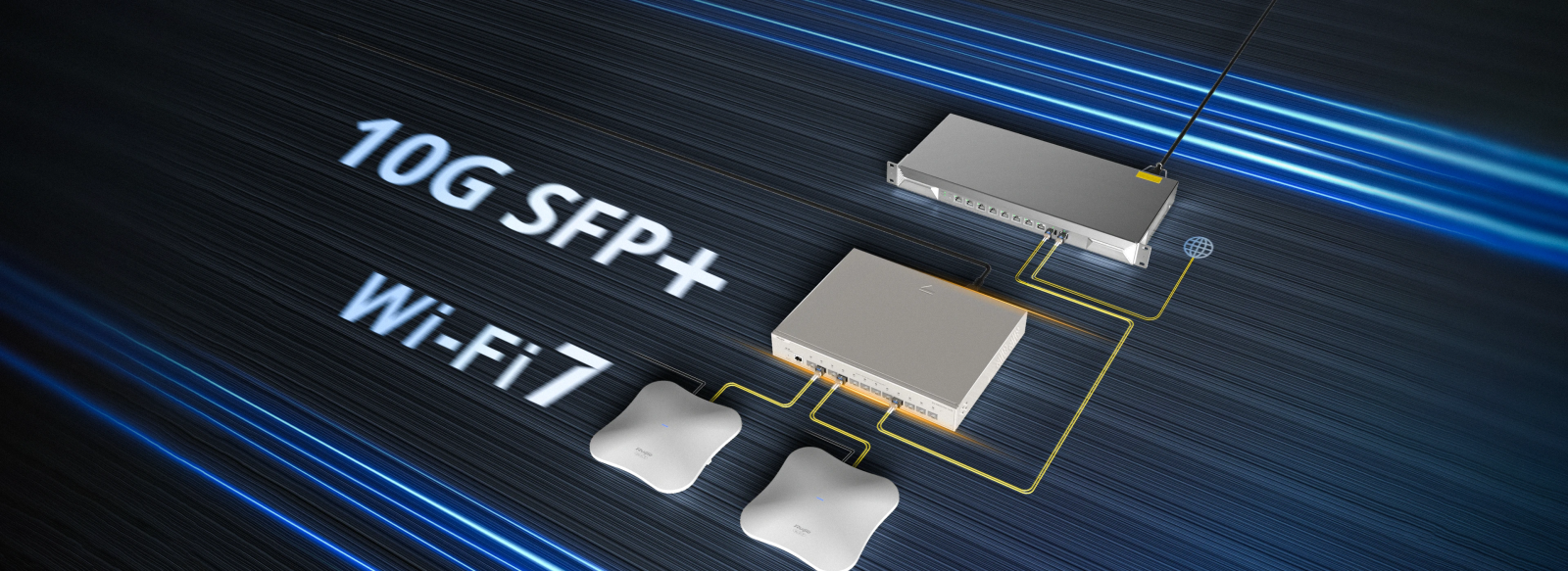

Lightning-fast 10G Ports,
Unleashing the Full Performance of Wi-Fi 7 APs

Specifications:
Hardware Specifications
Number of 10 Gbps Optical Ports (SFP+) | 12 |
Number of Fans | 2 |
Power Supply Options | Single fixed power supply |
Number of Management Ports | 1 x 10/100/1000BASE-T MGMT port |
Forwarding Rate | 178.56 Mpps |
Switching Capacity | 240 Gbps |
MAC Address Table Size | 32000 |
ARP Table Size | 2000 |
IPv4 Hardware Routing Table Size (Host Routing) | 12000 |
Static IPv4 Routing Table Size | 500 |
IPv6 Hardware Routing Table Size (Required to Learn All Routes Under the Full Mesh Testing Model) | 500 |
Static IPv6 Routing Table Size | 500 |
Number of ACEs | Inbound: 1900 Outbound: 0 |
Number of VCS Members | 2 |
Dimensions (W x D x H) | 300 mm x 232 mm x 44 mm (11.81 in. x 9.13 in. x 1.73 in.) |
Net Weight | 2.26 kg (4.98 lbs) |
Gross Weight | 3.04 kg (6.70 lbs) |
Power Supply | Rated voltage range: 100–240 V AC Maximum voltage range: 90–264 V AC Frequency: 50/60 Hz Rated current: 2 A |
Power Consumption | 44 W |
Output Power | 12 V/5.83 A, Power=70 W |
Airflow | Left to right |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
Operating Humidity | 10% to 90% RH (non-condensing) |
Storage Humidity | 5% to 95% RH (non-condensing) |
Port Surge Protection | Common mode: 6 kV |
Power Supply Surge Protection | Common mode: 6 kV Differential mode: 6 kV |
Certification | CE; FCC; IC; CTUVUS |
Software Specifications
Software Specifications | RG-NBS5500-12XS | |
Ethernet Switching | Jumbo Frame | 9216 Bytes (Per-port MTU) |
VLAN | 802.1Q VLAN | |
Port-based VLAN | ||
Voice VLAN | ||
STP | STP (IEEE 802.1D) | |
RSTP (IEEE 802.1W) | ||
LLDP | LLDP | |
LLDP-MED | ||
IP Service | ARP | ARP |
DHCP | DHCP Relay | |
DHCP Snooping | ||
DHCP Server | ||
DHCP Client |
IP Routing | Static Routing | Static Routing |
RIP | RIP | |
RIPng | ||
OSPF | OSPFv2 | |
OSPFv3 | ||
Multicast | IGMP | IGMP Snooping |
IGMPv1 Snooping | ||
IGMPv2 Snooping | ||
IGMPv3 Snooping (Basic) | ||
MVR Mode (MVR receiver ports can only be access ports.) | ||
IGMP Filtering | ||
IGMP Fast Leave | ||
PIM | PIM-SM | |
ACL and QoS | ACL | IP Standard ACL |
MAC Extended ACL | ||
IP Extended ACL | ||
IPv6 ACL | ||
QoS | Port-Level Rate Limiting (Ingress/Egress) | |
Security | 802.1X | IEEE 802.1X Authentication |
Port-based Authentication | ||
MAC-based Authentication | ||
Global IEEE 802.1X Authentication Control | ||
Force Authorized |
Security | 802.1X | Force Unauthorized |
Port-based Single-Host Mode | ||
PEAP Authentication for Windows 7/8/10/11 Clients | ||
PEAP Authentication for macOS Clients | ||
PEAP Authentication for Linux OS Clients | ||
Management via Web Interface | Web Authentication | |
HTTP | ||
HTTPS | ||
IP-MAC-Port Binding | IP-MAC-Port Binding | |
ARP Anti-Spoofing | ARP Anti-Spoofing | |
IP Source Guard | IP Source Guard | |
CPU Protection Policy (CPP) | Hardware CPP | |
Reliability | RLDP | RLDP |
Smart Temperature Control | Fan Speed Auto-Adjustment | |
Device virtualization | Virtual Cluster Switching (VCS) | Support Inter-Chassis Hot Standby |
Configuring 10G Ports for VCLS | ||
Dual-Active Detection (DAD) | ||
Cross-device Link Aggregation for Load Balancing | ||
NMS and maintenance | SPAN | SPAN |
NTP | NTP Client | |
SNMP | SNMP v1 | |
SNMP v2c |
NMS and maintenance | SNMP | SNMP v3 |
MQTT | MQTT | |
Self-Organizing Network | Self-Organizing Network | |
Network Management | Management via Ruijie Cloud | |
Ruijie Cloud | View Device Details on Ruijie Cloud |
Виж още Суич Ruijie
Виж всички продукти Суич в категорията
Брой портове: | 12 |
---|---|
Максимална скорост: | 10 Gbit/s |
Стандарт: | 802.1X |
Управляем: | Да |
