Fortron HEXA 85+ Pro 550

PPA5504301

HEXA 85+ series, FSP brand new 80 PLUS® bronze ATX PSU, featured with DC to DC module and +12V single-rail design, taken with full Japanese capacitors and quiet 120mm silent fan, built in with complete protections: OCP, OVP, SCP, OPP, OTP and approved by global safety regulation. HEXA 85+ series comes out with four models – 350W, 450W,550W and 650W to satisfy various needs.

Complies with ATX12 v2.4 & EPS12 v2.92
High efficiency ≧ 85%
Active PFC ≧ 90%
Comply with 80 PLUS® bronze certification
+12V single-rail design
Full Japanese E-capacitors
Quiet 120mm silent fan
Complete protections: OCP, OVP, SCP, OPP, OTP
Global safety approved

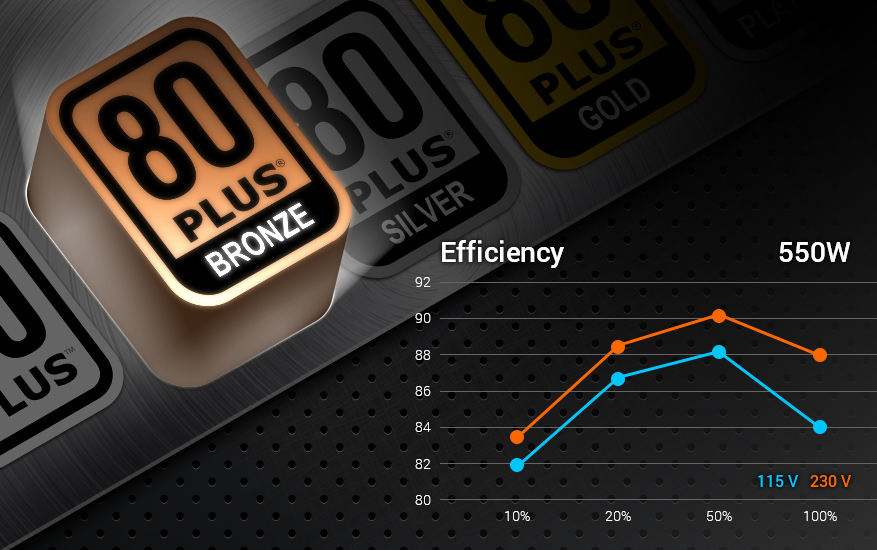

80 Plus® Bronze Certification

HEXA 85+ , 80 PLUS ® bronze certified, saves energy through its high efficiency up to 85%

Complete Protection

OCP, OVP, SCP, OPP, UVP, OTP, a full guardian of circuit protections to keep hardware safe.

AC/DC

AC Input	100-240Vac~ 10-5A 50-60Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	45.84A	0.3A	2.5A
Max Combined Power	100W		550W	3.6W	12.5W
Total Power	550W (at 40 °C)

Specifications

Model	HA550
Rated Output Power	550W
Form Factor	ATX PSU
80 PLUS Certification	Bronze
Input Voltage	100-240 Vac
Input Current	10-5A
Input Frequency	60-50 Hz
PFC	Active PFC
Efficiency	85%
Fan Type	Sleeve Fan, 120mm
Dimensions(L x W x H)	150 x 140 x 86 mm
Weight	1.55 kg
Protection	OCP, OVP, SCP, OPP, OTP
